Thread Repair Specifications

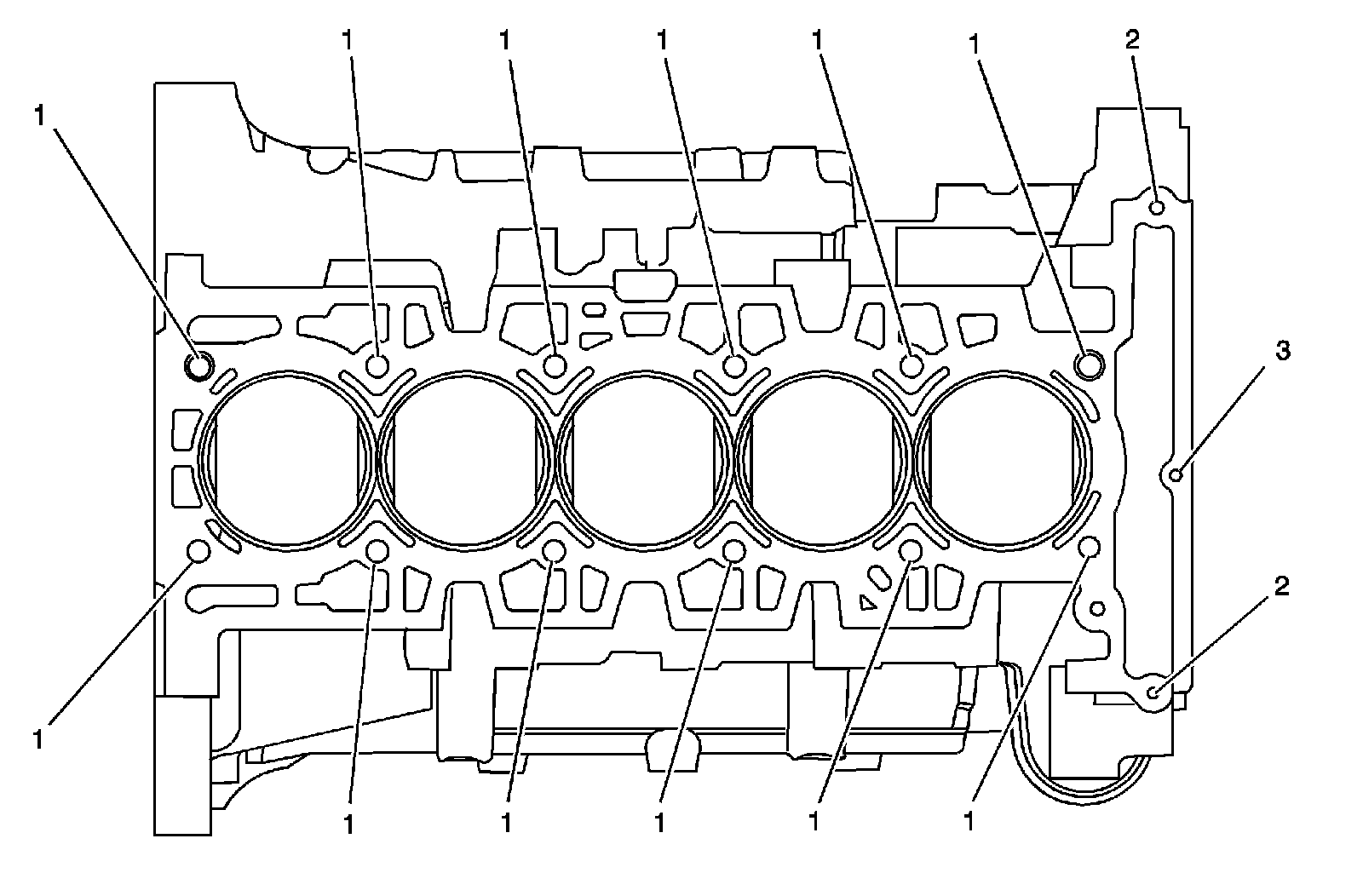

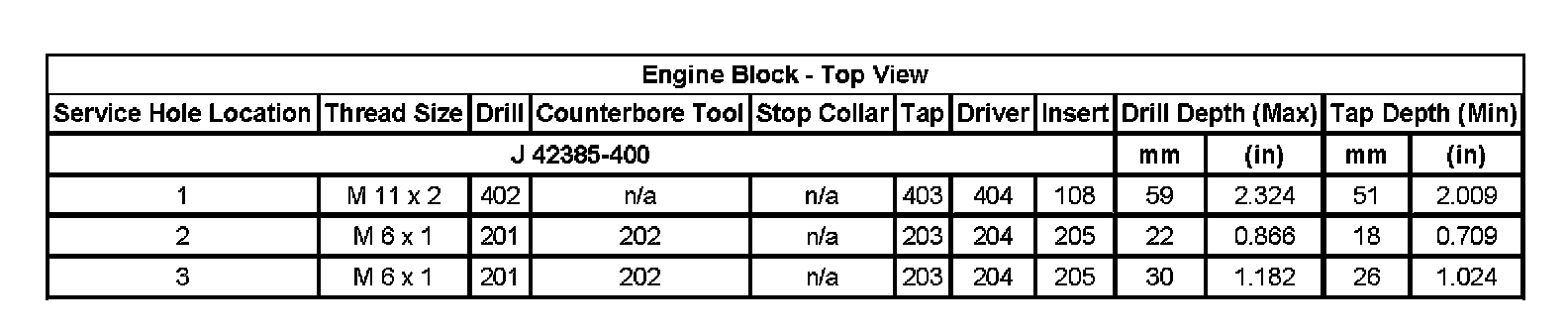

Engine Block - Top View:

Engine Block - Top View:

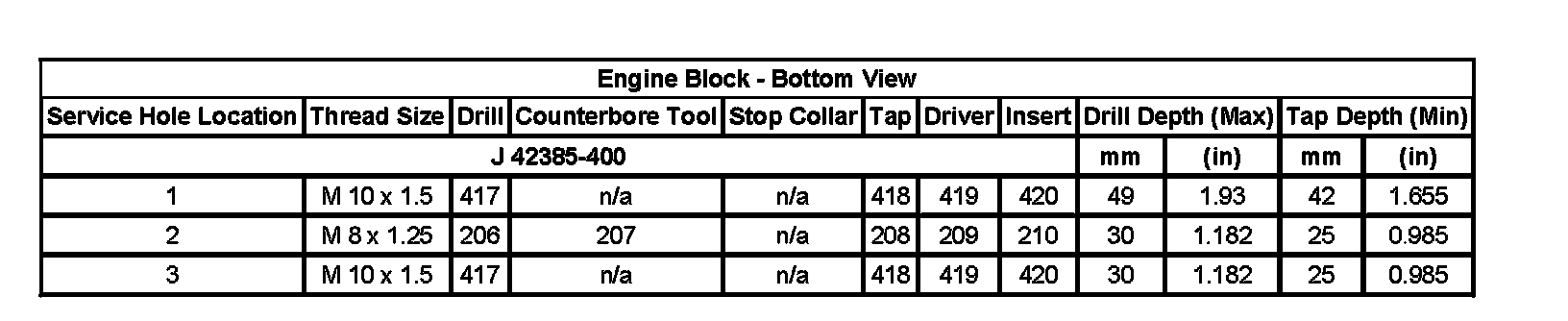

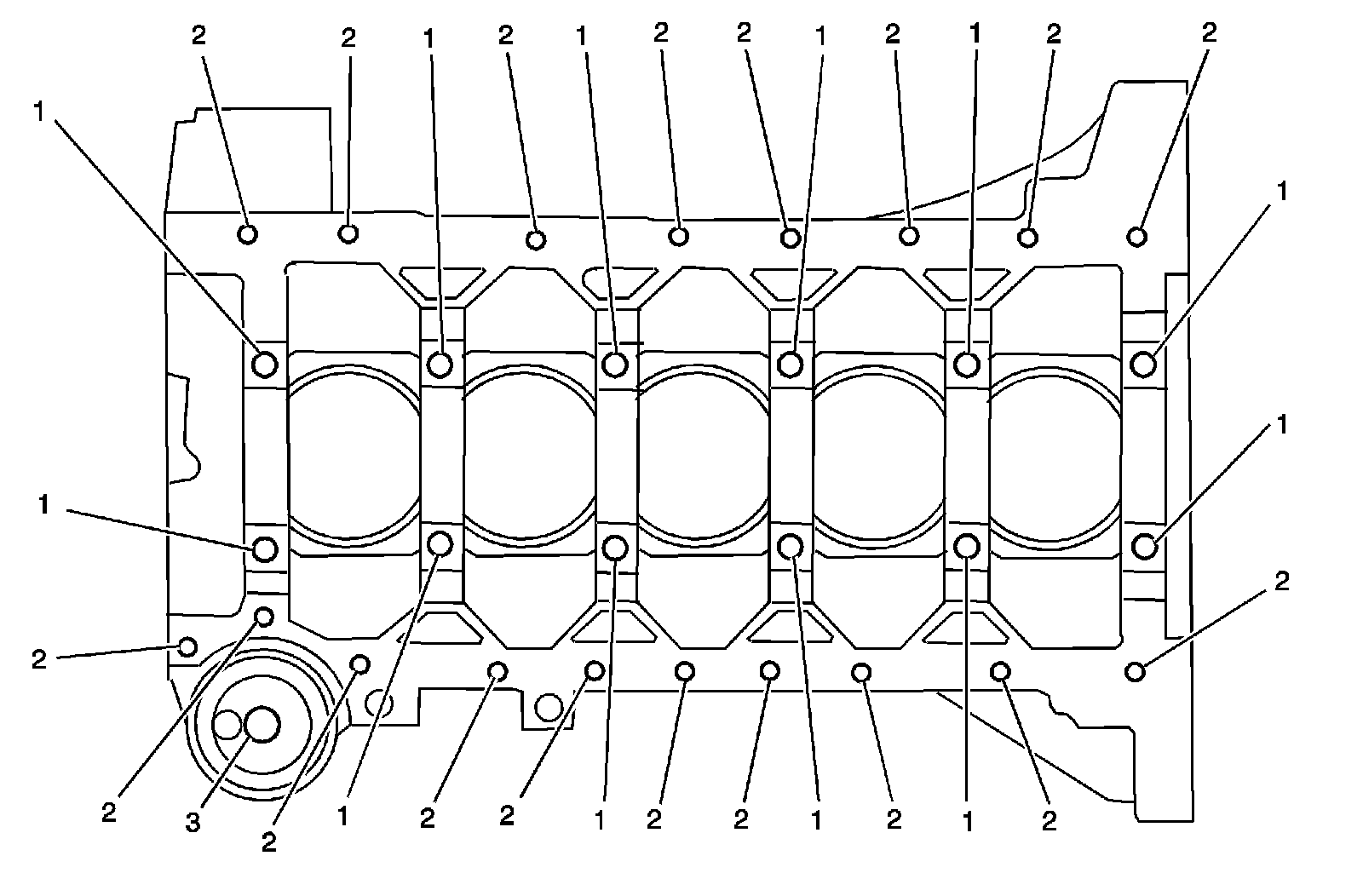

Engine Block - Bottom View:

Engine Block - Bottom View:

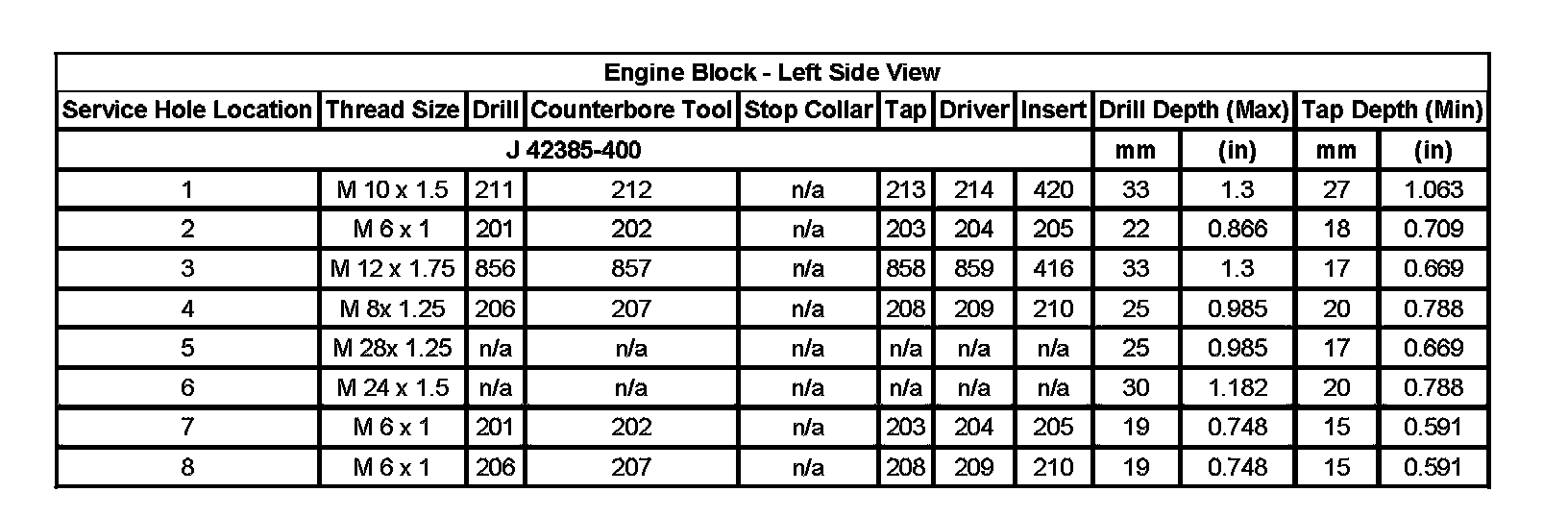

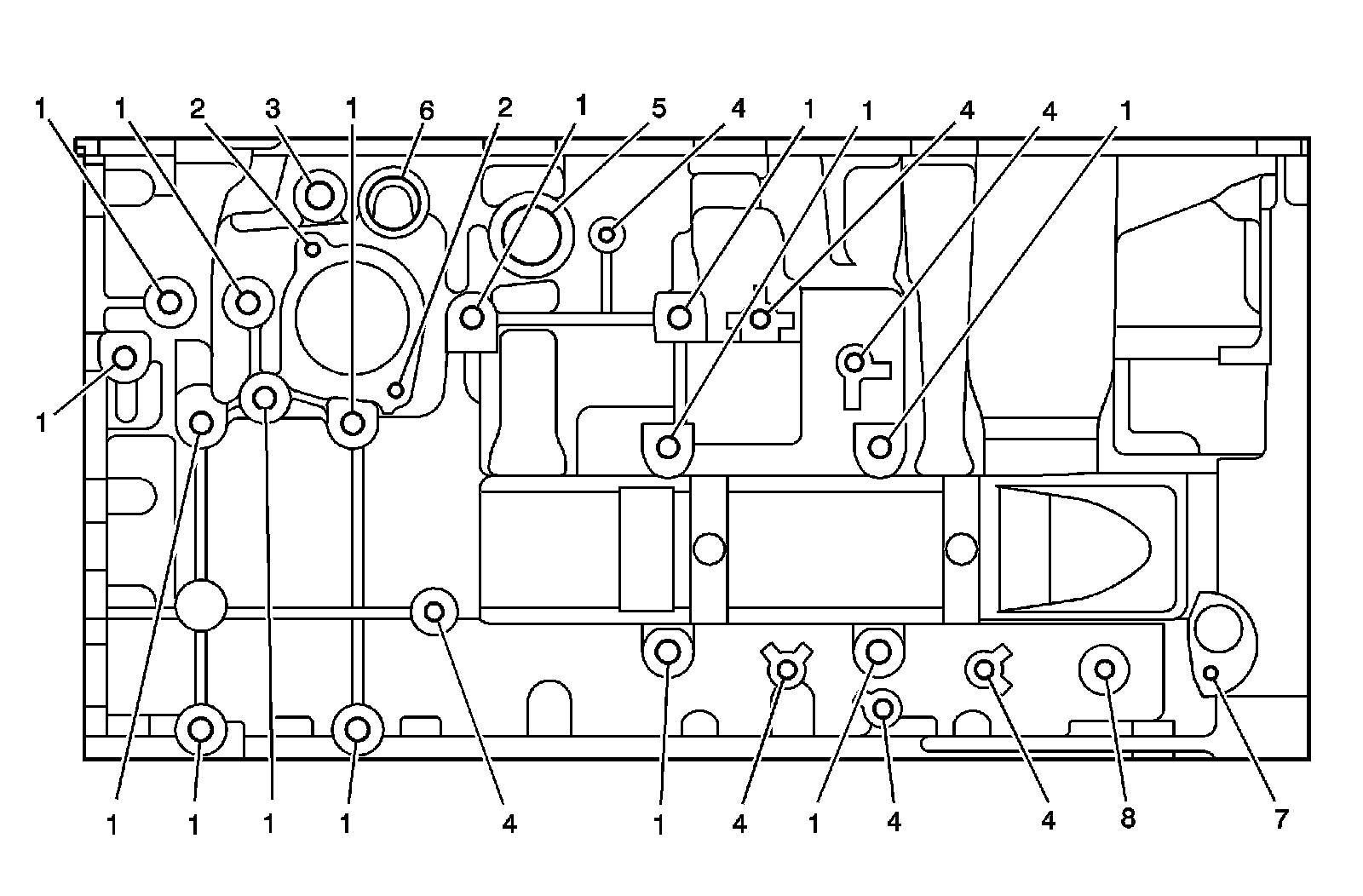

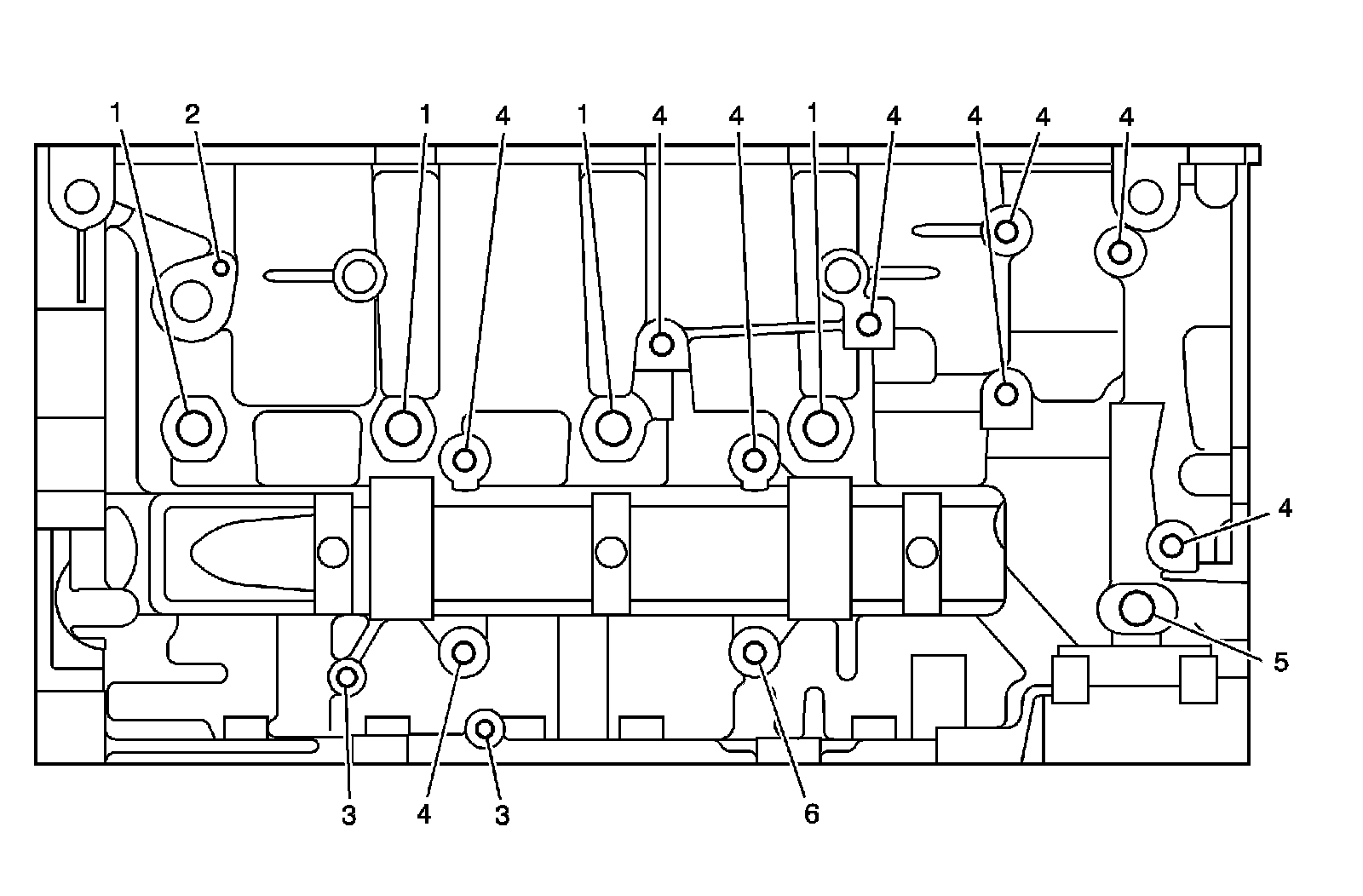

Engine Block - Left Side View:

Engine Block - Left Side View:

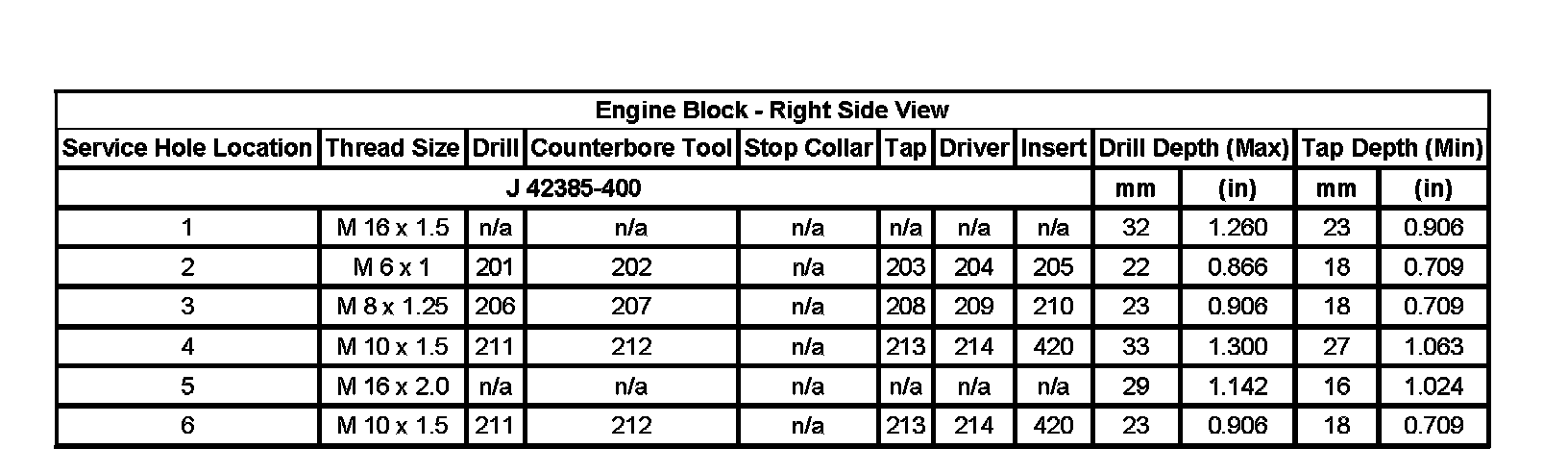

Engine Block - Right Side View:

Engine Block - Right Side View:

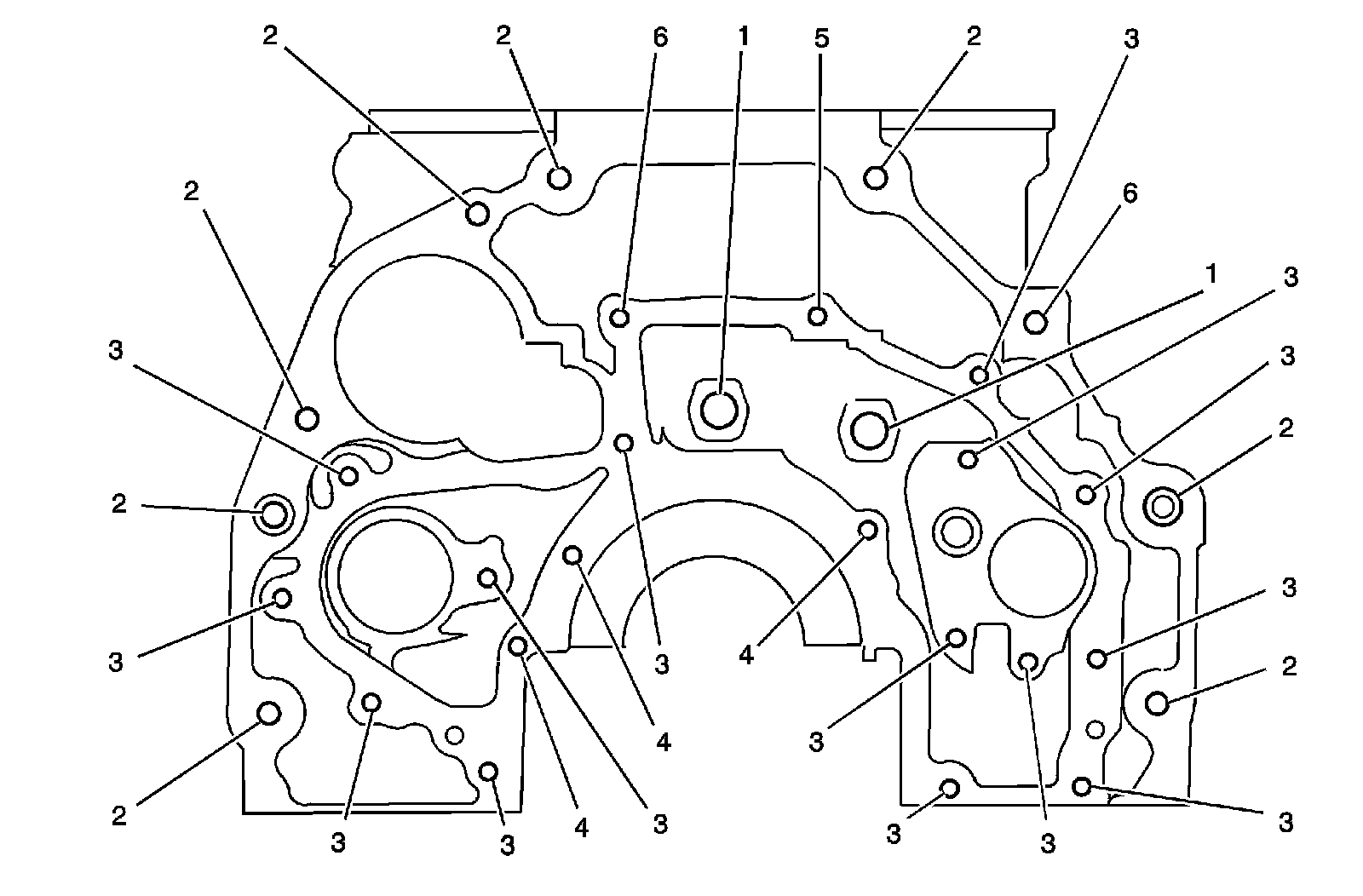

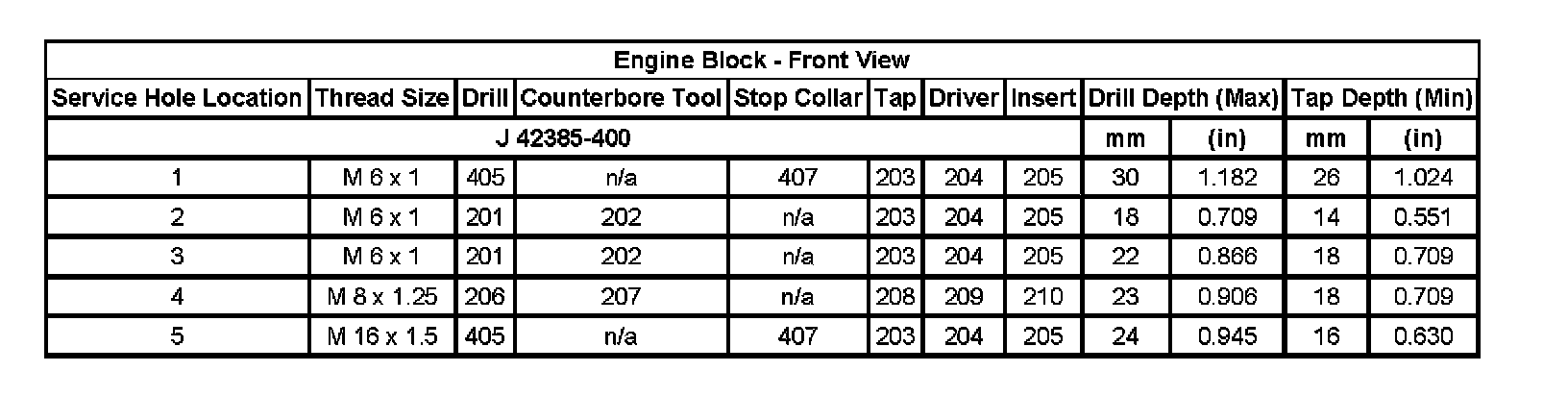

Engine Block - Front View:

Engine Block - Front View:

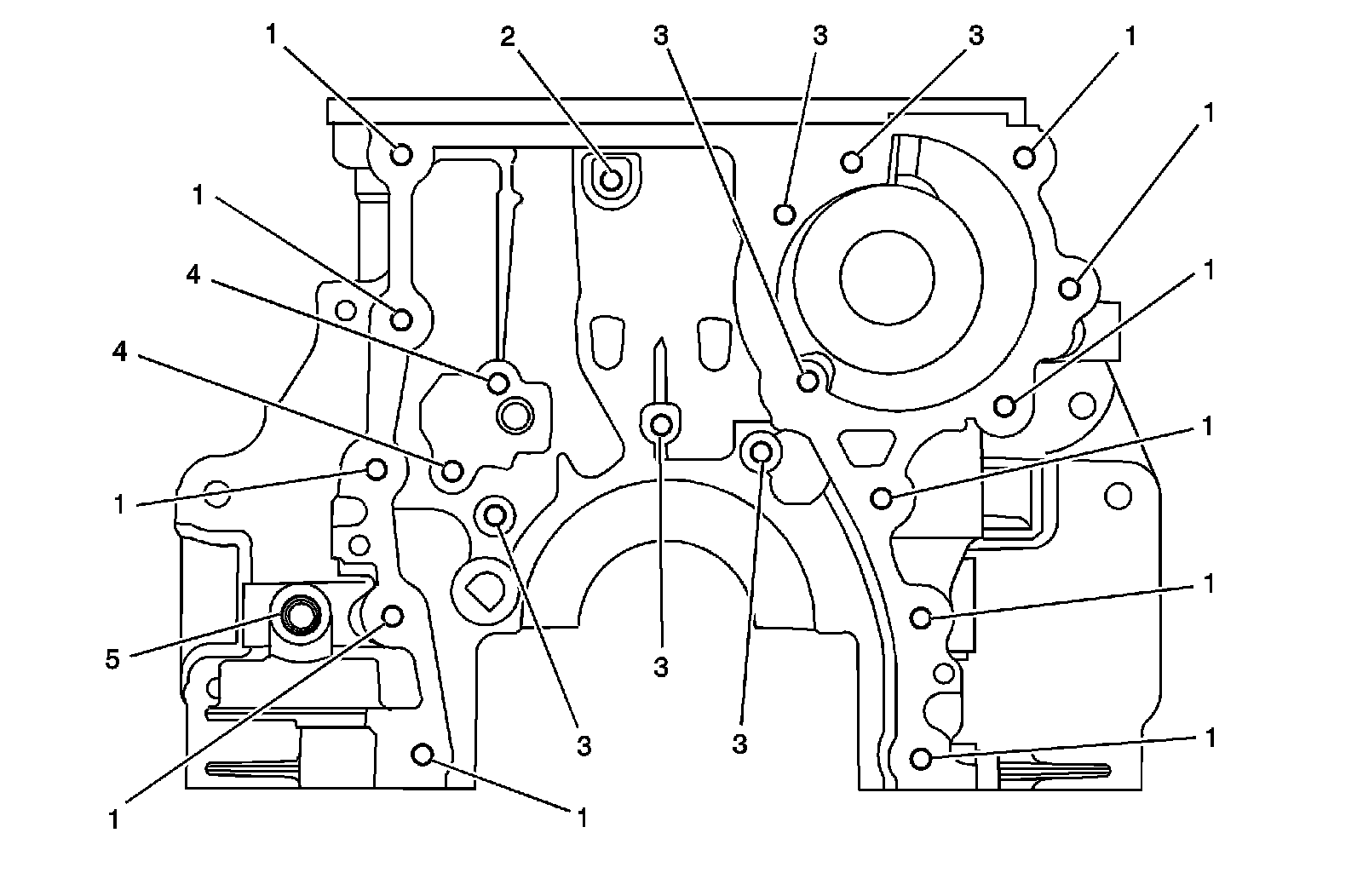

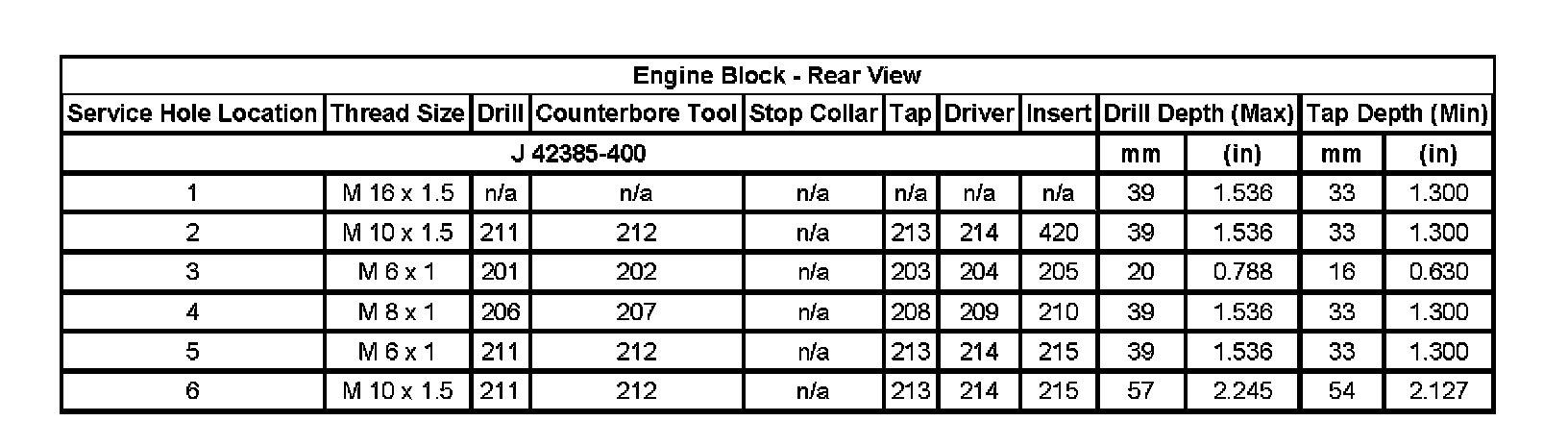

Engine Block - Rear View:

Engine Block - Rear View:

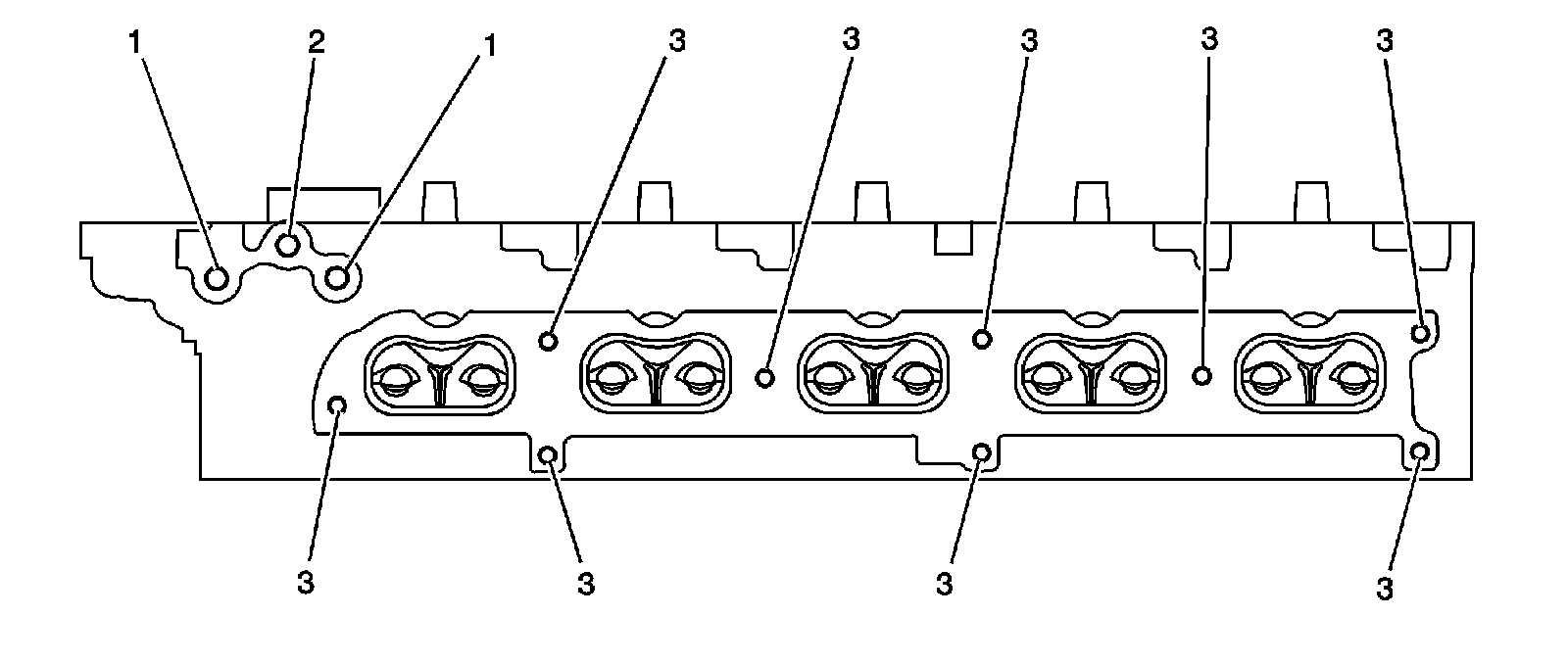

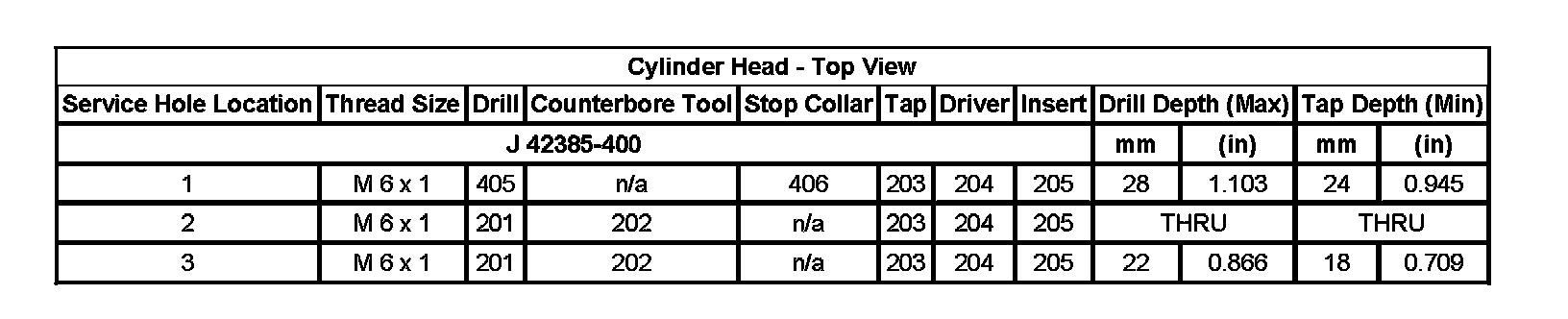

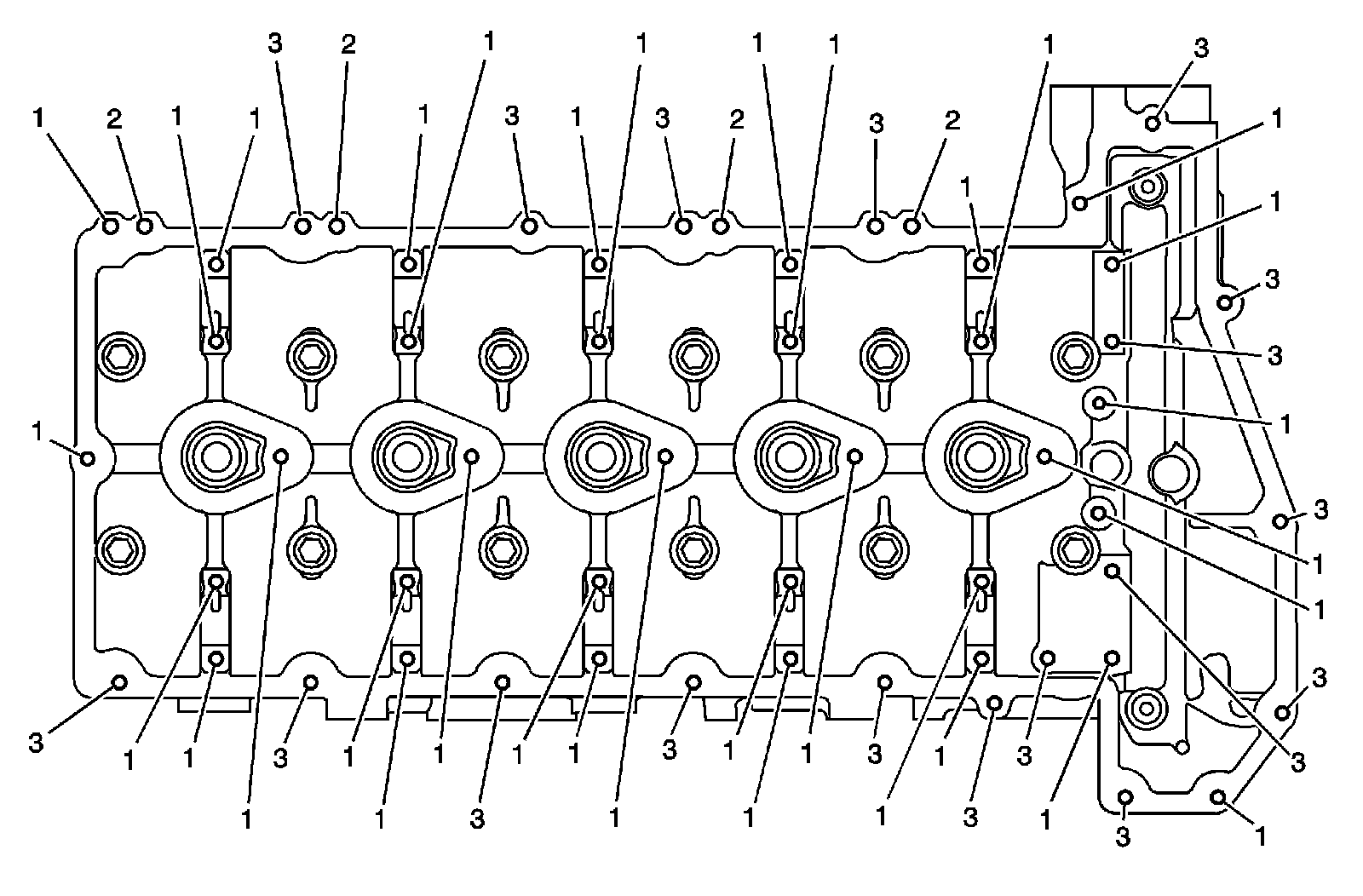

Cylinder Head - Top View:

Cylinder Head - Top View:

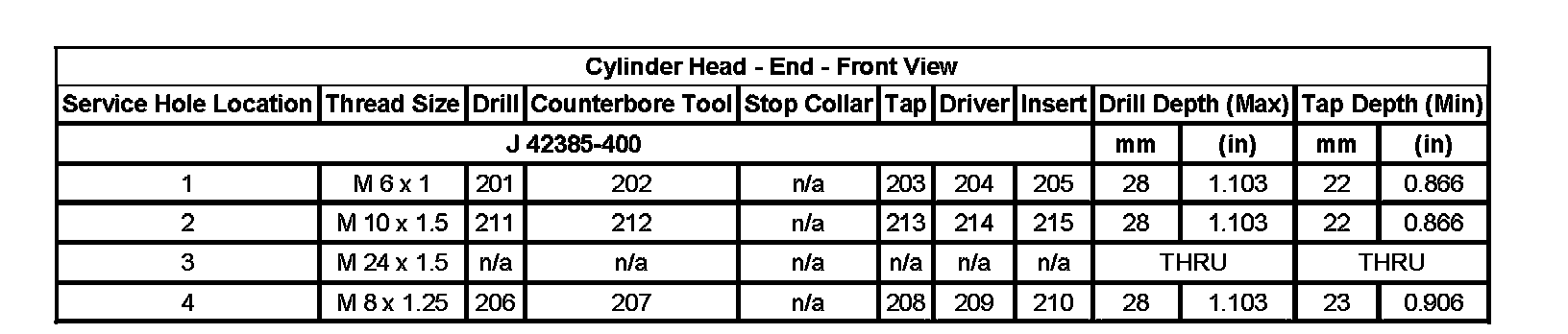

Cylinder Head - End - Front View:

Cylinder Head - End - Front View:

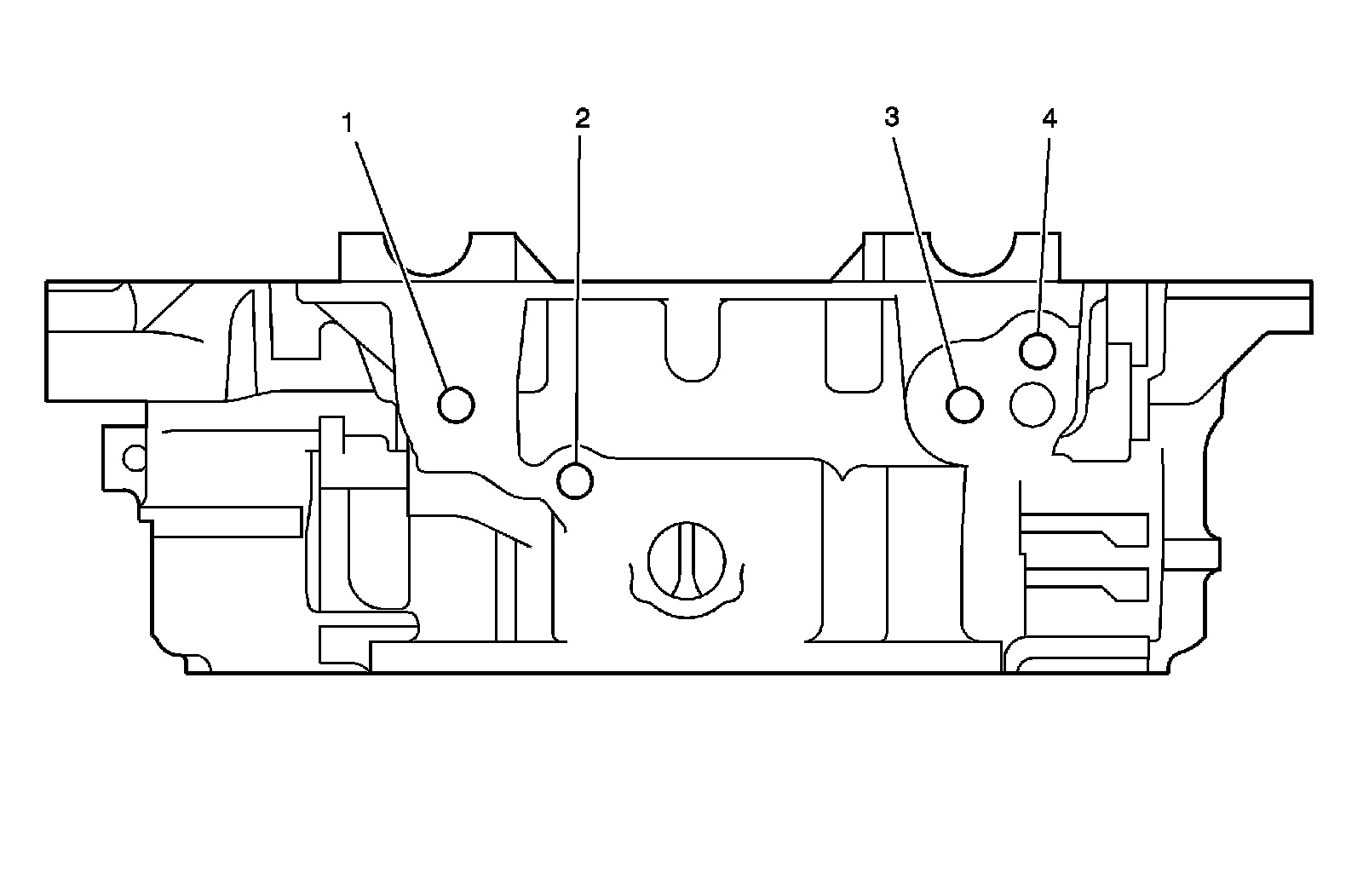

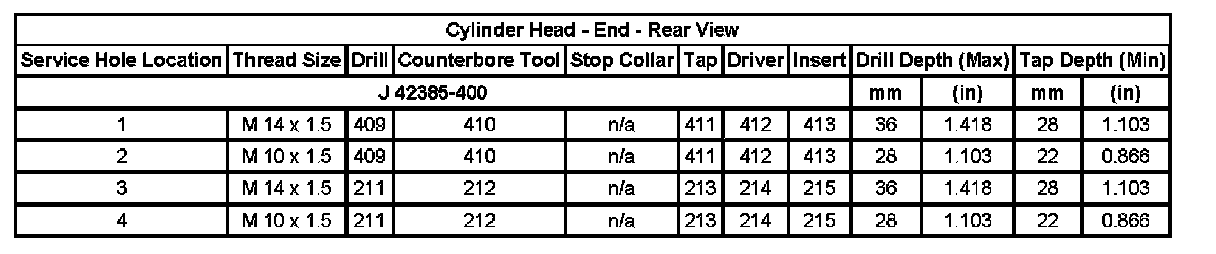

Cylinder Head - End - Rear View:

Cylinder Head - End - Rear View:

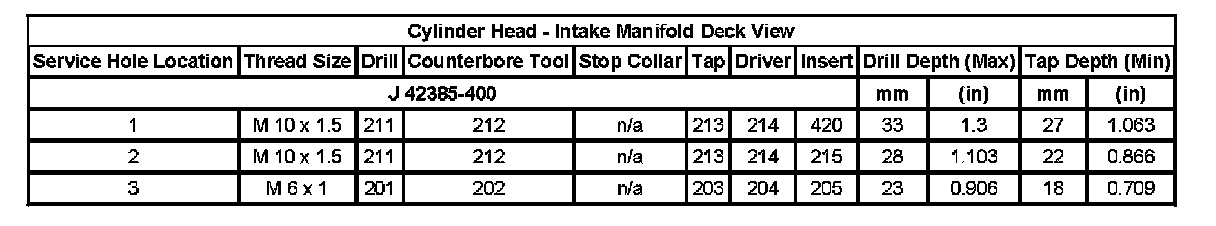

Cylinder Head - Intake Manifold Deck View:

Cylinder Head - Intake Manifold Deck View:

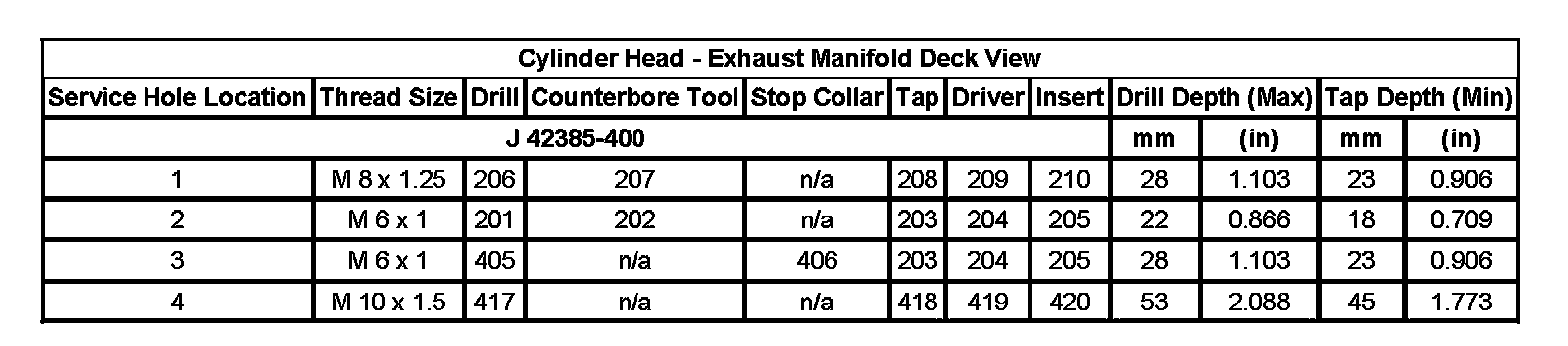

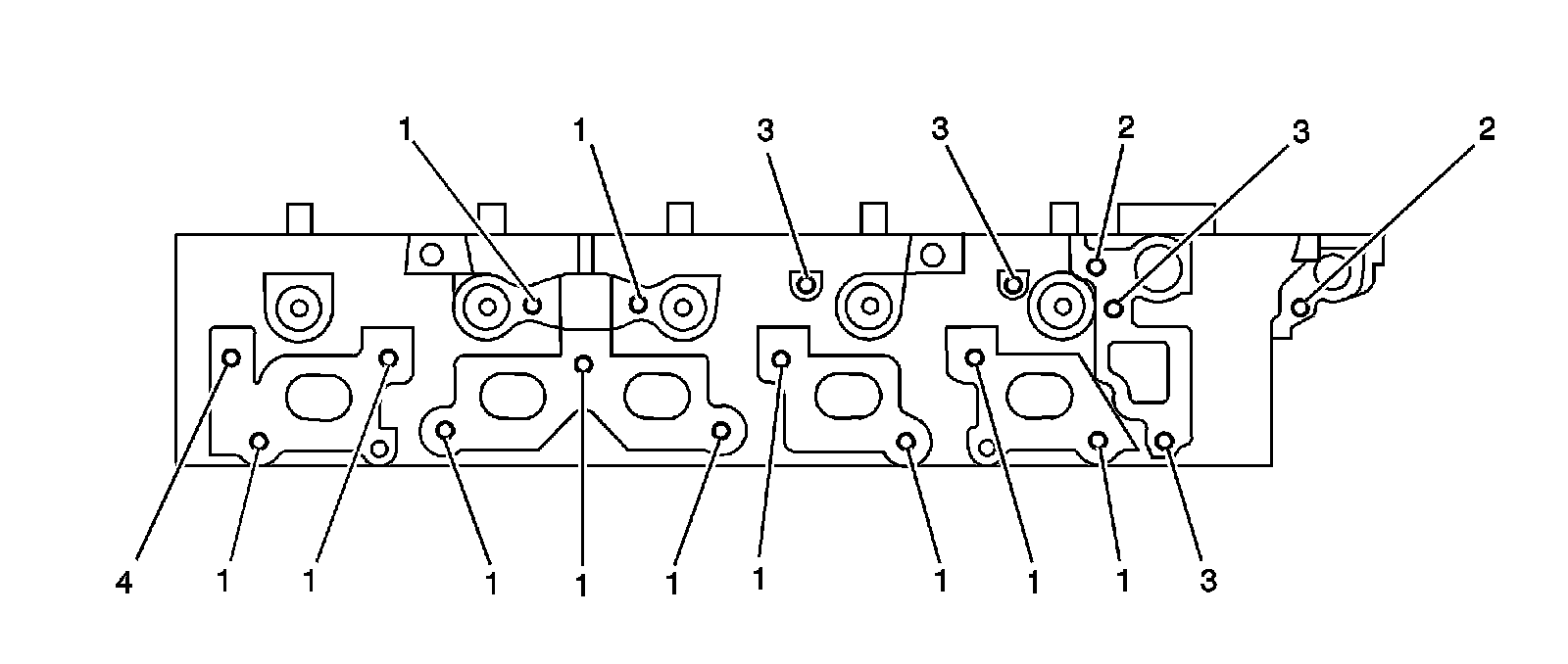

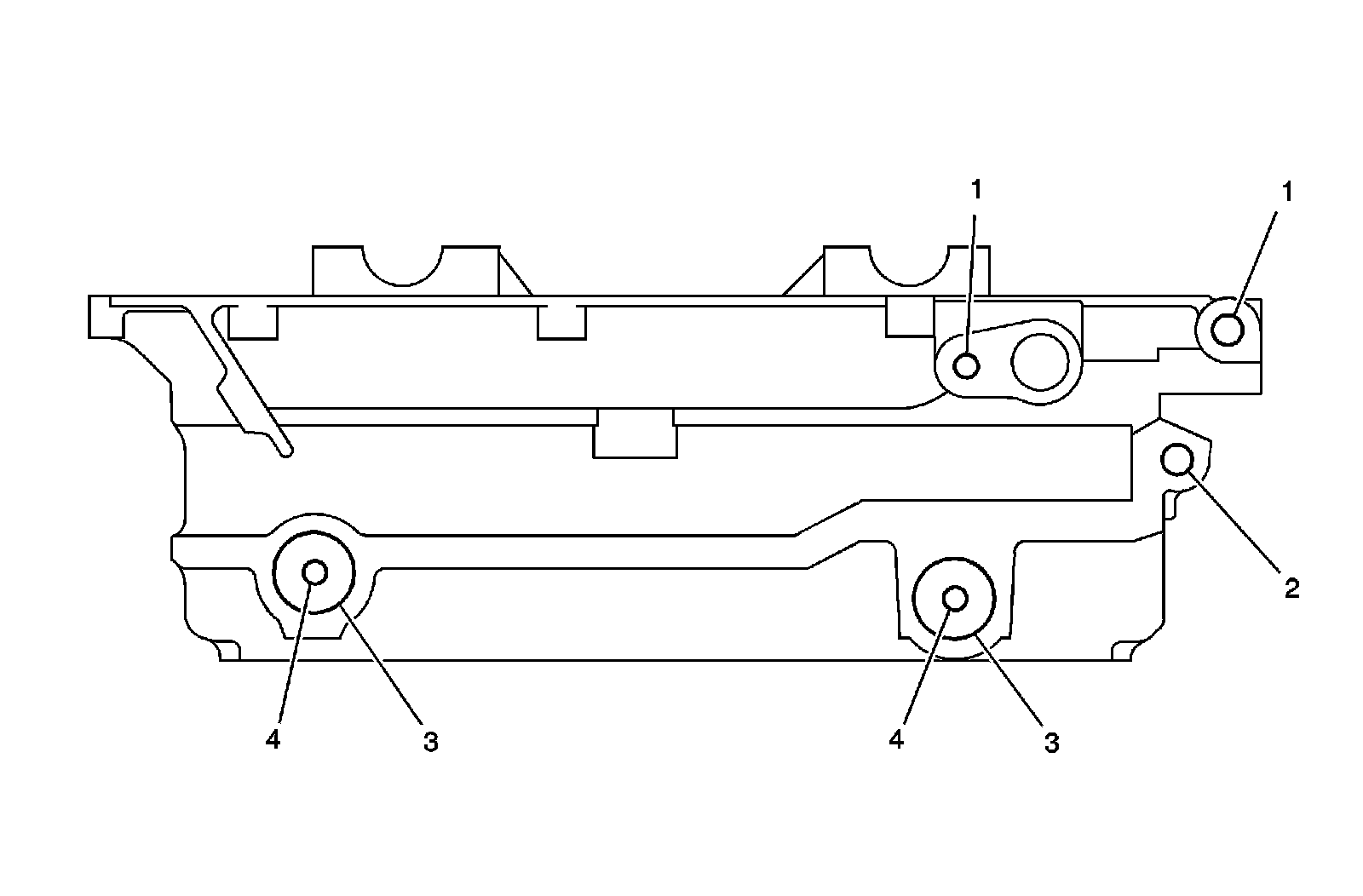

Cylinder Head - Exhaust Manifold Deck View:

Cylinder Head - Exhaust Manifold Deck View:

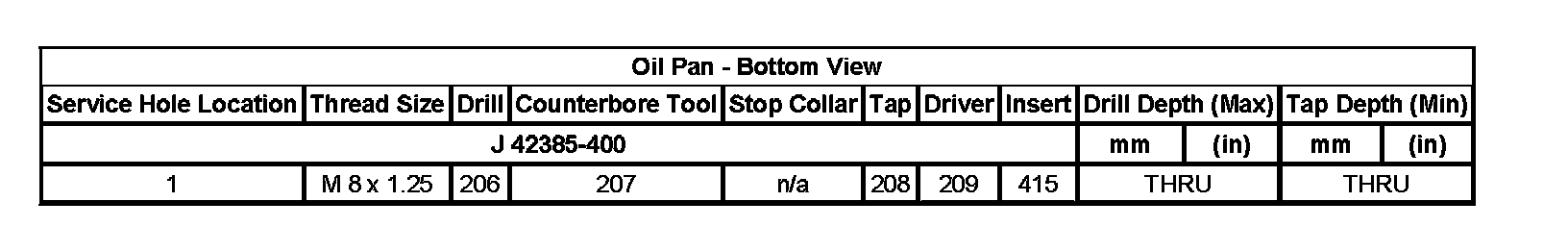

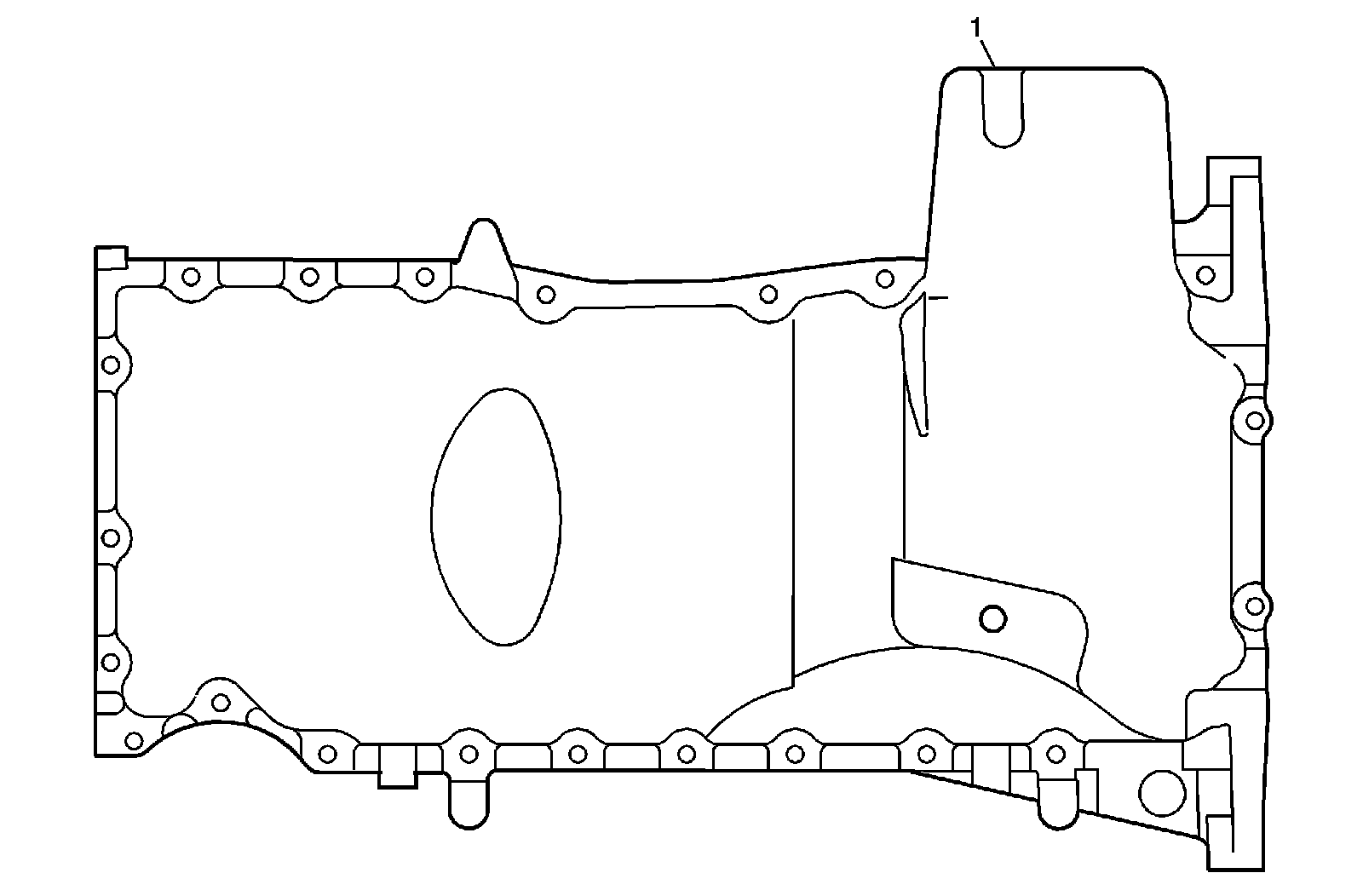

Oil Pan - Bottom View:

Oil Pan - Bottom View:

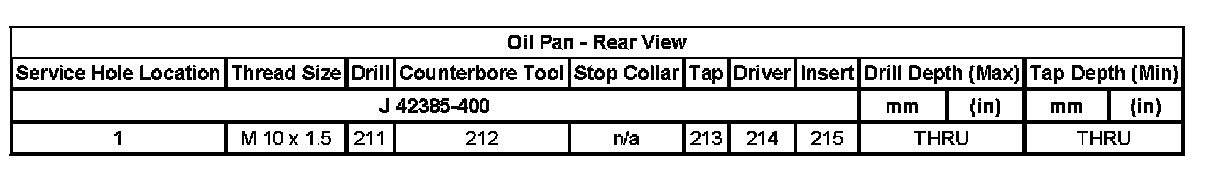

Oil Pan - Rear View:

Oil Pan - Rear View:

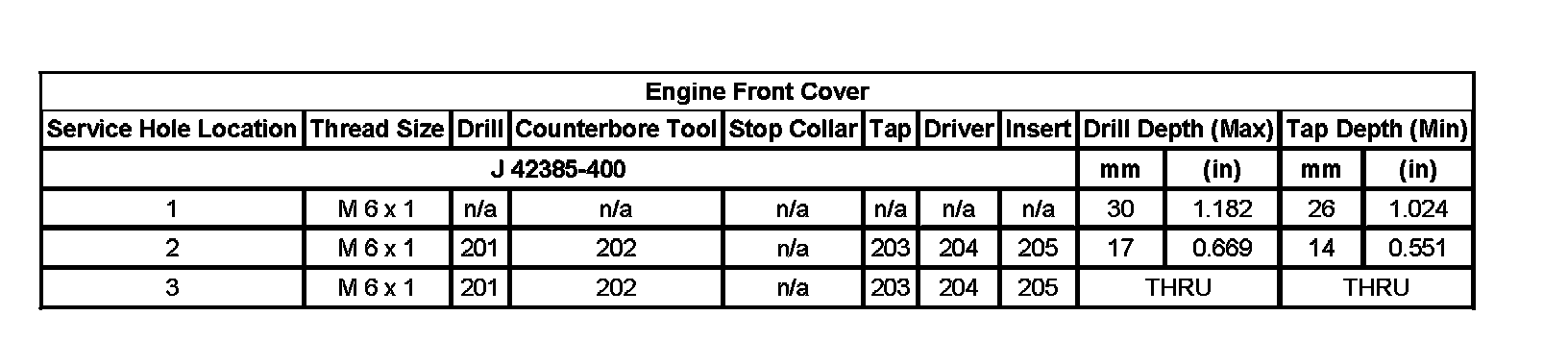

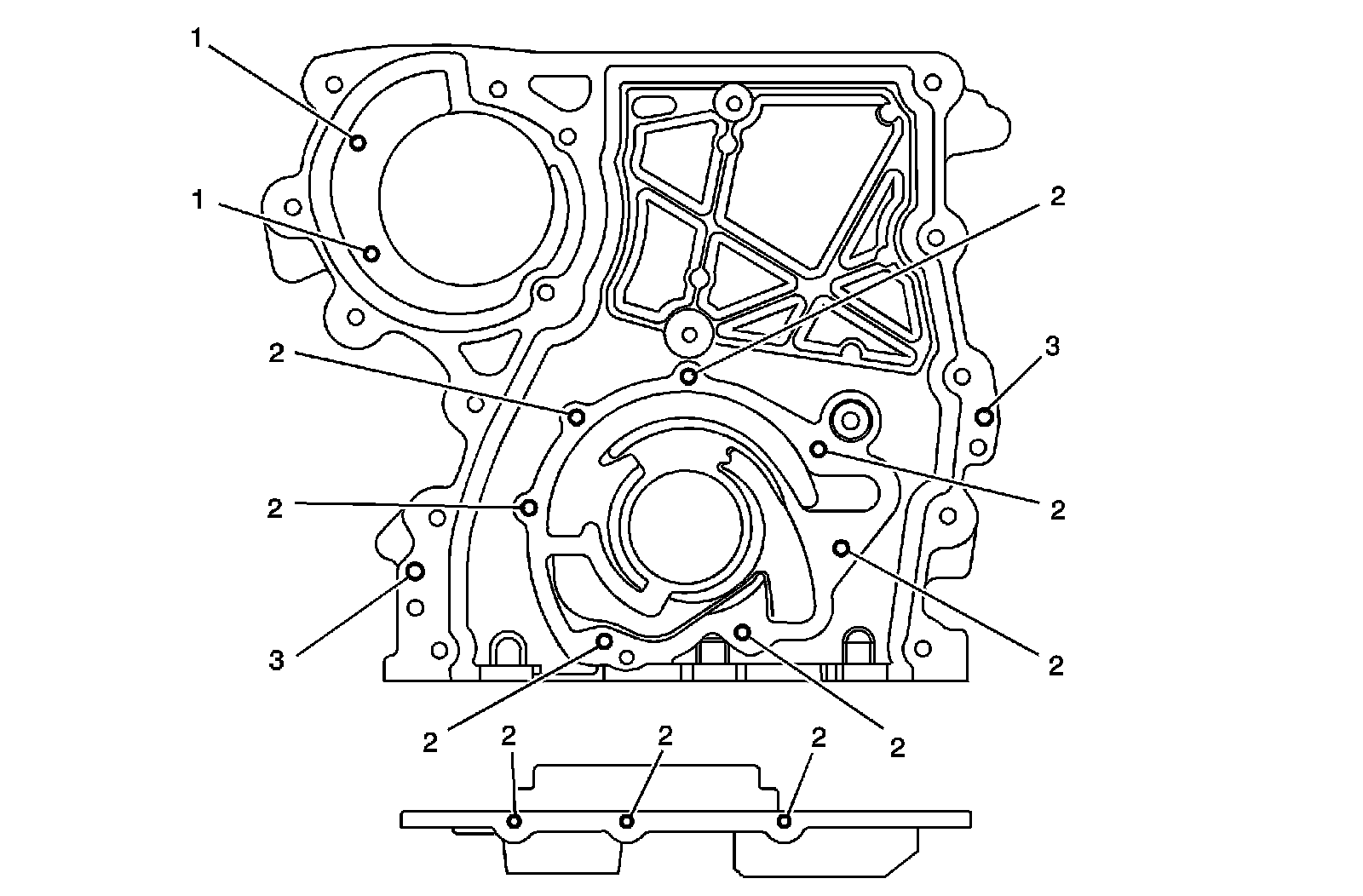

Engine Front Cover:

Engine Front Cover:

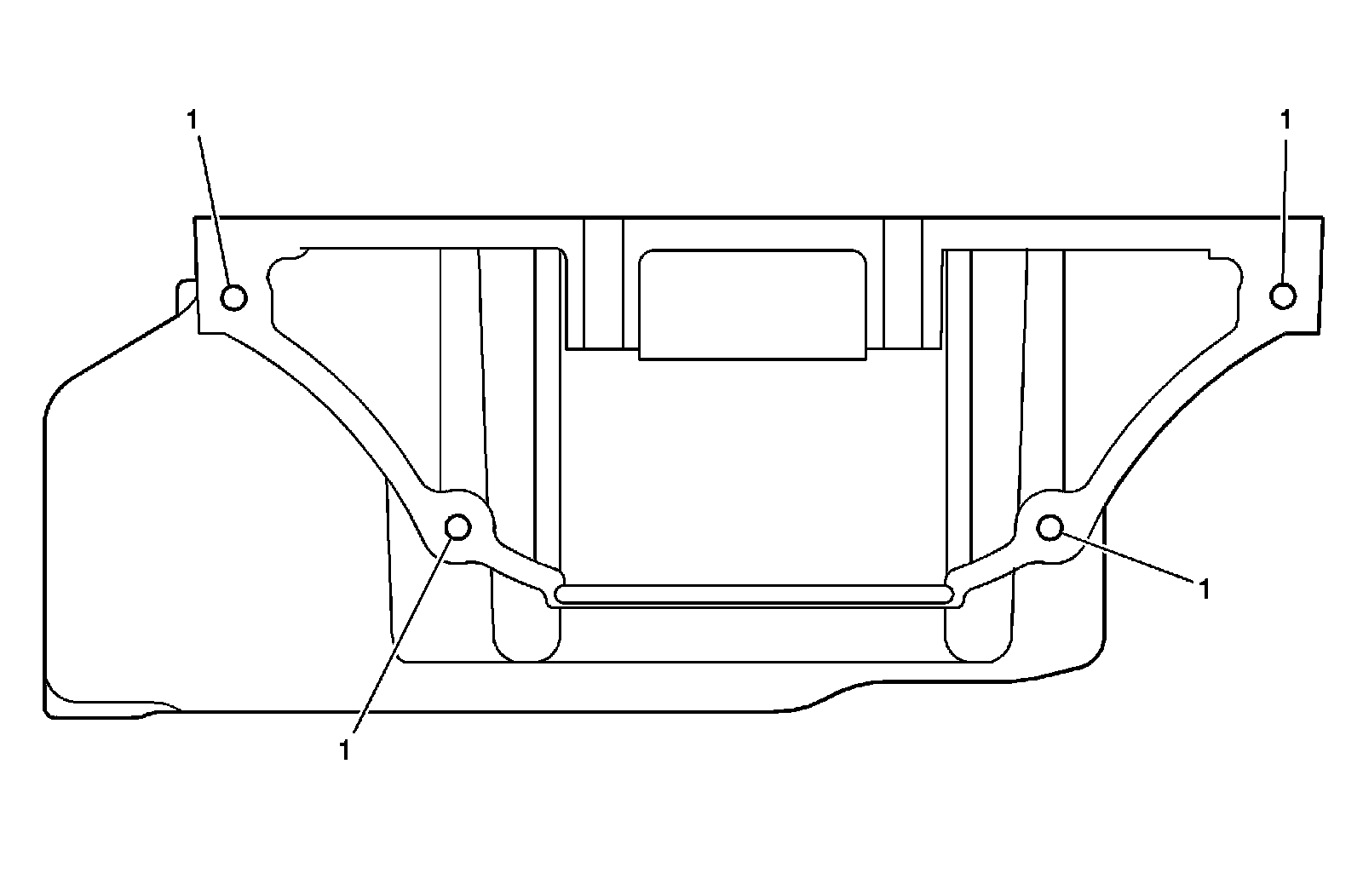

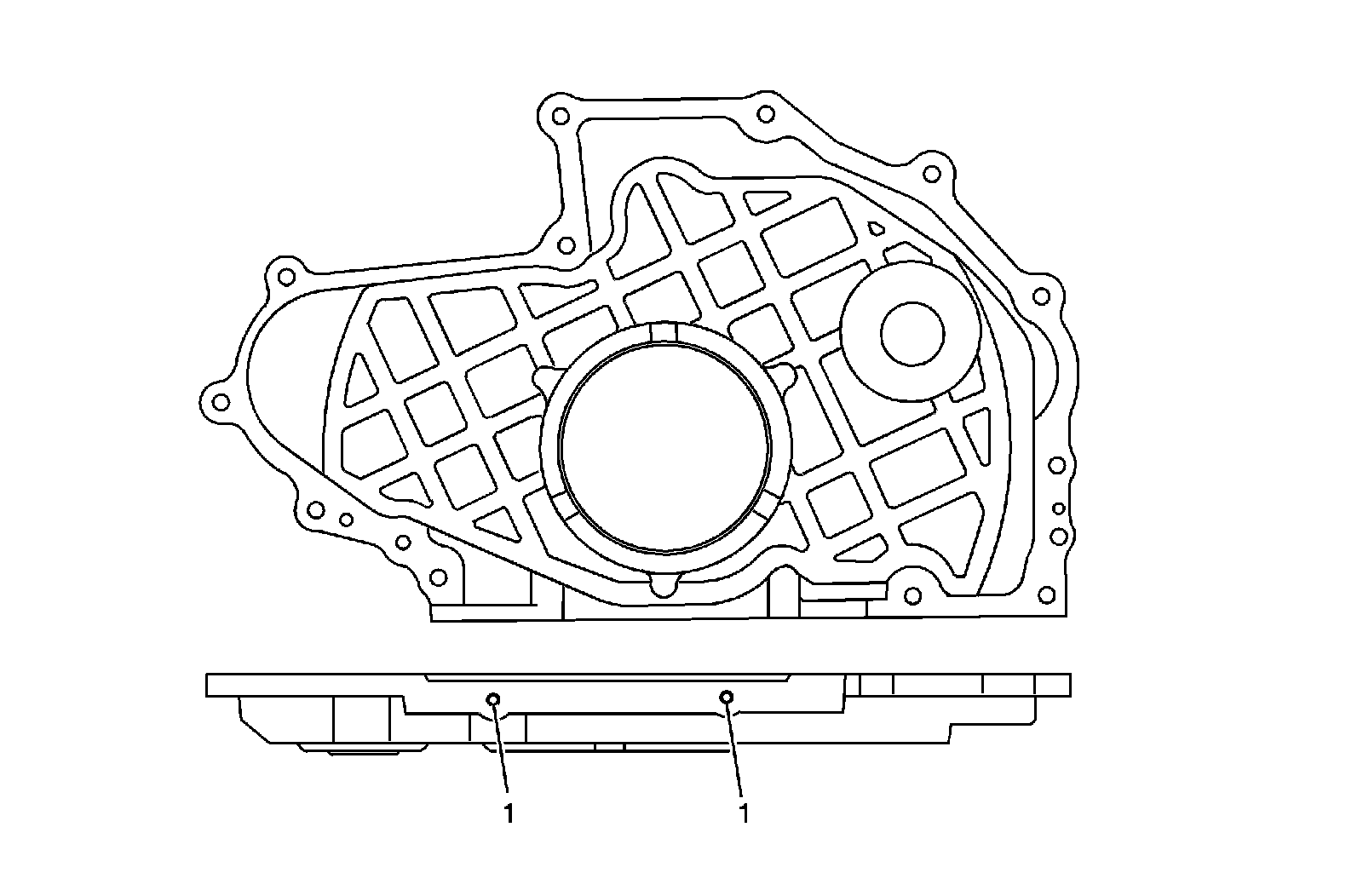

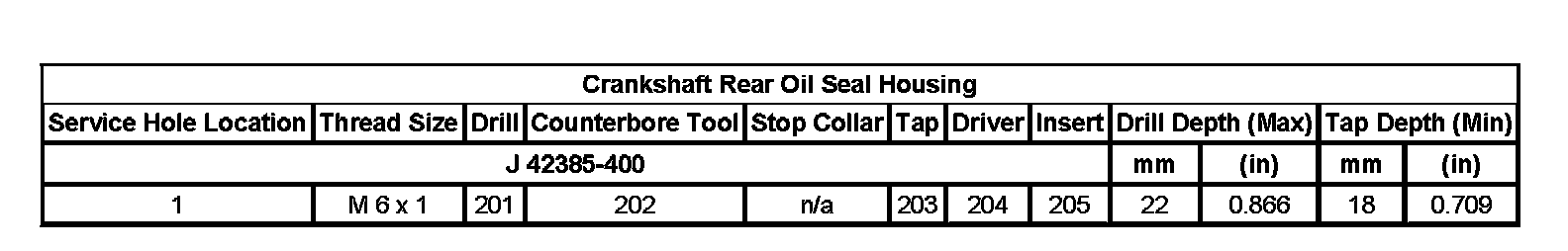

Crankshaft Rear Oil Seal Housing:

Crankshaft Rear Oil Seal Housing:
