Communication Interface Module Replacement

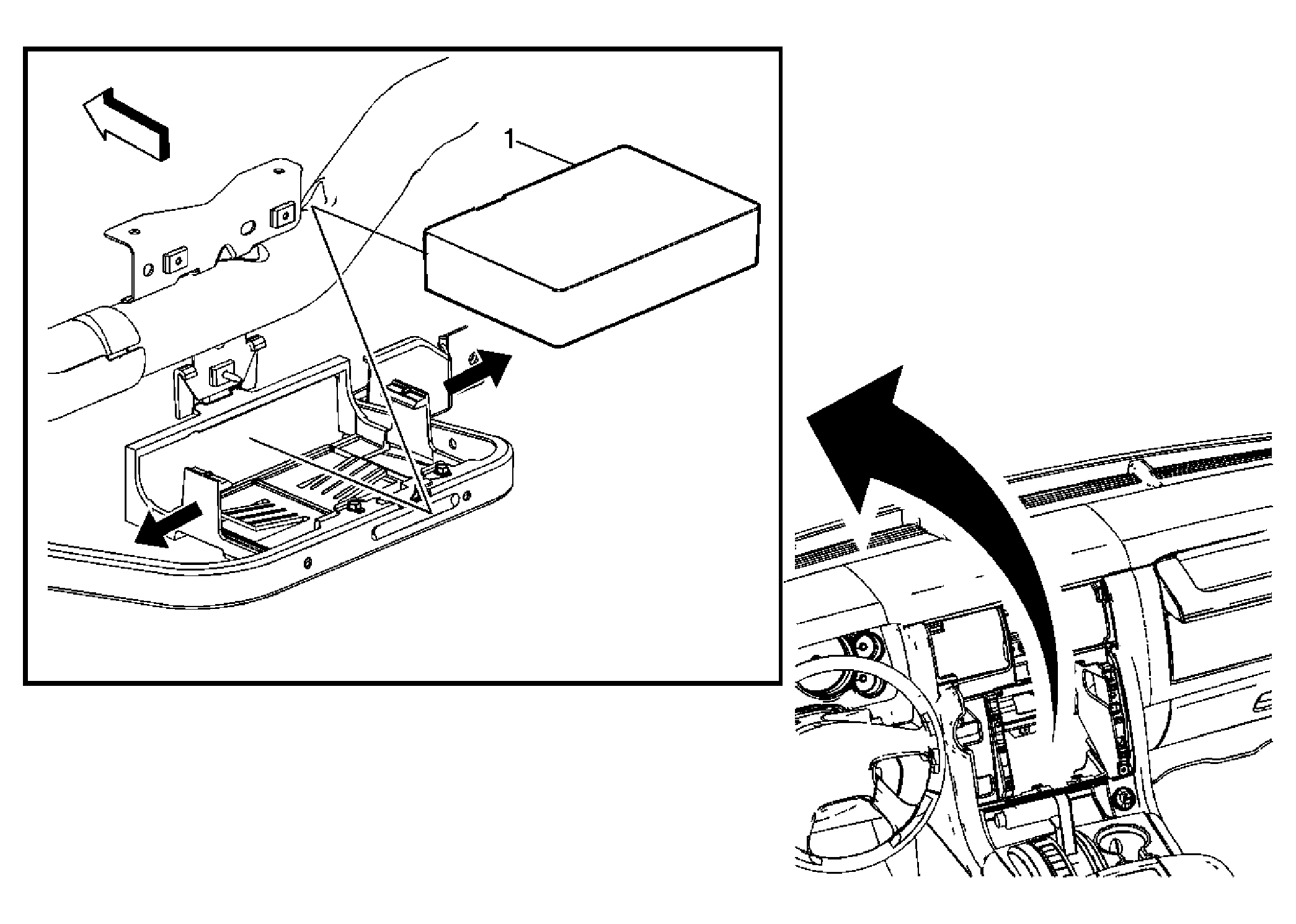

Fig 1: Communication Interface Module

GM1937177

Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

Preliminary Procedure

Remove the instrument panel center air outlet bezel. Refer to Instrument Panel Center Air Outlet Bezel Replacement .
Remove the radio. Refer to Radio Replacement .

1

Communication Interface with Mobile Telephone Transceiver Module

Procedure

Push outward on the two tabs to release the communication interface module from the bracket.
Disconnect the electrical connectors.
Reprogram the communication interface module after replacement. Refer to Control Module References .
