Remote Control Door Lock Receiver Replacement

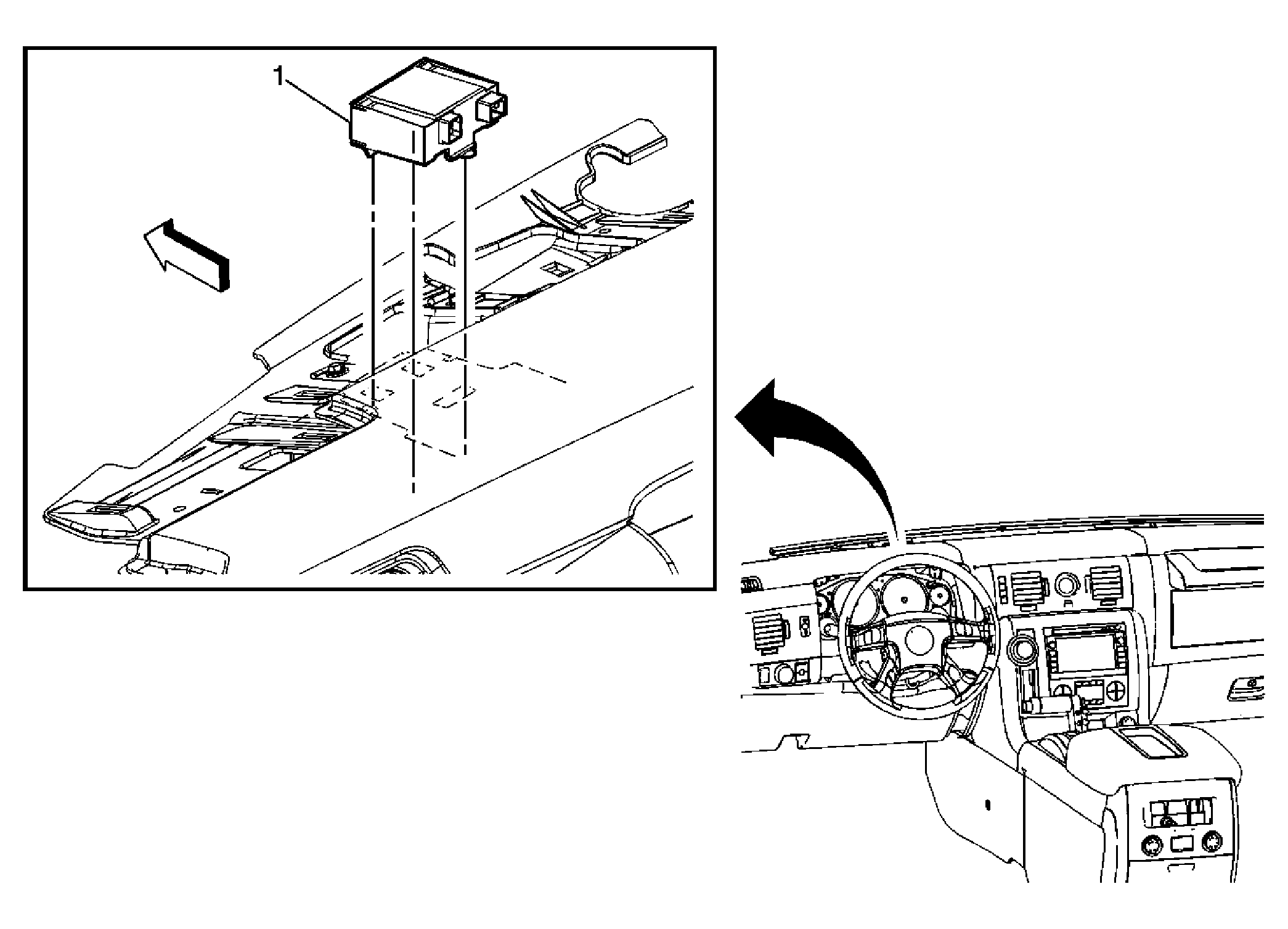

Fig 1: Remote Control Door Lock Receiver

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the instrument panel (I/P) upper trim panel. Refer to Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement .
1	Remote Control Door Lock Receiver Procedure Disconnect the electrical connector. Unsnap the receiver from the panel. For reprogramming and set up, refer to Control Module References .

Callout

Component Name

Preliminary Procedure:
Remove the instrument panel (I/P) upper trim panel. Refer to Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement .

Remote Control Door Lock Receiver

Procedure
