Door Control Module Schematics

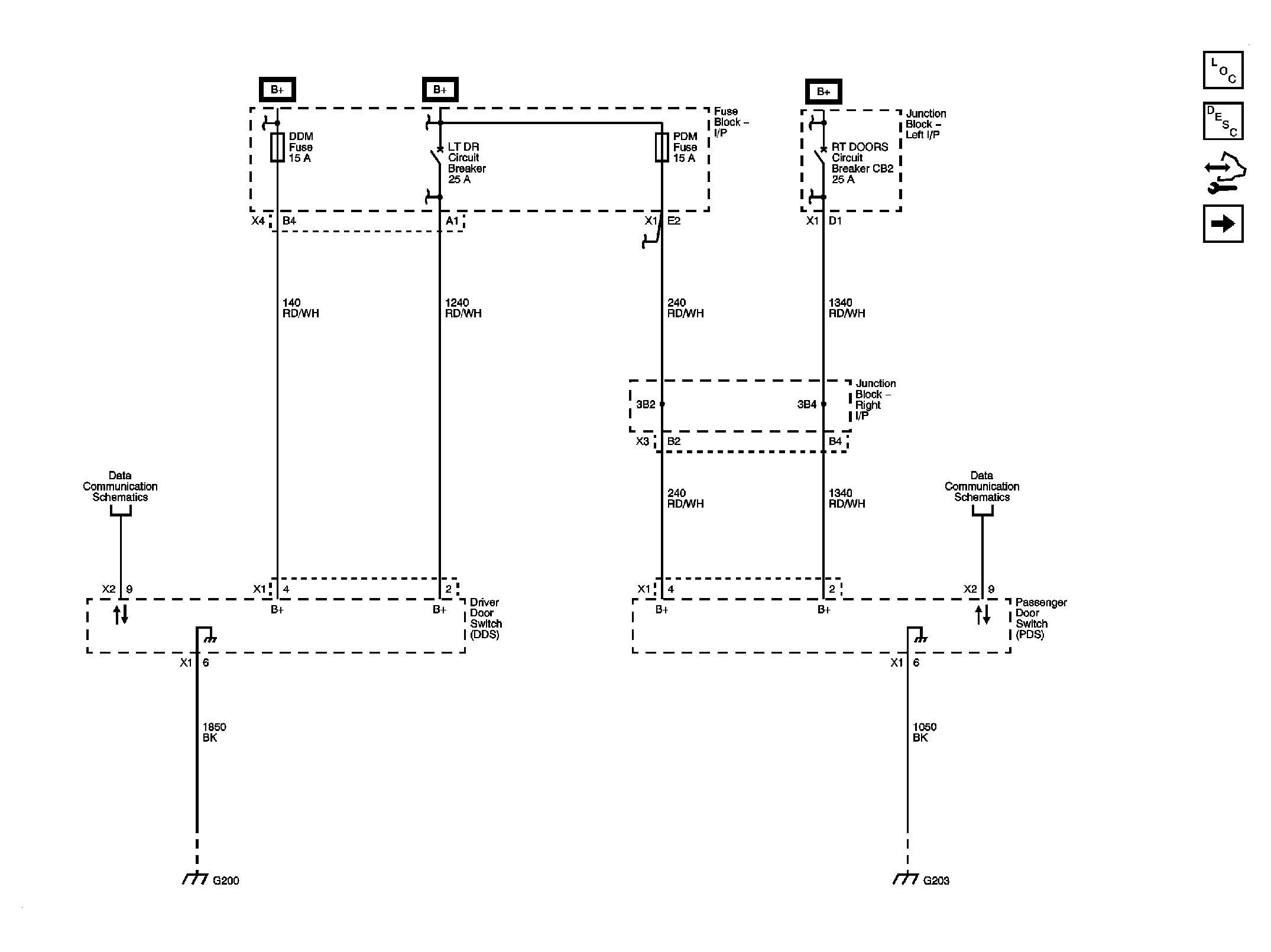

Fig 1: Power, Ground and Serial Data
GM1961349Courtesy of GENERAL MOTORS CORP.

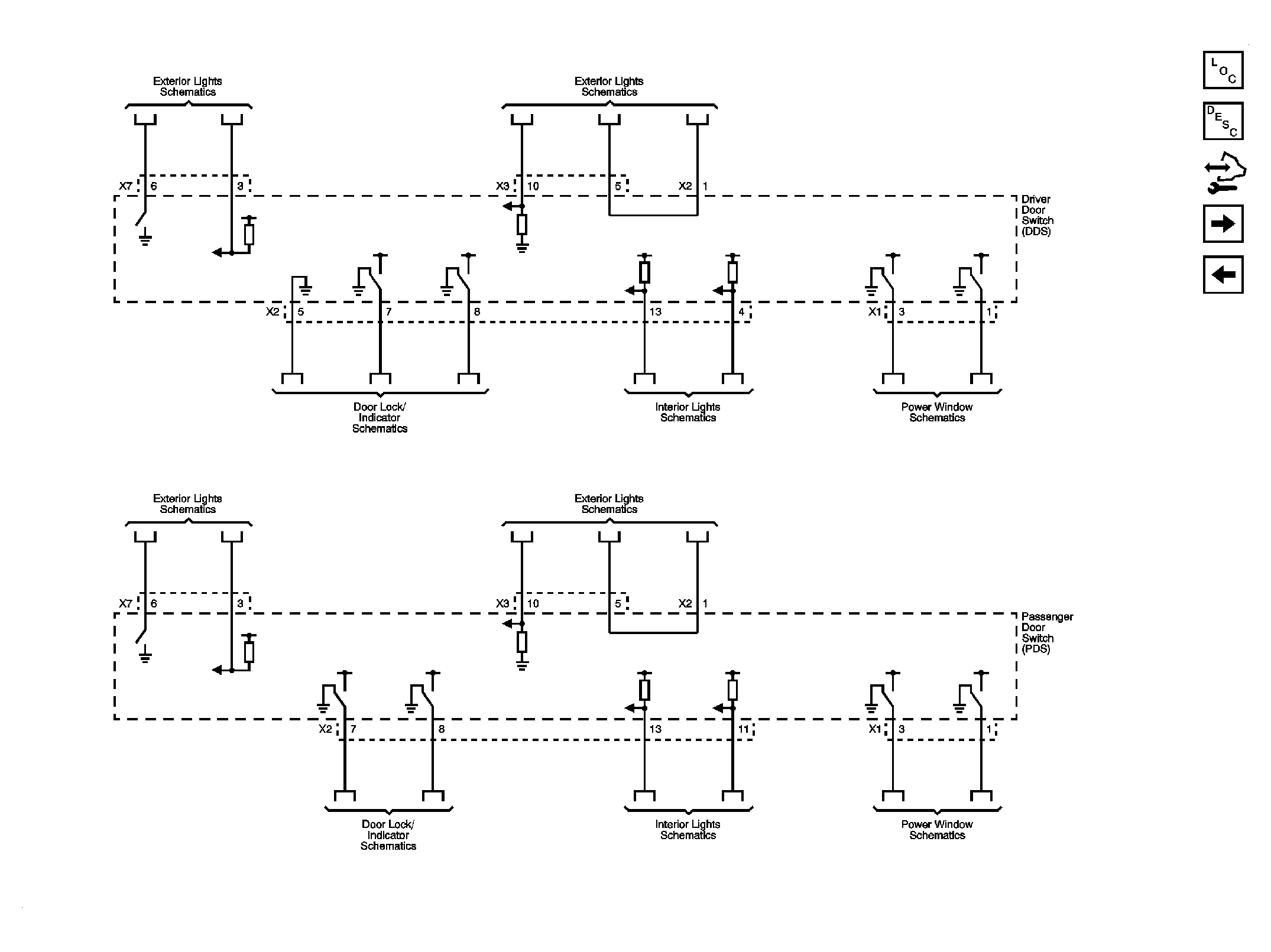

Fig 2: Exterior Lights, Interior Lights, Door Lock and Power Window References
GM1961352Courtesy of GENERAL MOTORS CORP.
Fig 3: Inside and Outside Rearview Mirror References
GM1961356Courtesy of GENERAL MOTORS CORP.
Fig 4: Seat References
GM1961358Courtesy of GENERAL MOTORS CORP.
