Rear Seat Heater Control Module Replacement

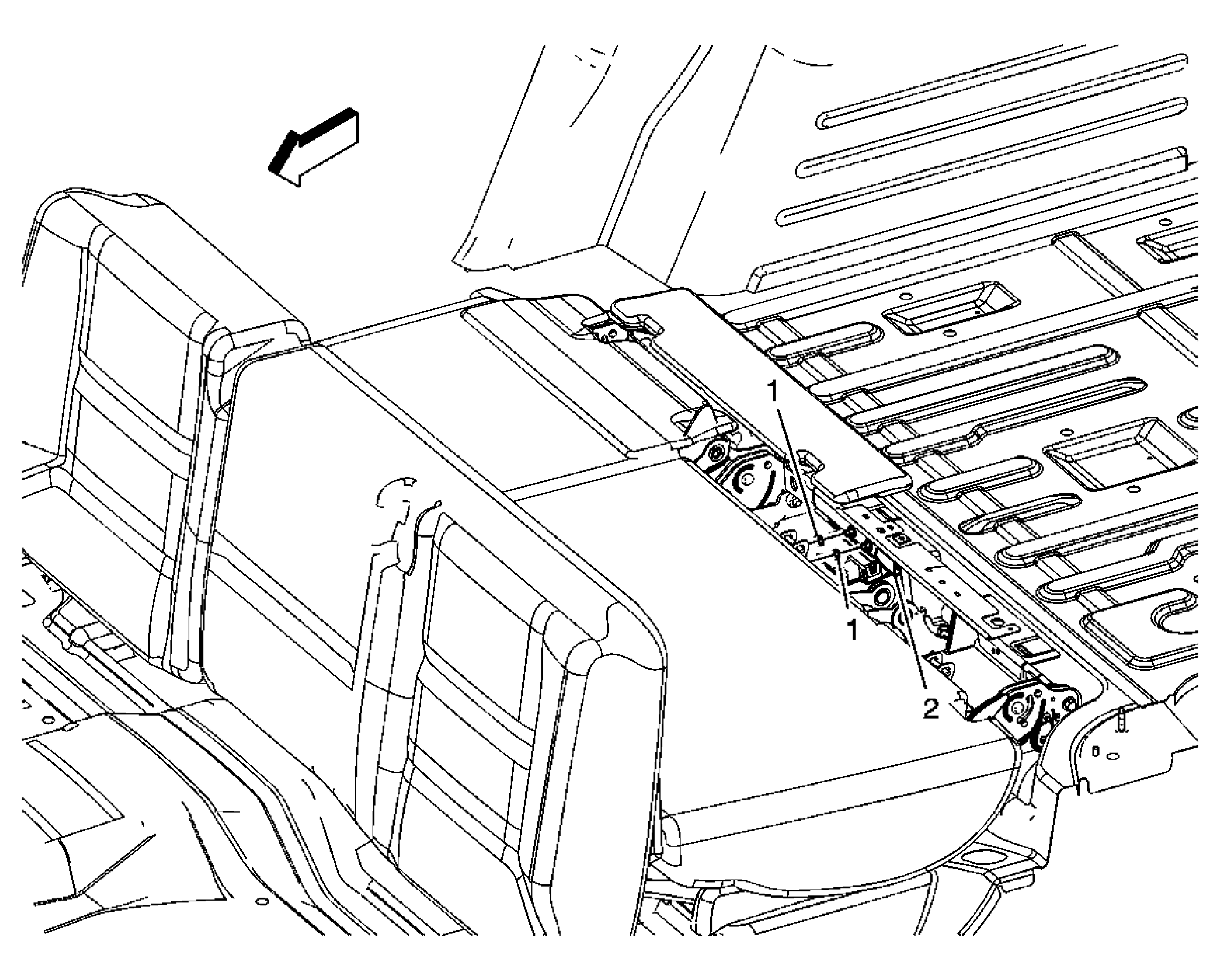

Fig 1: Rear Seat Heater Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Fold the rear seat forward. Remove the rear seat cushion latch covers by pulling upward to disengage the retainers.
1	Rear Seat Heater Control Module Nut (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Rear Seat Heater Control Module Procedure Disconnect the electrical connectors. Refer to Control Module References for programming and set-up information.

Callout

Component Name

Preliminary Procedures

Fold the rear seat forward.
Remove the rear seat cushion latch covers by pulling upward to disengage the retainers.

Rear Seat Heater Control Module Nut (Qty: 2)

NOTE: Refer to Fastener Notice .

Tighten: 2 N.m (18 lb in)

Rear Seat Heater Control Module

Procedure
