Horn Switch Replacement

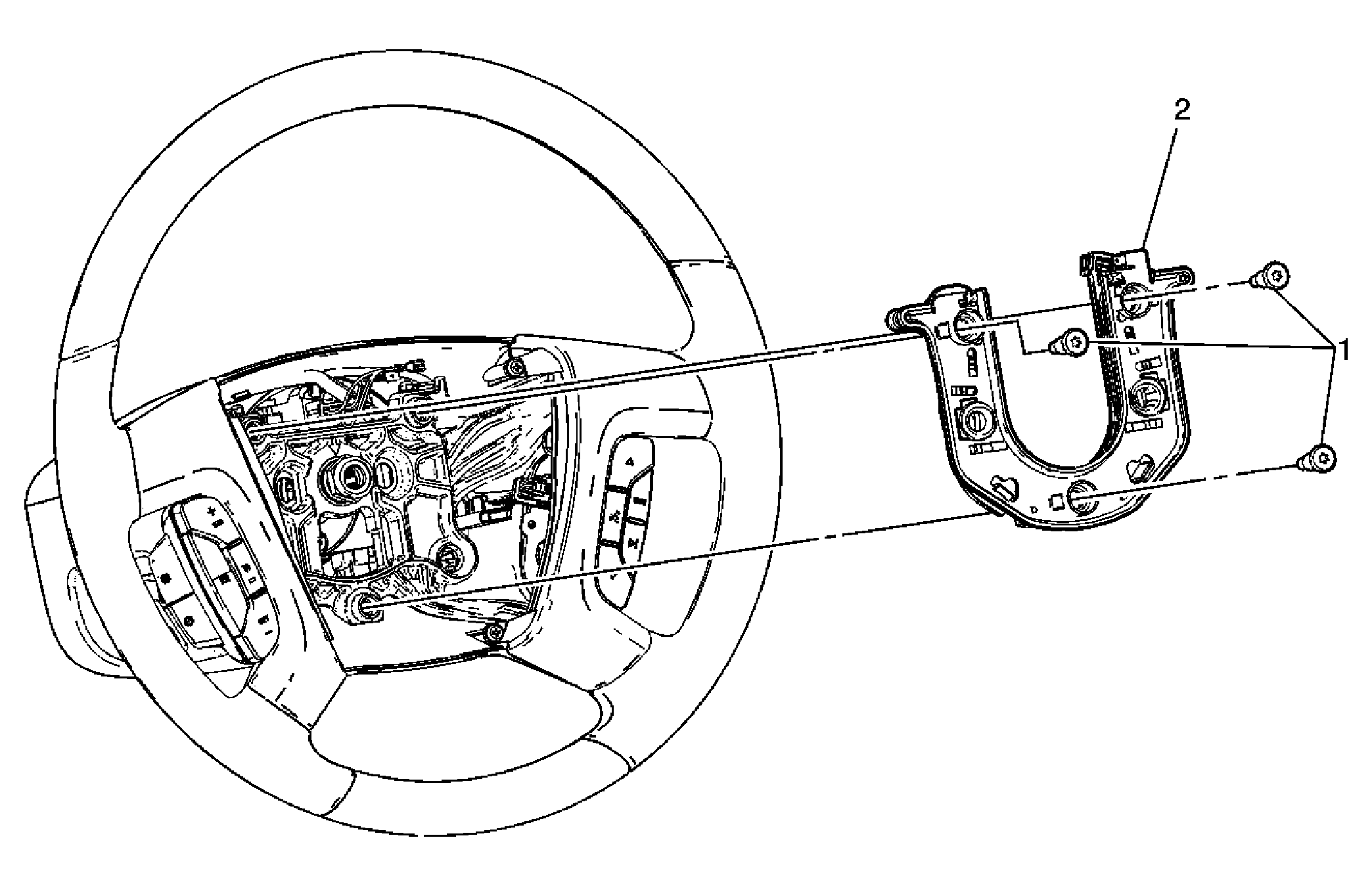

Fig 1: Horn Switch Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to SIR Caution . Preliminary Procedure: Remove the inflatable restraint steering wheel module. Refer to Inflatable Restraint Steering Wheel Module Replacement .
1	Horn Switch Bolt (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 8 N.m (71 lb in)
2	Horn Switch Procedure: Disconnect any electrical connectors as needed.
