Front of Vehicle/Engine Compartment Component Views

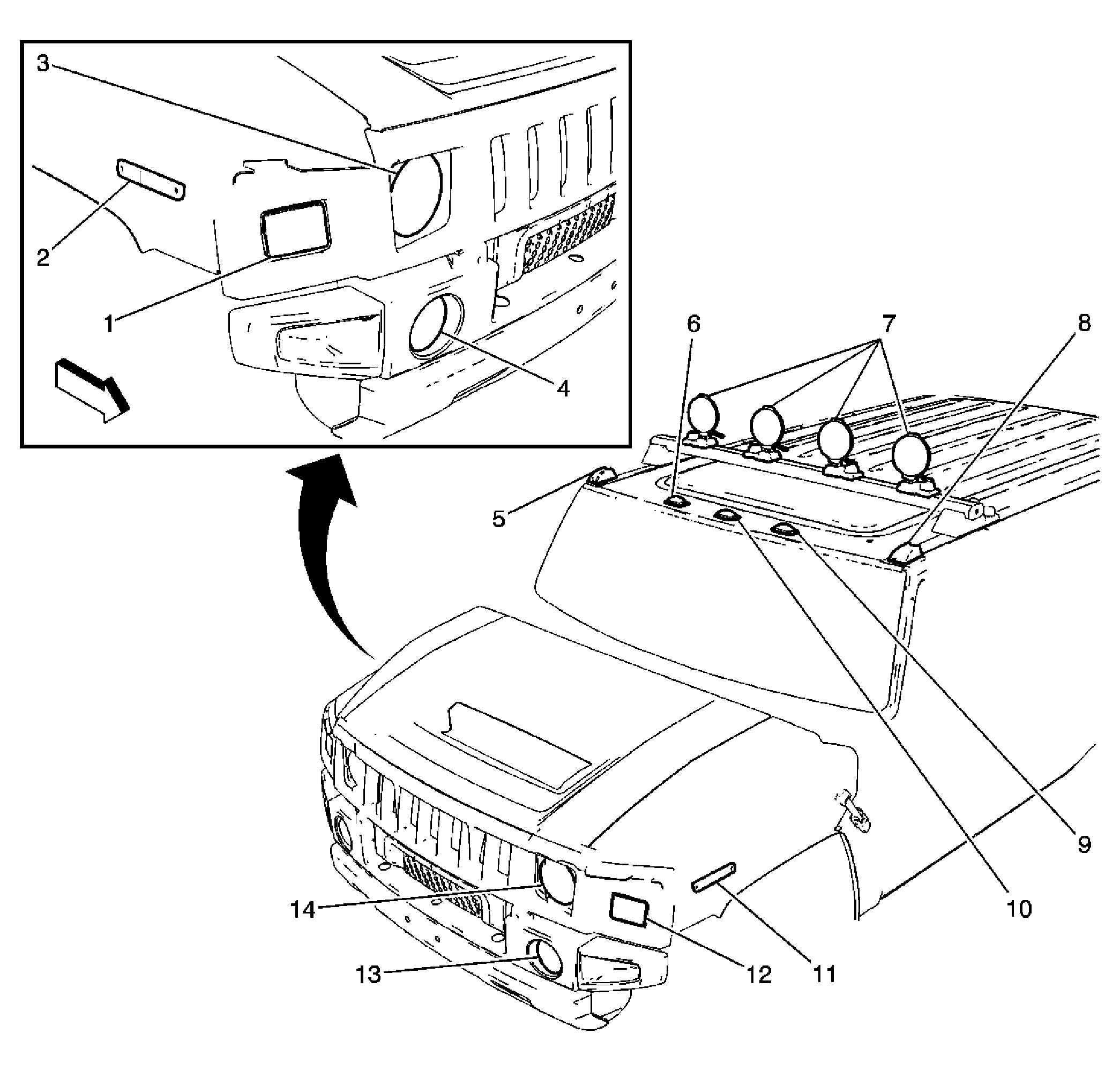

Fig 1: Front Exterior Lights

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park/Turn Signal Lamp - Right Front
2	Marker Lamp - Right Front
3	Headlamp - Right
4	Daytime Running Lamp (DRL) - Right
5	Clearance Lamp - Right Front
6	Roof Marker Lamp - Front Right
7	Off Road Lamps
8	Clearance Lamp - Left Front
9	Roof Marker Lamp - Front Left
10	Roof Marker Lamp - Front Center
11	Marker Lamp - Left Front
12	Park/Turn Signal Lamp - Left Front
13	Daytime Running Lamp (DRL) - Left
14	Headlamp - Left

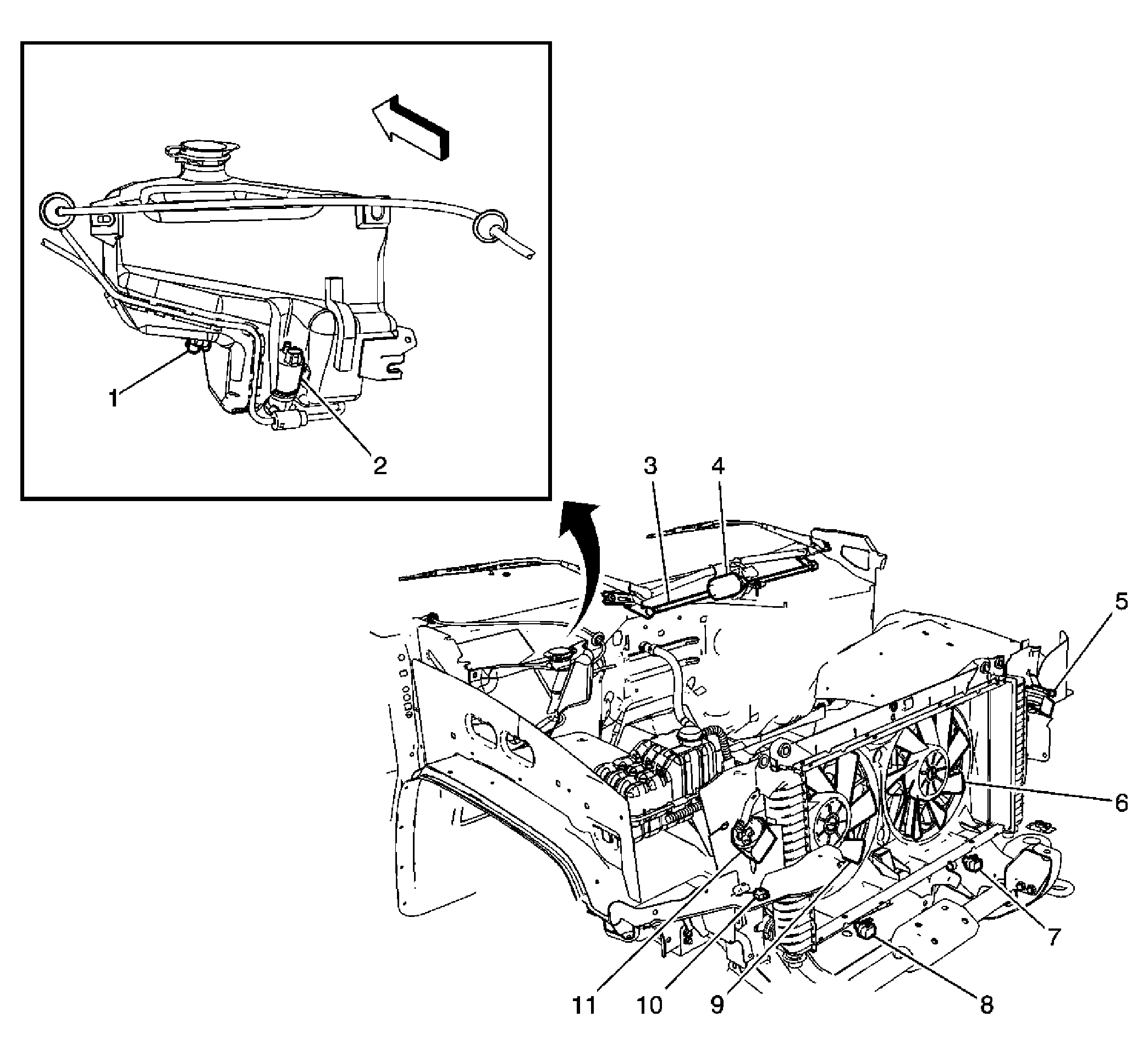

Fig 2: Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Washer Fluid Level Sensor
2	Window Washer Fluid Pump
3	Windshield Wiper Motor and Module
4	Horn-Left
5	Cooling Fan-Left
6	Inflatable Restraint Front Sensor - Left
7	Inflatable Restraint Front Sensor - Right
8	Cooling Fan-Right
9	Ambient Air Temperature Sensor - HVAC
10	Ambient Air Temperature Sensor - Mirror
11	Horn-Right

Fig 3: Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Fluid Level Switch
2	Electronic Brake Control Module (EBCM)
3	Throttle Actuator Control (TAC) Module
4	Fuse Block-Underhood
5	Battery
6	Engine Control Module (ECM)
7	Intake Air Temperature (IAT)/Mass Air Flow (MAF) Sensor
8	A/C Low Pressure Switch
9	Accumulator
