Instrument Panel/Center Console Component Views

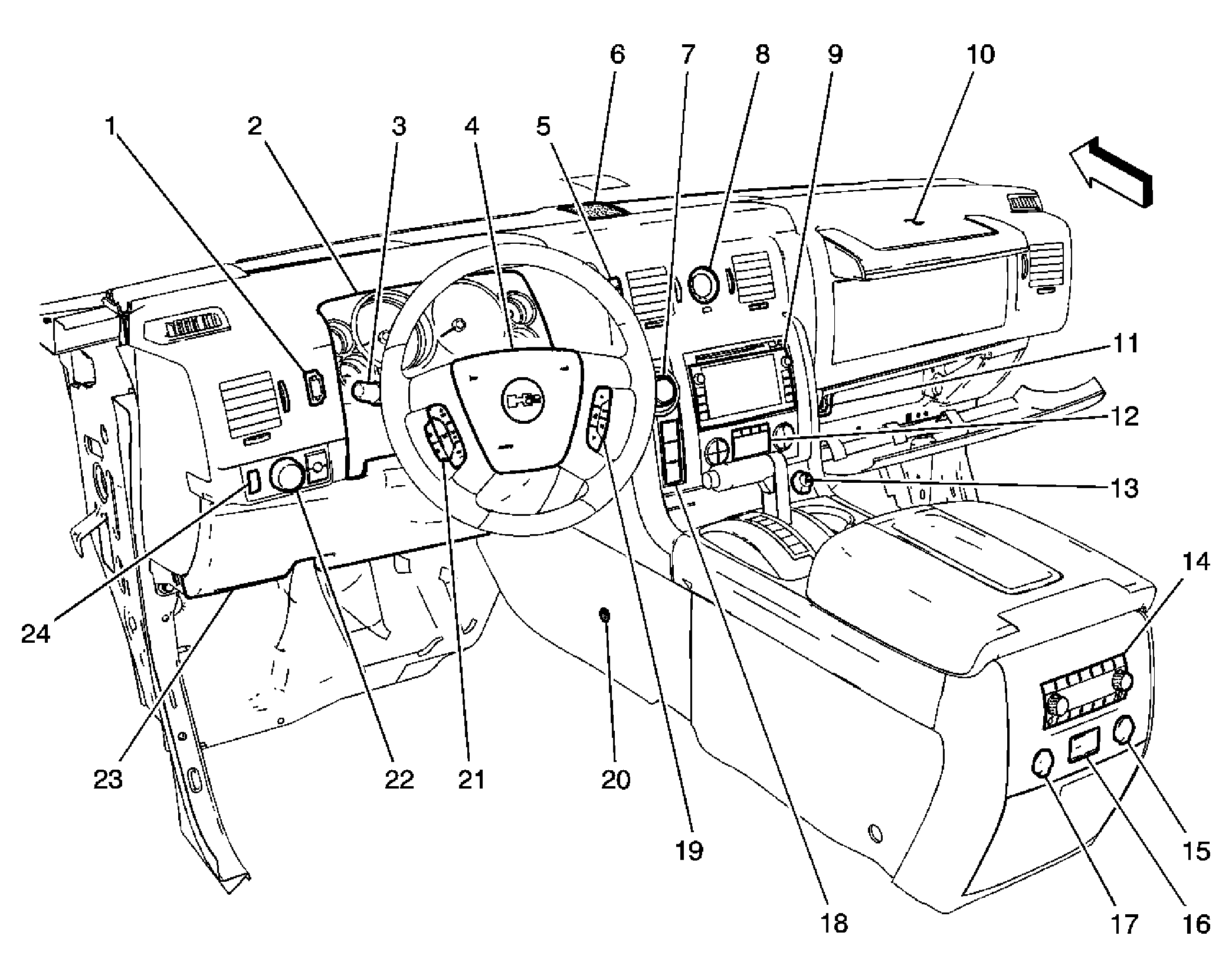

Fig 1: Instrument Panel and Console Overview

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Wiper/Washer Switch (SUV) or Midgate Window Switch (SUT)
2	Instrument Panel Cluster (IPC)
3	Turn Signal/Multifunction Switch
4	Inflatable Restraint Steering Wheel Module
5	Steering Wheel Control Switch Assembly - Upper Right
6	Ambient Light/Sunload Sensor Assembly
7	Transfer Case Shift Control Switch
8	Analog Clock
9	Radio/Navigation Unit
10	Inflatable Restraint I/P Module
11	Inflatable Restraint I/P Module Disable Switch
12	Cigar Lighter
13	Rear Seat Audio (RSA) Controller
14	Auxiliary Power Outlet - Console 1
15	Audio/Video Adapter (U42)
16	Auxiliary Power Outlet - Console 2
17	Accessory Switch Assembly (Tow Haul/Traction Control/Ride Height )
18	Steering Wheel Control Switch Assembly - Lower Right
19	Noise Compensation Microphone
20	Steering Wheel Control Switch Assembly - Lower Left
21	Steering Wheel Control Switch Assembly - Upper Left
22	Headlamp and Panel Dimmer Switch
23	Data Link Connector (DLC)
24	Universal Up/Down Switch

Fig 2: Lower Left Of I/P Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	APP Sensor
2	APP Sensor Connector

Fig 3: Stop Lamp Switch Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vacuum Booster
2	Brake Pedal
3	Stop Lamp Switch
4	Accelerator Pedal
5	Stop Lamp Switch Retainer
6	Dash Panel

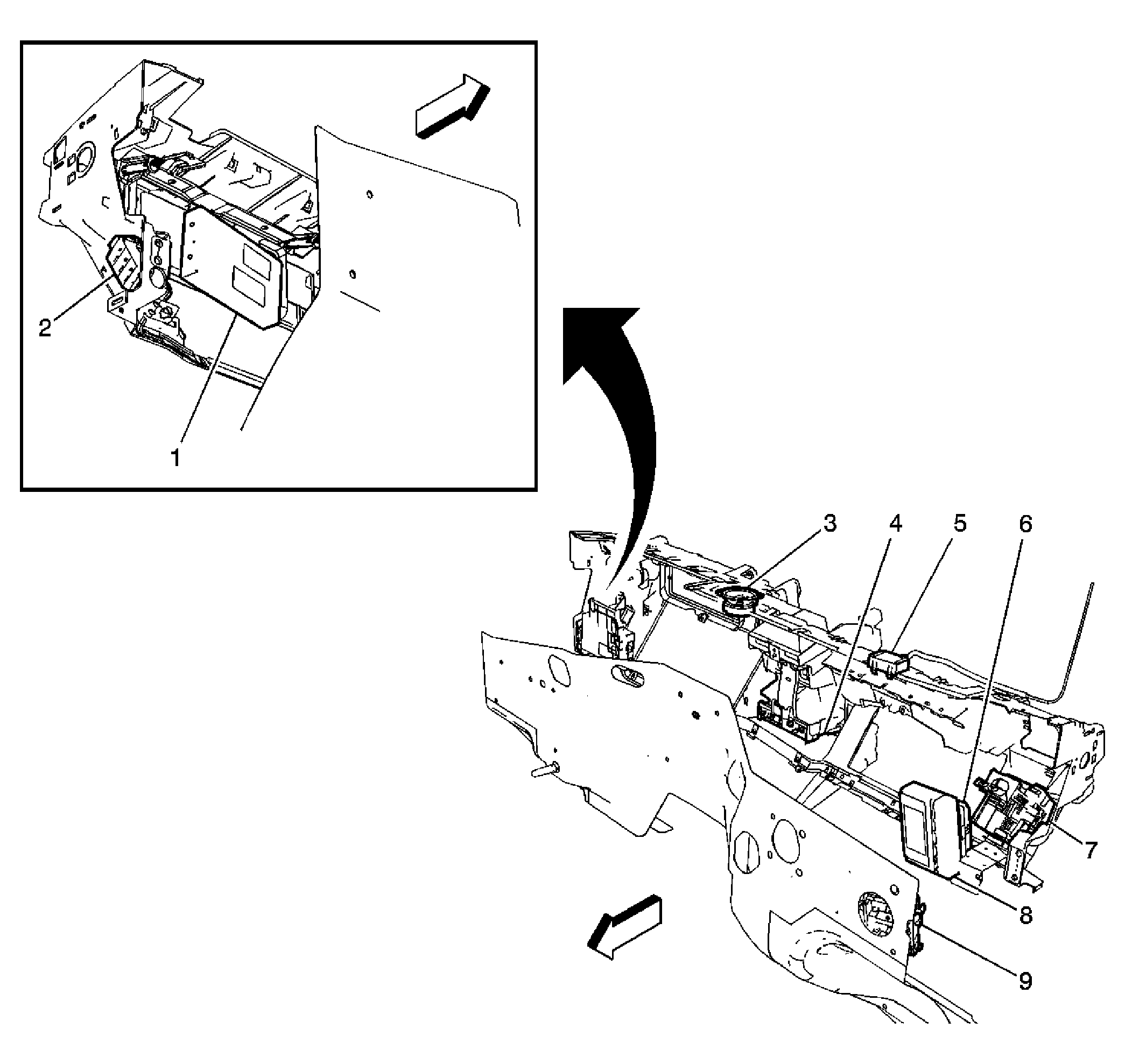

Fig 4: Instrument Panel Harness Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Receiver (U2K)
2	Junction Block - I/P
3	Speaker - Center
4	Vehicle Communication Interface Module (VCIM) (UE9)
5	Remote Control Door Lock Receiver (RCDLR)
6	Transfer Case Shift Control Module
7	Fuse Block - I/P
8	Body Control Module (BCM)
9	Junction Block - Body

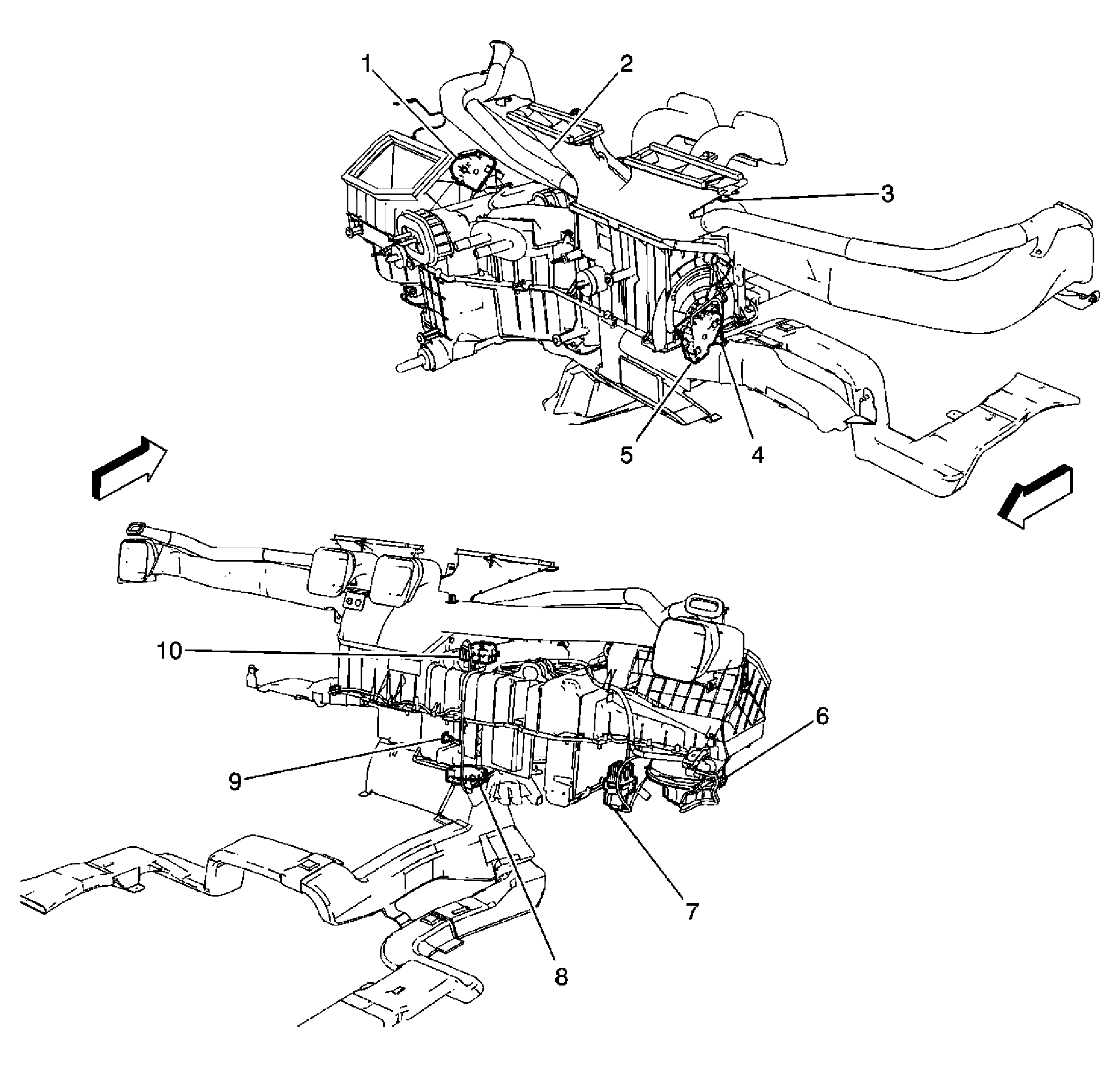

Fig 5: HVAC Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Recirculation Actuator
2	Air Temperature Sensor - Upper Right
3	Air Temperature Sensor - Upper Left
4	Air Temperature Sensor - Lower Left
5	Mode Actuator
6	Blower Motor
7	Blower Motor Control Processor
8	Air Temperature Actuator - Left
9	Air Temperature Sensor - Lower RightAccumulator
10	Air Temperature Actuator - Right

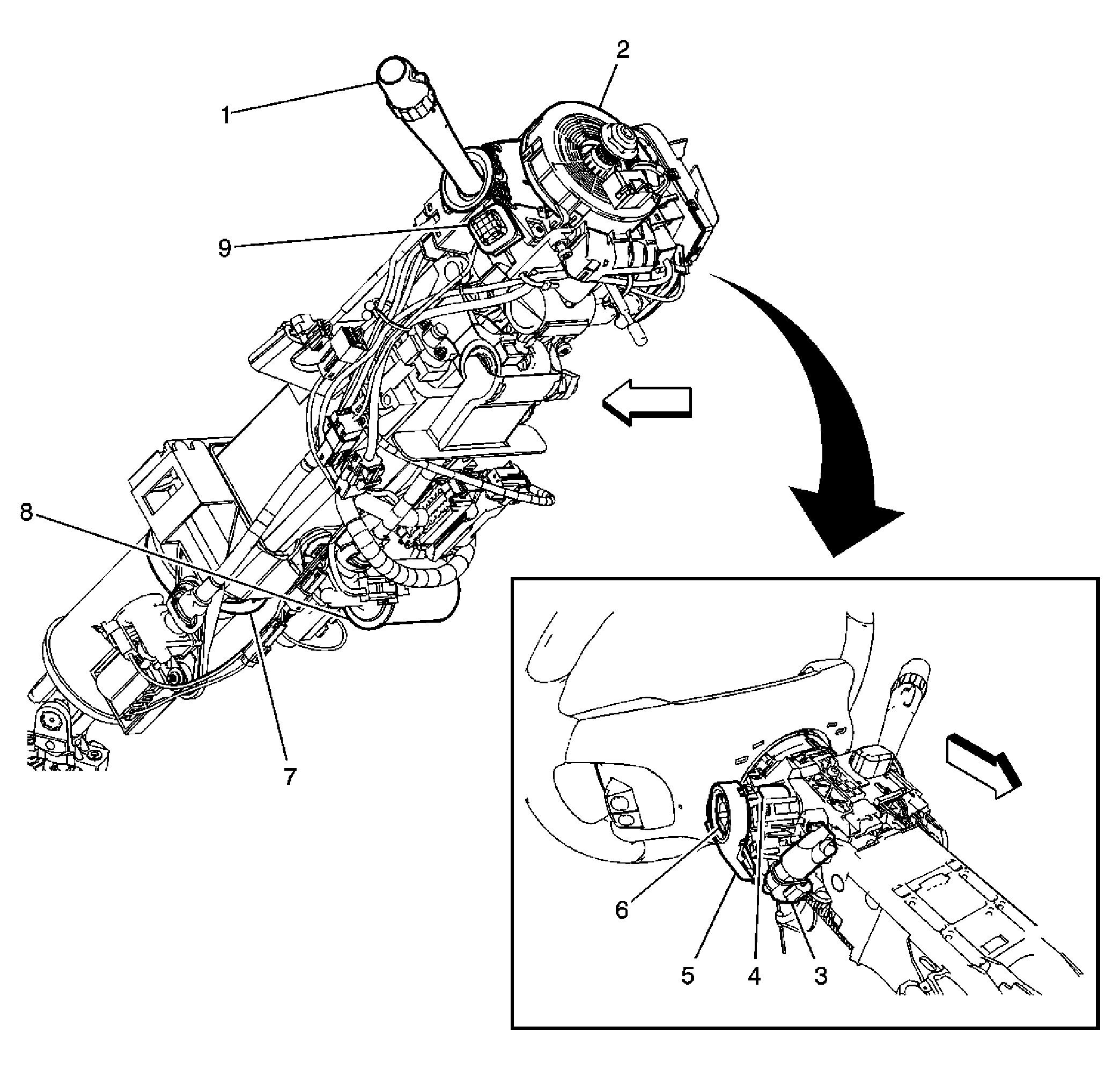

Fig 6: Steering Column Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module Coil
2	Steering Angle Sensor
3	Ignition Lock Cylinder Solenoid
4	Ignition Key Cylinder Case
5	Theft Detterent Module
6	Ignition Key

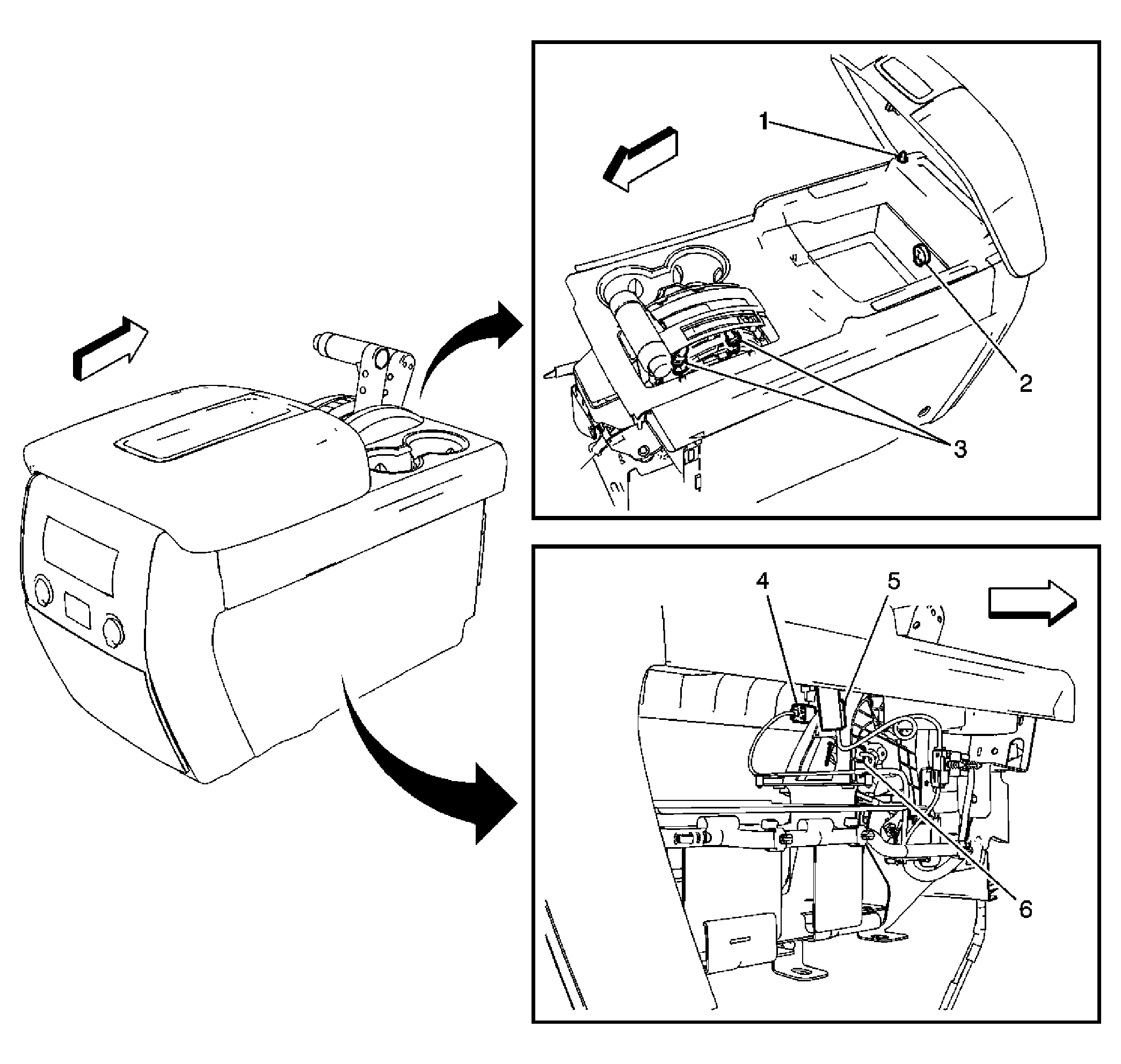

Fig 7: Floor Console Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Console Bin Lamp Switch
2	Auxiliary Power Outlet-Console
3	PRNDL Lamps
4	X356
5	Console Bin Lamp
6	Automatic Transmission Shift Lock Control Solenoid
