Powertrain Component Views

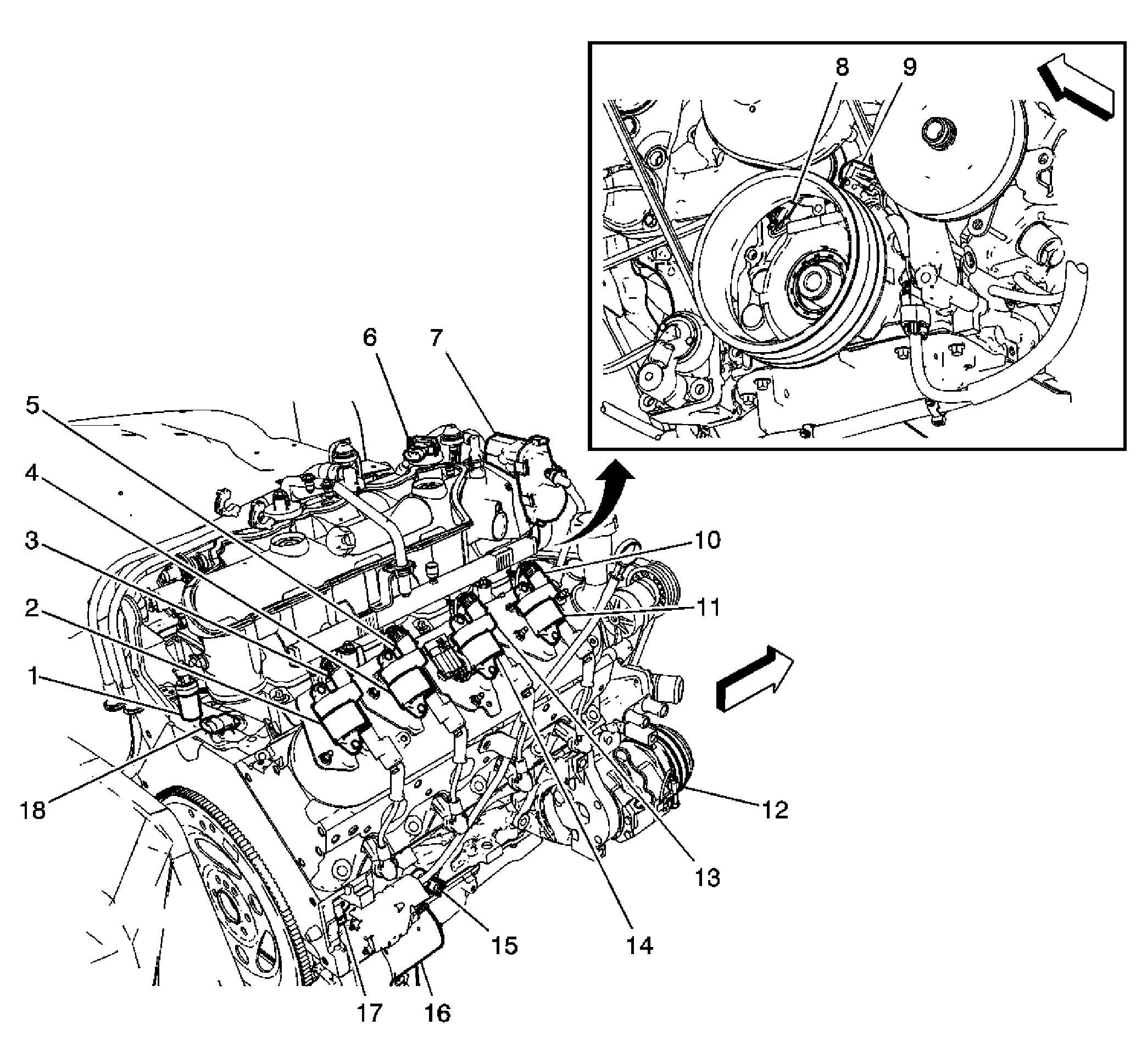

Fig 1: Engine - Left Rear (L92)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Valve Lifter Oil Manifold Assembly (VLOM)
2	Ignition Coil 8
3	Fuel Injector 8
4	Ignition Coil 6
5	Fuel Injector 6
6	Manifold Absolute Pressure (MAP) Sensor
7	Throttle Body Assembly
8	Magnetic Sensor
9	Camshaft Position (CMP) Sensor
10	Fuel Injector 2
11	Ignition 2
12	A/C Compressor
13	Fuel Injector 4
14	Ignition Coil 4
15	Knock Sensor (KS) 2
16	Starter
17	Crankshaft Position (CKP) Sensor

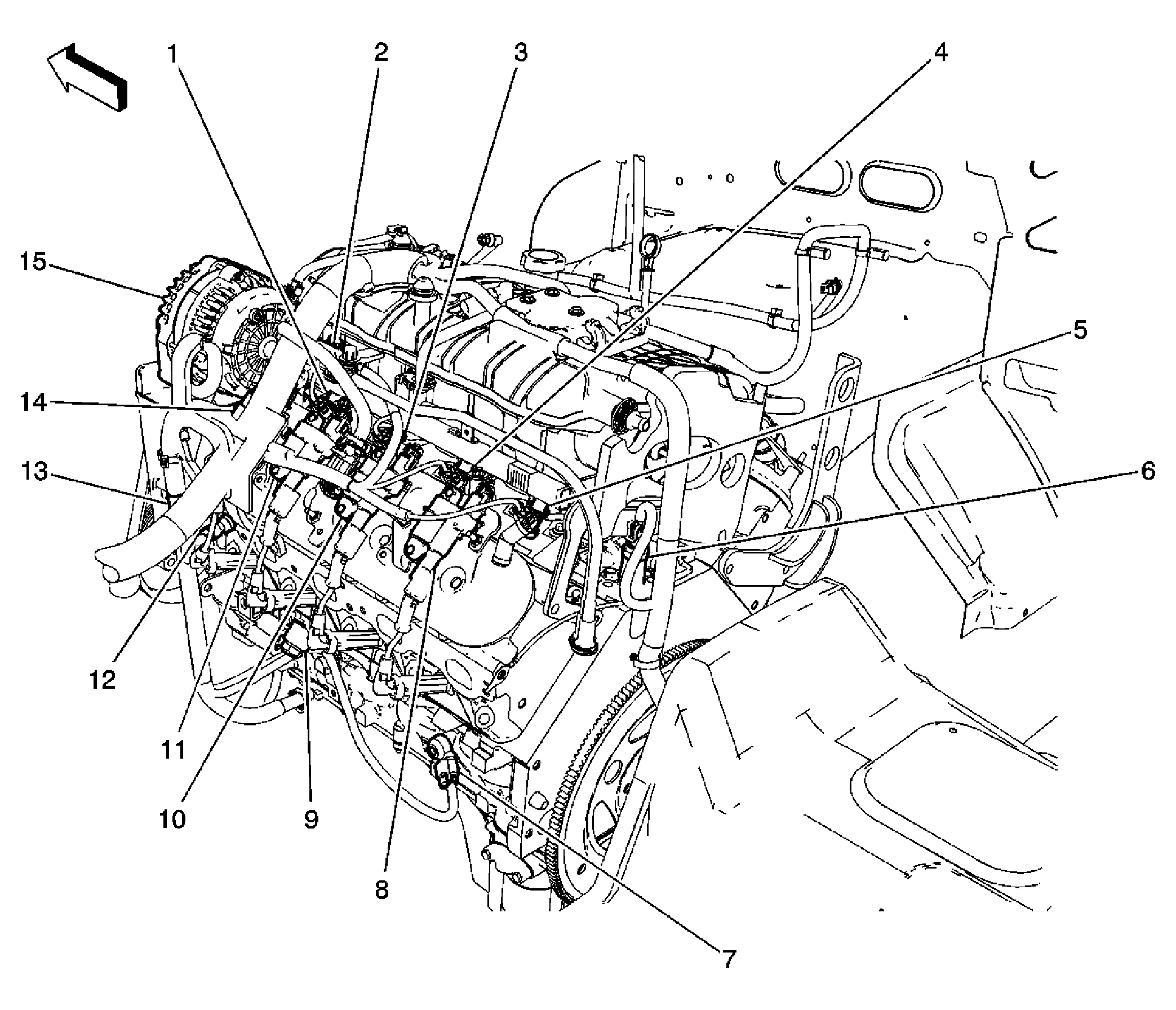

Fig 2: Engine - Right Rear (L92)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Coil 1
2	Evaporative Emission (EVAP) Canister Purge Solenoid Valve
3	Ignition Coil 5
4	Fuel Injector 3
5	Fuel Injector 5
6	Ignition Coil 7
7	Fuel Injector 7
8	Engine Oil Pressure (EOP) Sensor
9	Knock Sensor (KS) 1
10	Engine Coolant Temperature (ECT) Sensor
11	Engine Block Heater Connector
12	Ignition Coil 3
13	Fuel Injector 1

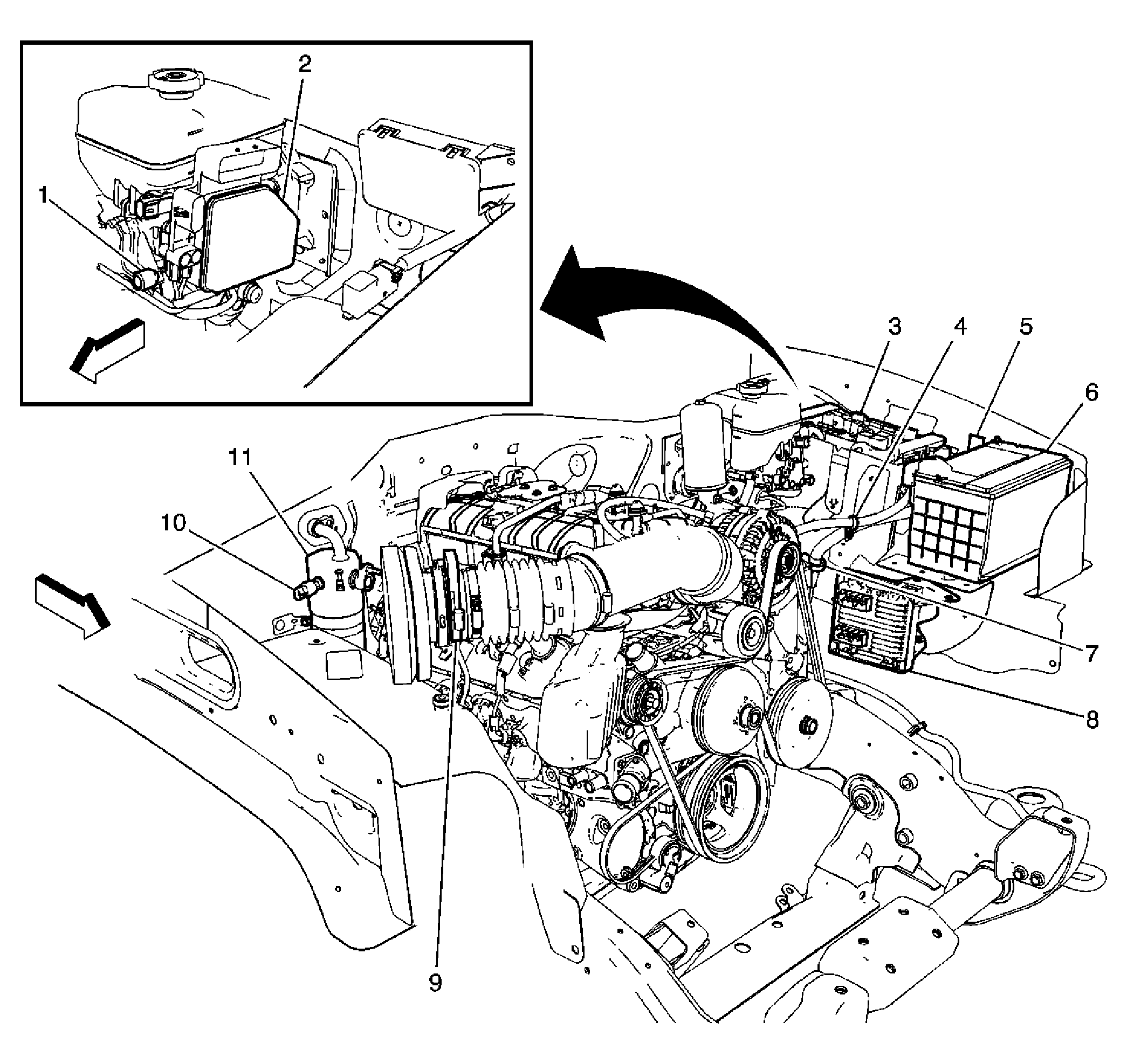

Fig 3: Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Fluid Level Switch
2	Electronic Brake Control Module (EBCM)
3	Throttle Actuator Control (TAC) Module
4	Fuse Block-Underhood
5	Battery
6	Engine Control Module (ECM)
7	Intake Air Temperature (IAT)/Mass Air Flow (MAF) Sensor
8	A/C Low Pressure Switch
9	Accumulator

Fig 4: Floor Shift Assembly Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Automatic Transmission Shift Lever
2	Automatic Transmission Shift Lever Connector
3	Console Harness

Fig 5: Park Neutral Position (PNP) Switch Component Views (M30/M32)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Automatic Transmission 4L60-E/4L65-E/4L70-E
2	Park/Neutral Position (PNP) Switch

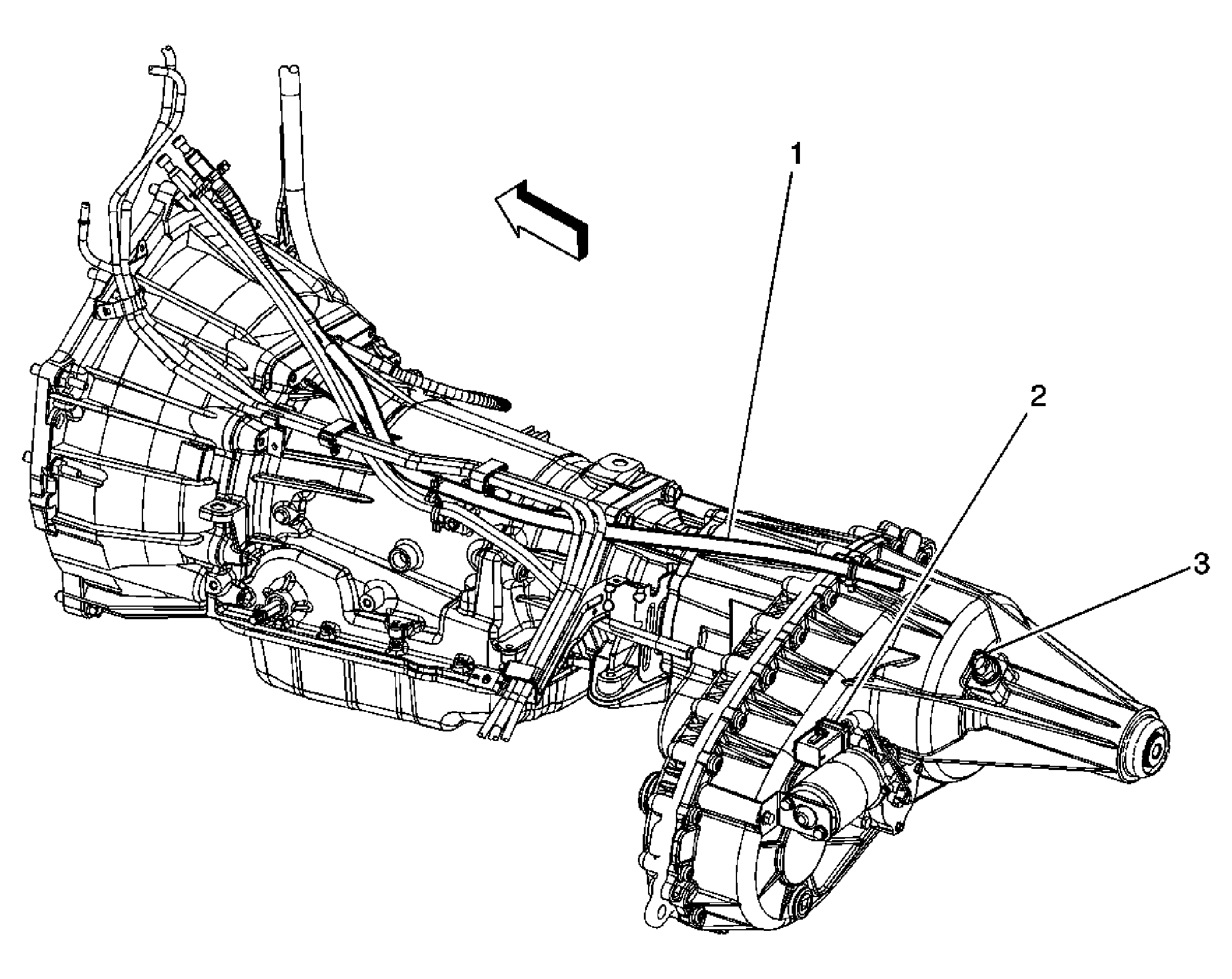

Fig 6: Transfer Case Control Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transfer Case
2	Transfer Case Encoder/Motor Connector
3	Vehicle Speed Sensor (VSS)

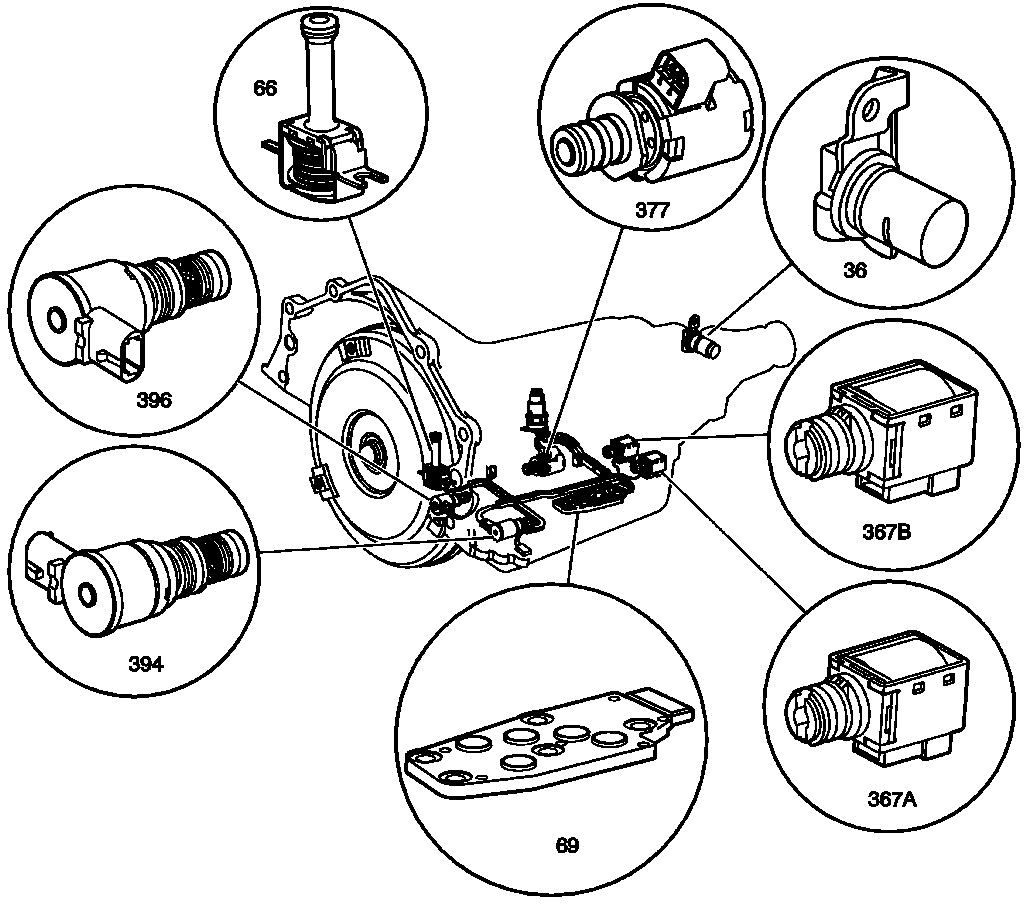

Fig 7: Electronic Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
36	Vehicle Speed Sensor (VSS) - Model Dependent
66	Torque Converter Clutch (TCC) Solenoid Valve
69	Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch
367a	1-2 Shift Solenoid (SS) Valve
367b	2-3 Shift Solenoid (SS) Valve
377	Pressure Control (PC) Solenoid Valve
394	3-2 Shift Solenoid (SS) Valve Assembly
396	Torque Converter Clutch Pulse Width Modulation (TCC PWM) Solenoid Valve
