Memory Positioning Switch: Locations

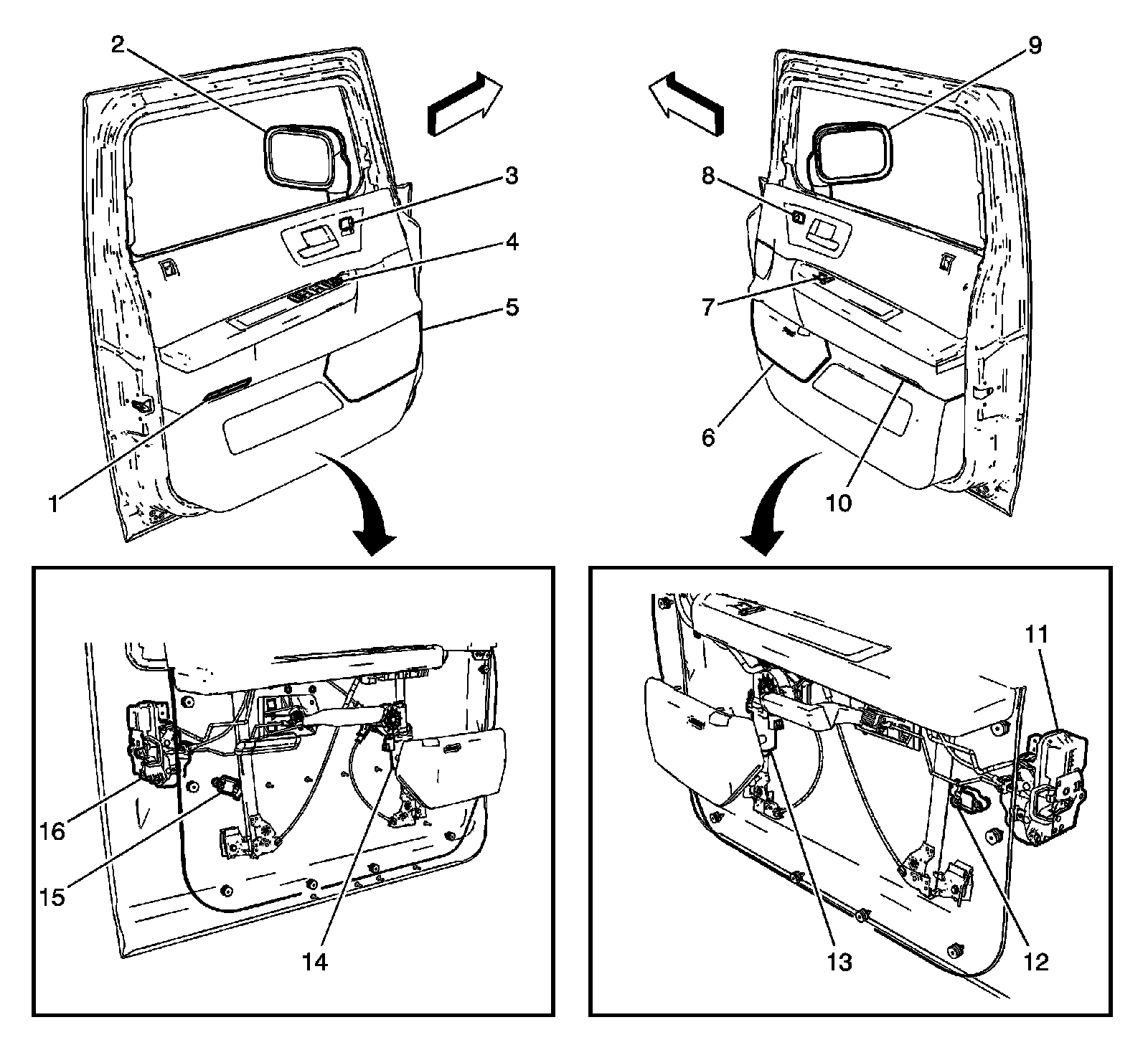

Door Component Views

Front Doors




1 - Courtesy Lamp-Driver Door
2 - Outside Rearview Mirror-Driver
3 - Memory/Heated Seat Switch-Driver
4 - Driver Door Module (DDM)
5 - Speaker-LF Door
6 - Speaker-RF Door
7 - Passenger Door Module (PDM)
8 - Heated Seat Switch-Passenger
9 - Outside Rearview Mirror-Passenger
10 - Courtesy Lamp-Front Passenger Door
11 - Door Latch Assembly-Front Passenger
12 - Inflatable Restraint Side Impact Sensor (SIS) - Right Front
13 - Window Motor-Front Passenger Door
14 - Window Motor-Driver Door
15 - Inflatable Restraint Side Impact Sensor (SIS) - Left Front
16 - Door Latch Assembly-Driver Door
