A - Z Index



Master Electrical Component List

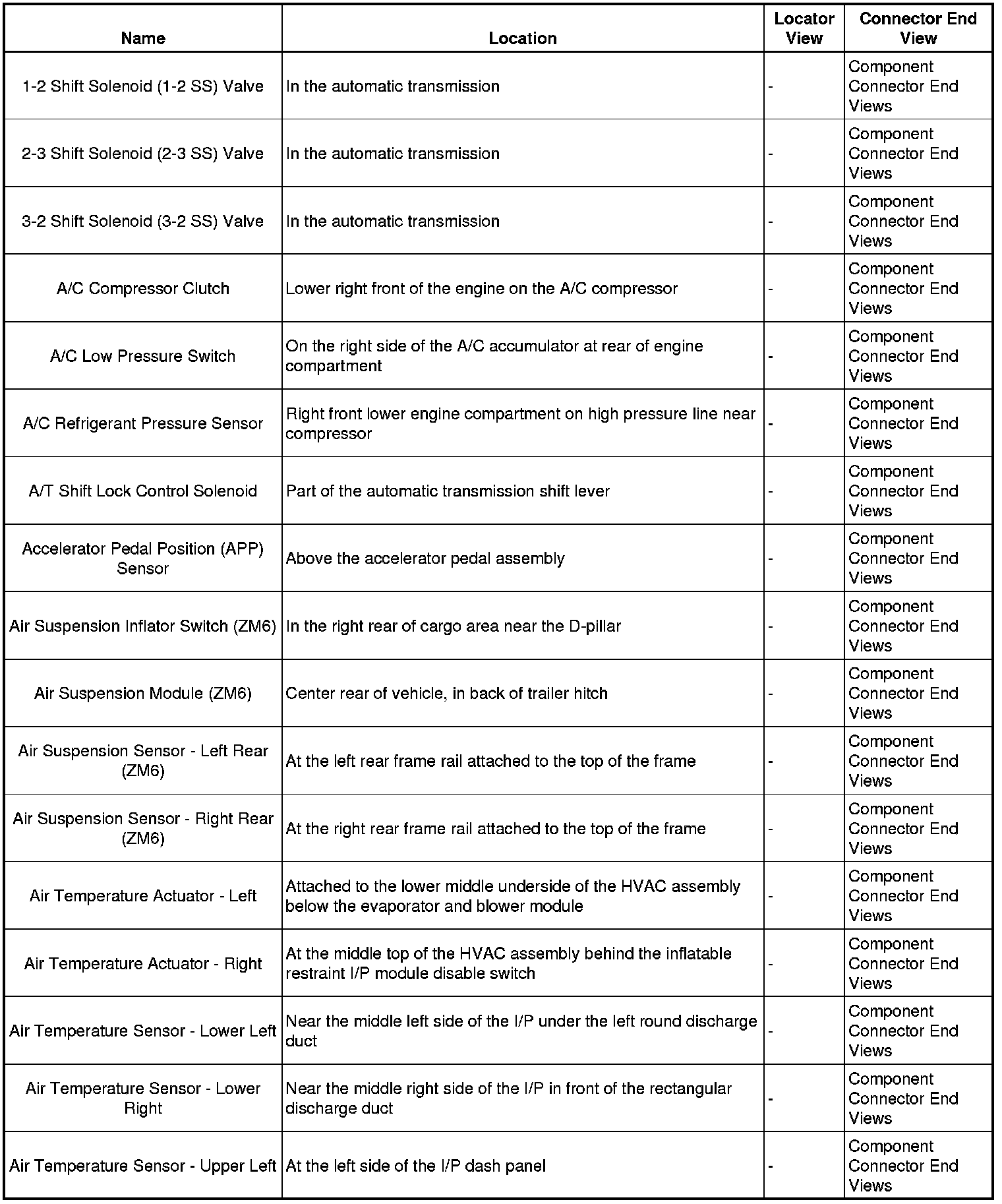

1-2 Shift - Air:

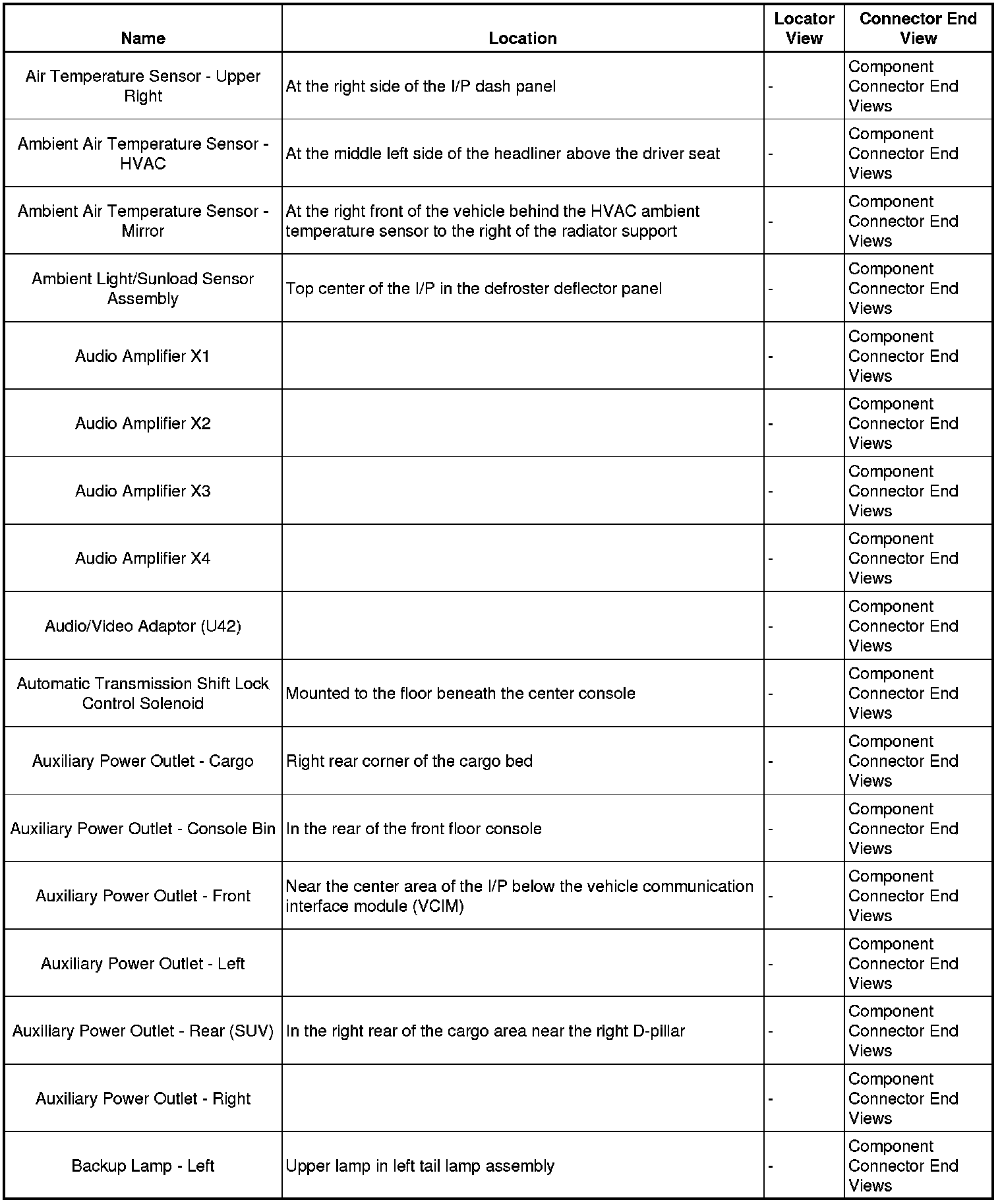

Air - Backup:

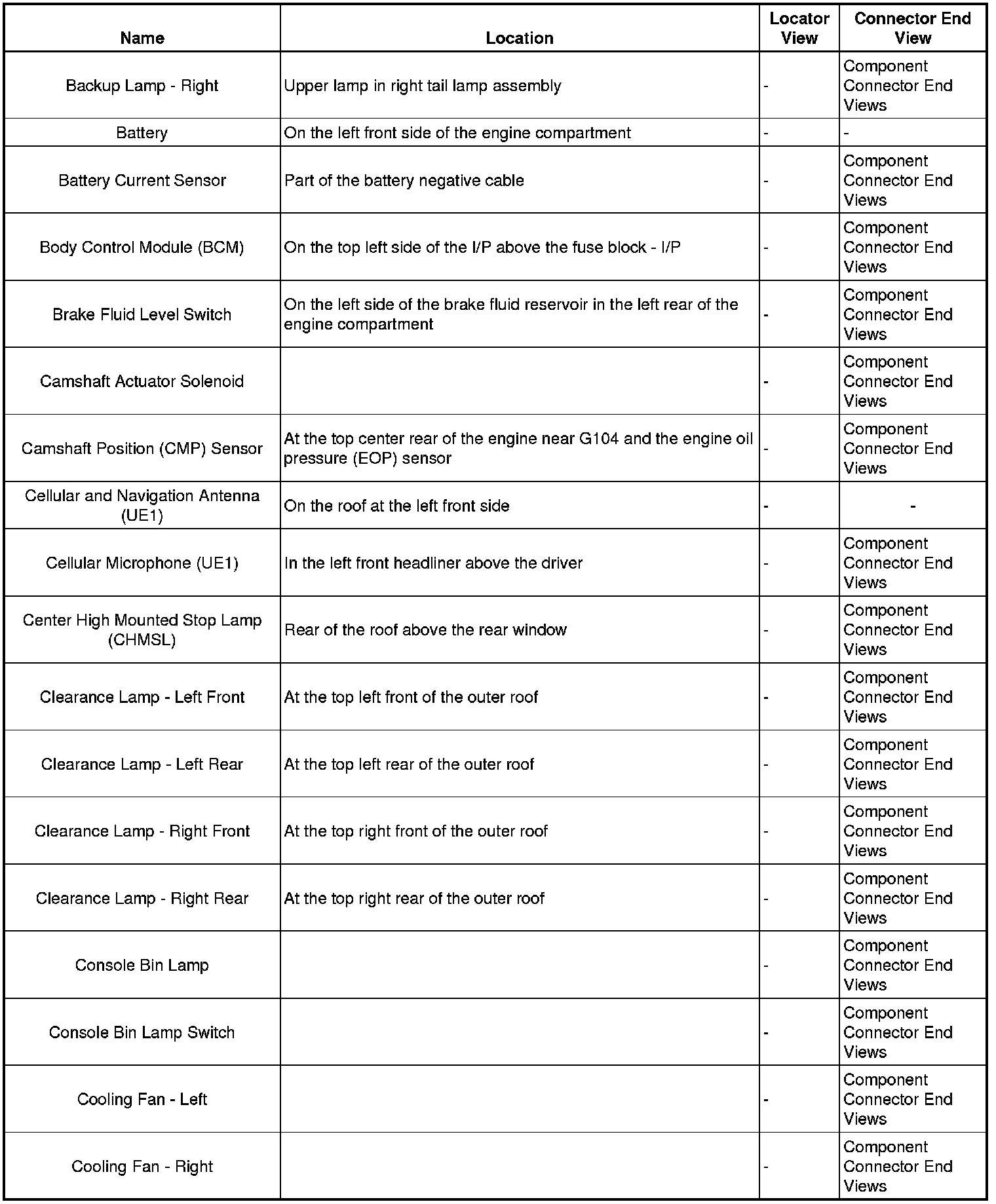

Backup - Cooling:

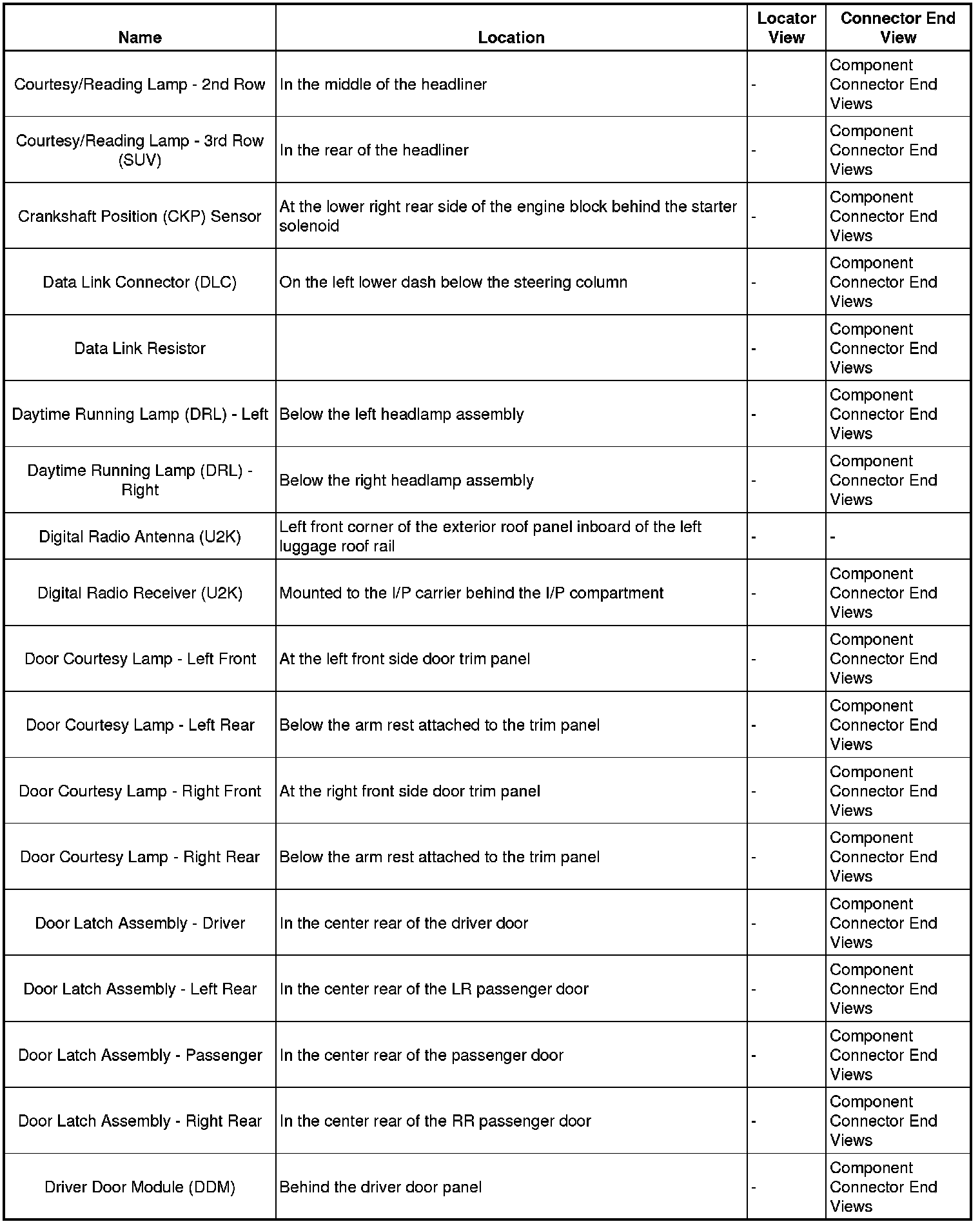

Courtesy - Driver:

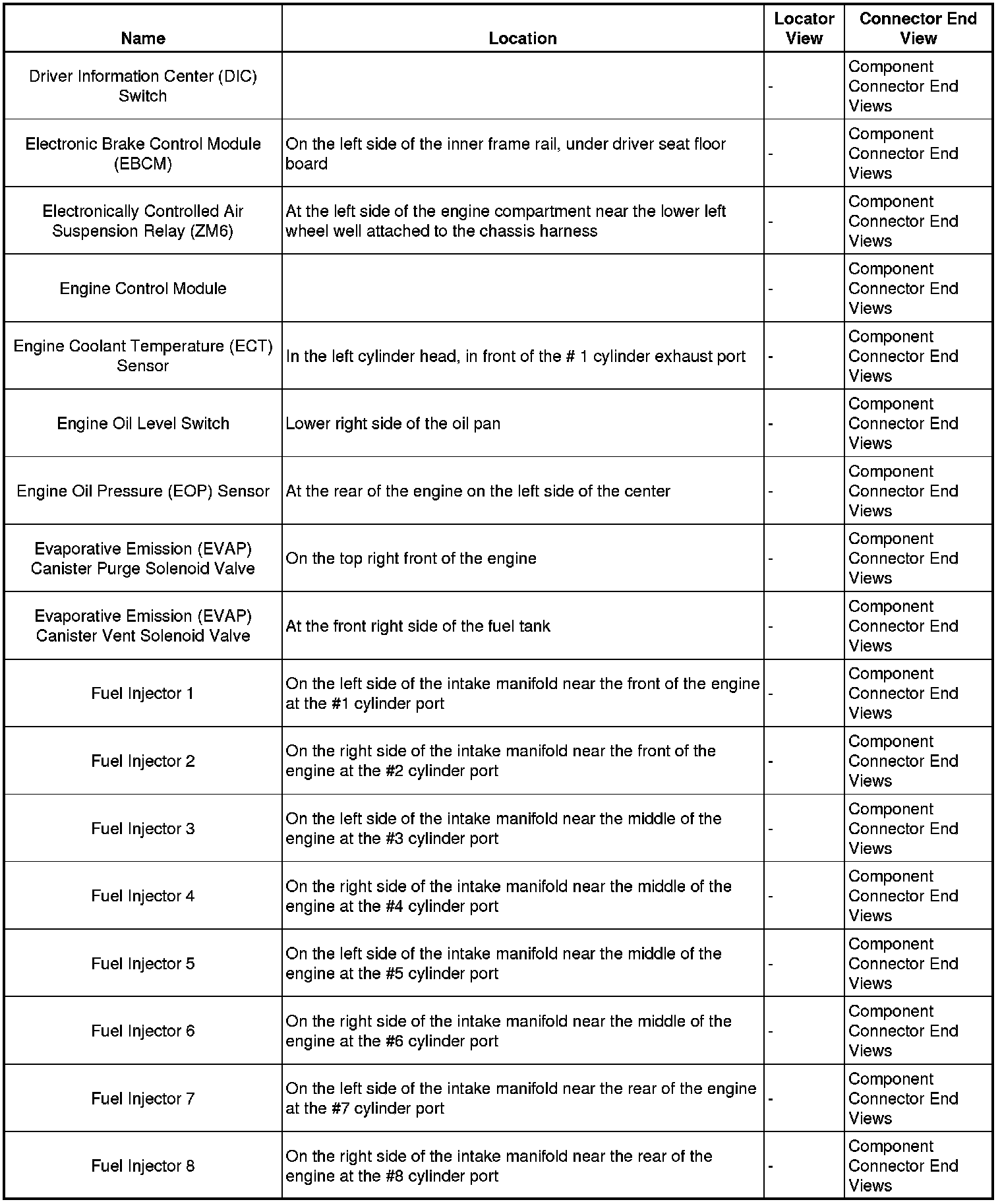

Driver - Fuel:

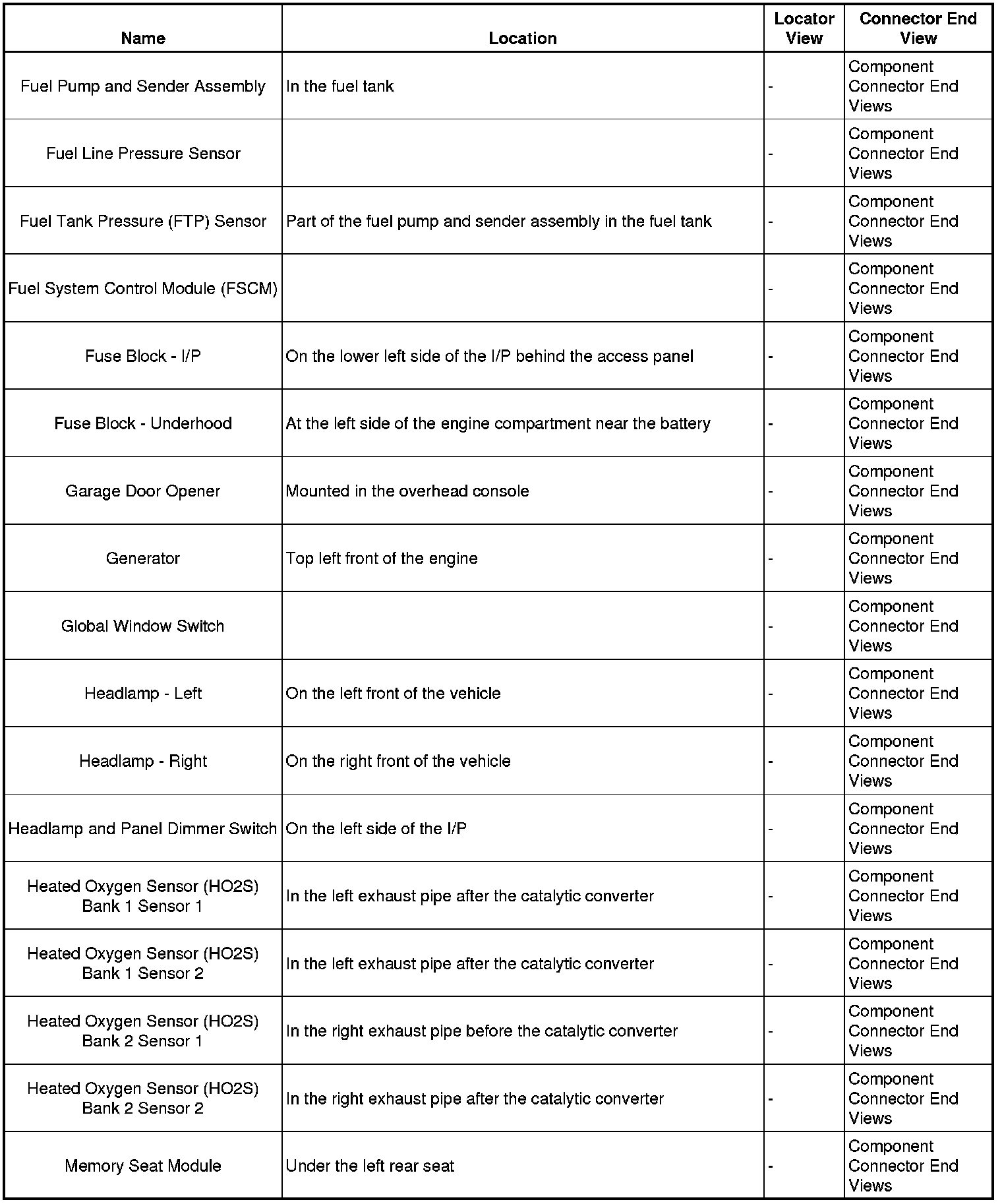

Fuel - Memory:

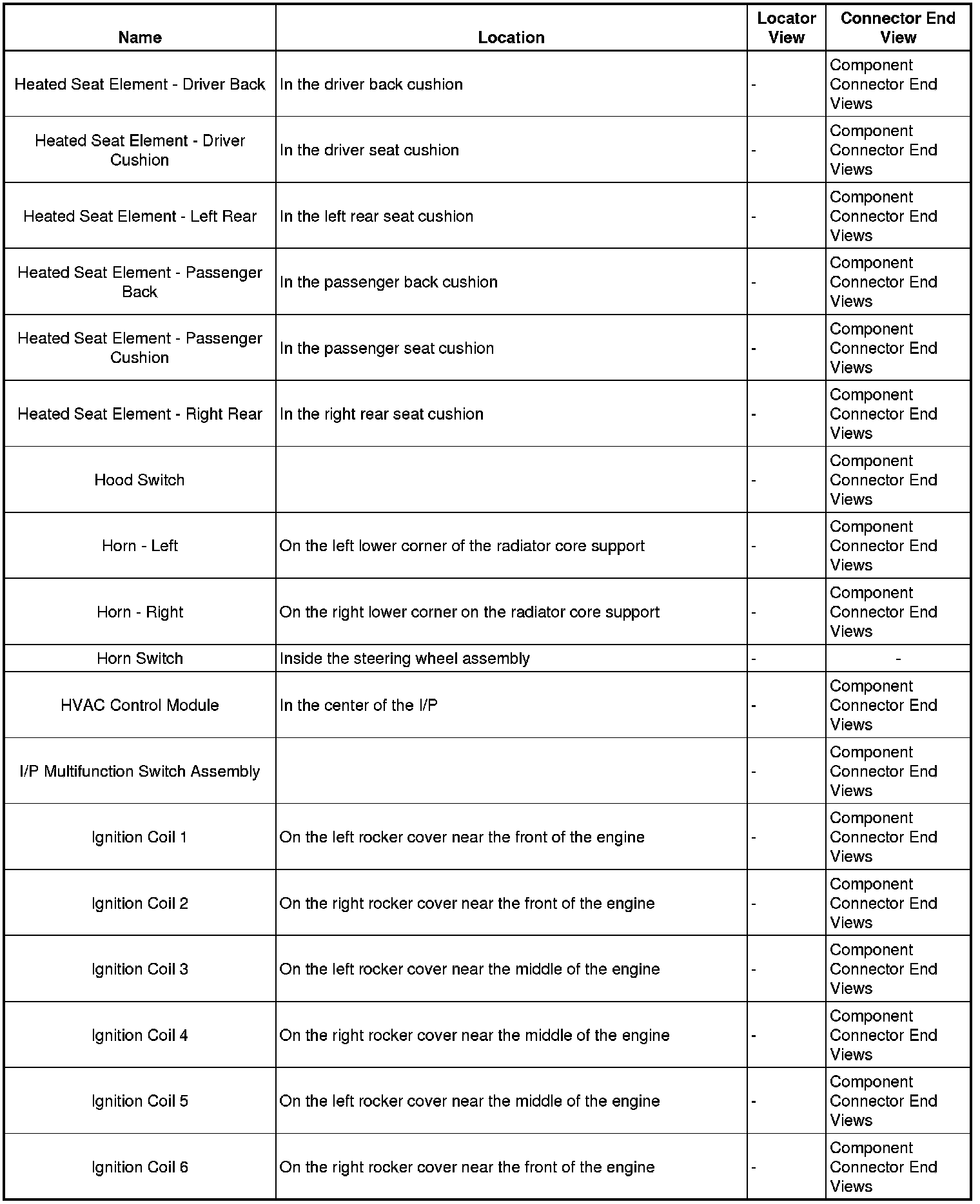

Heated - Ignition:

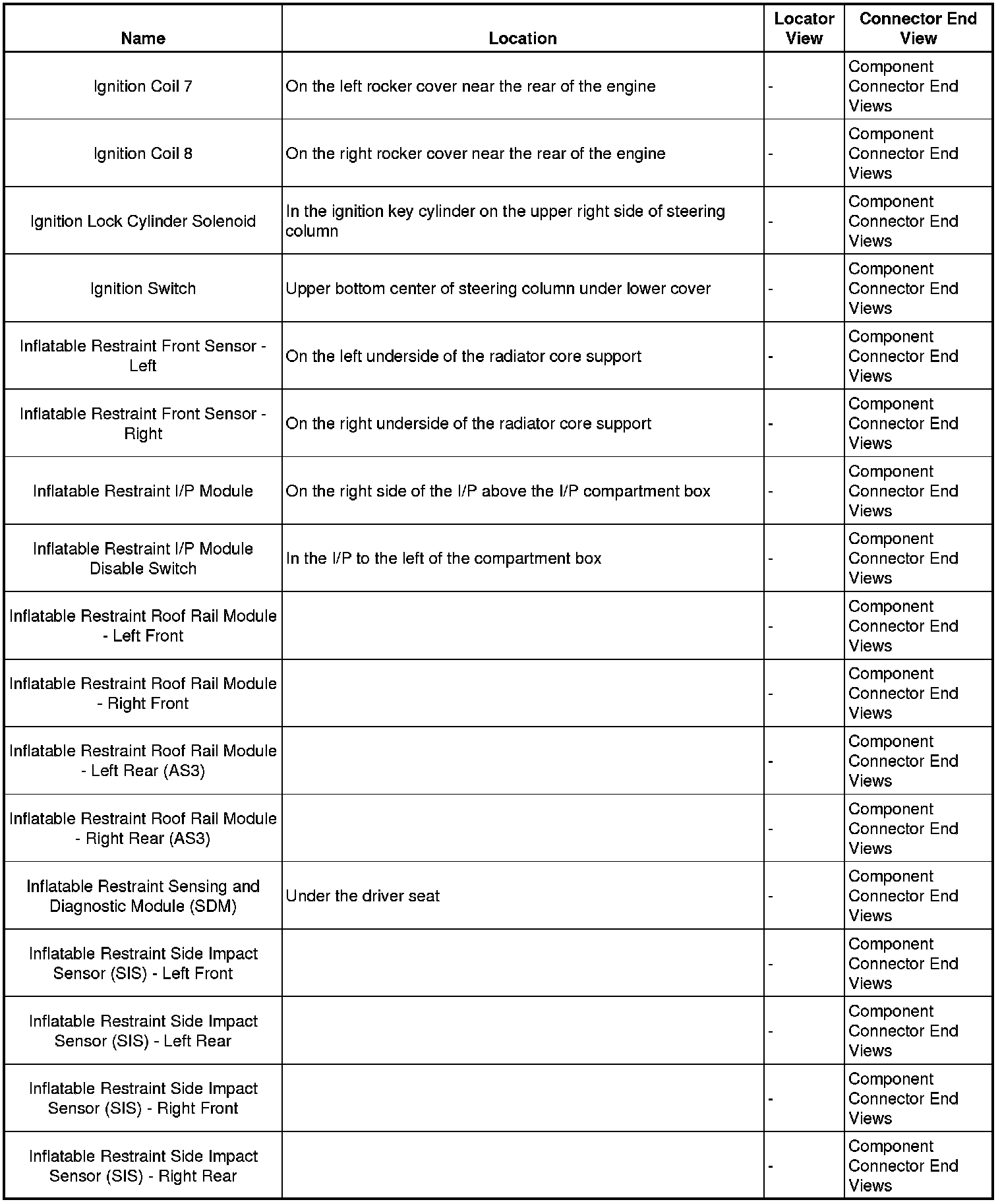

Ignition - Inflatable:

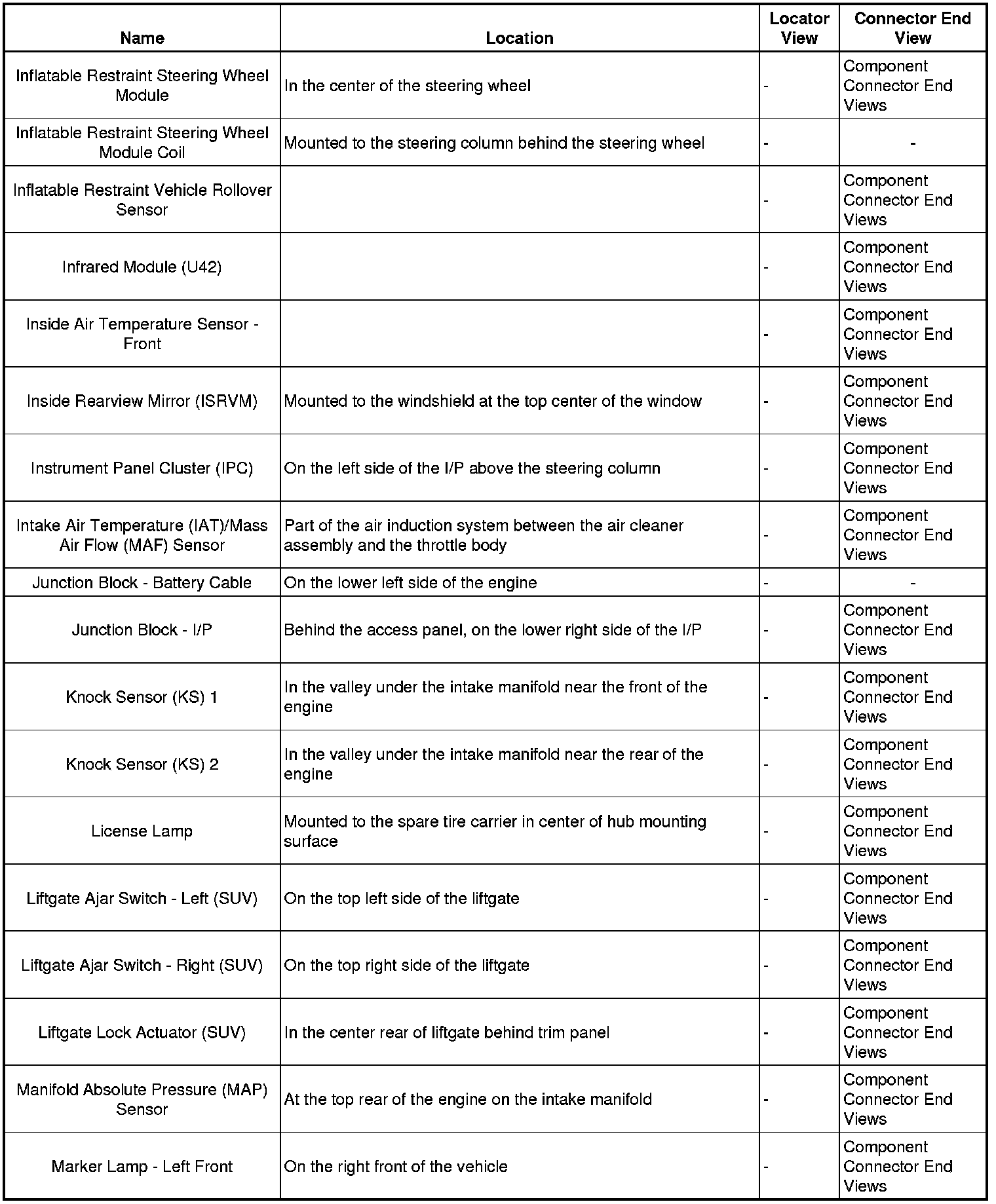

Inflatable - Marker:

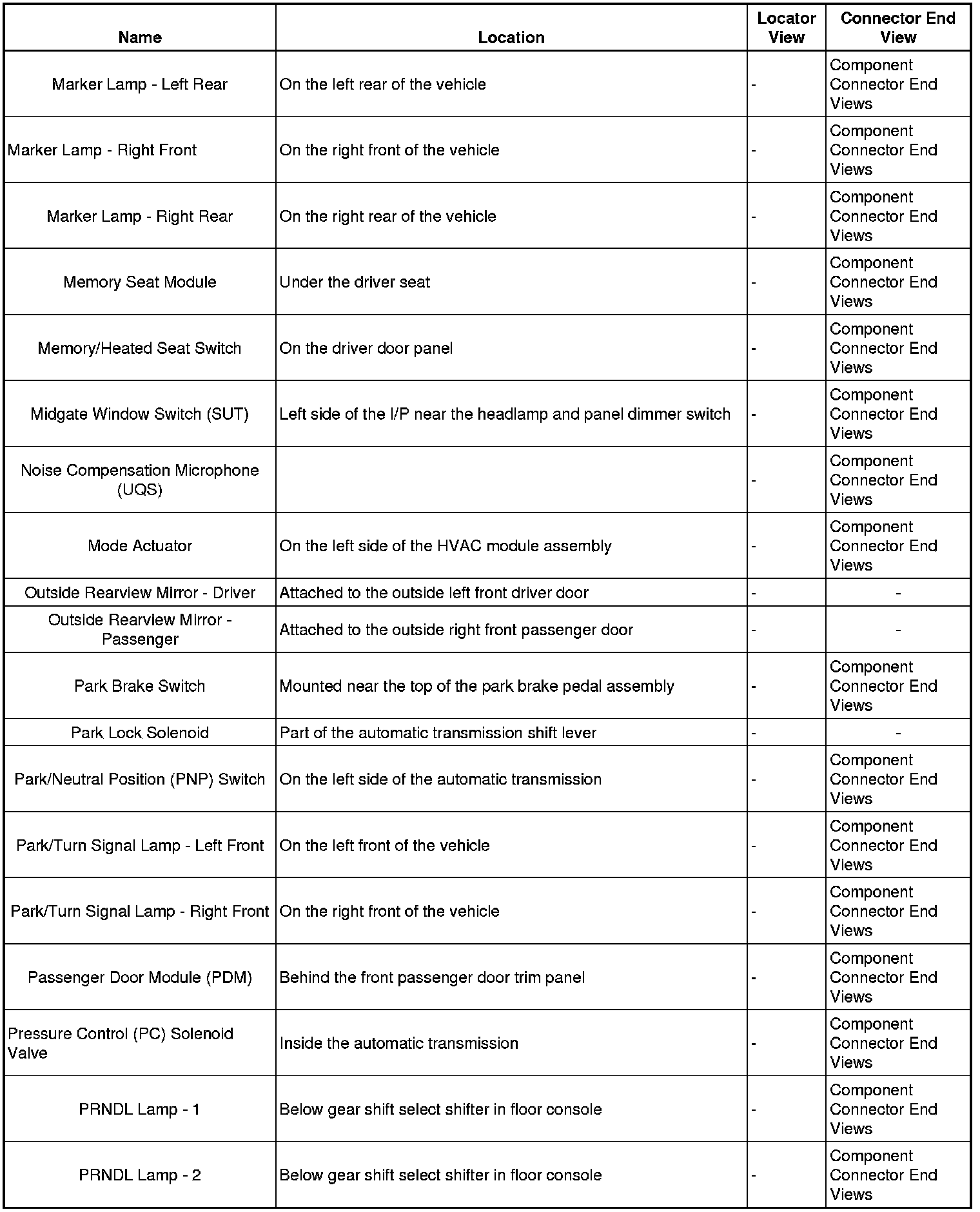

Marker - PRNDL:

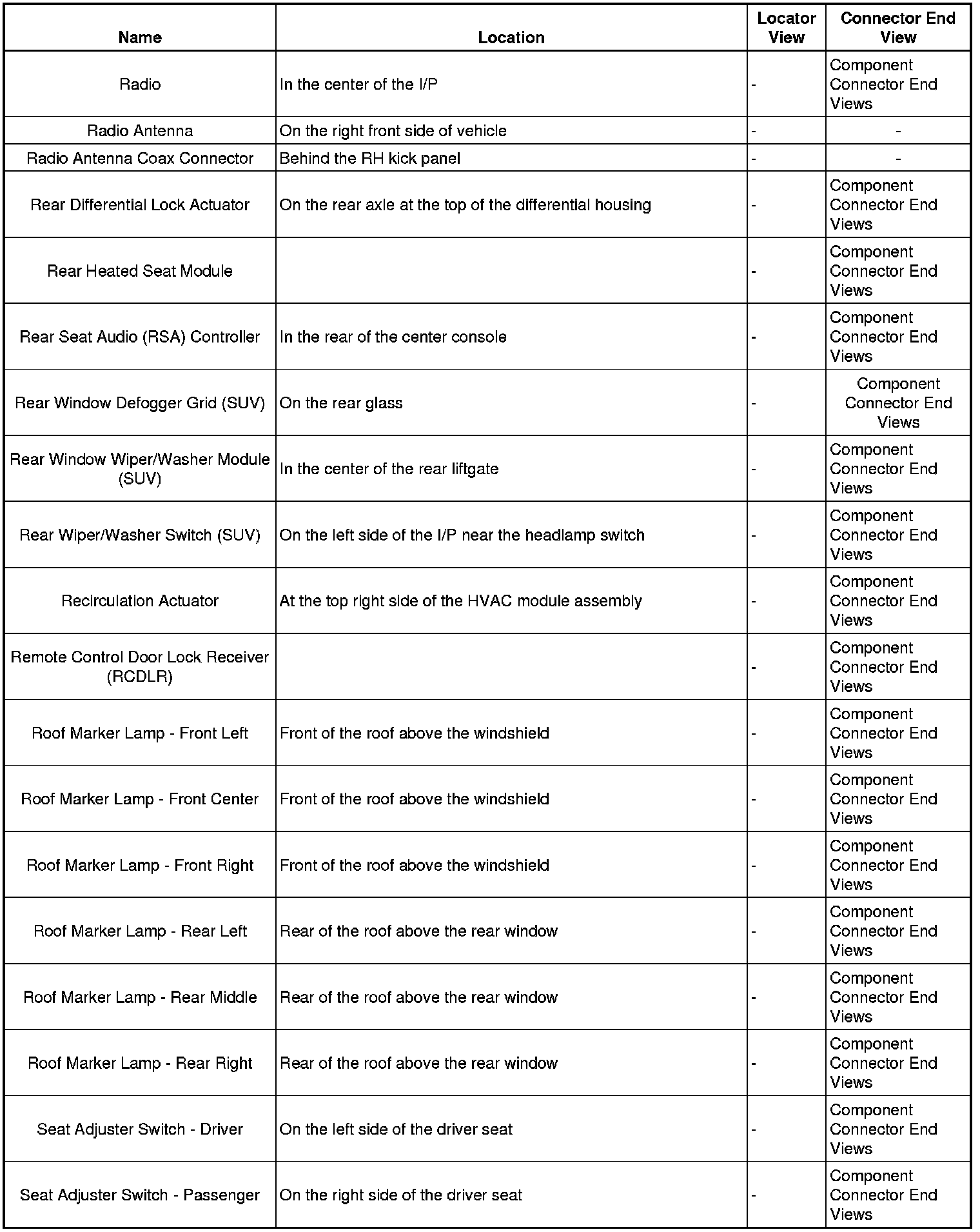

Radio - Seat:

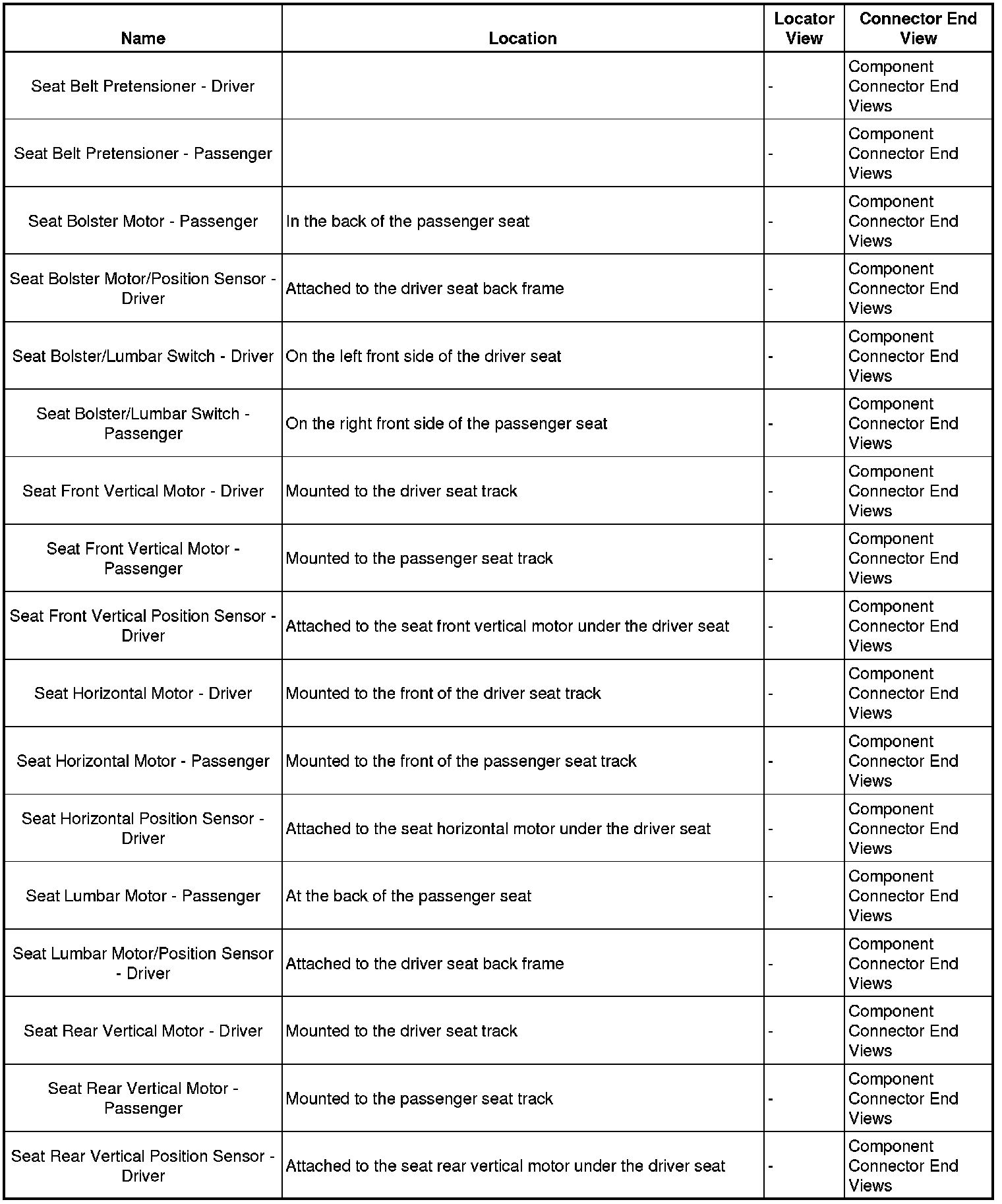

Seat Belt - Seat Rear:

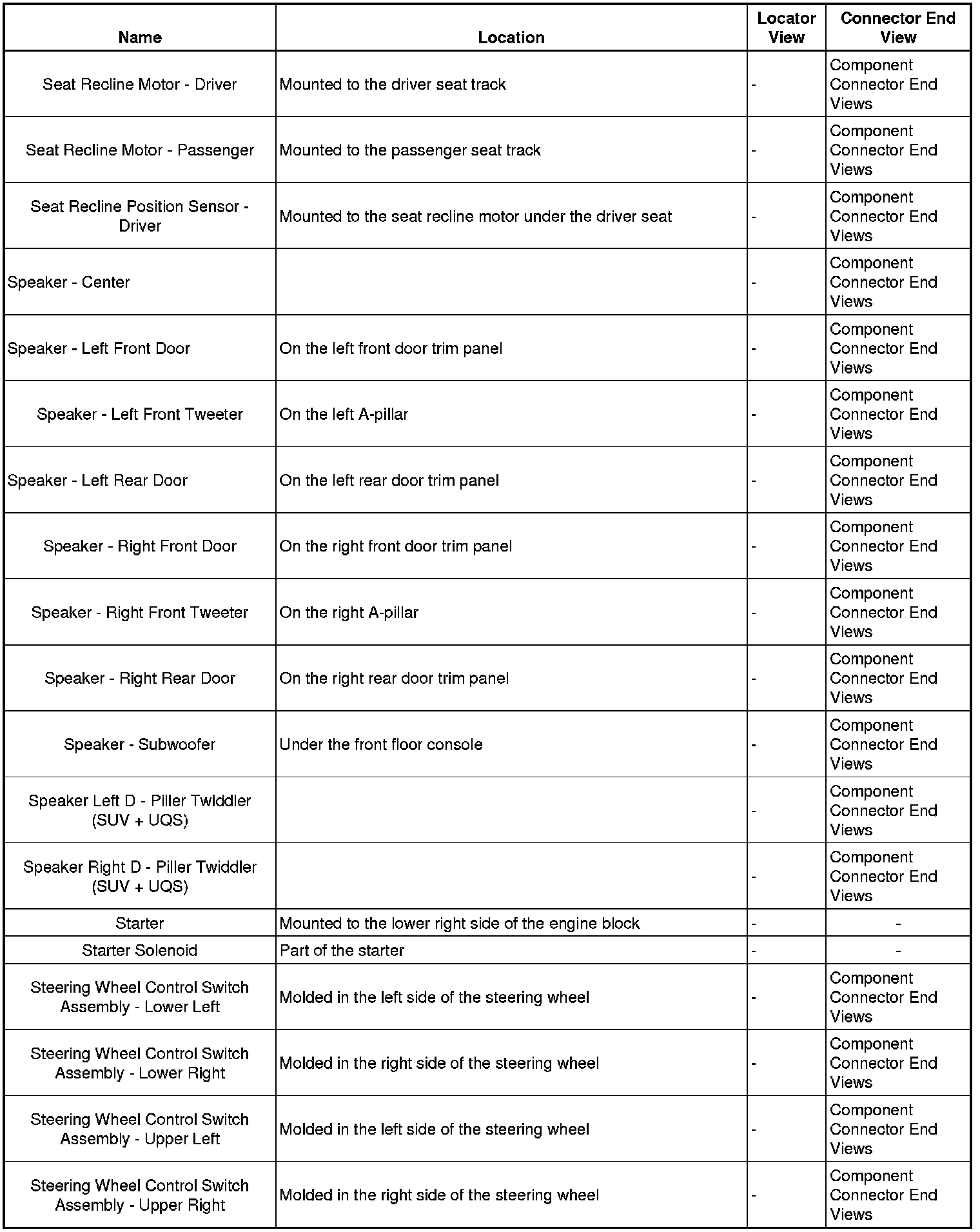

Seat Recline - Steering:

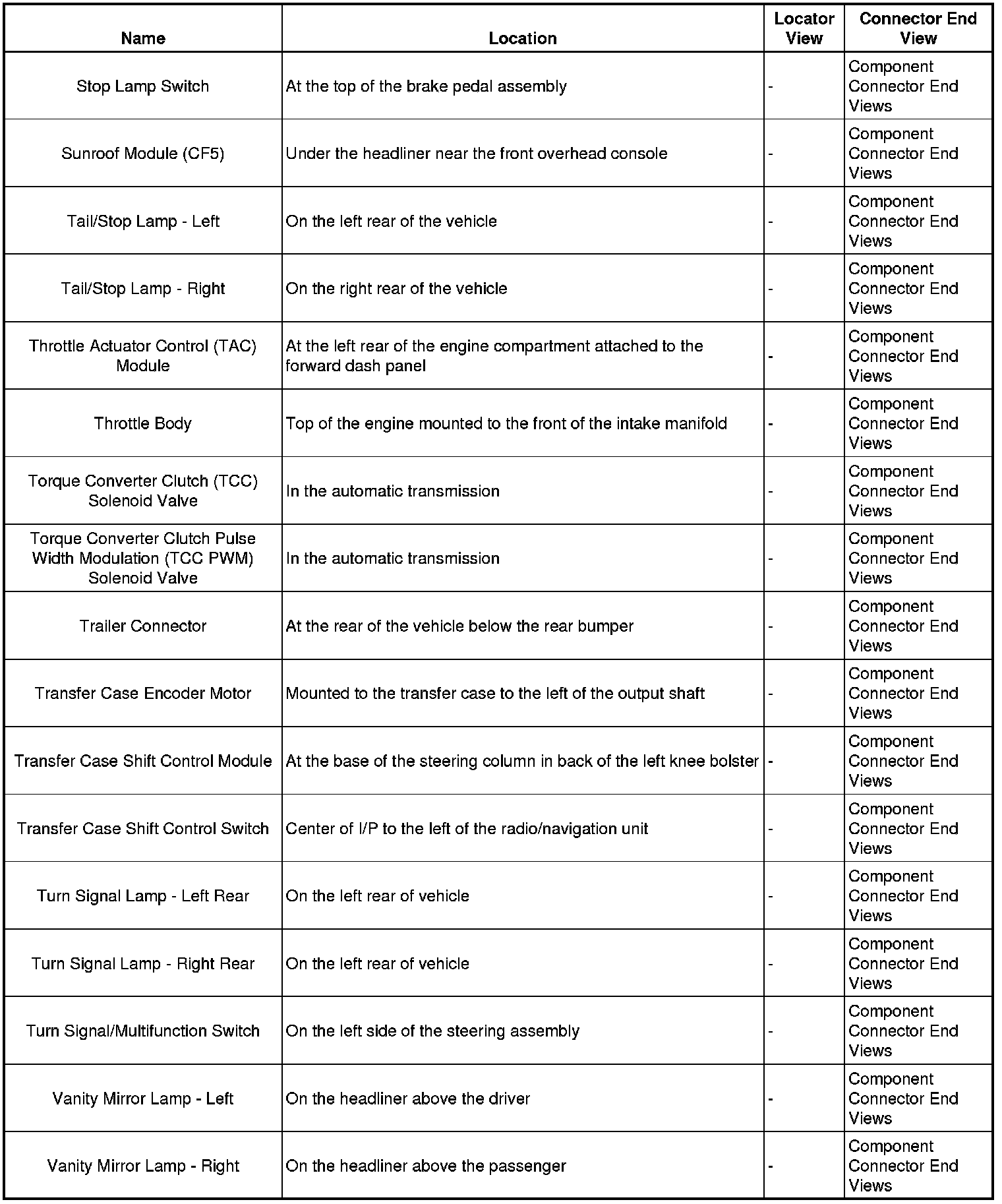

Stop - Vanity:

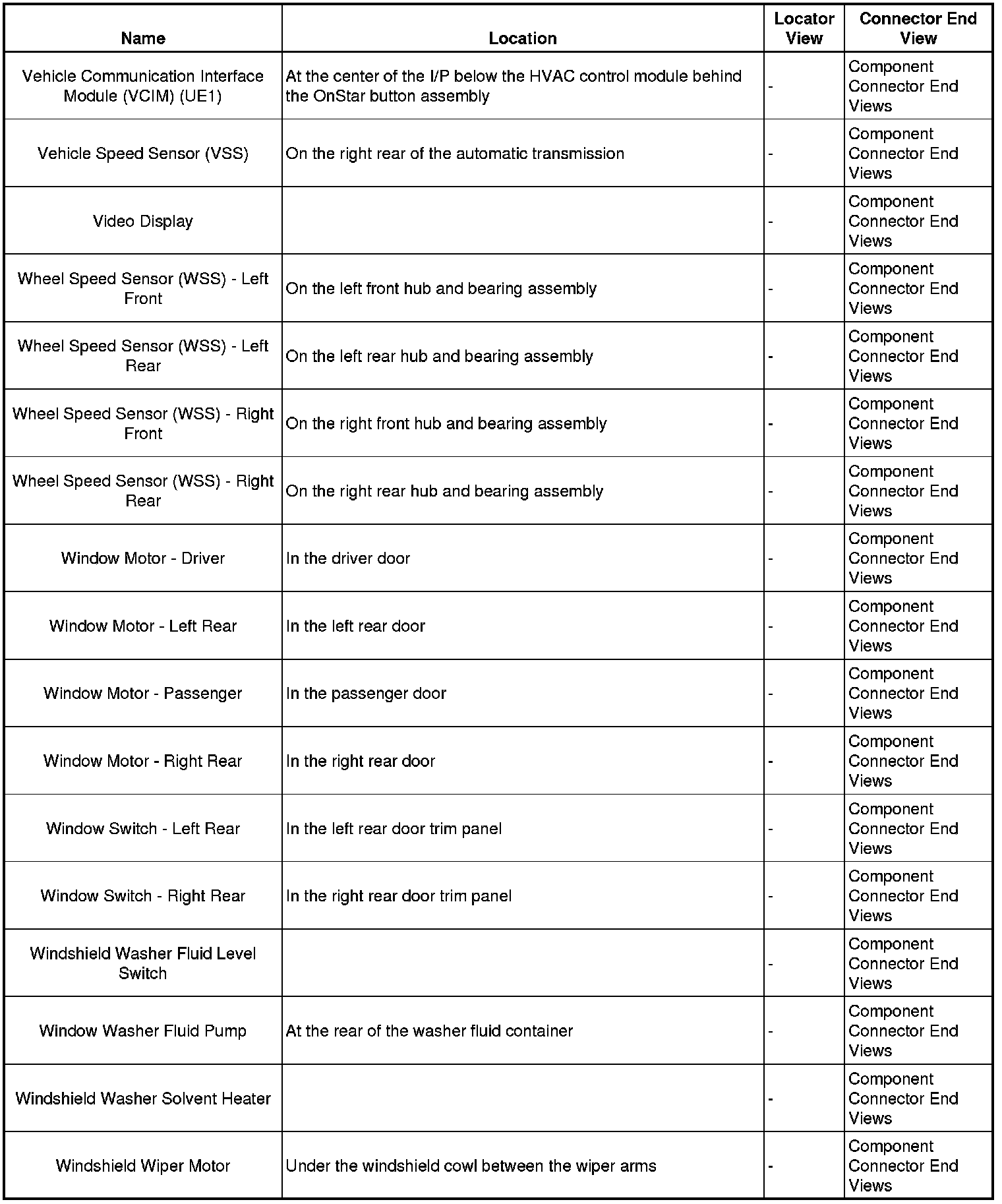

Vehicle - Windshield:

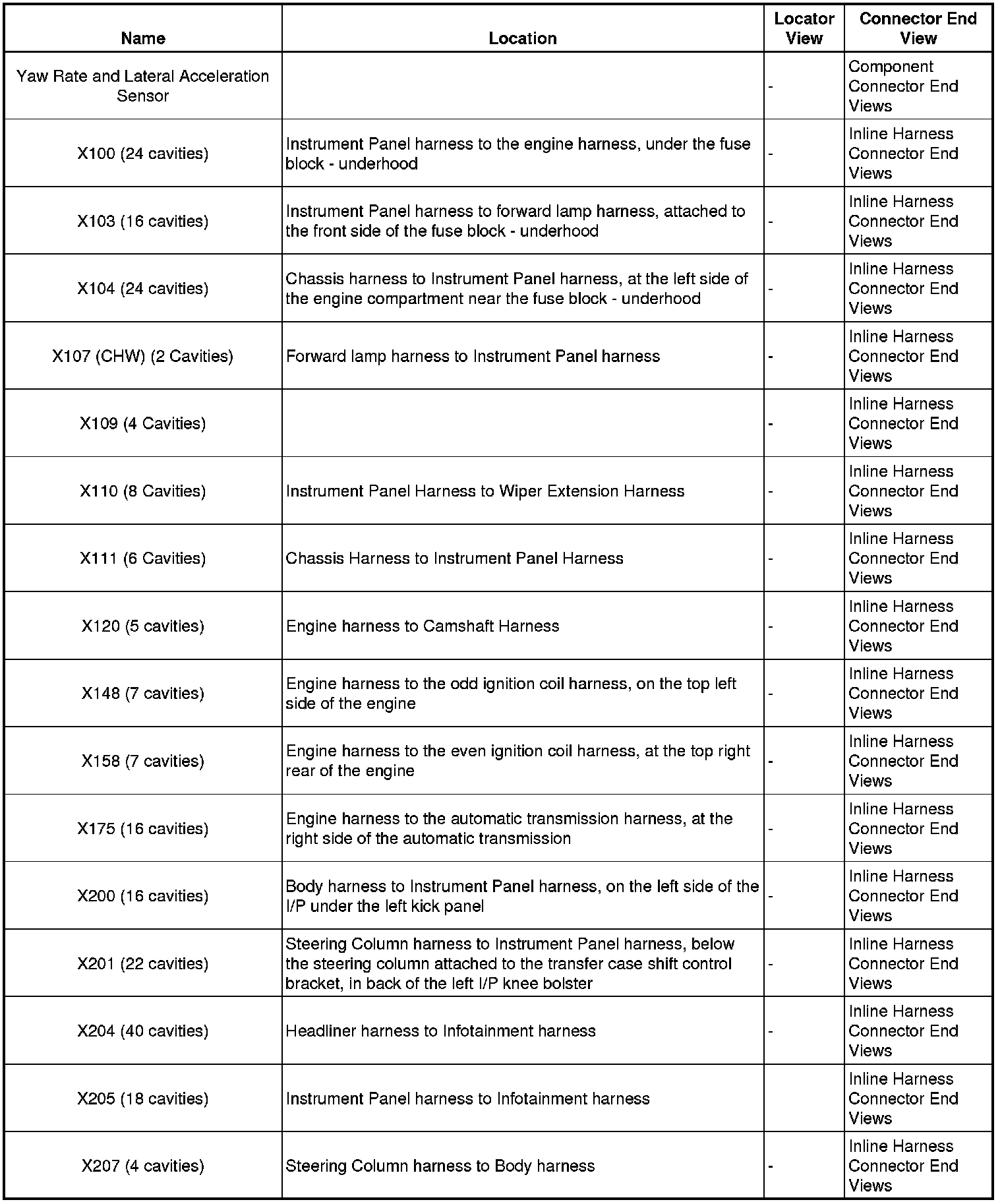

Yaw - X207:
