Restraint Systems



Component Connector End Views

Inflatable Restraint Front Sensor - Left

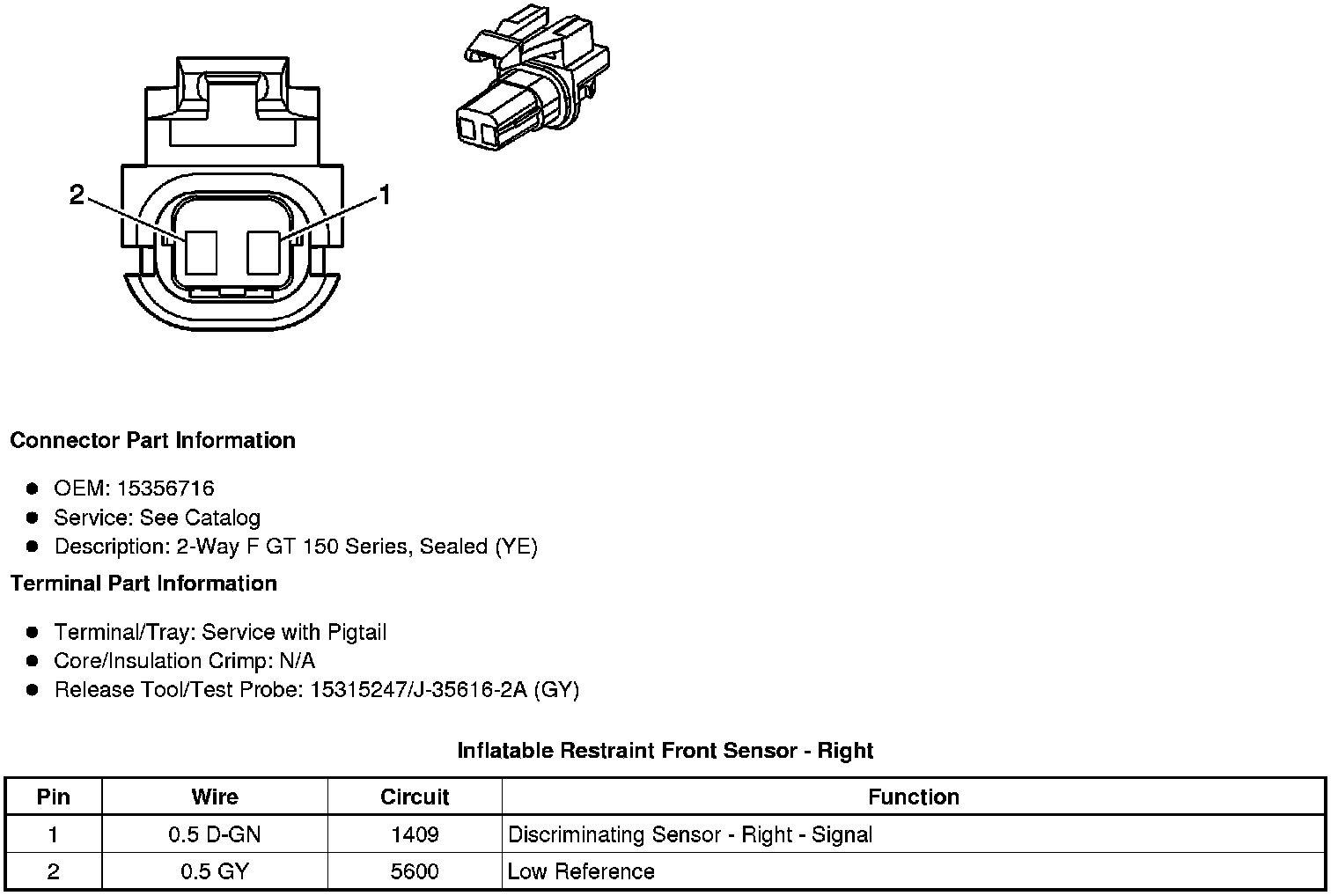

Inflatable Restraint Front Sensor - Right

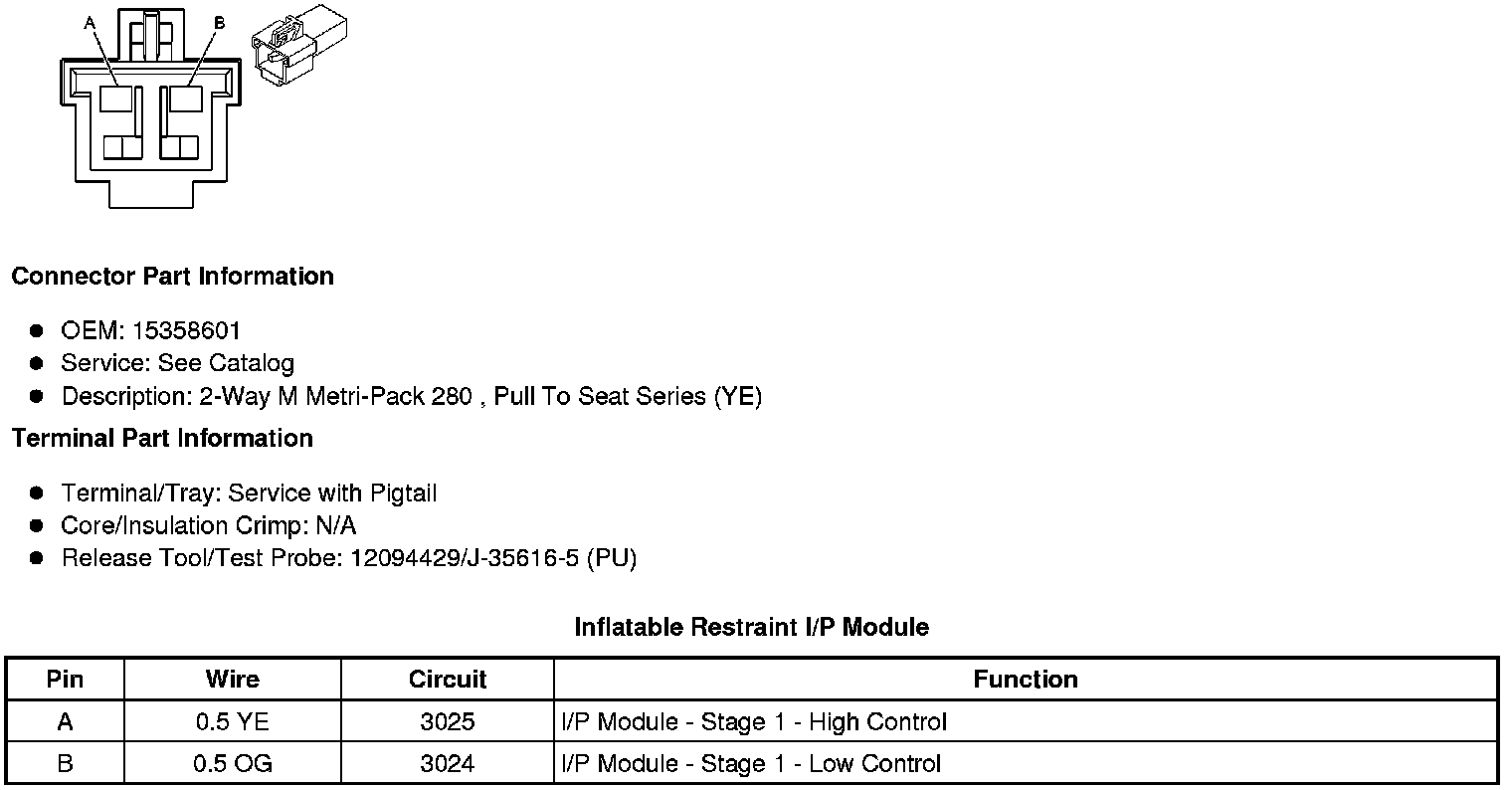

Inflatable Restraint I/P Module

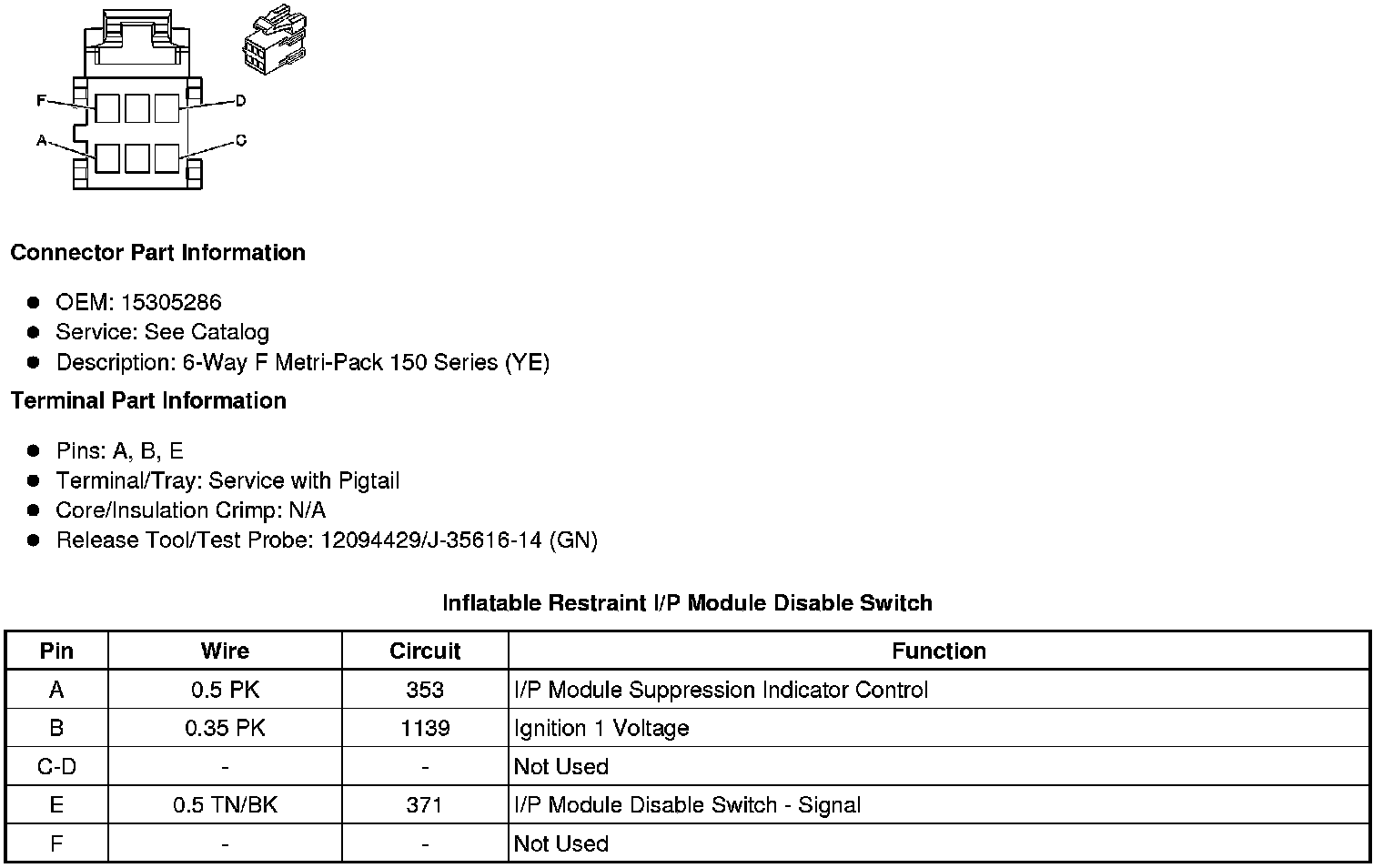

Inflatable Restraint I/P Module Disable Switch

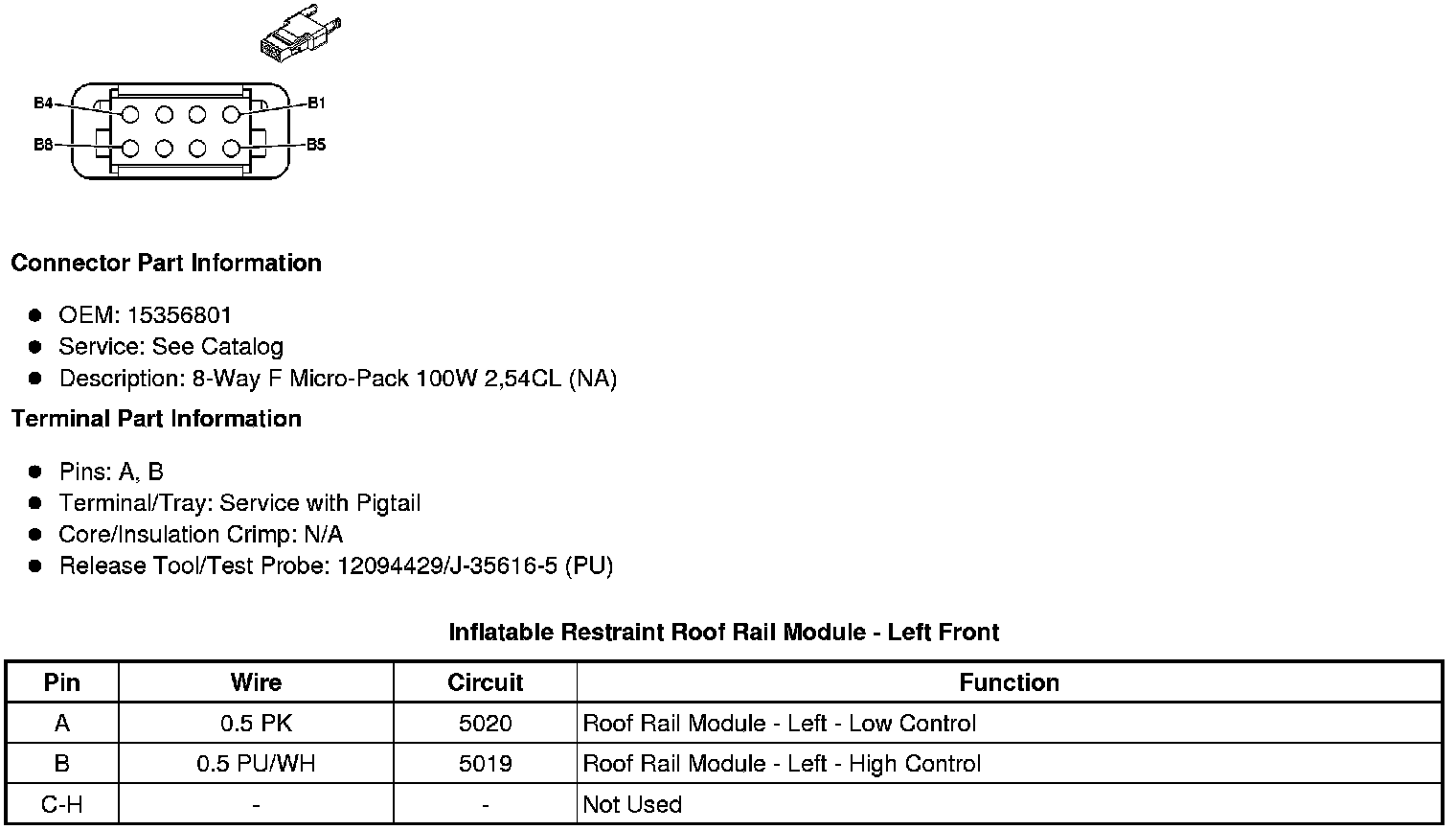

Inflatable Restraint Roof Rail Module - Left Front

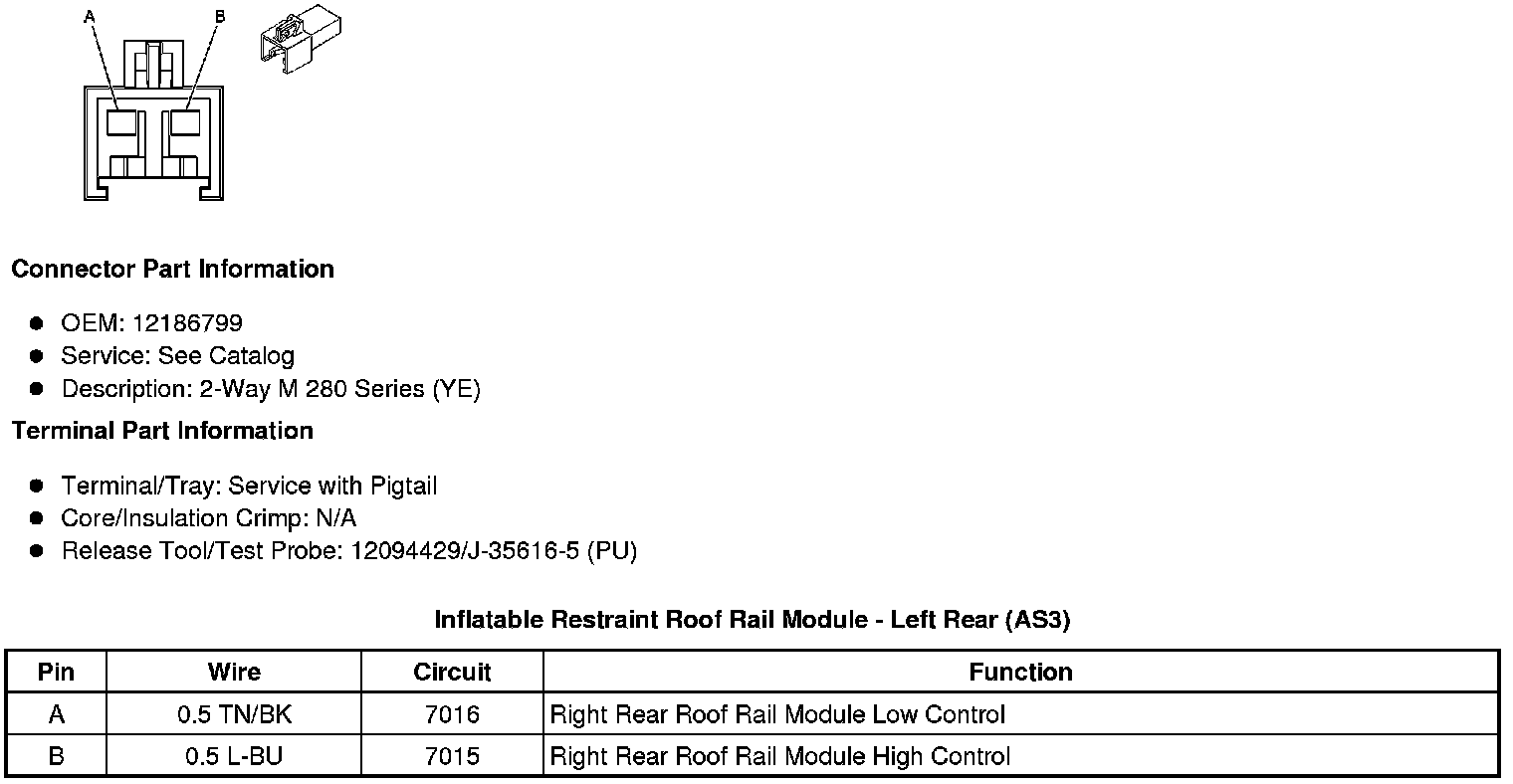

Inflatable Restraint Roof Rail Module - Left Rear (AS3)

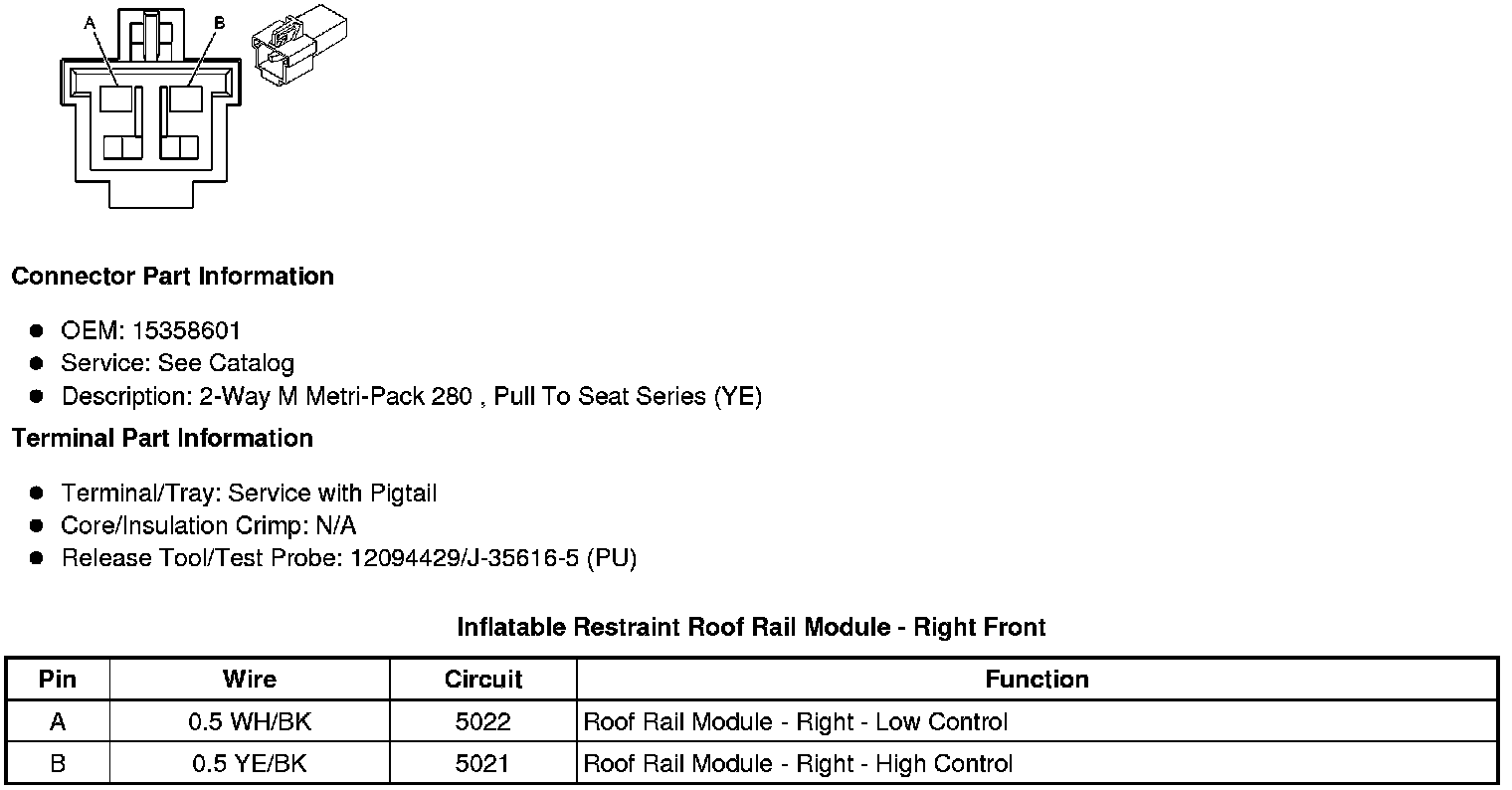

Inflatable Restraint Roof Rail Module - Right Front





Inflatable Restraint Roof Rail Module - Right Rear (AS3)





Inflatable Restraint Sensing and Diagnostic Module (SDM)








Inflatable Restraint Side Impact Sensor (SIS) - Left Front

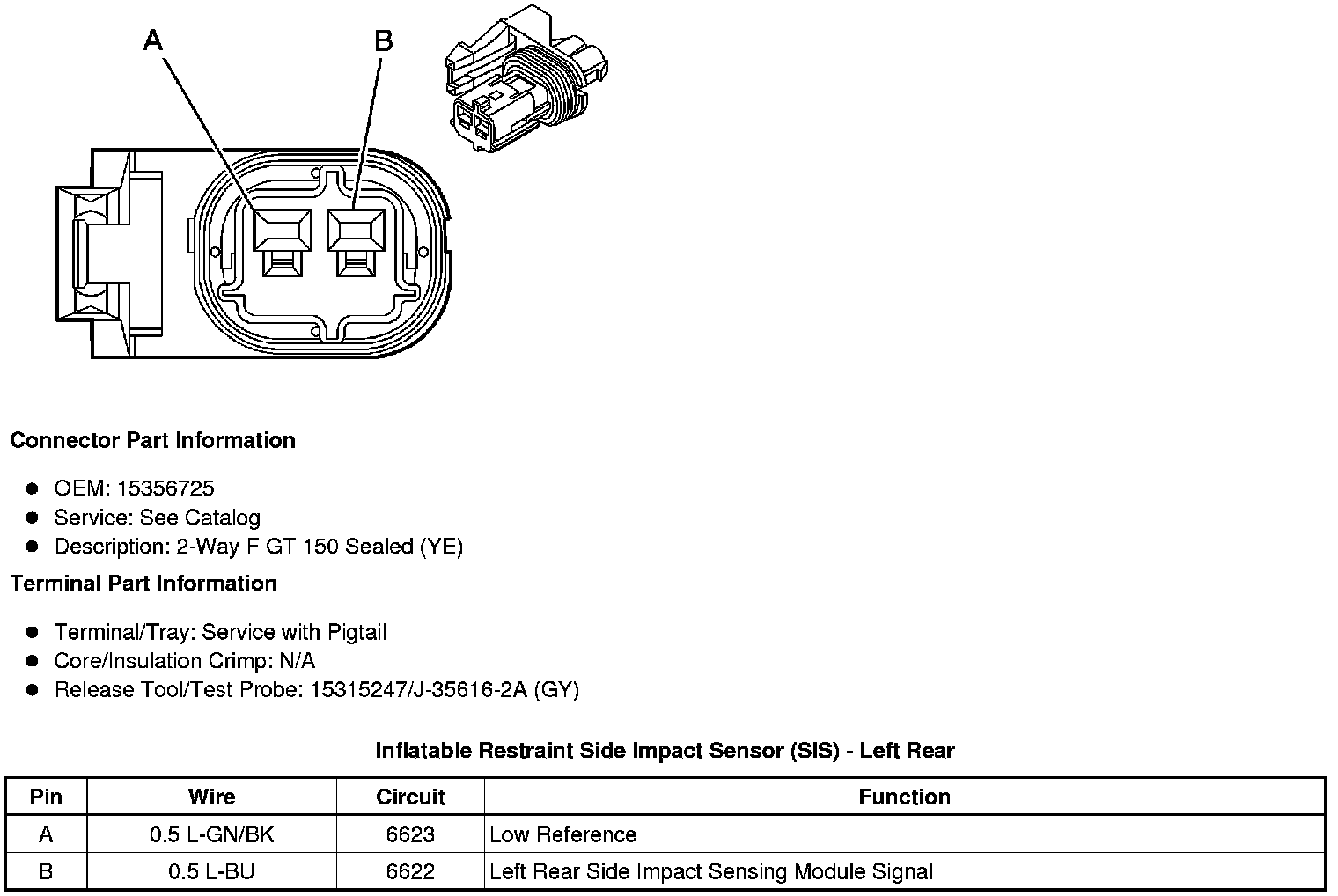

Inflatable Restraint Side Impact Sensor (SIS) - Left Rear

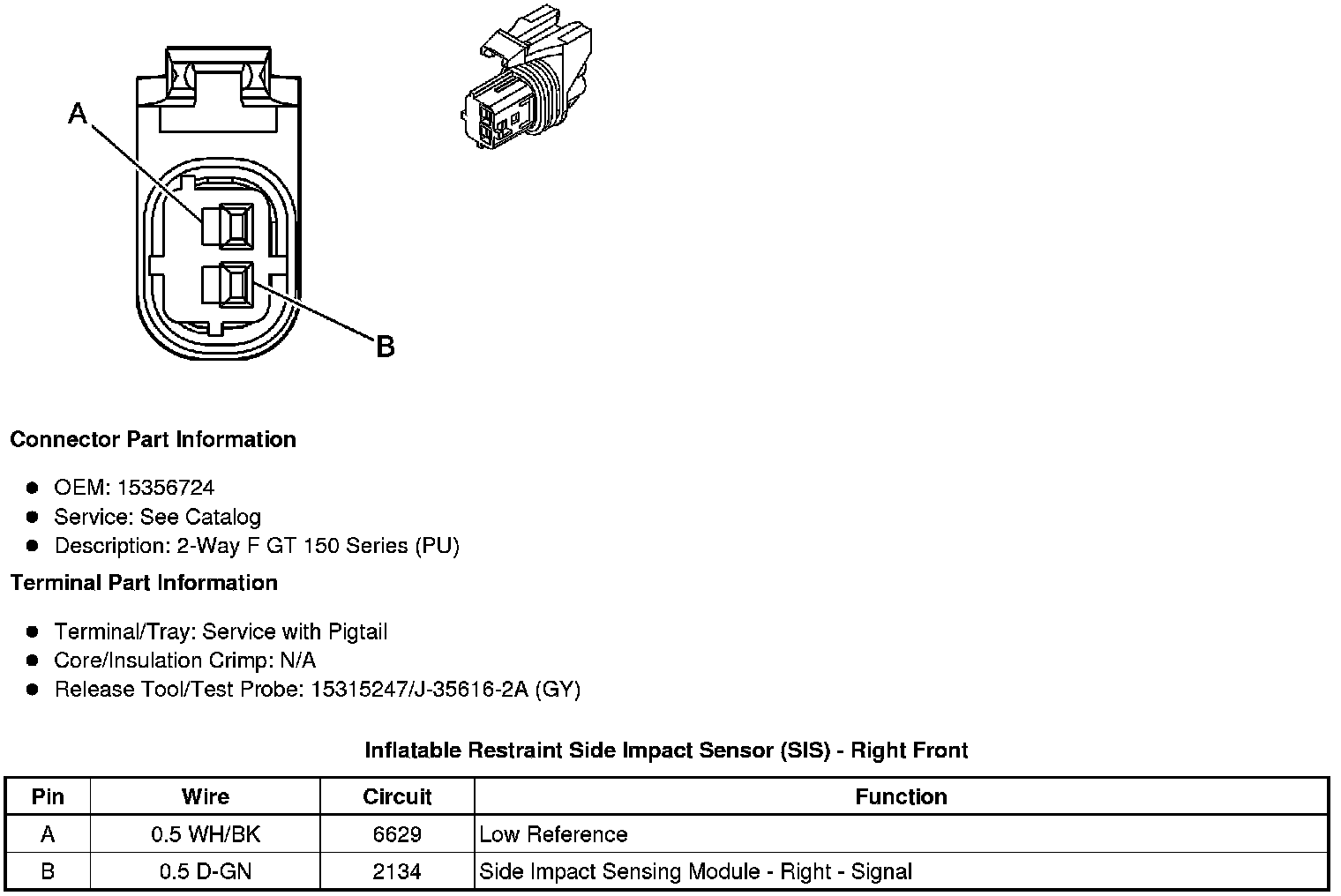

Inflatable Restraint Side Impact Sensor (SIS) - Right Front

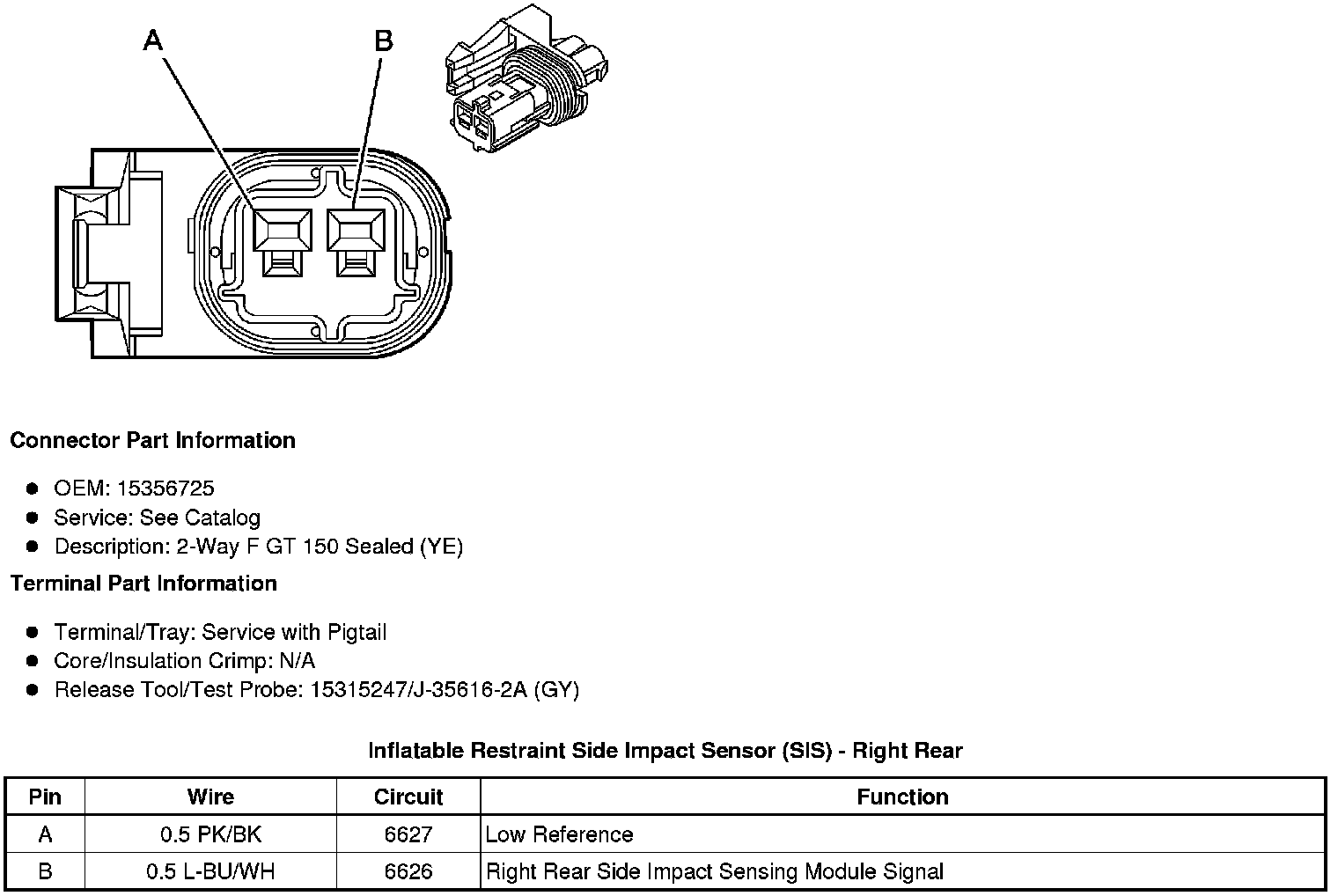

Inflatable Restraint Side Impact Sensor (SIS) - Right Rear

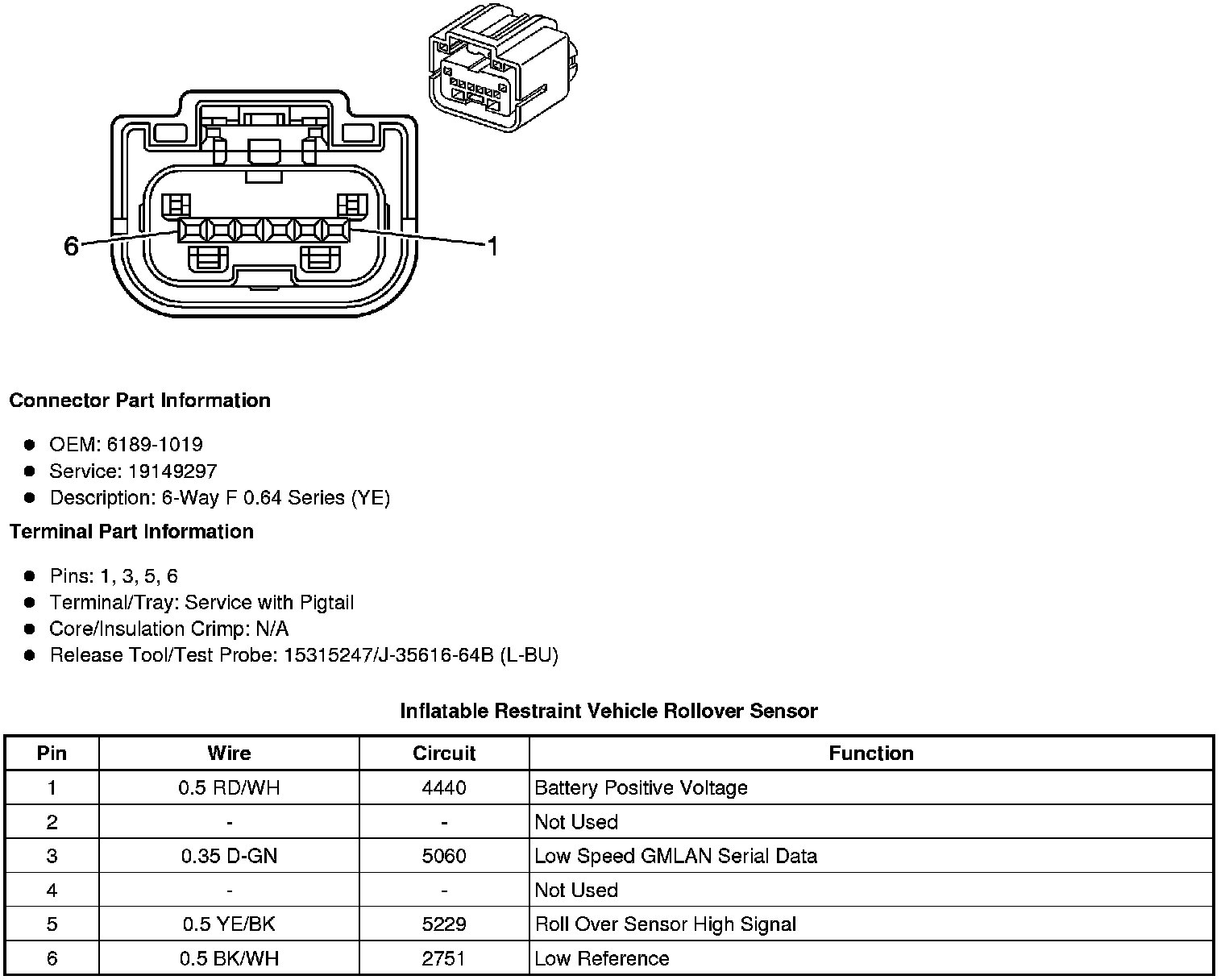

Inflatable Restraint Vehicle Rollover Sensor

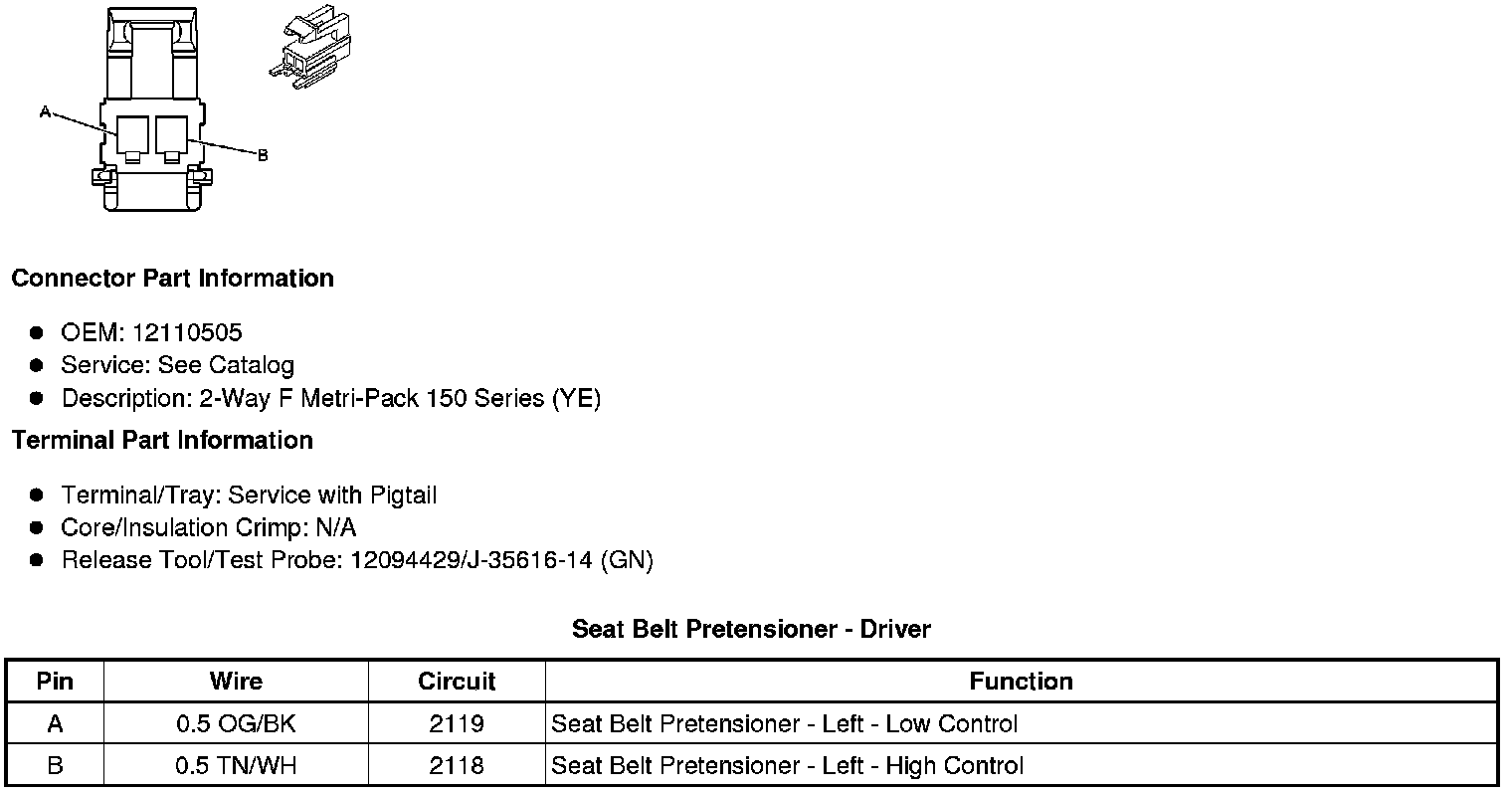

Seat Belt Pretensioner - Driver

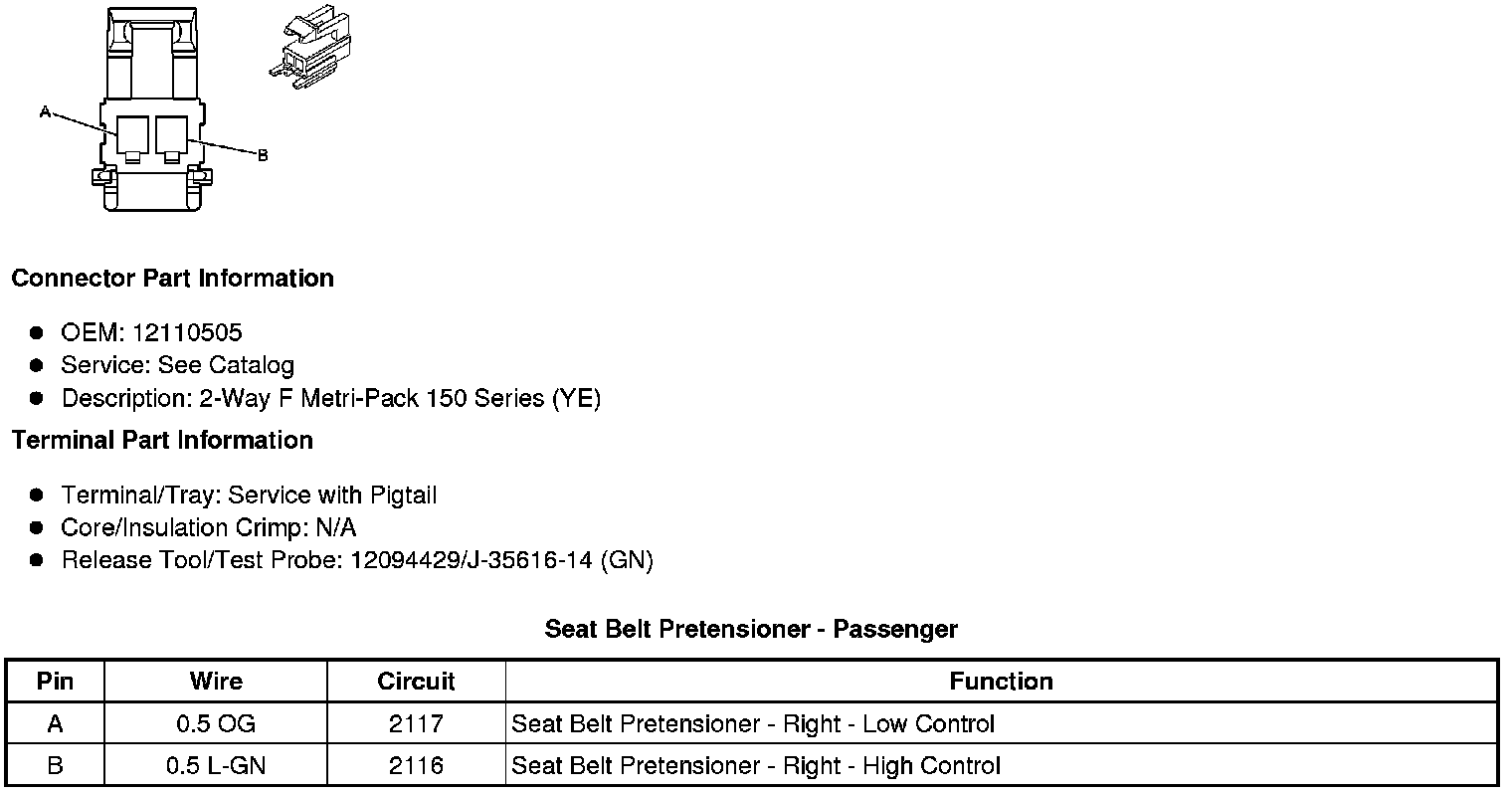

Seat Belt Pretensioner - Passenger
