Windows and Glass



Component Connector End Views

Global Window Switch

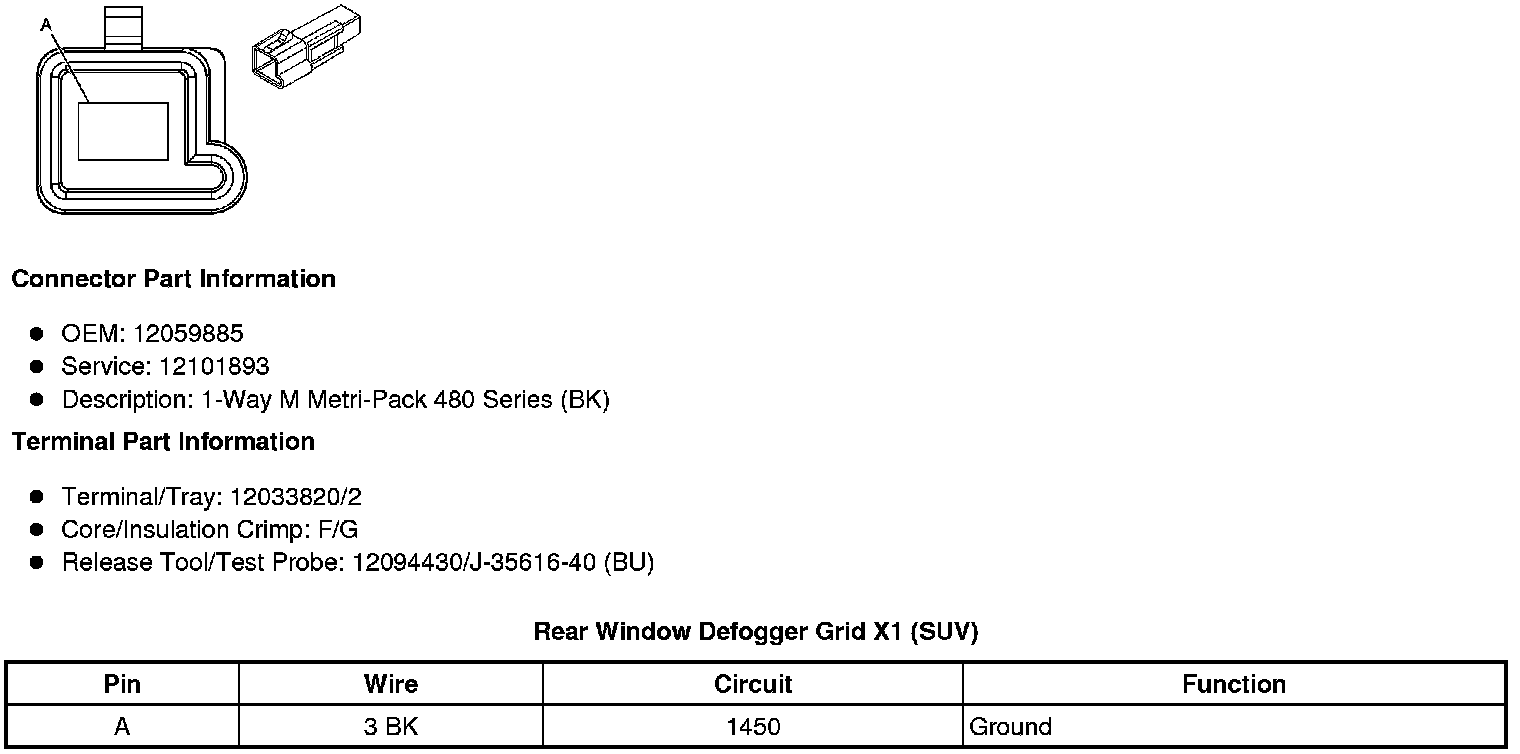

Rear Window Defogger Grid X1 (SUV)

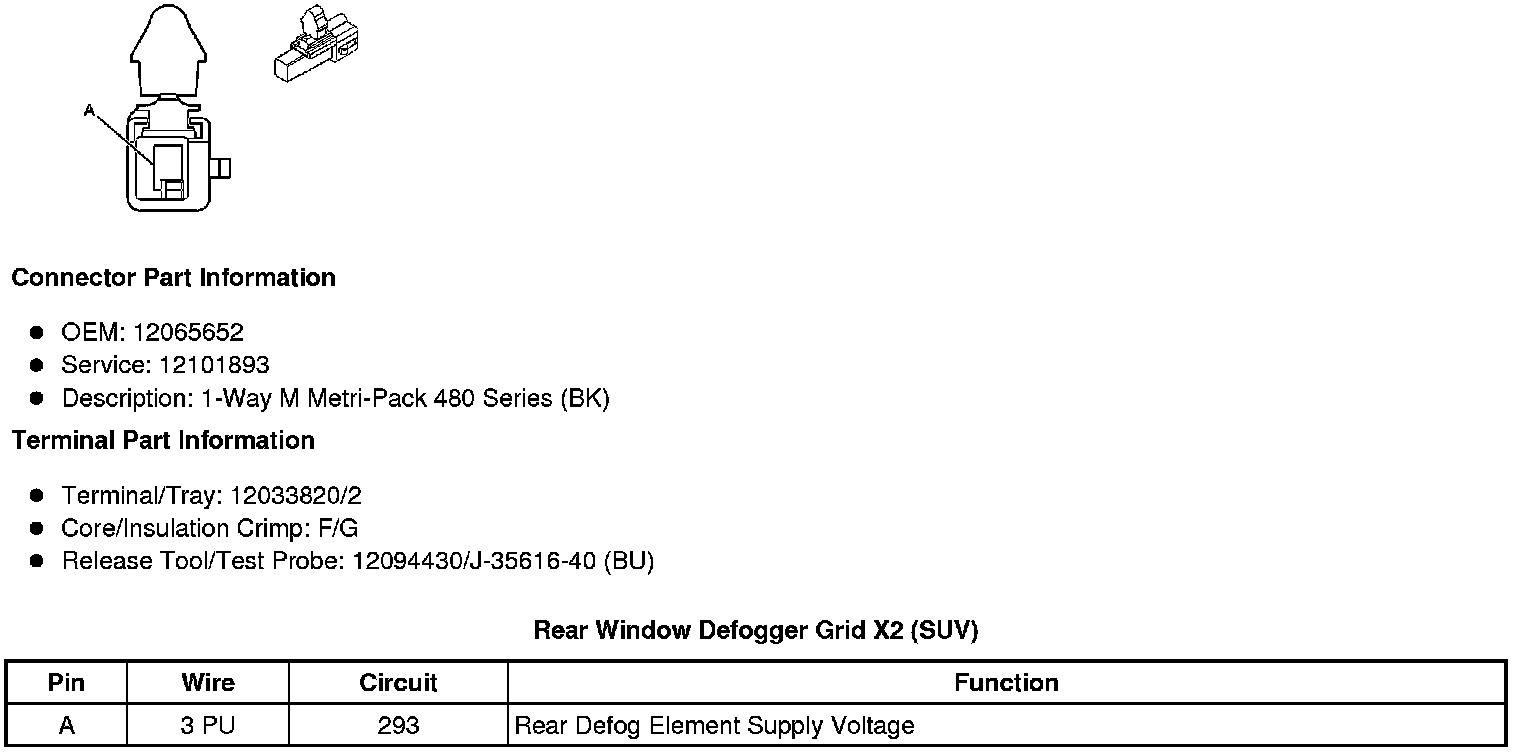

Rear Window Defogger Grid X2 (SUV)

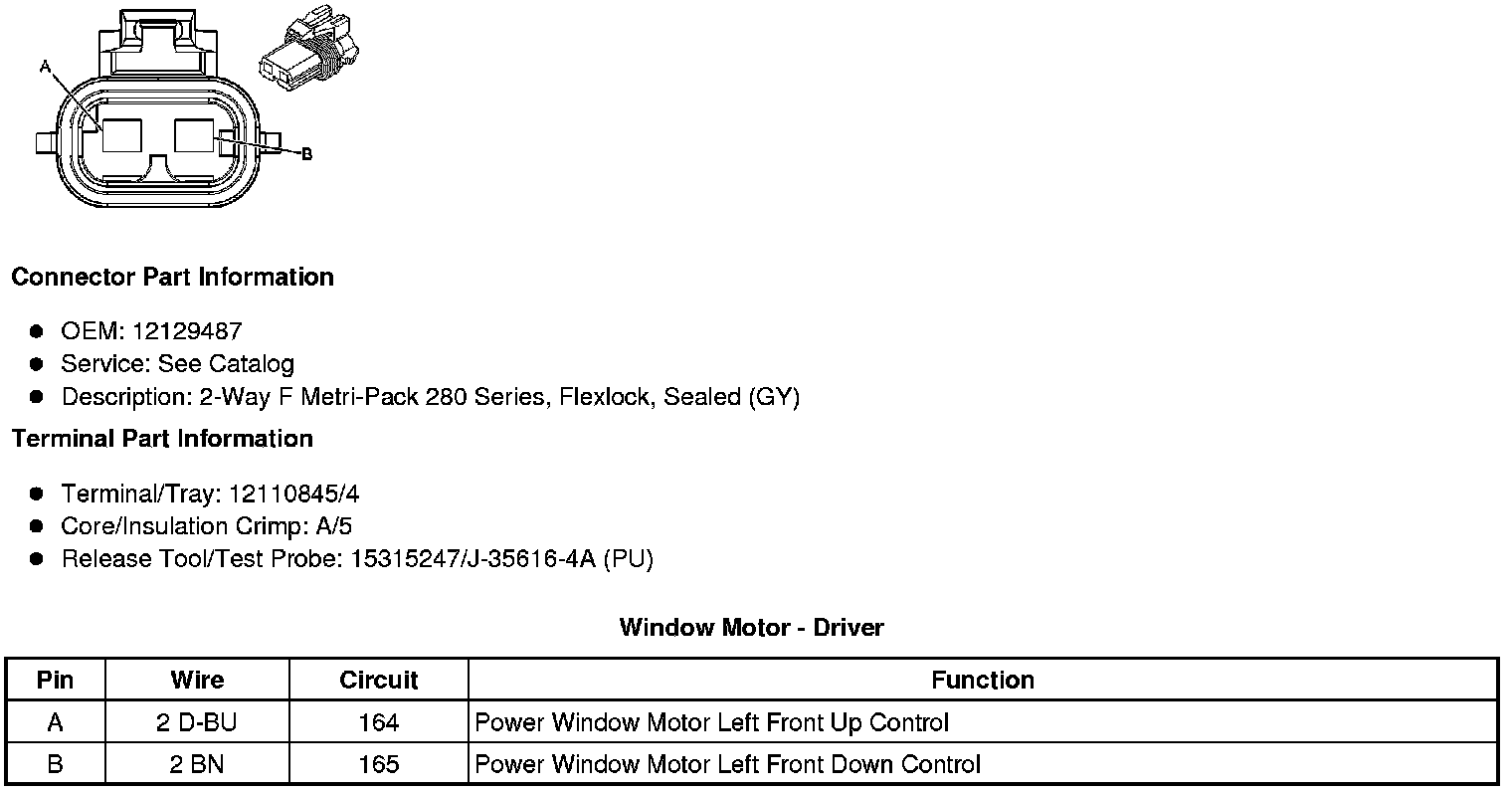

Window Motor - Driver

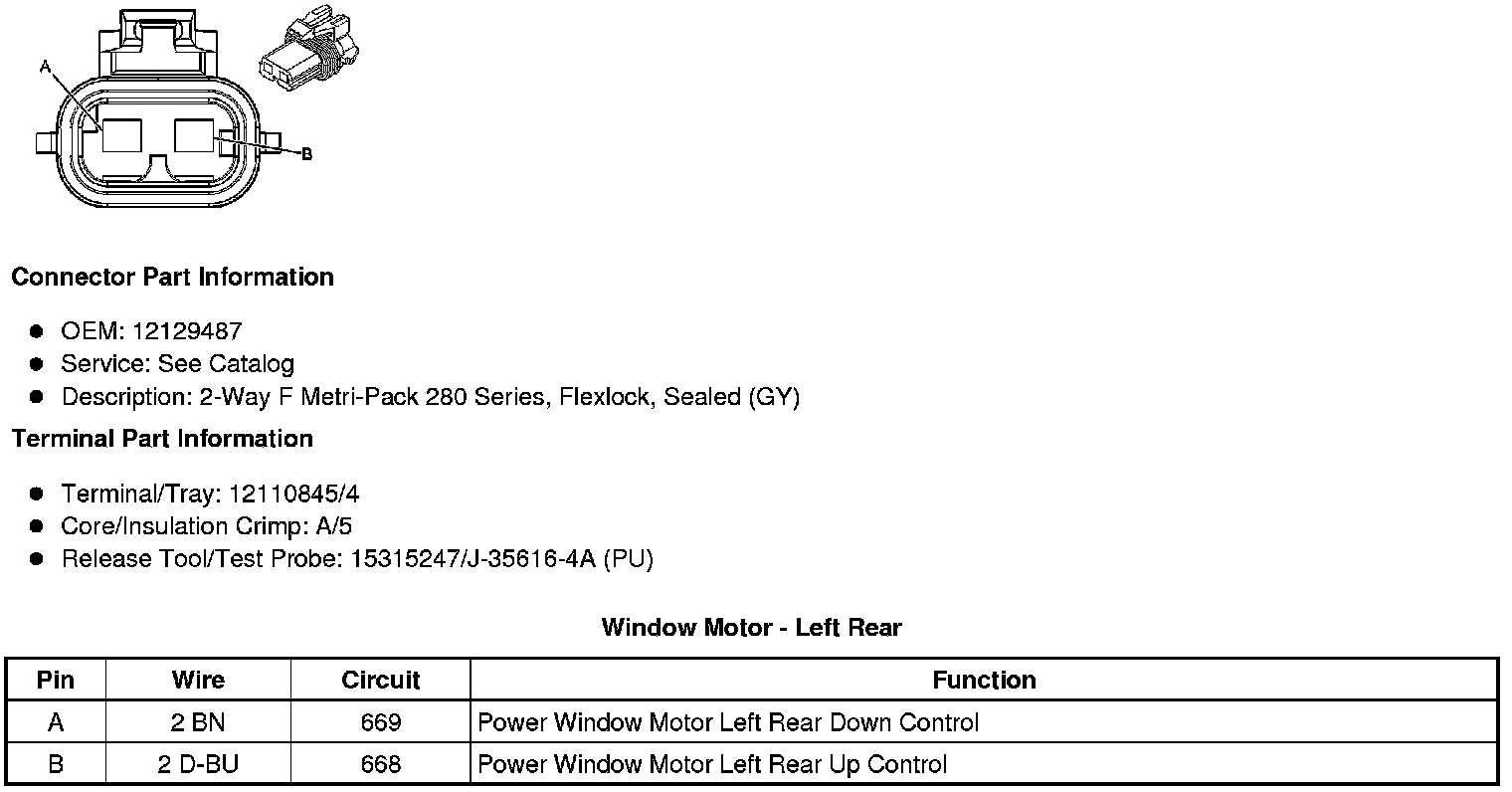

Window Motor - Left Rear





Window Motor - Passenger

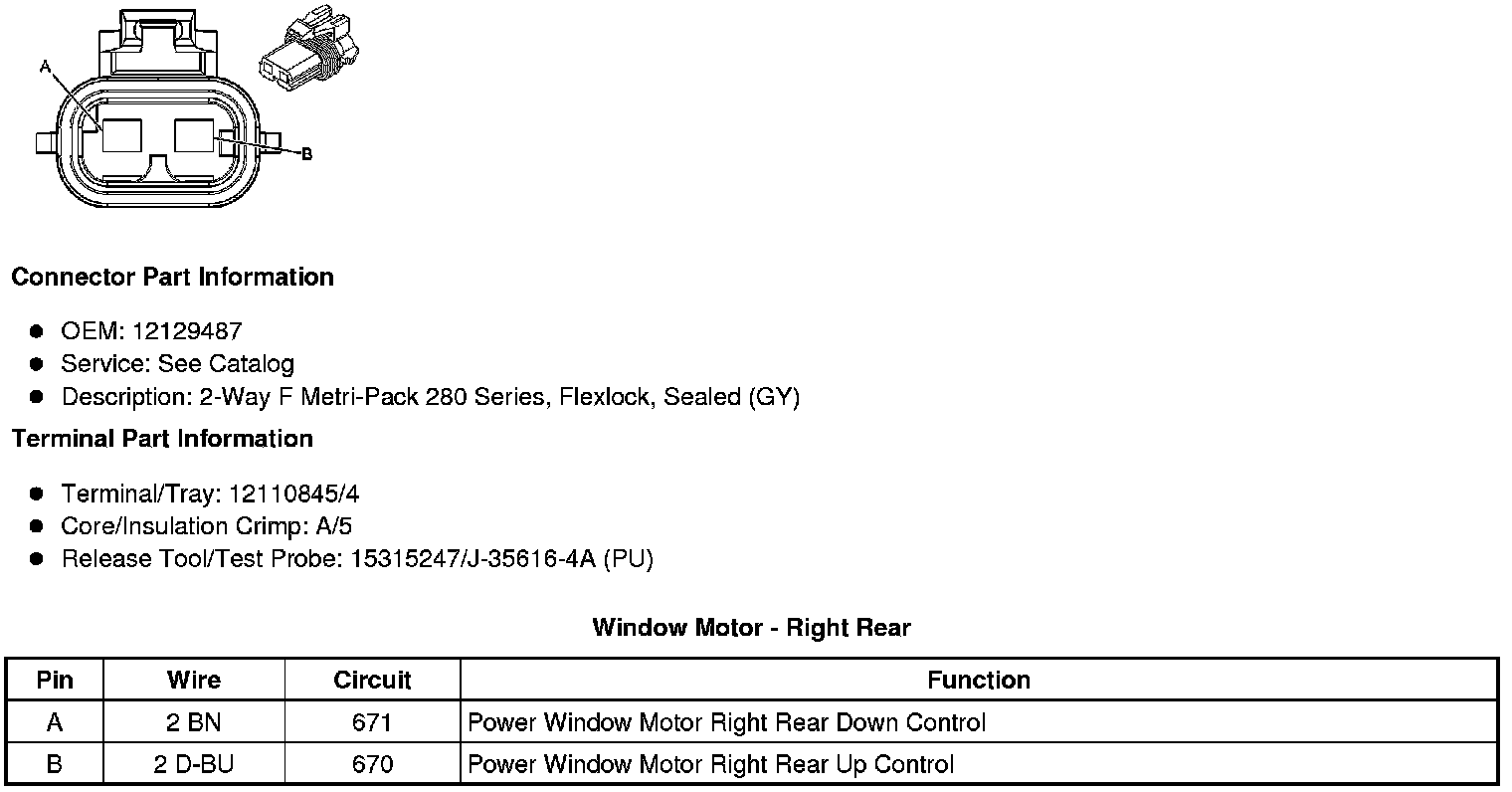

Window Motor - Right Rear





Window Switch - Left Rear





Window Switch - Right Rear
