Electronic Brake Control Module (EBCM) X1

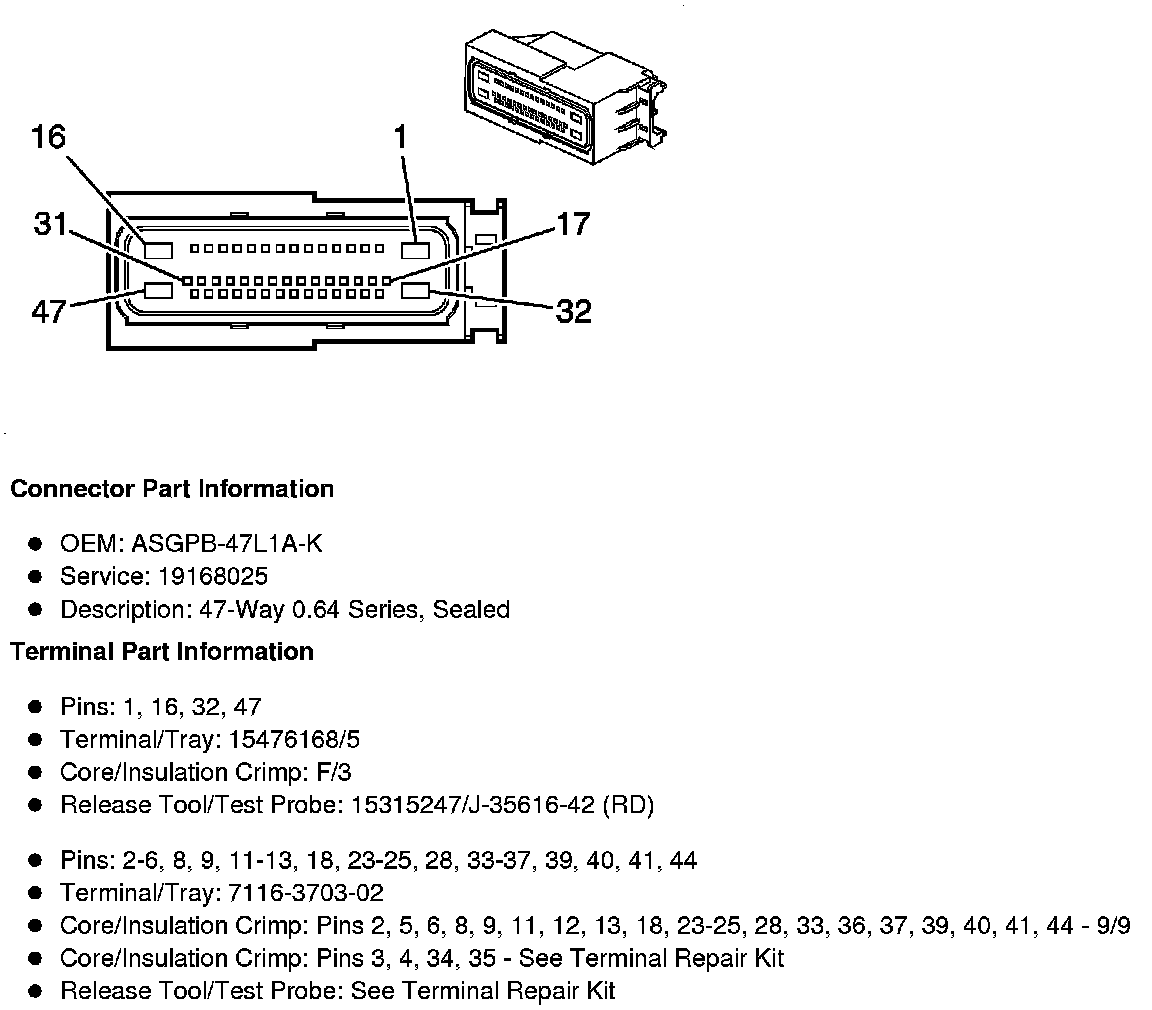

Component Connector End Views

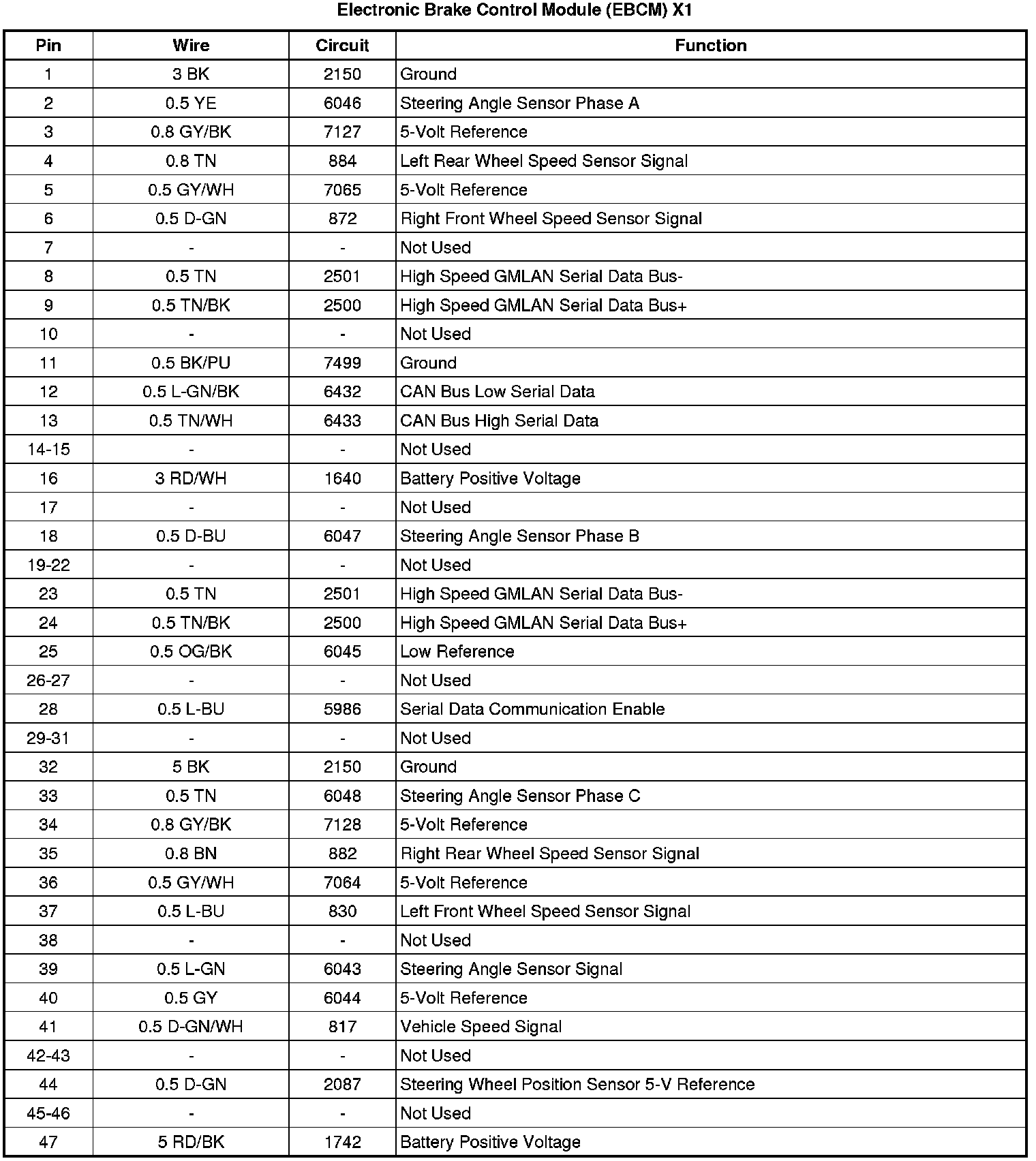

Electronic Brake Control Module (EBCM) X1
