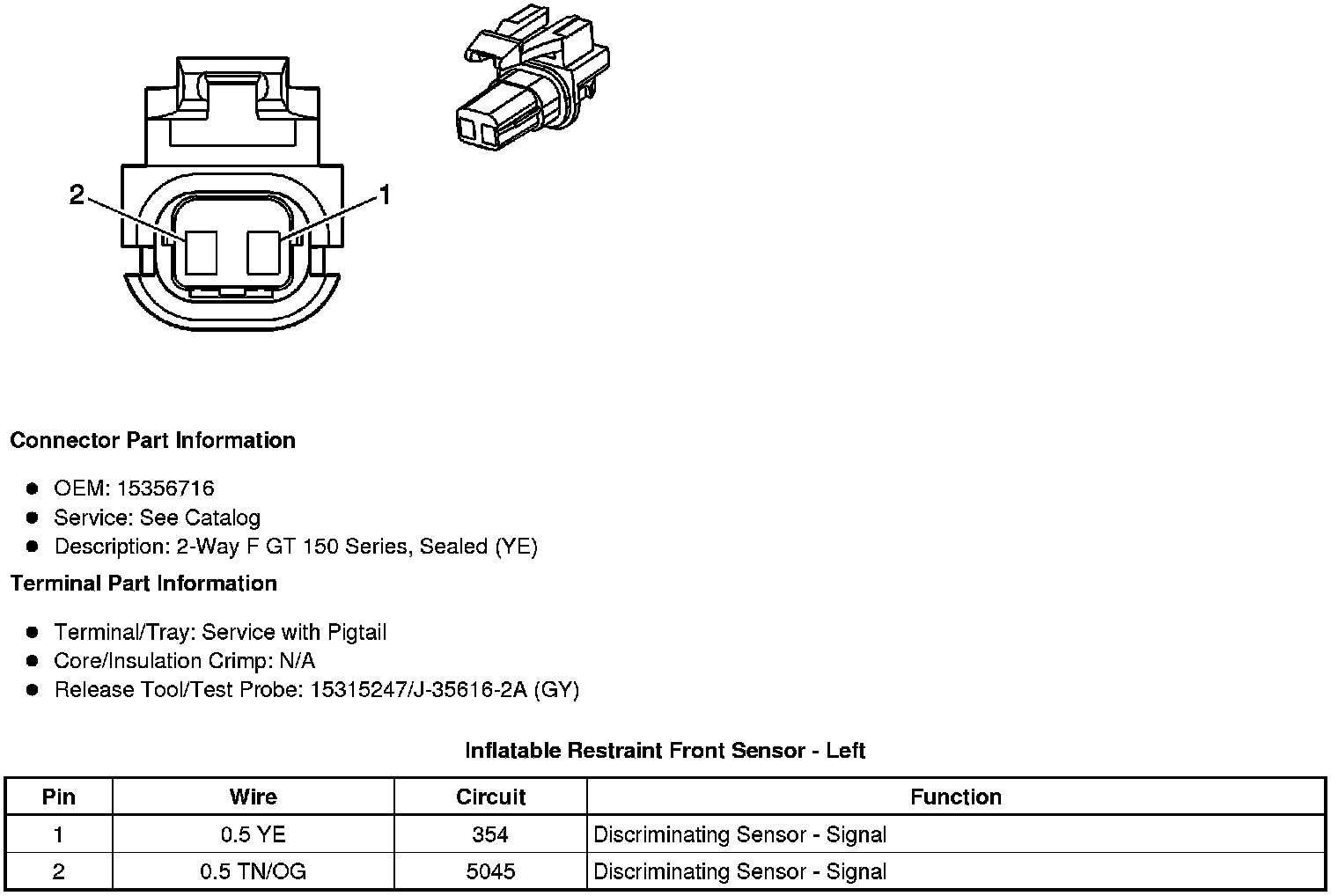

Inflatable Restraint Front Sensor - Left
Component Connector End Views
Inflatable Restraint Front Sensor - Left
