Ride Height Sensor, Suspension Control



Component Connector End Views

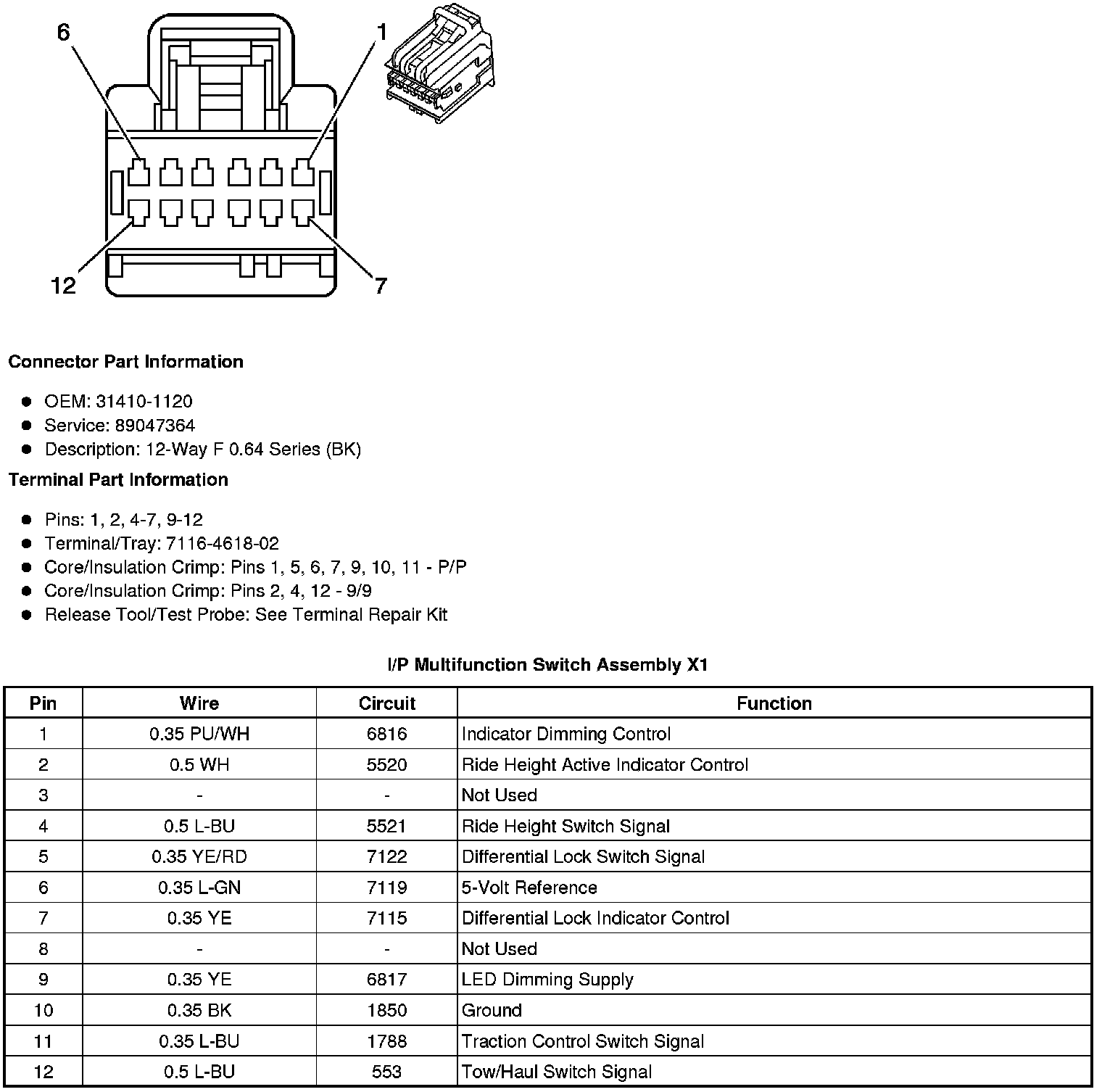

I/P Multifunction Switch Assembly X1
