Door Control Module Schematics
Door Control Module Schematics
Power, Ground and Serial Data
Exterior Lights, Interior Lights, Door Lock and Power Window References
Inside and Outside Rearview Mirror References
Seat References
Door Control Module Schematics

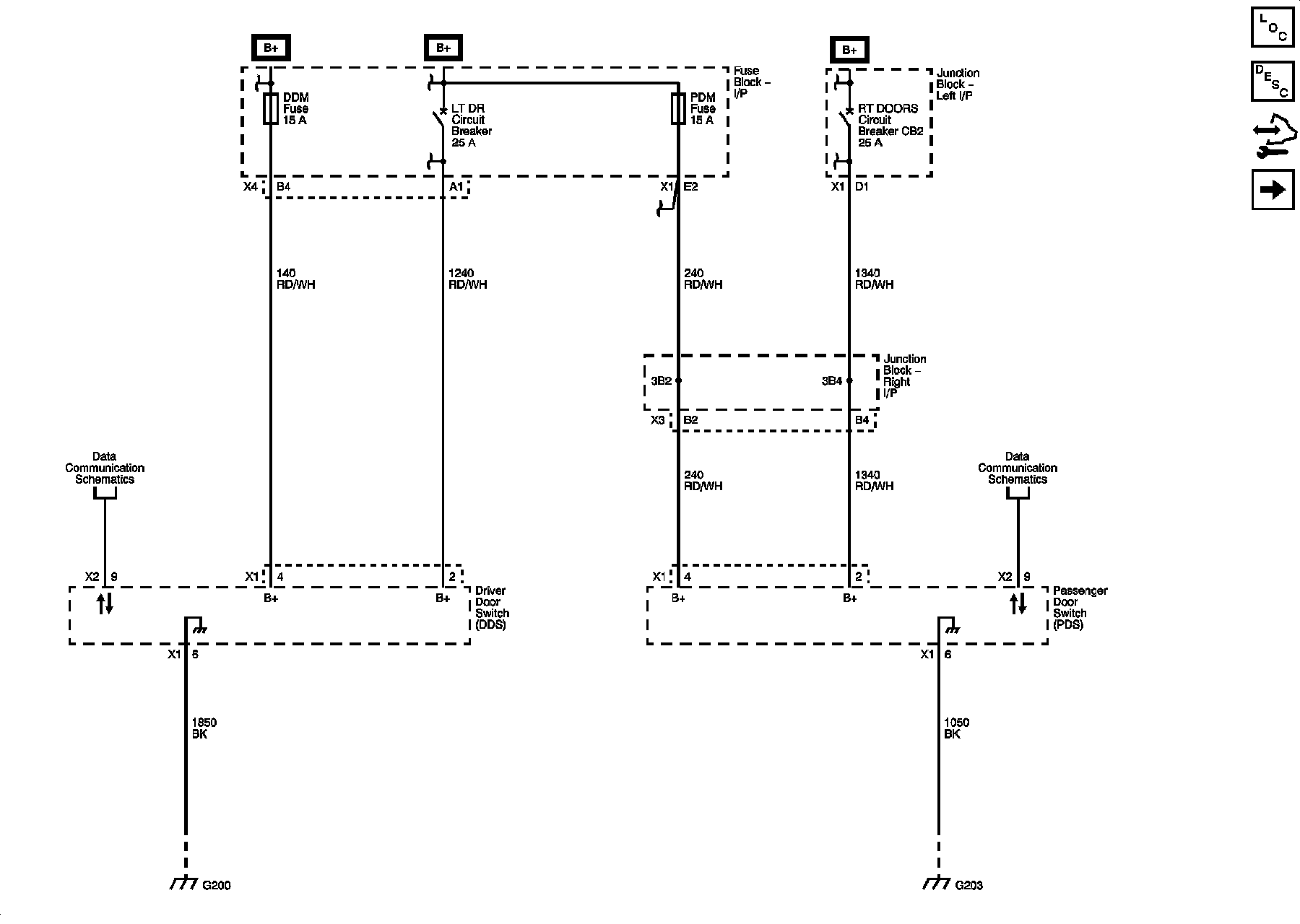

Power, Ground and Serial Data

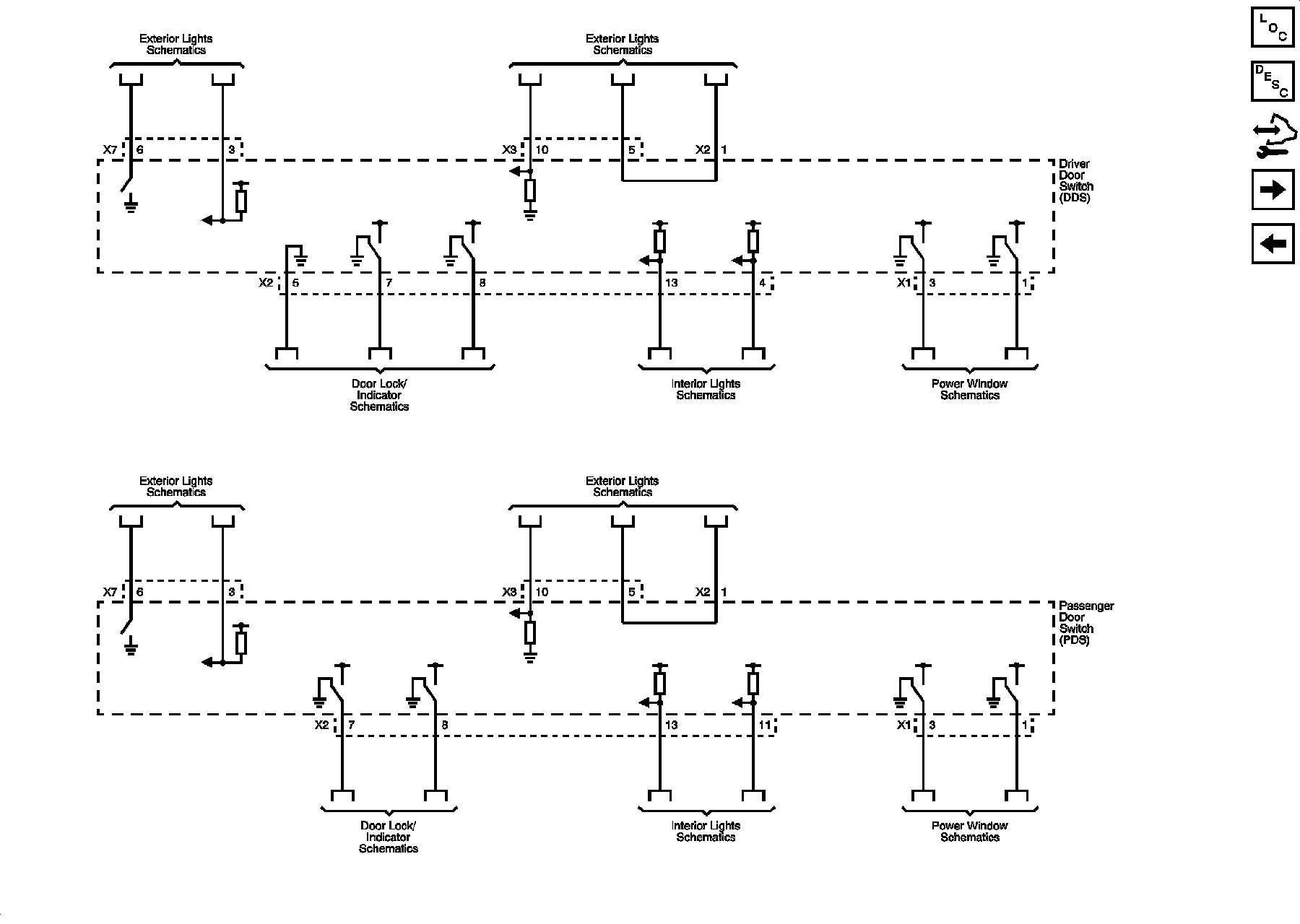

Exterior Lights, Interior Lights, Door Lock and Power Window References

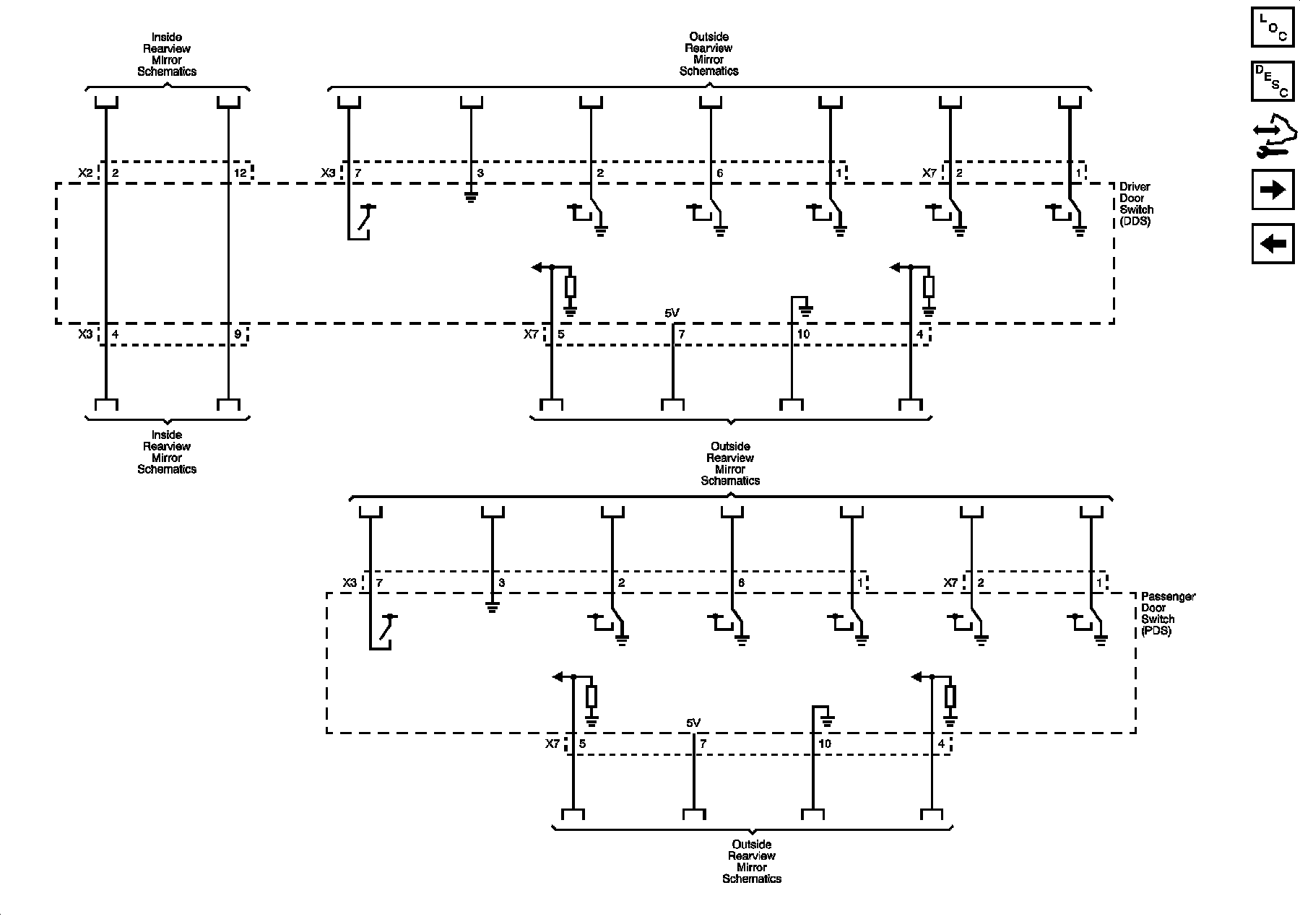

Inside and Outside Rearview Mirror References

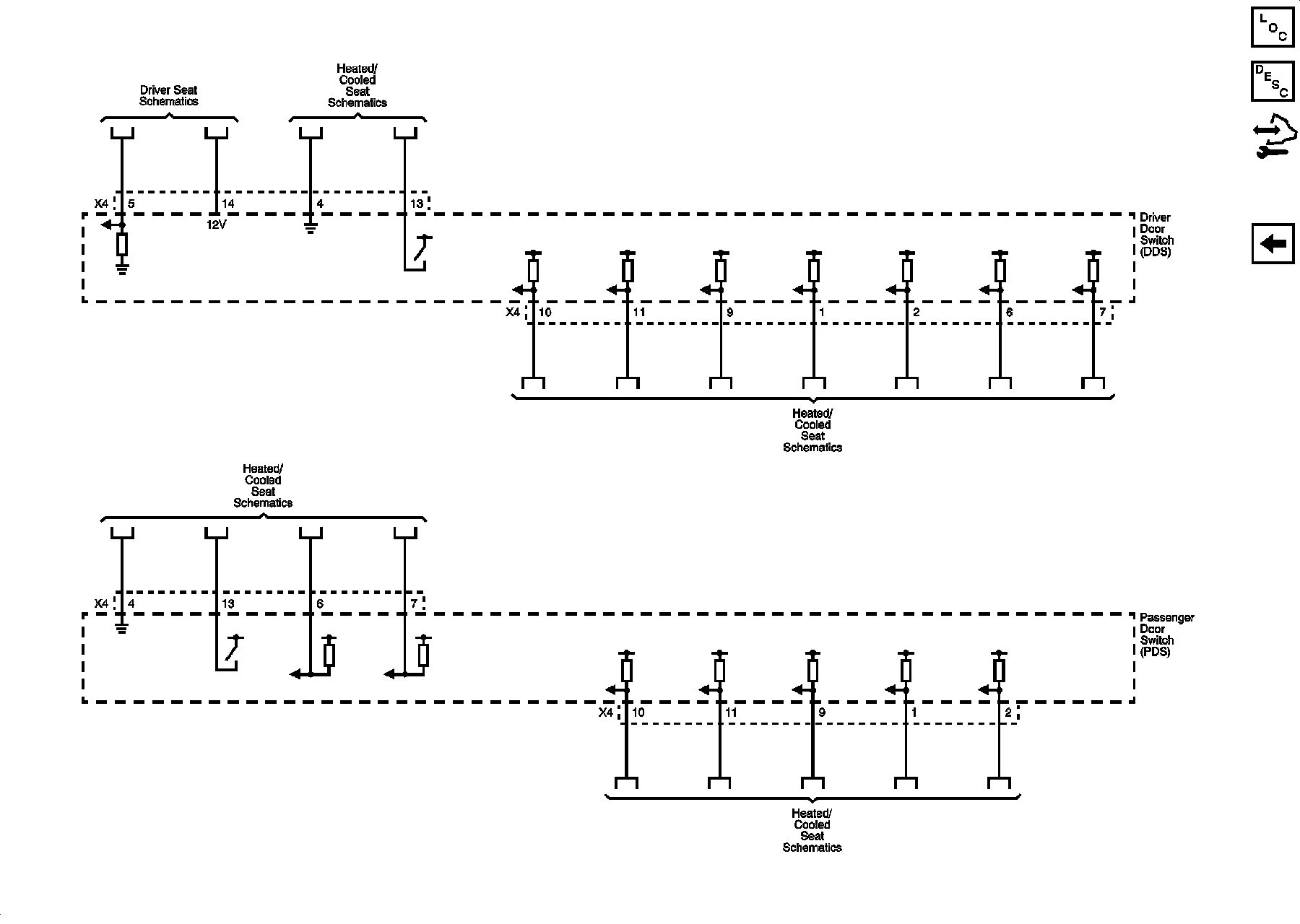

Seat References
