Master Splice List
Master Electrical Component List
G304 - J209:

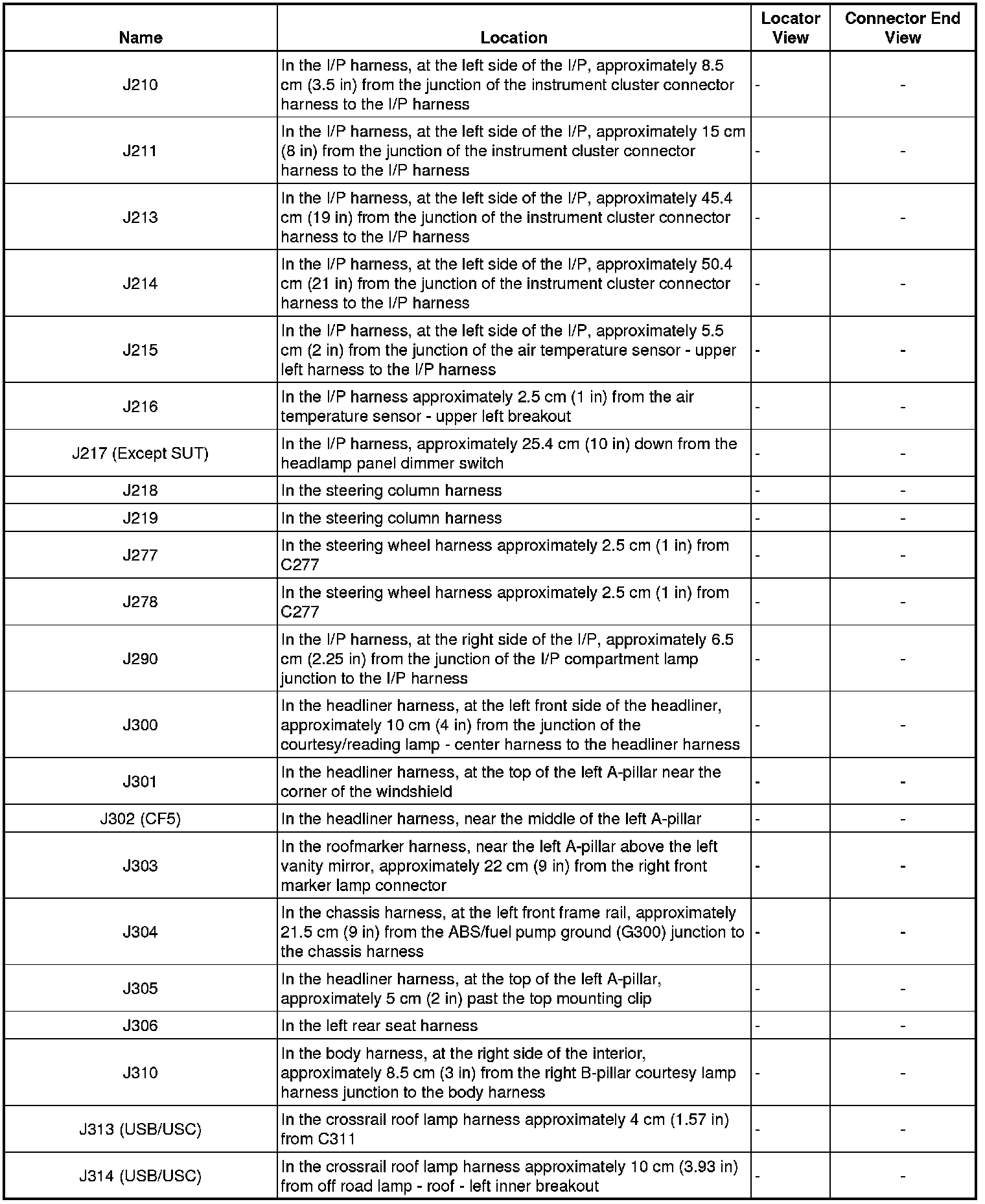

J210 - J314:

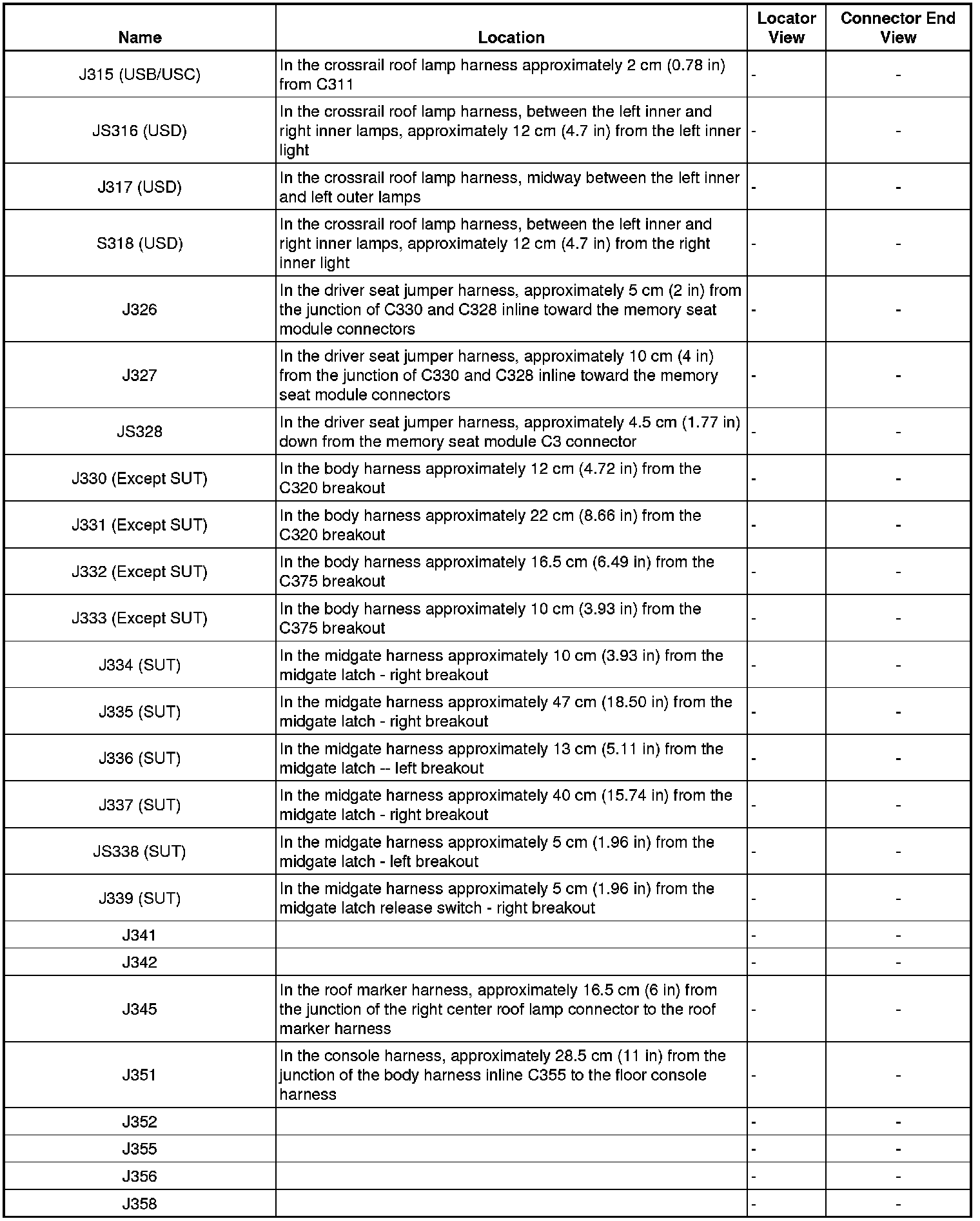

J315 - J358:

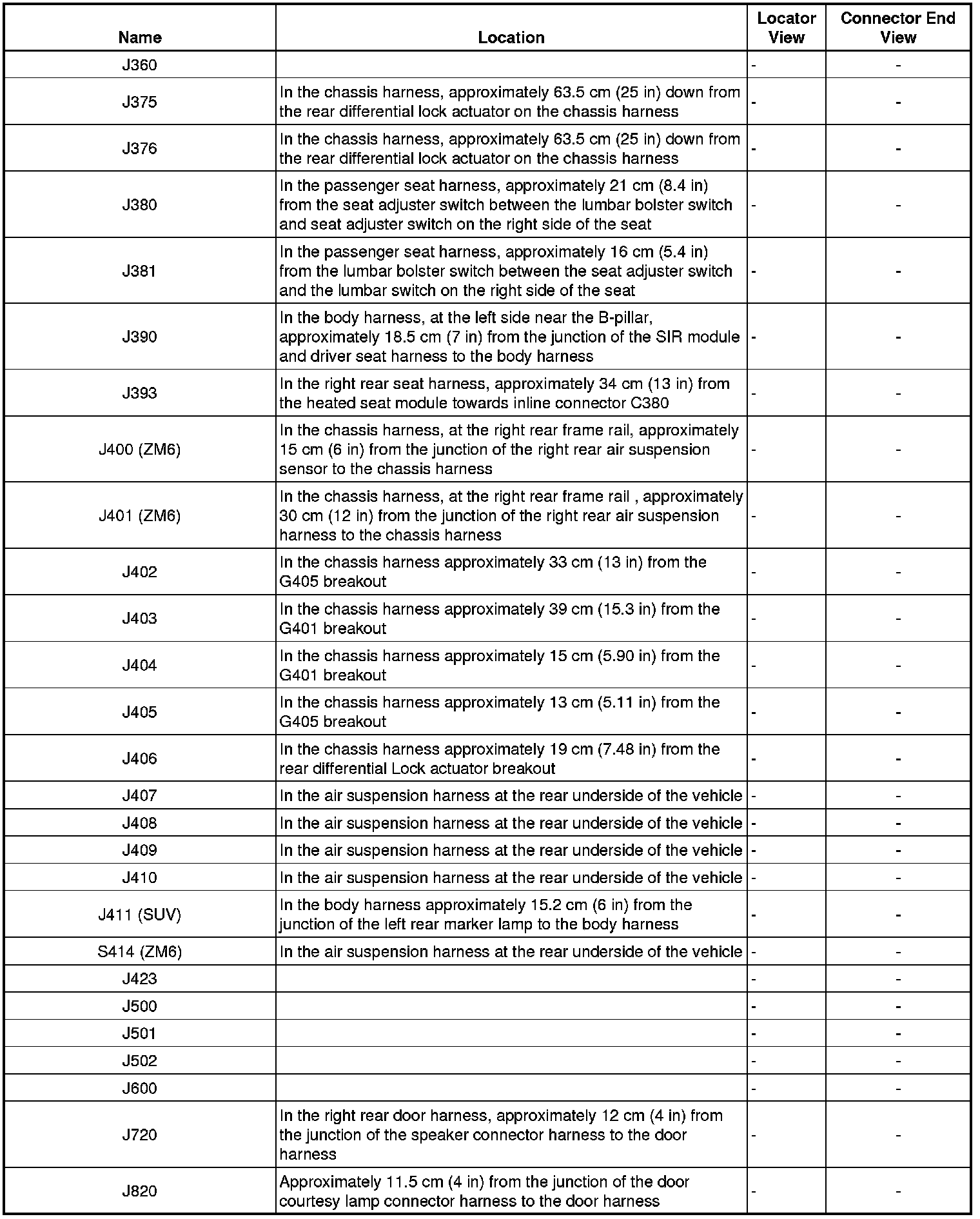

J360 - J820:
J900 - JX207:
