Throttle Position Sensor: Diagrams

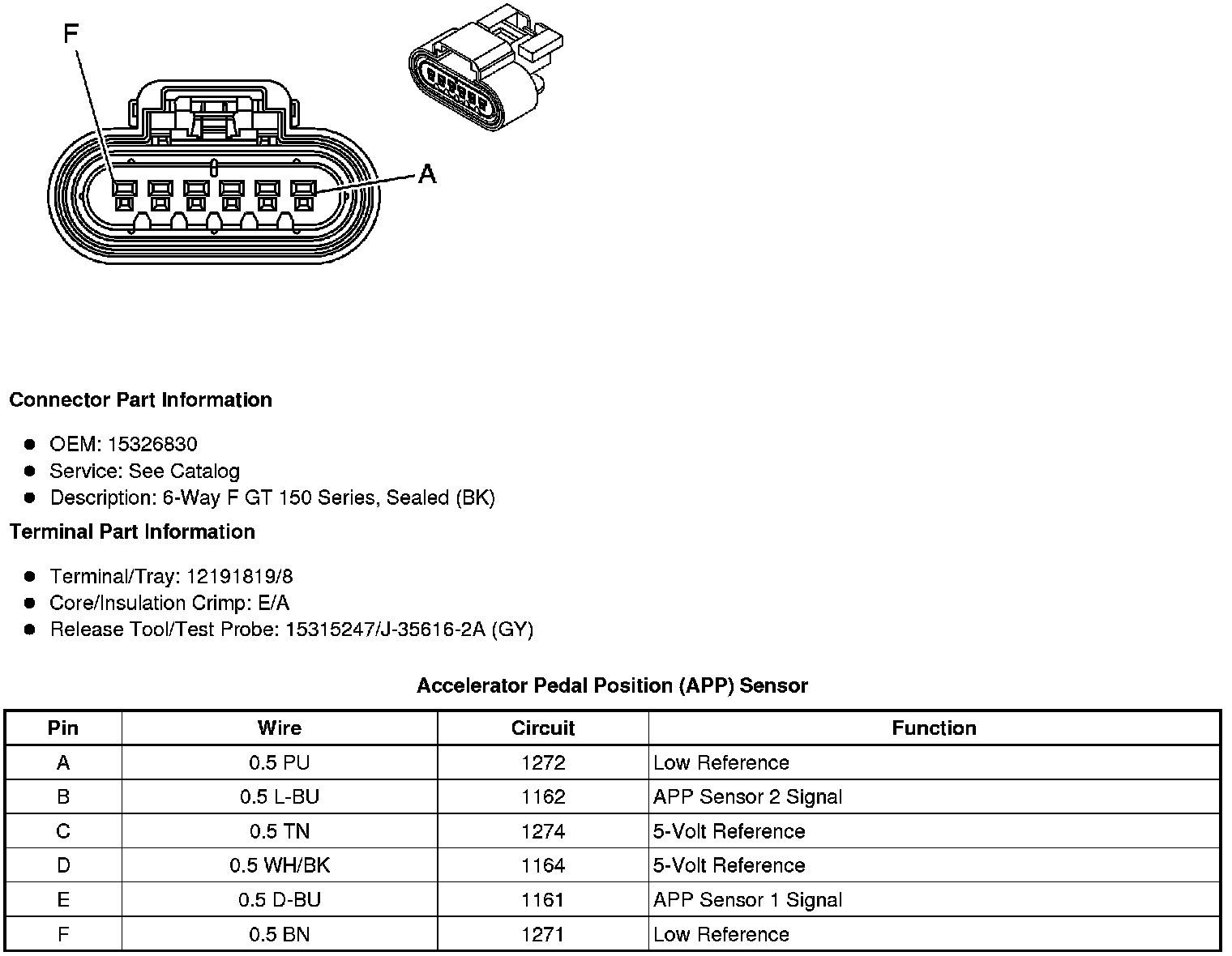

Component Connector End Views

Accelerator Pedal Position (APP) Sensor
