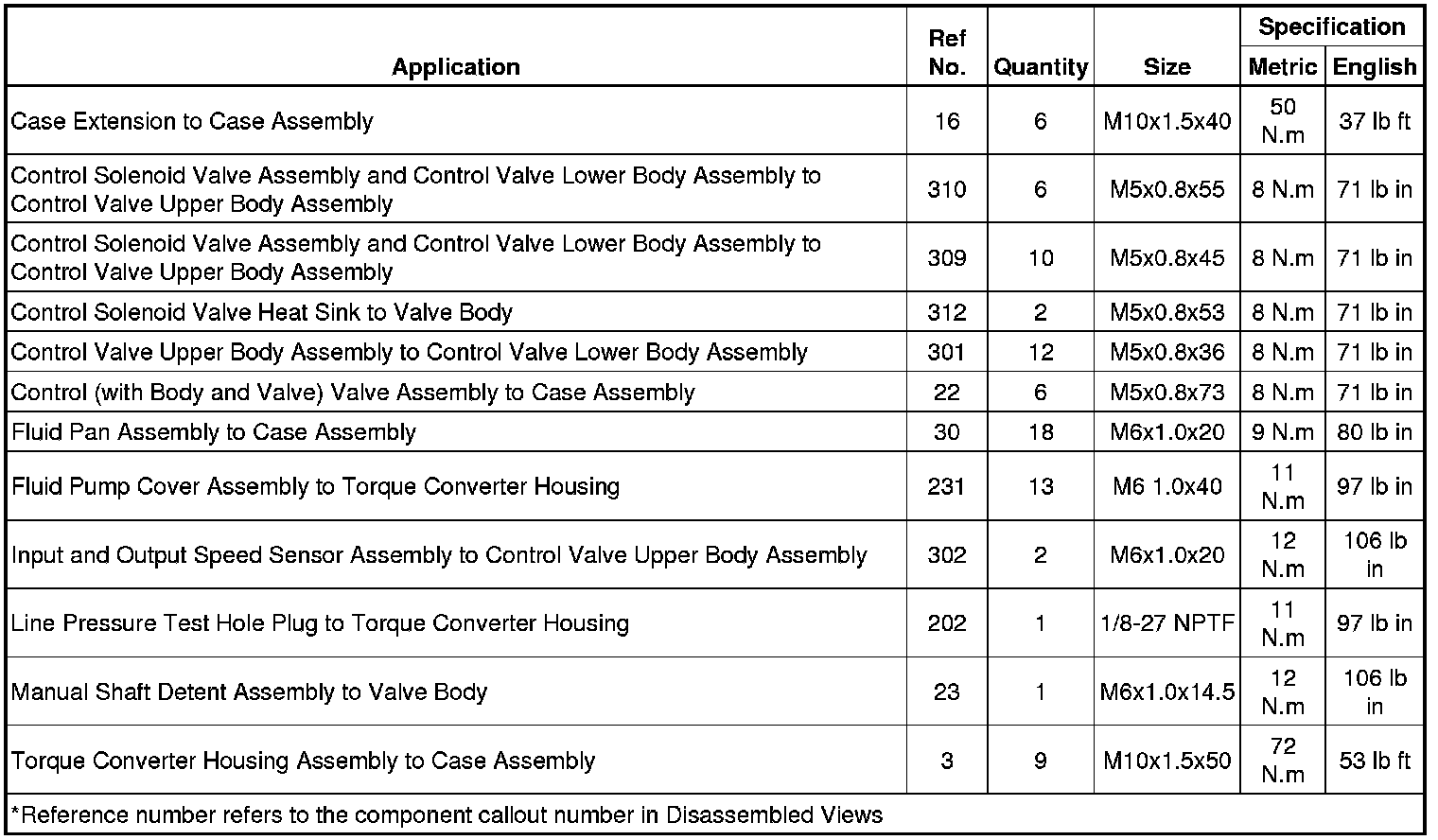

Fastener Tightening Specifications

Fastener Tightening Specifications

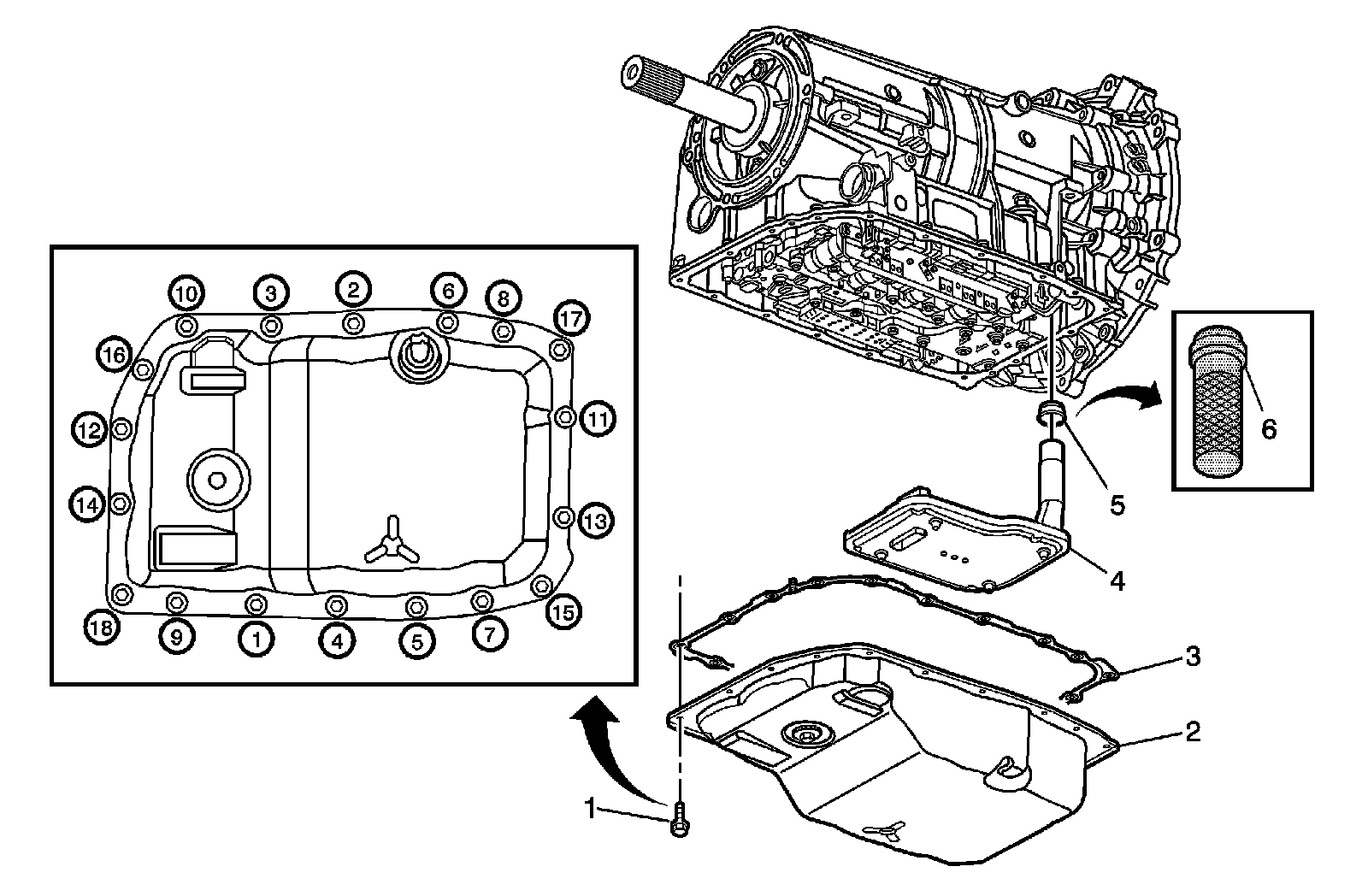

TRANSMISSION FLUID PAN






Tighten The Bolts In The Sequence Shown 9 N.m (80 lb in)


FLEX PLATE






Flex Plate Bolts (1-6) In Sequence
- First Pass 20 N.m (15 lb ft)
- Second Pass 50 N.m (37 lb ft)
- Final Pass 100 N.m (74 lb ft)
