Rear View Camera Image Display Module (UVC)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

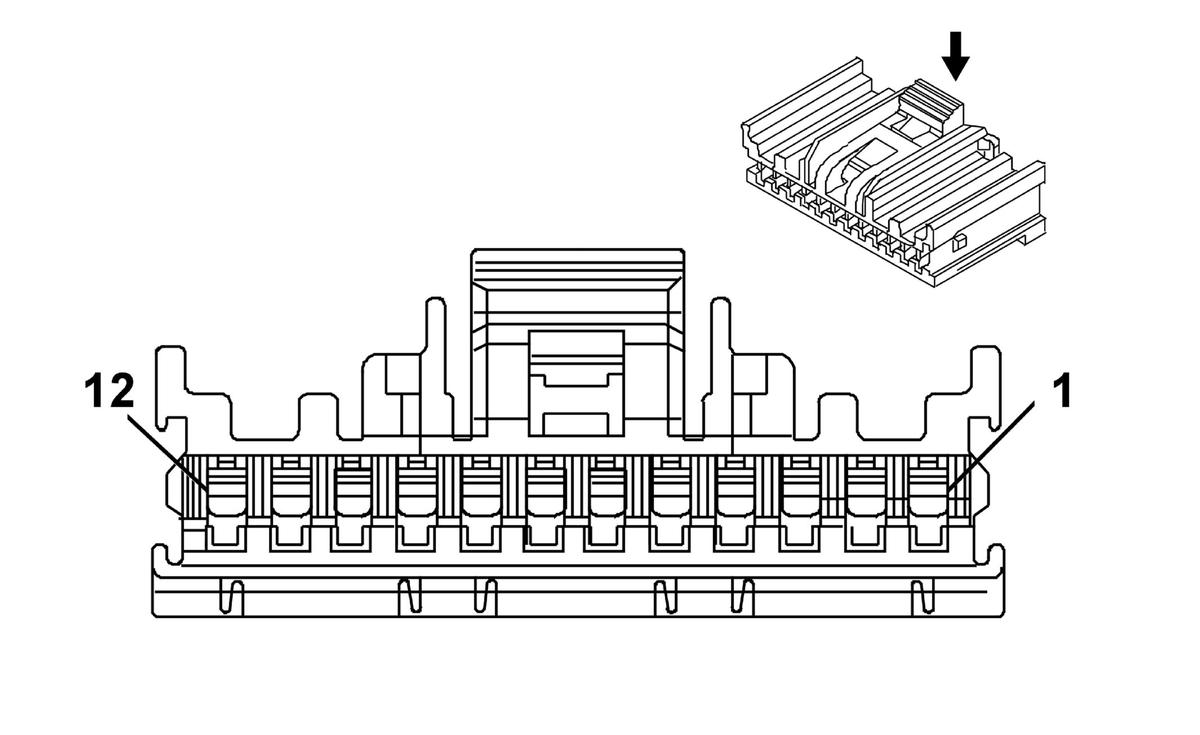

Fig 1: Rear View Camera Image Display Module (UVC) Connector End View
GM1710983Courtesy of GENERAL MOTORS CORP.
Rear View Camera Image Display Module (UVC) Connector Parts Information

Connector Part Information
  • OEM: 15499371
  • Service: 19115105
  • Description: 12-Way F KAIZEN 0.64 (BK)
Terminal Part Information
  • Terminal/Tray: 7116-4618-02/14
  • Core/Insulation Crimp: P/P
  • Release Tool/Test Probe: J-38125-215/J-35616-64B (L-BU)
Rear View Camera Image Display Module (UVC) Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 D-BU 38 Backup Lamp Supply Voltage
2 PK 239 Ignition 1 Voltage
3 BK/WH 2751 Ground
4 OG 6201 5-Volt Reference
5 TN/BK 6202 Camera Ground
6 - - Not Used
7 Bare 6974 Camera Drain Wire
8 - - Not Used
9 WH 6798 Camera Video Signal
10 Bare 6799 Camera Shield
11 L-BU 6973 Camera Signal -
12 PK 6972 Camera Signal +
