WARNING: This page is about a different car, the 2009 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

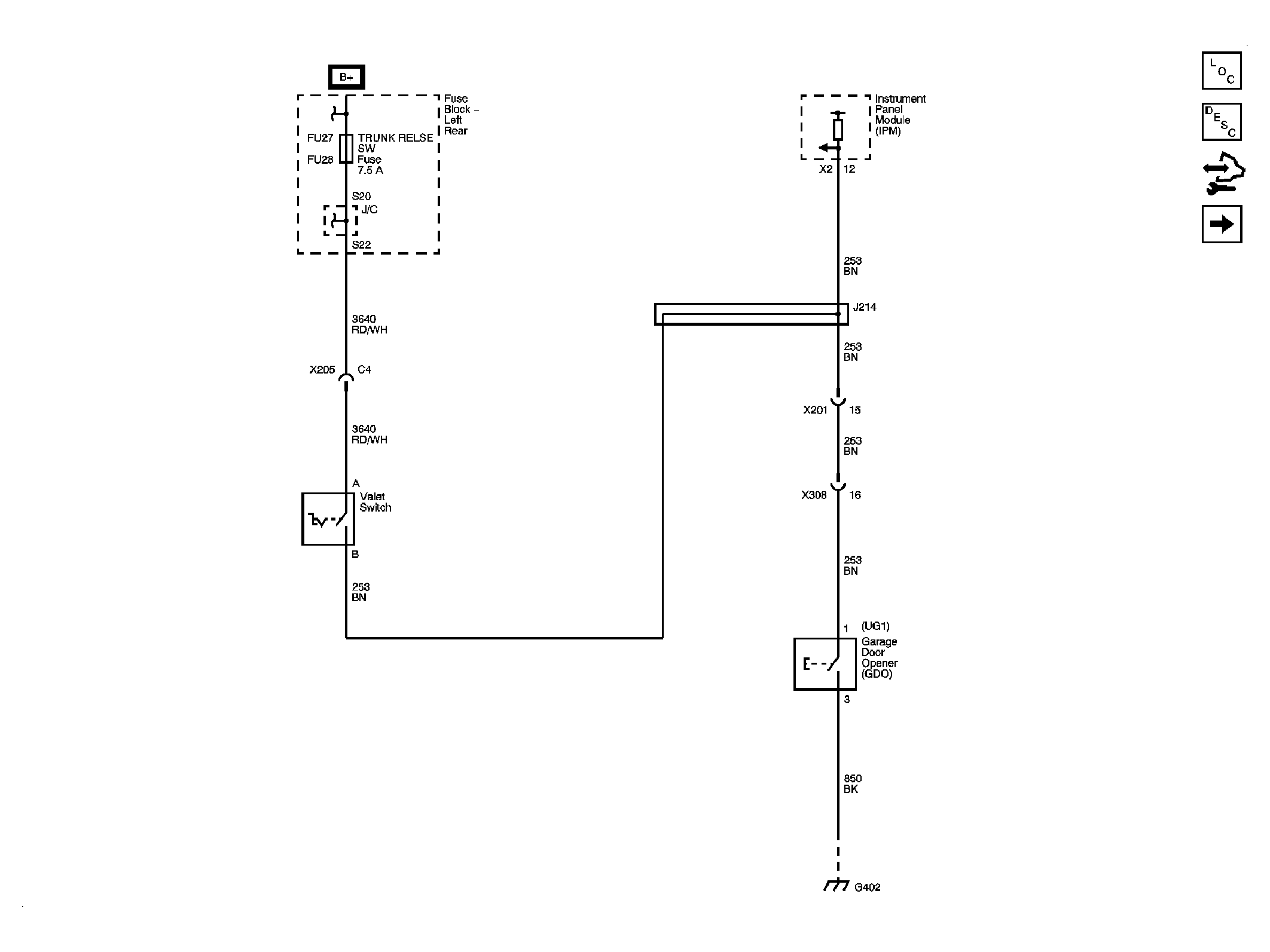

Fig 1: Garage Door Opener
Courtesy of GENERAL MOTORS CORP.

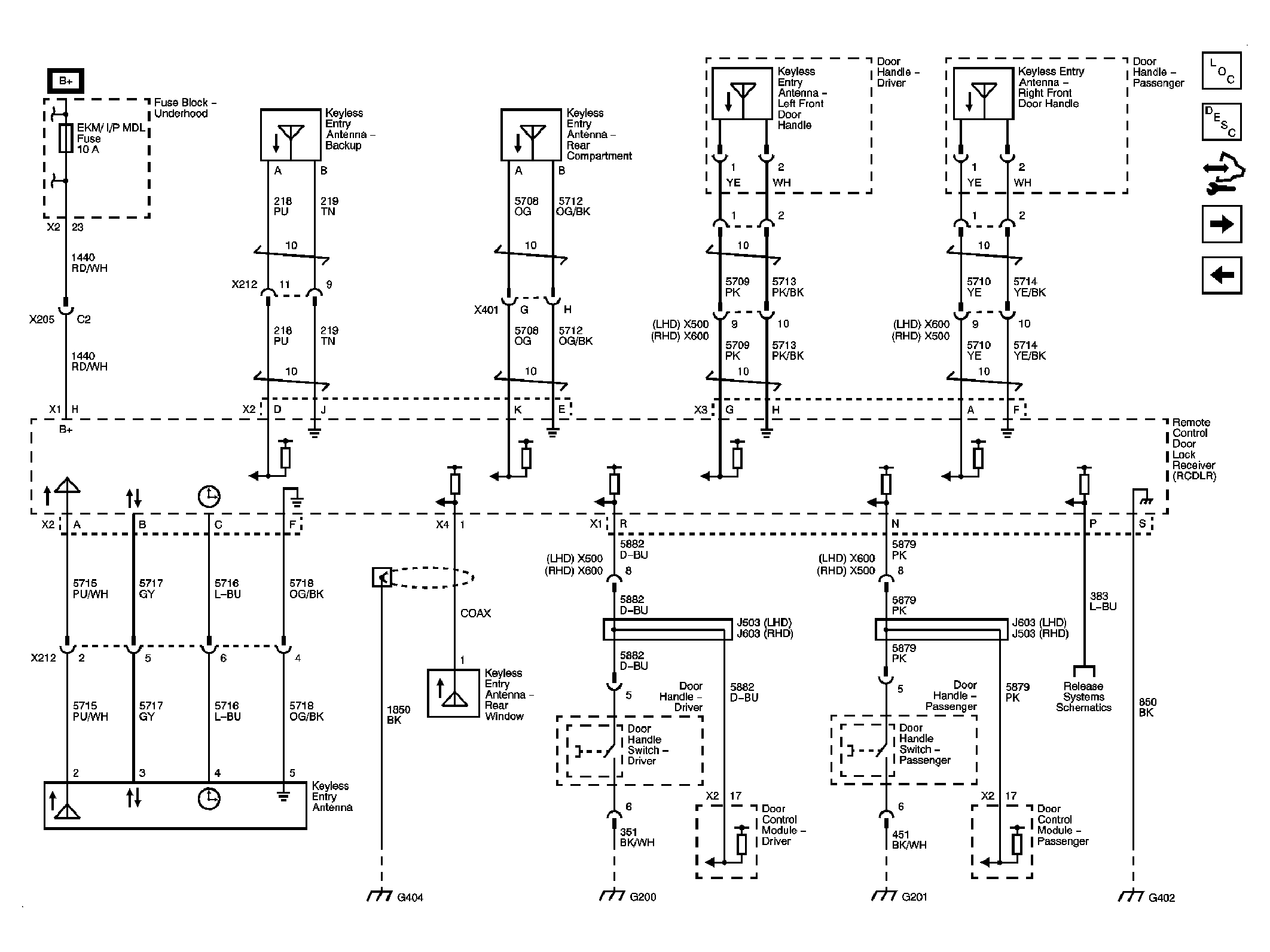

Fig 2: Keyless Entry Module Power, Grounds, Antennas and Switches
