Distance Sensing Cruise Control Module Replacement

WARNING: This page is about a different car, the 2010 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

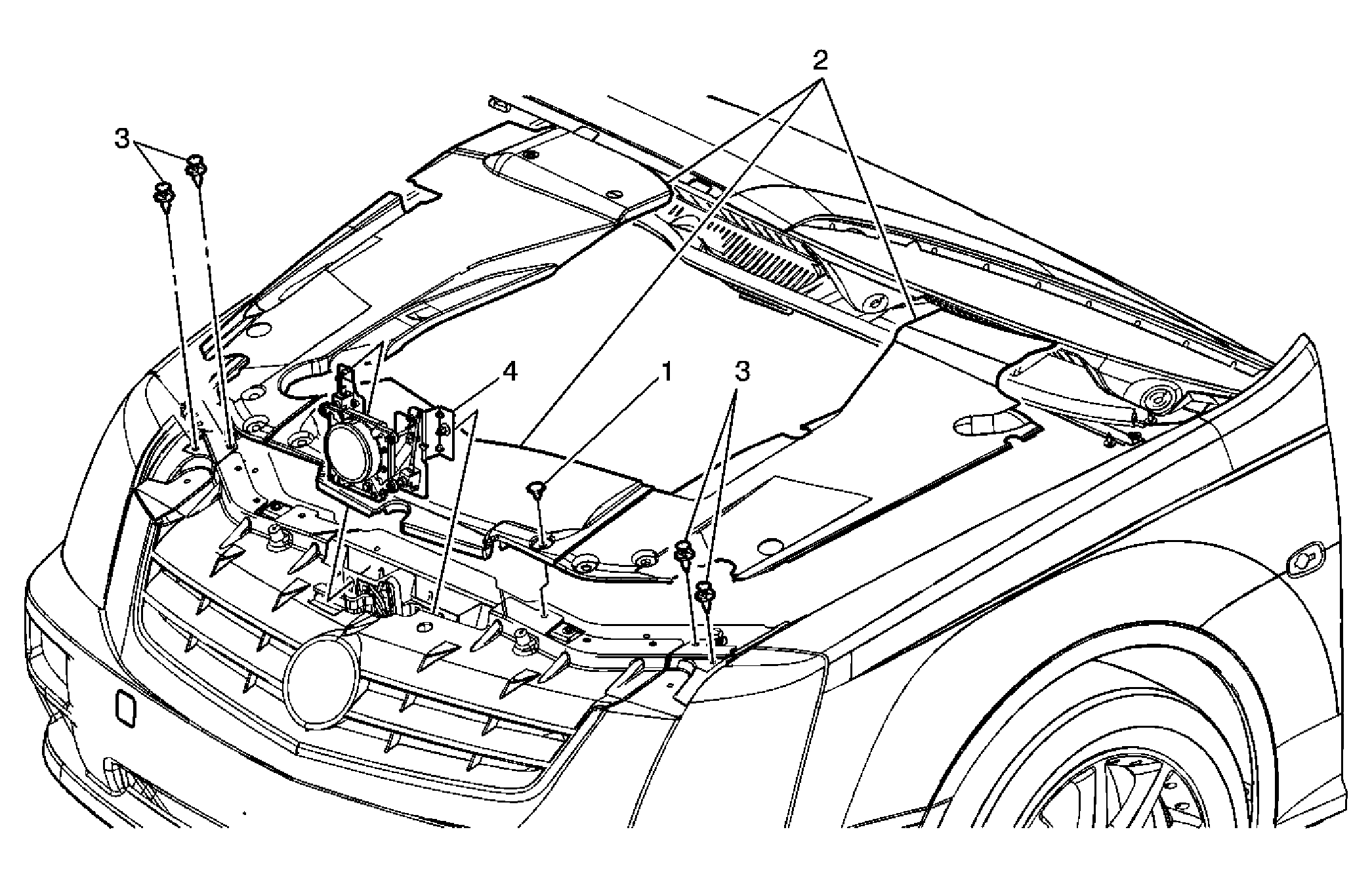

Fig 1: Distance Sensing Cruise Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Compartment Sight Shield Retainer (Qty: 6)
2	Front Compartment Sight Shield Assembly Tip: The center sight shield needs to be removed, the side sight shields only need to be loosened.
3	Front Fascia Assembly Retainer (Qty: 4) Procedure Remove the 4 retainers to loosen the fascia assembly. Pull the front fascia assembly forward to gain access to the cruise control module nuts.
4	Cruise Control Module Assembly CAUTION: Refer to Fastener Caution . Procedure Loosen the nuts that hold the cruise control module into the T-slots on the tie bar. Disconnect the electrical connector. Slide the module out of the T-slots on the bracket. Replace the module by sliding the assembly into the T-slots on the bracket and tighten. Verify proper alignment of the module. Refer to Control Module References for programming and setup information. Tighten: 9 N.m (80 lb in)
