WARNING: This page is about a different car, the 2010 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

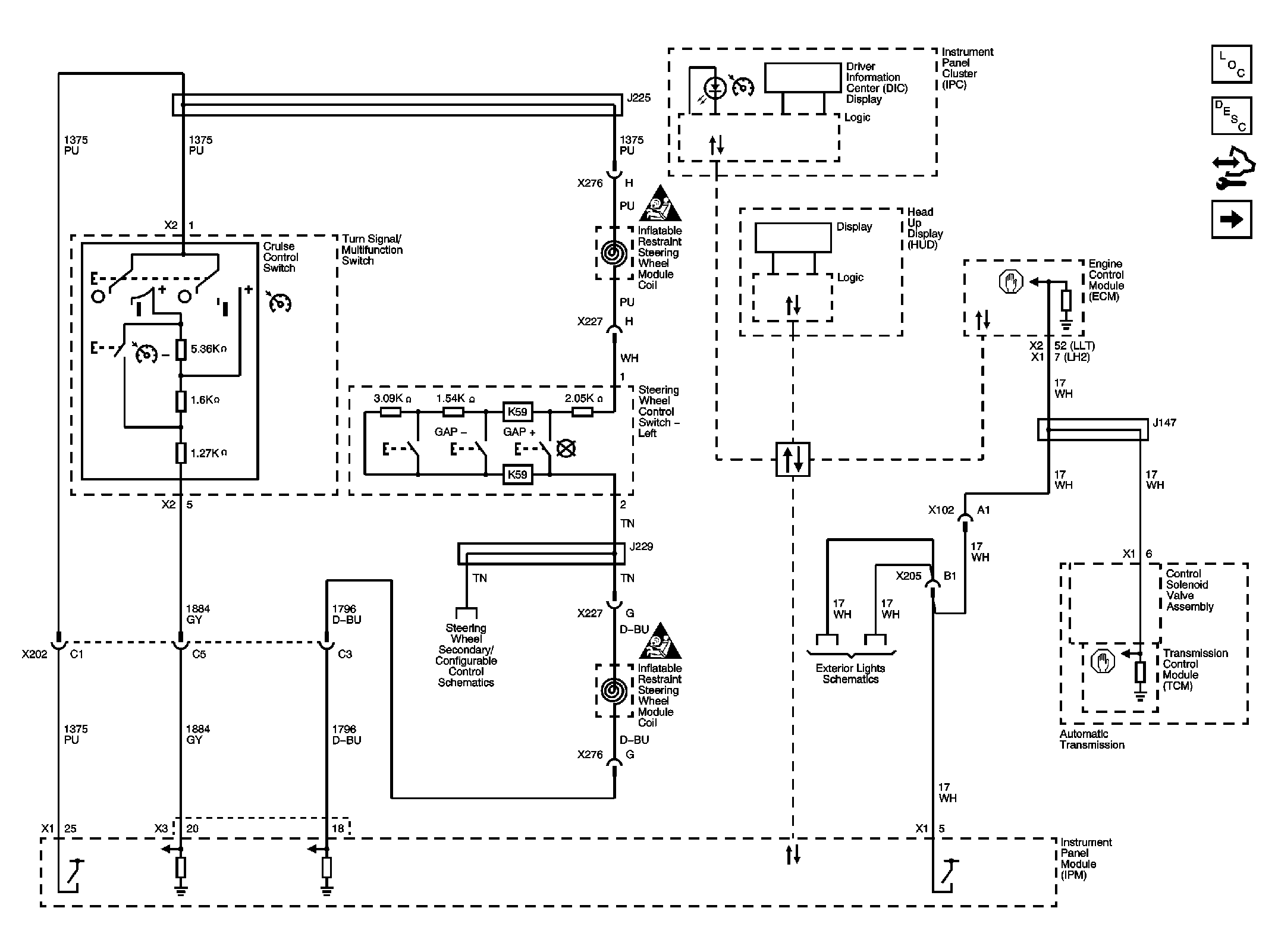

Fig 1: Cruise Control Switch, Steering Wheel Controls
Courtesy of GENERAL MOTORS CORP.
Fig 2: Distance Sensing Cruise Control Module (K59)
