Remote Function Schematics

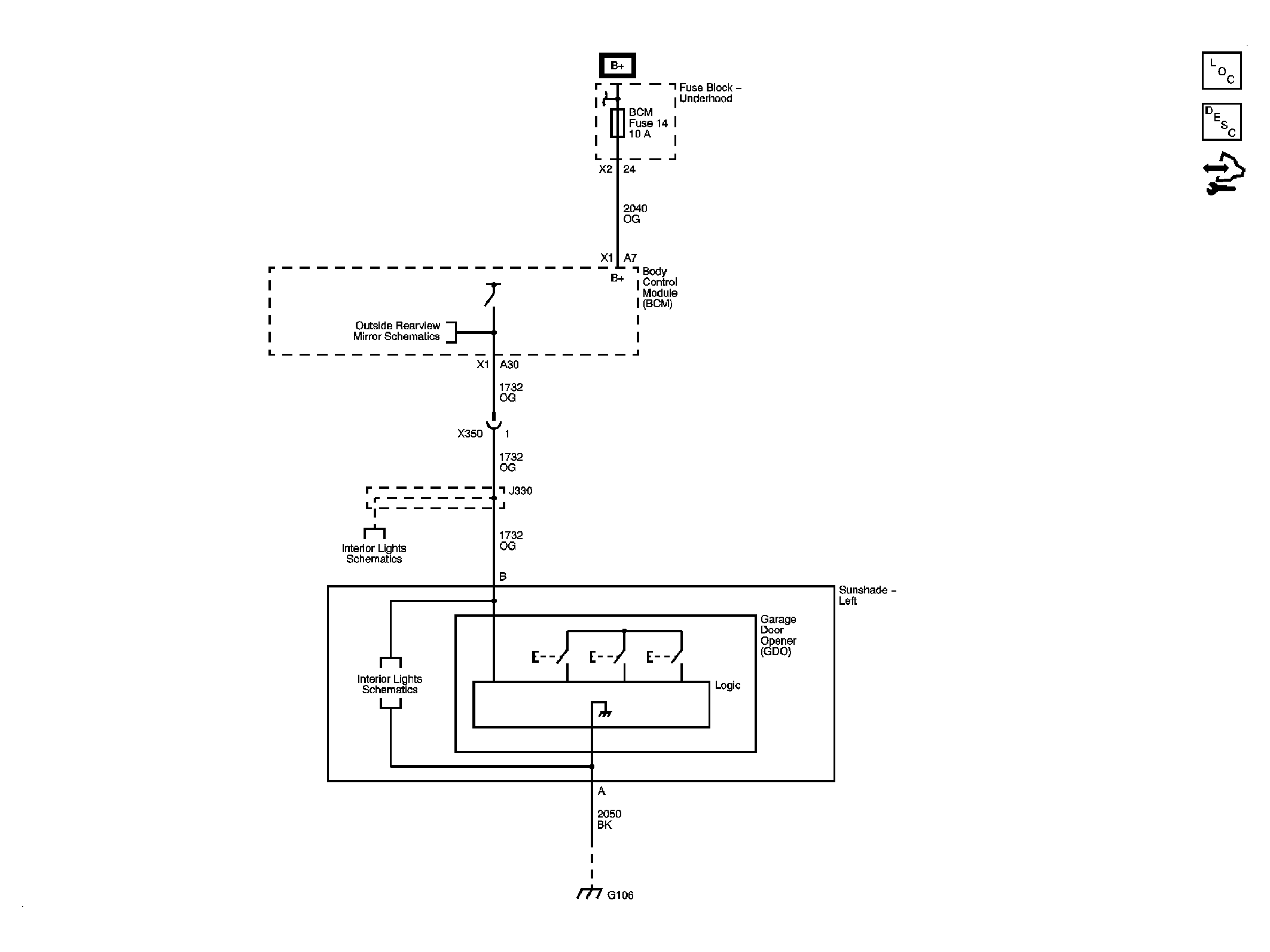

Fig 1: Remote Function Schematics
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
