Remote Function Schematics

WARNING: This page is about a different car, the 2008 Chevrolet Malibu Classic. However, it is still accessible from the selected car via links, so may be relevant.

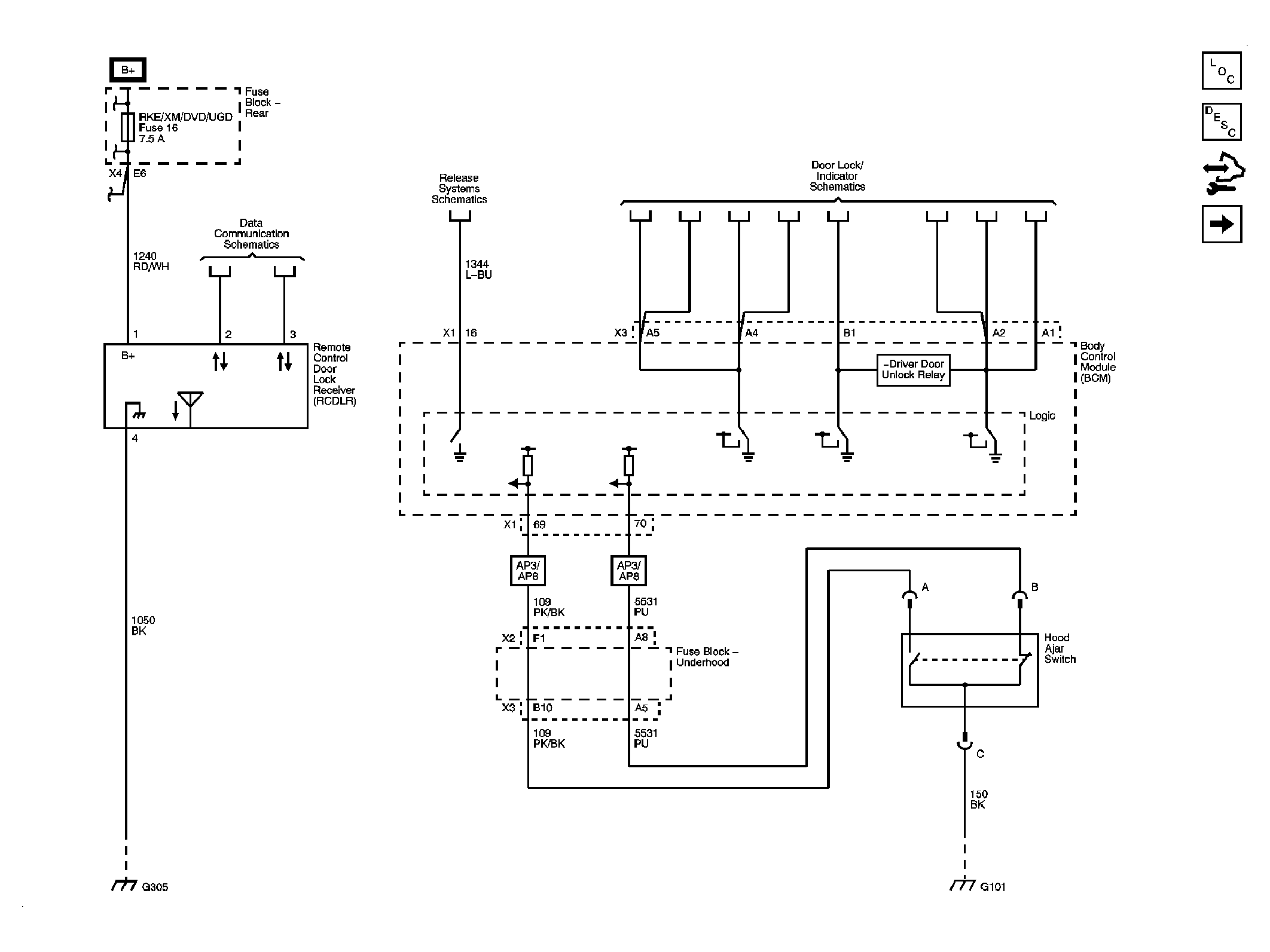

Fig 1: Keyless Entry Schematic
GM1891599Courtesy of GENERAL MOTORS CORP.

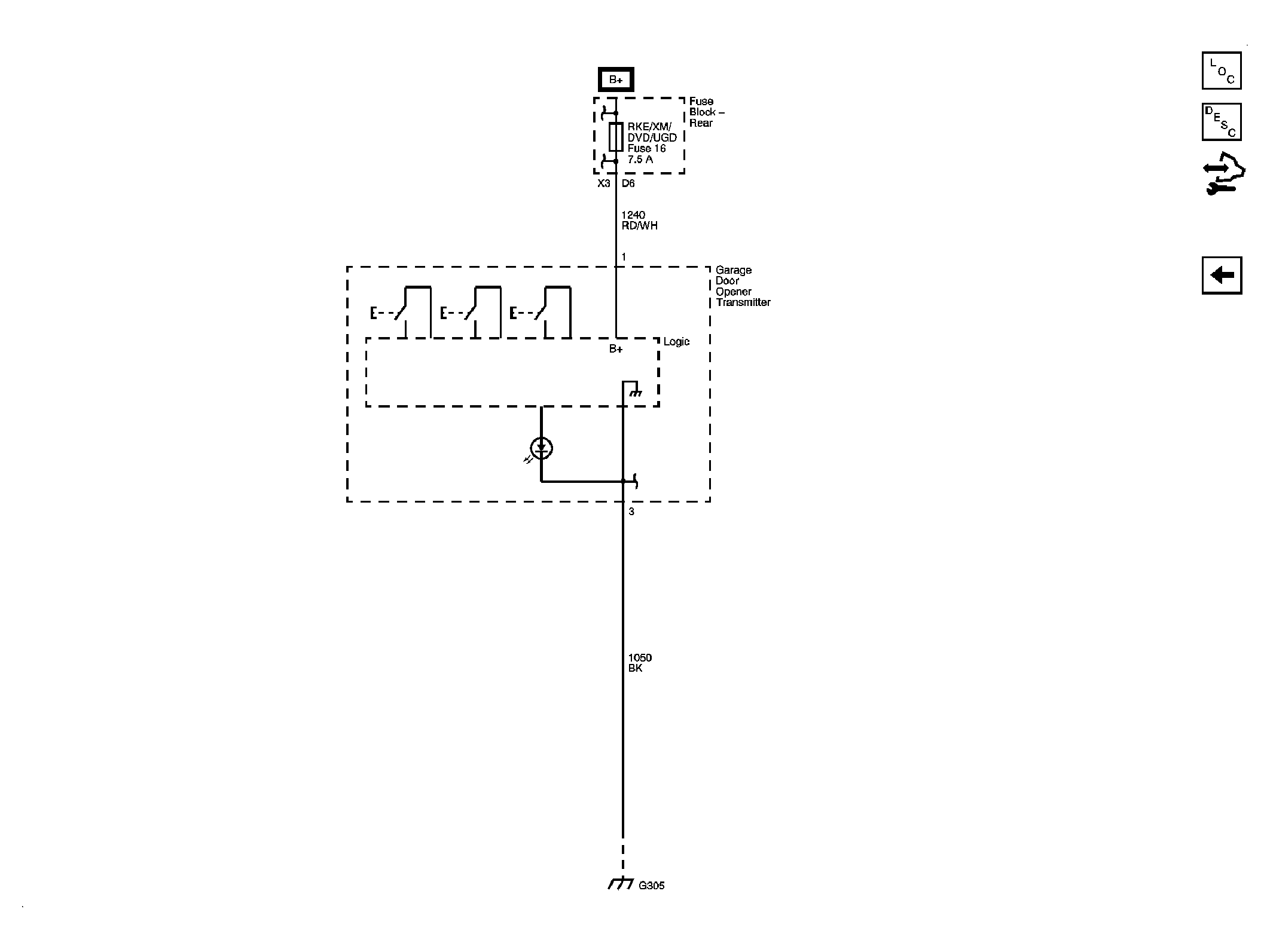

Fig 2: Universal Garage Door Opener Schematic
GM1891600Courtesy of GENERAL MOTORS CORP.
