Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

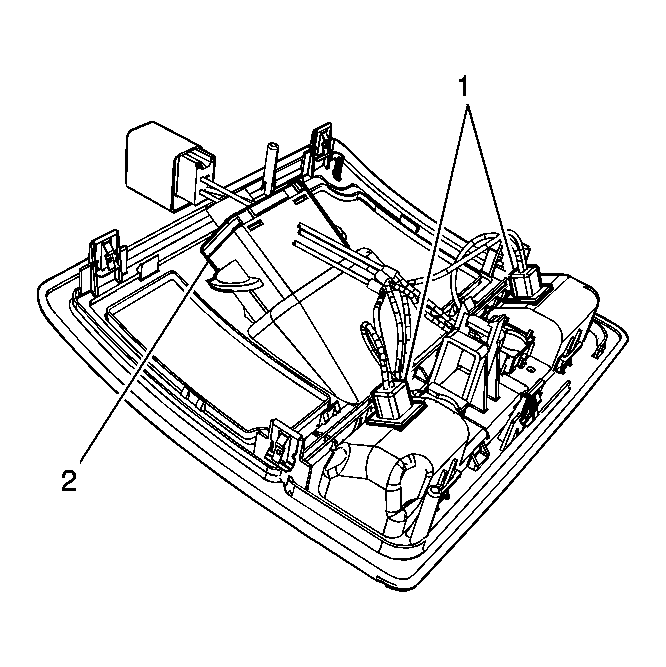

    Fig 1: View Of Rear Overhead Console Components
    GM1466262Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connectors.
    2. NOTE: Refer to Fastener Notice .
  2. Install the screws securing the rear park assist tell tale module to the overhead console.

    Tighten:  Tighten the screws (1) to 2 N.m (18 lb in).

  3. Install the rear overhead console.
