Removal Procedure

WARNING: This page is about a different car, the 2010 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Rear Object Sensor Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Remove rear bumper fascia. Refer to Rear Bumper Fascia Replacement
Disconnect electrical from the rear object sensor.

Fig 2: Rear Object Sensor Components

Courtesy of GENERAL MOTORS CORP.

Lift the locking tabs on the housing (4) and remove the rear object sensor (1).

Fig 3: Spring & Housing

Courtesy of GENERAL MOTORS CORP.

Squeeze the spring (1) and remove it from the housing (2).

Fig 4: Rear Object Sensor Housing

Courtesy of GENERAL MOTORS CORP.

Release the tabs on the housing and remove.

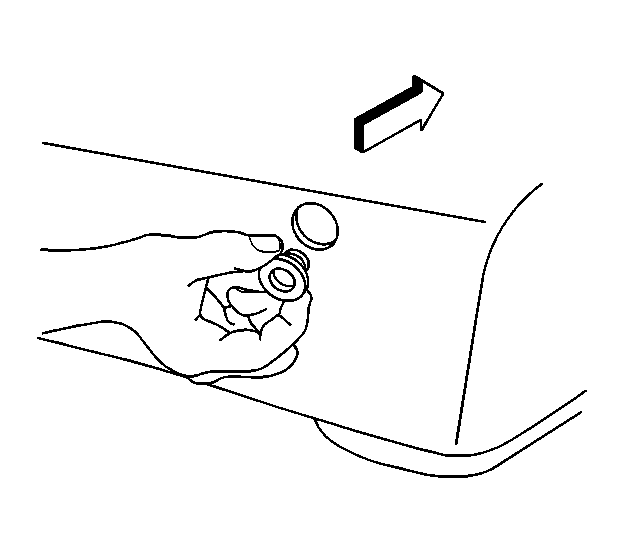

Fig 5: Rear Object Sensor Bezel

Courtesy of GENERAL MOTORS CORP.

Remove the rear object sensor bezel by pushing it through the fascia.
