Side Object Sensor Bracket Replacement

WARNING: This page is about a different car, the 2010 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

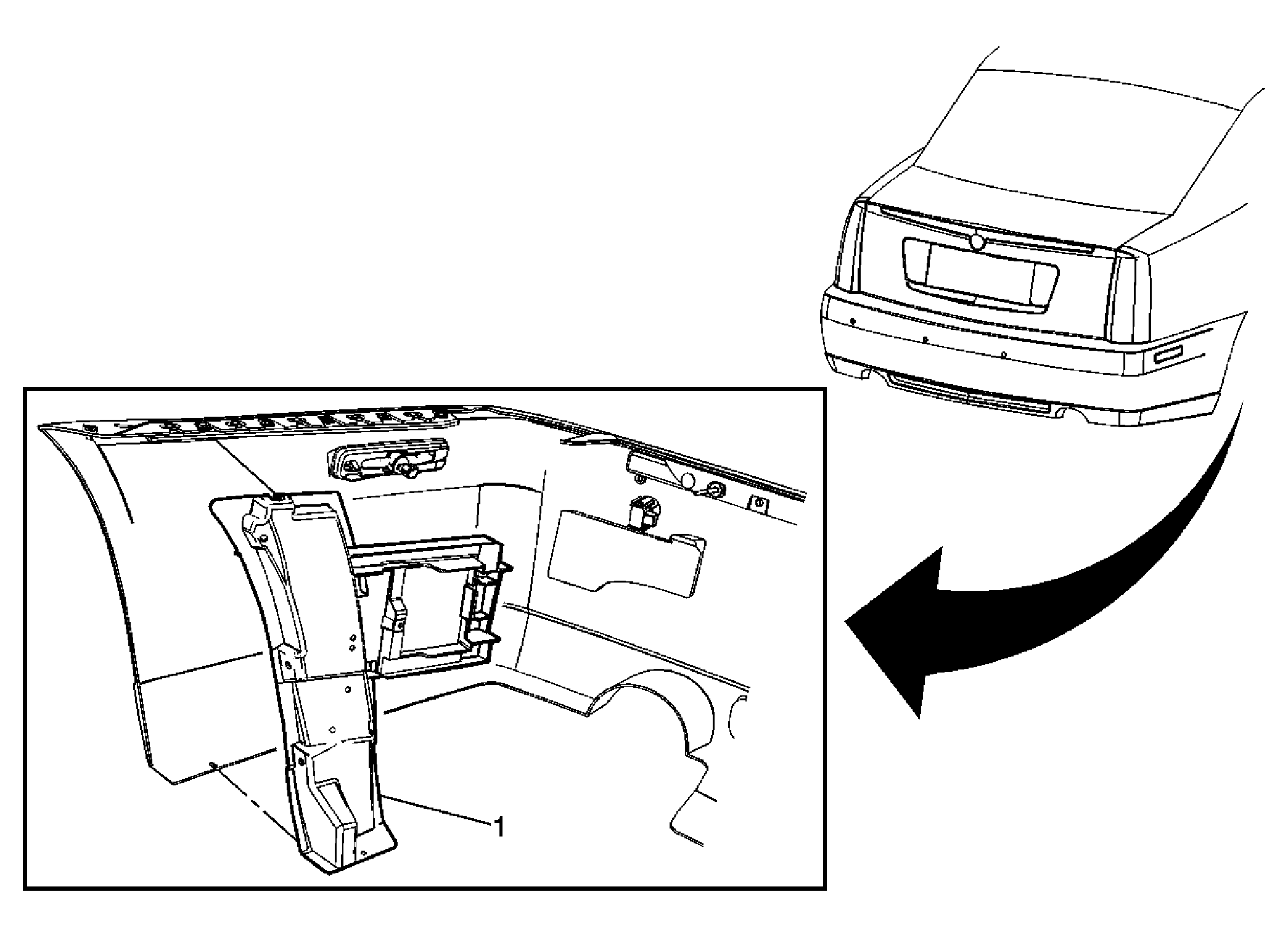

Fig 1: Side Object Sensor Bracket

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the side object sensor module. Refer to Side Object Sensor Replacement .
1	Side Object Sensor Bracket Tip: Disconnect the electrical connectors. Pull forward to remove the bracket.
