Object Detection Schematics

WARNING: This page is about a different car, the 2010 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

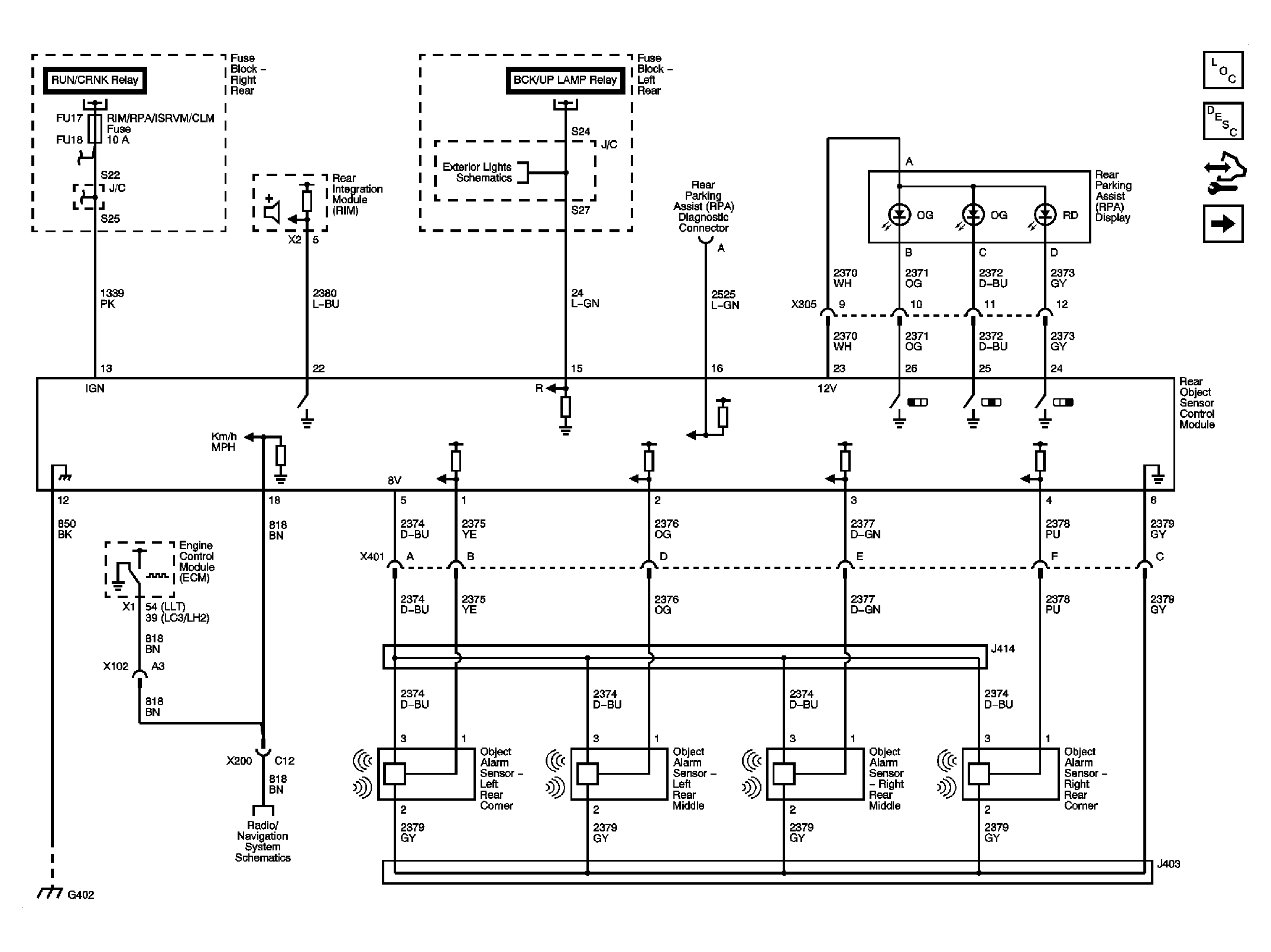

Fig 1: Rear Park Assist

Courtesy of GENERAL MOTORS CORP.

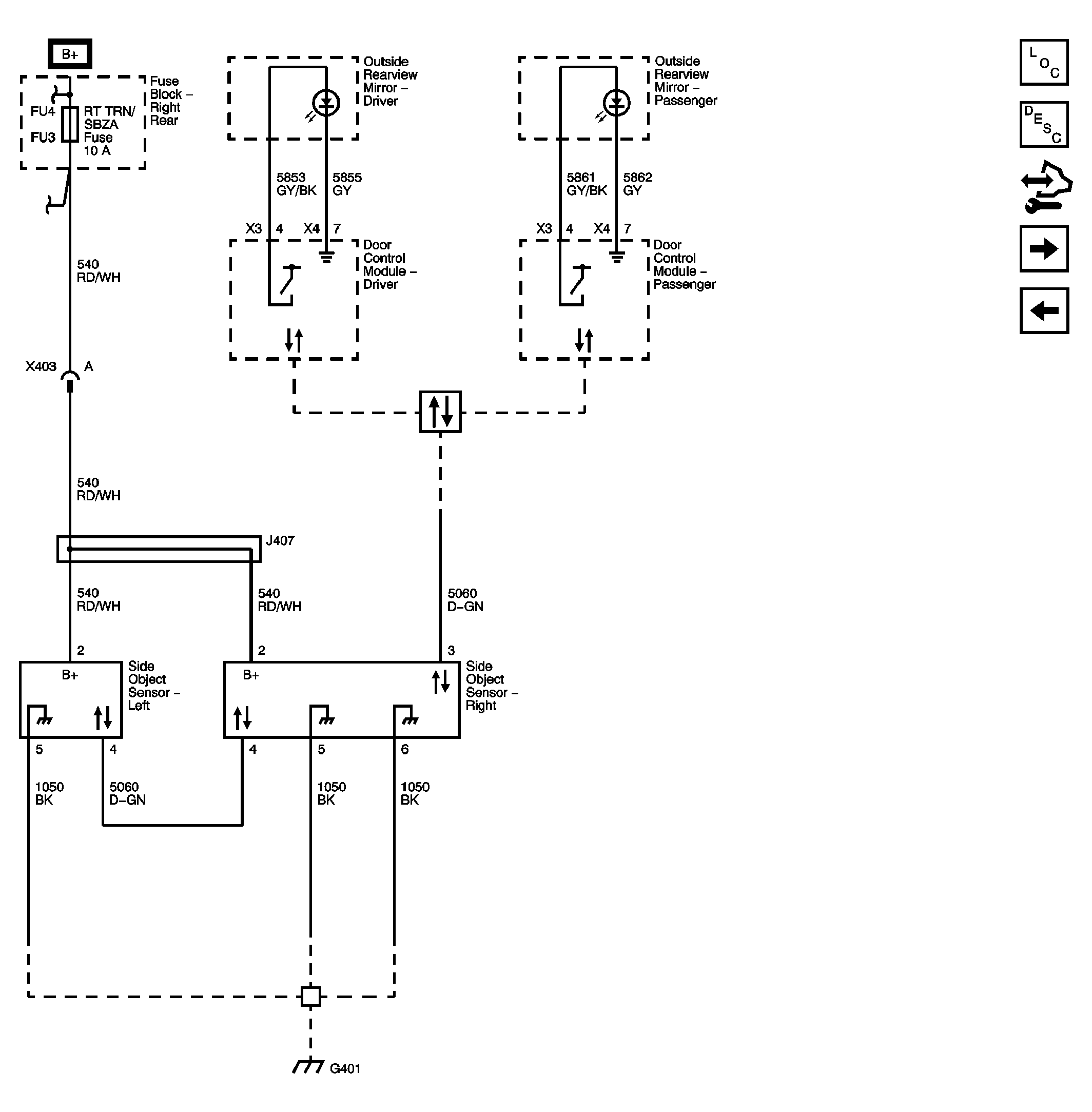

Fig 2: Side Object Detection

Courtesy of GENERAL MOTORS CORP.

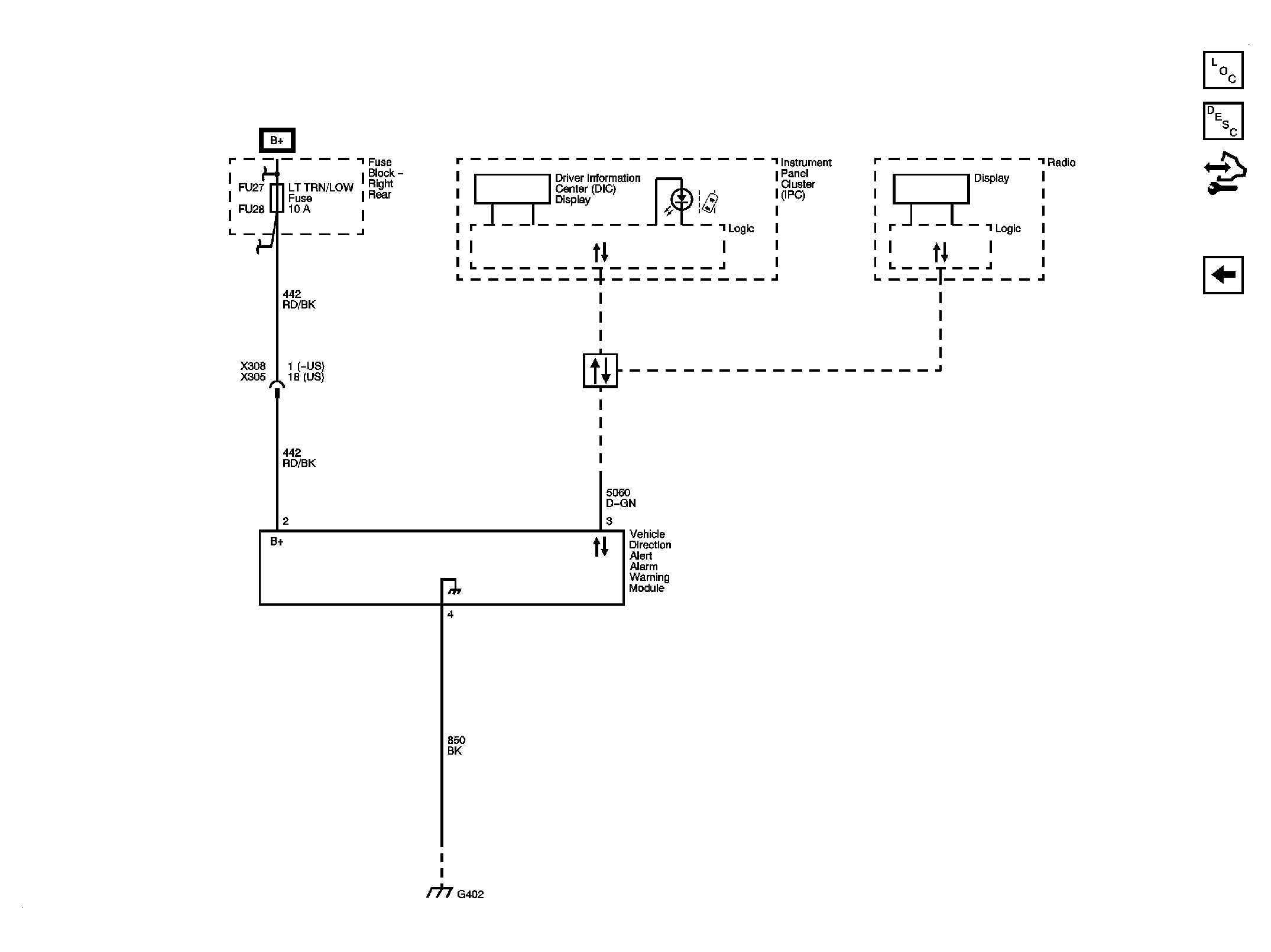

Fig 3: Lane Departure Warning

Courtesy of GENERAL MOTORS CORP.
