Front of Vehicle/Engine Compartment Component Views

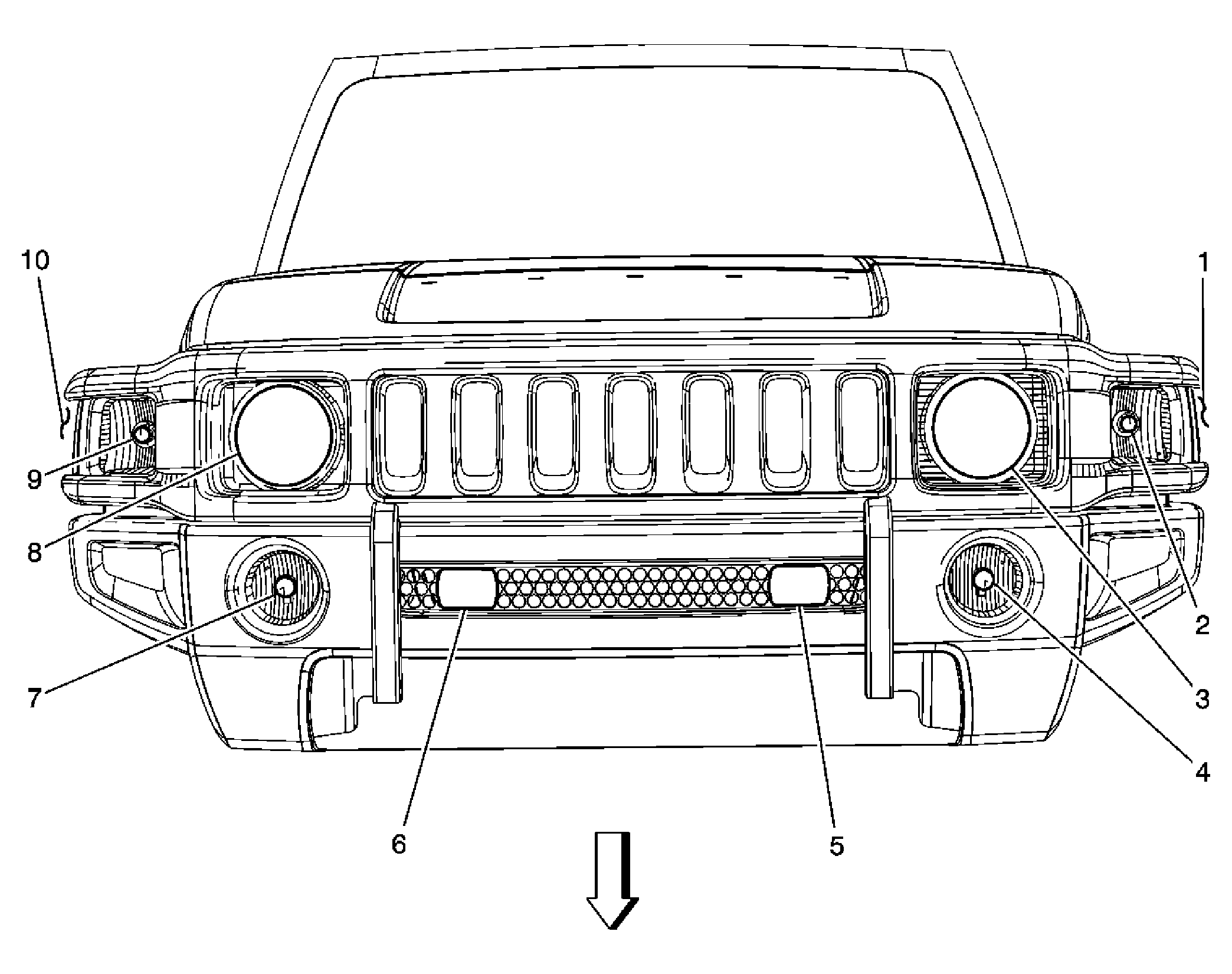

Fig 1: Front Exterior Lights

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Marker Lamp - Left Front
2	Park/Turn Signal Lamp - Left Front
3	Headlamp - Left
4	Fog Lamp - Left Front
5	Fog Lamp - Right Front
6	Headlamp - Right
7	Park/Turn Signal Lamp - Right Front
8	Marker Lamp - Right Front

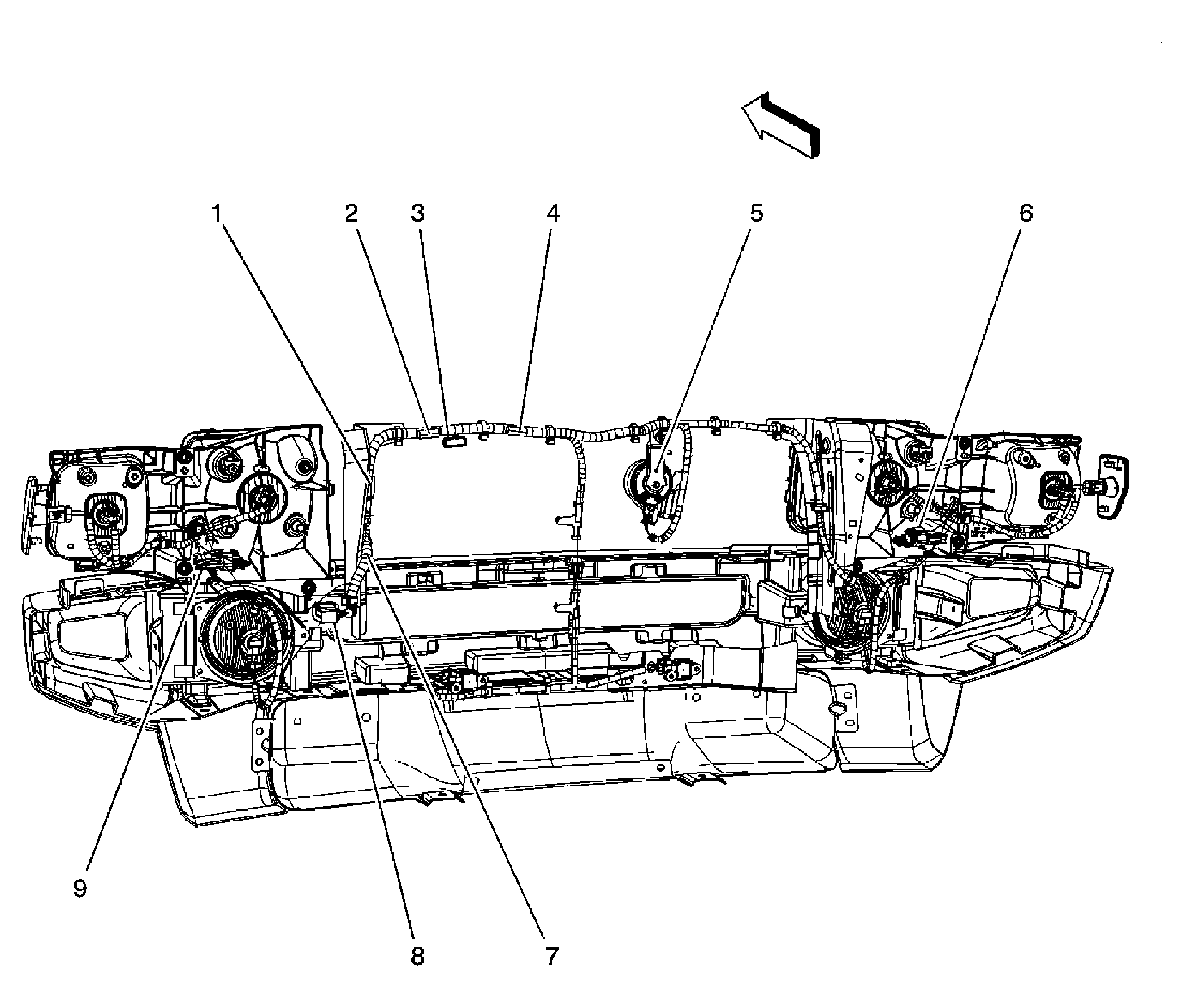

Fig 2: Forward Lamp Harness Components

Courtesy of GENERAL MOTORS CORP.

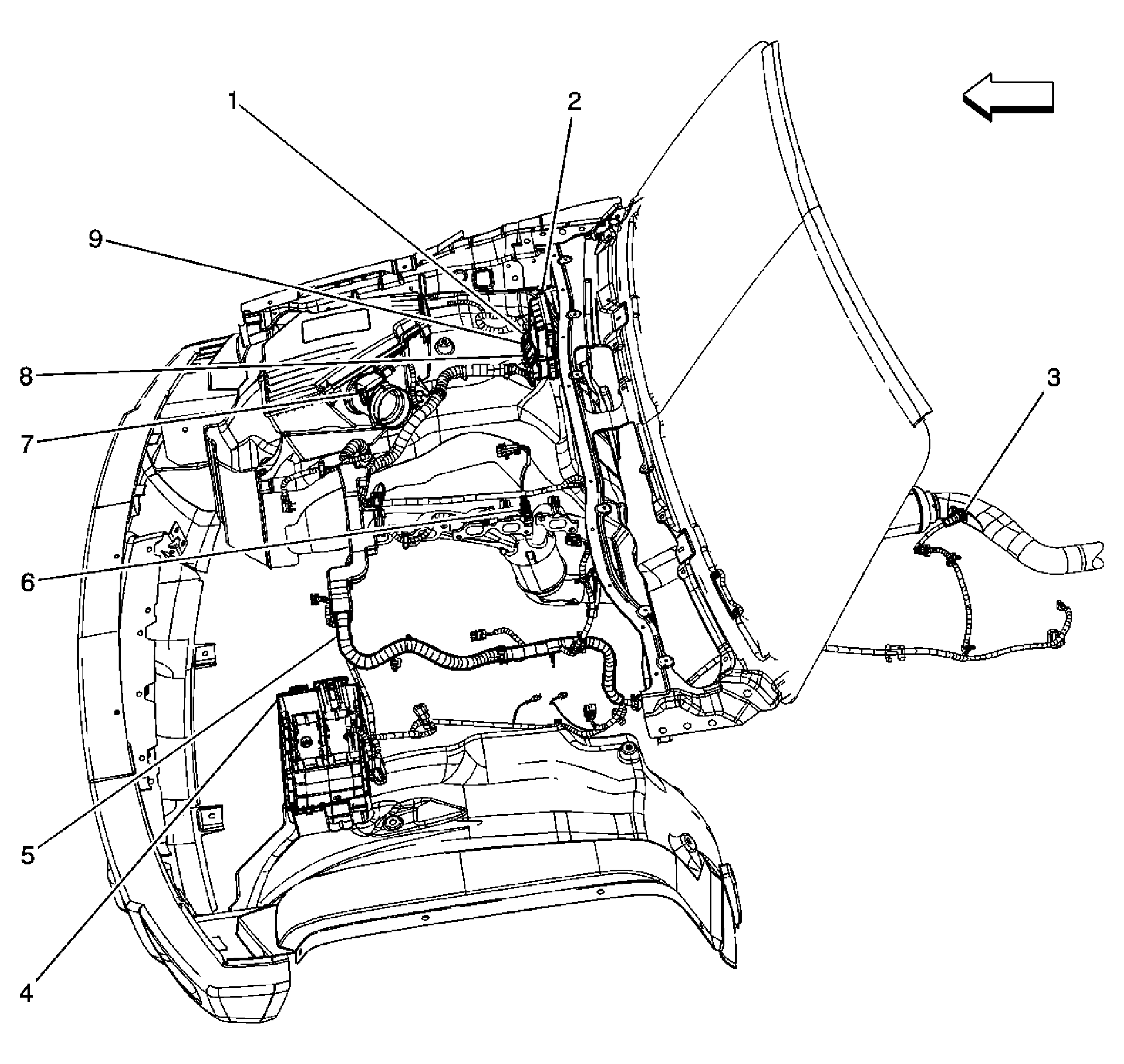

Fig 3: Engine Compartment Components - 1 of 3

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Control Module (ECM) X1
2	Engine Control Module (ECM)
3	Heated Oxygen Sensor (HO2S) 2 (LLR)
4	Fuse Block - Underhood
5	Engine Harness
6	Heated Oxygen Sensor (HO2S) 1 (LLR)
7	Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
8	Engine Control Module (ECM) X3
9	Engine Control Module (ECM) X2

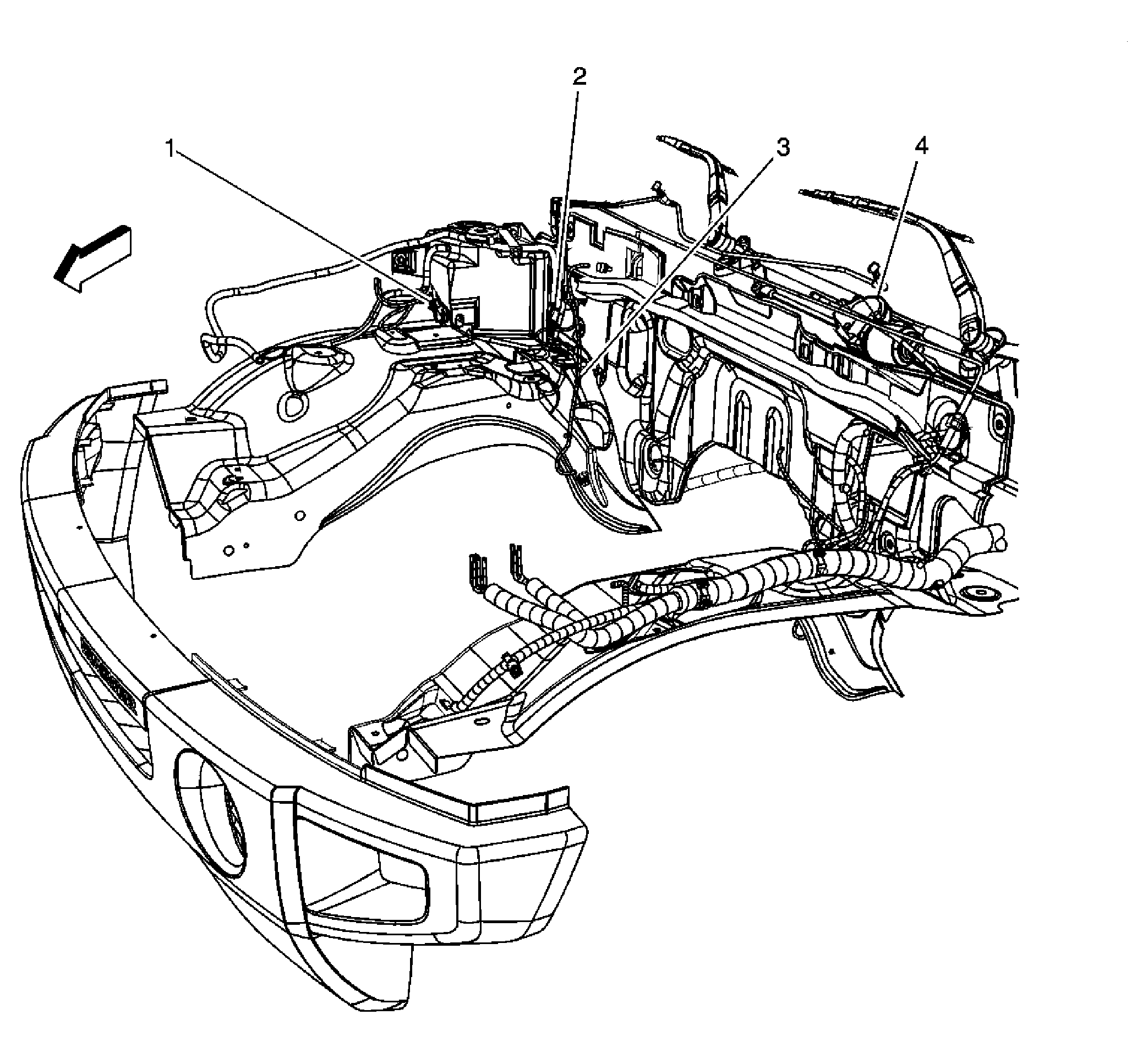

Fig 4: Engine Compartment Components - 2 of 3

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Washer Fluid Pump
2	Windshield Washer Fluid Pump
3	Body Harness
4	Windshield Wiper Motor

Fig 5: Engine Compartment Components - 3 of 3

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Harness
2	A/C Refrigerant Pressure Sensor
3	A/C Compressor Clutch
4	Ambient Air Temperature Sensor
5	Inflatable Restraint Front End Sensor - Right
6	Lower Radiator Support
7	Inflatable Restraint Front End Sensor - Left

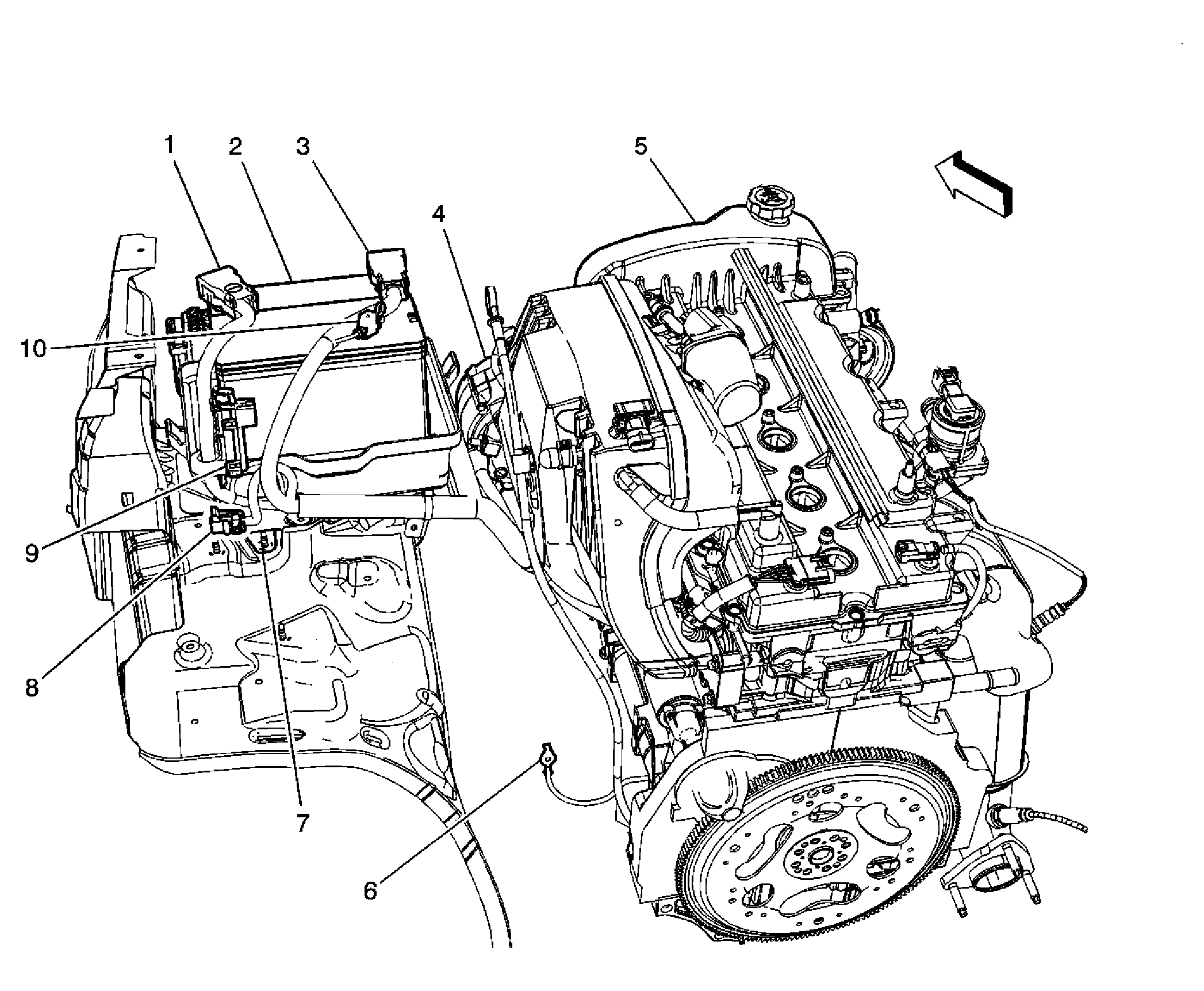

Fig 6: Left Side of the Engine Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Negative Battery Cable
2	Battery
3	Positive Battery Cable
4	Generator
5	Engine (LLR)
6	G120
7	G100
8	X130 (UE1)
9	Generator Battery Control Module
10	Onstar Fuse (UE1)

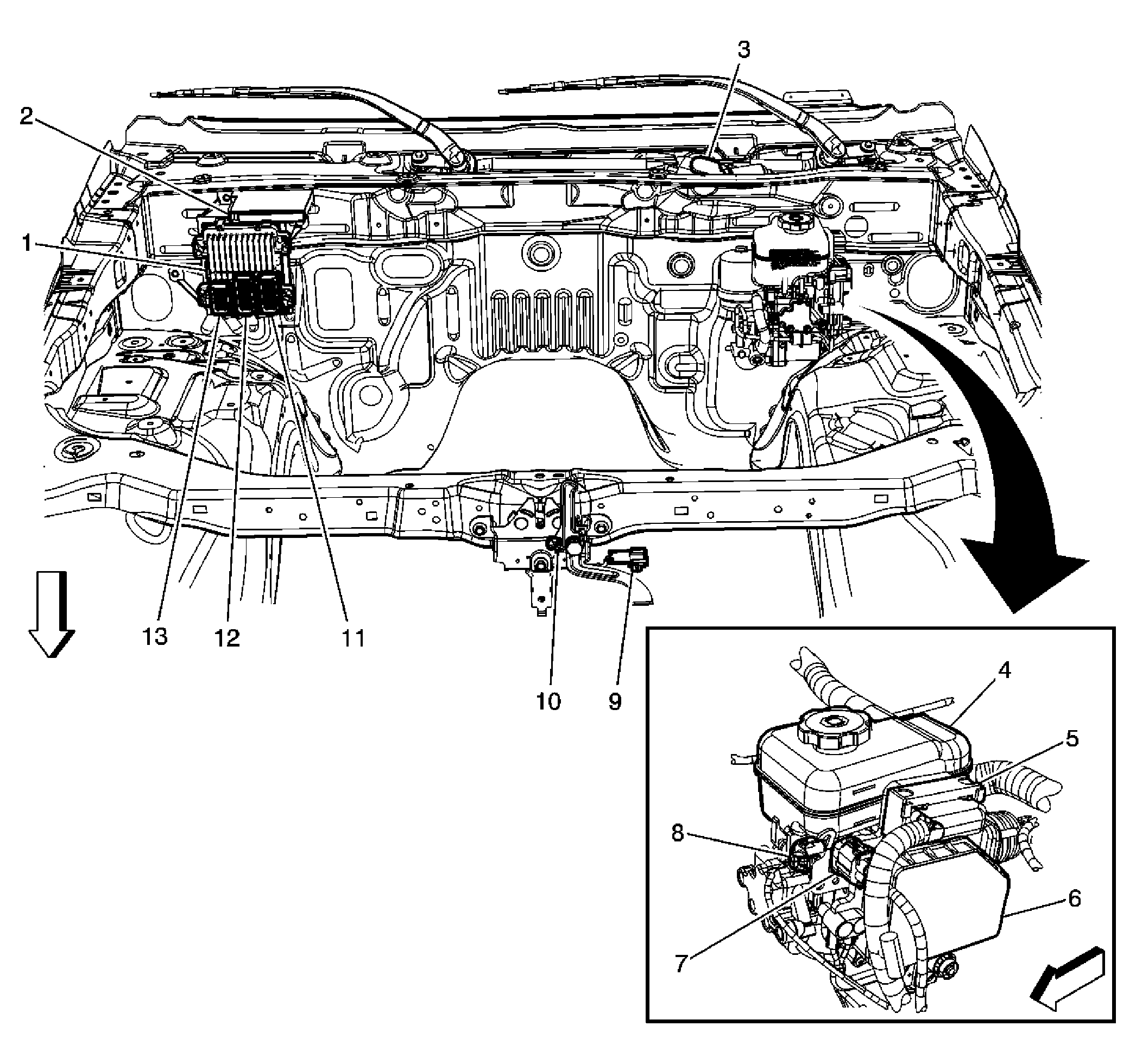

Fig 7: Rear of the Engine Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Vehicle Rollover Sensor (ASF)
2	Yaw and Lateral Accelerometer Sensor
3	Brake Fluid Reservoir
4	Electronic Brake Control Module (EBCM) X2
5	Electronic Brake Control Module (EBCM)
6	Electronic Brake Control Module (EBCM) X1
7	Brake Fluid Level Switch
