Passenger Compartment/Roof Component Views

Fig 1: Identifying Inside Rearview Mirror

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inside Rearview Mirror (ISRVM)
2	Onstar Keypad (UE1)

Fig 2: Identifying Sunroof Components

Courtesy of GENERAL MOTORS CORP.

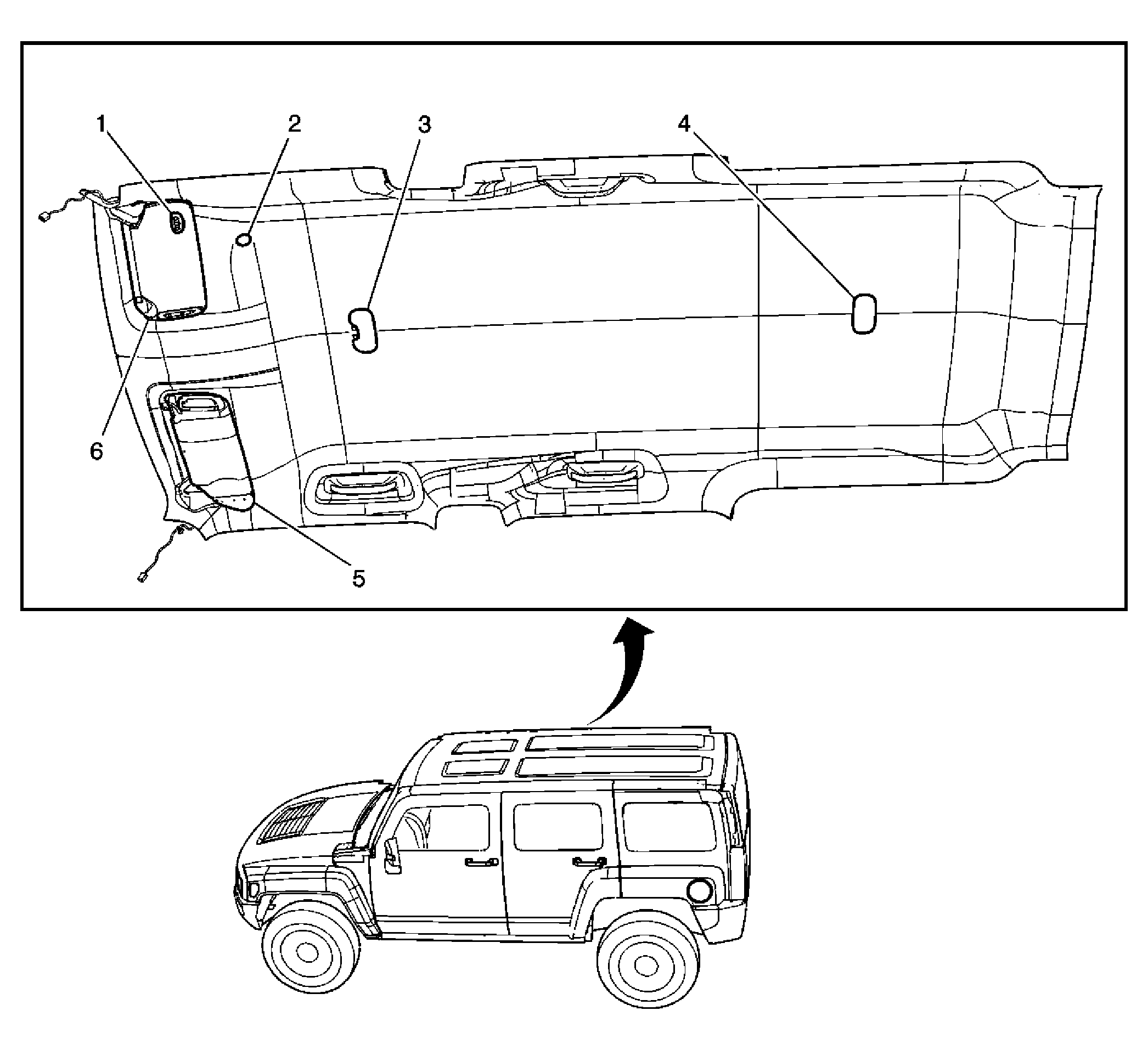

Fig 3: Identifying Headliner Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Garage Door Opener (UG1)
2	Cellular Telephone Microphone (UE1)
3	Dome/Reading Lamps
4	Dome Lamp
5	Sunshade - Right (DH6)
6	Sunshade - Left (DH6)

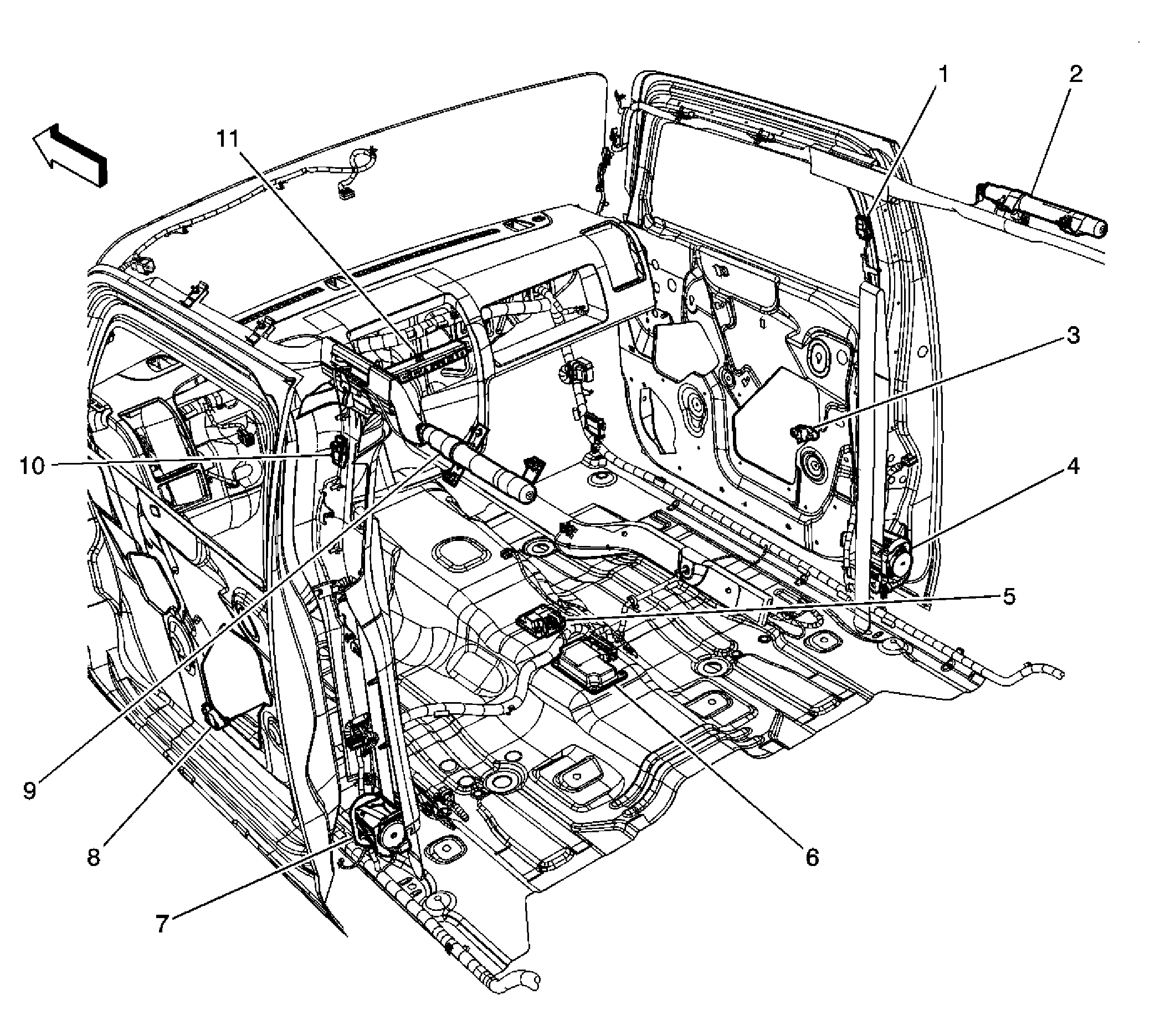

Fig 4: Front of the Passenger Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Roof Rail Module - Right Connector (ASF)
2	Inflatable Restraint Roof Rail Module - Right (ASF)
3	Inflatable Restraint Side Impact Sensor (SIS) - Right (ASF)
4	Seat Belt Pretensioner - Passenger
5	Inflatable Restraint Vehicle Rollover Sensor (ASF)
6	Inflatable Restraint Sensing and Diagnostic Module (SDM)
7	Seat Belt Pretensioner - Driver
8	Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF)
9	Inflatable Restraint Roof Rail Module - Left (ASF)
10	Inflatable Restraint Roof Rail Module - Left Connector (ASF)
11	Accessory Switch

Fig 5: Identifying Driver Seat Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Seat Element - Driver Back (KA1)
2	Seat Lumbar Motor - Driver (AG1)
3	Heated Seat Element - Driver Cushion (KA1)
4	J306 (AG1)
5	J312 (AG1)
6	Fuse Holder Power Seat (AG1)
7	X307 (AG1)
8	X308
9	Heated Seat Control Module - Driver (KA1)
10	Inflatable Restraint Seat Position Sensor (SPS) - Driver
11	Seat Adjuster Motor Assembly - Driver (AG1)
12	Seat Adjuster Switch - Driver (AG1)
13	Seat Lumbar Adjuster Switch - Driver (AG1)
14	Seat Belt Buckle - Driver

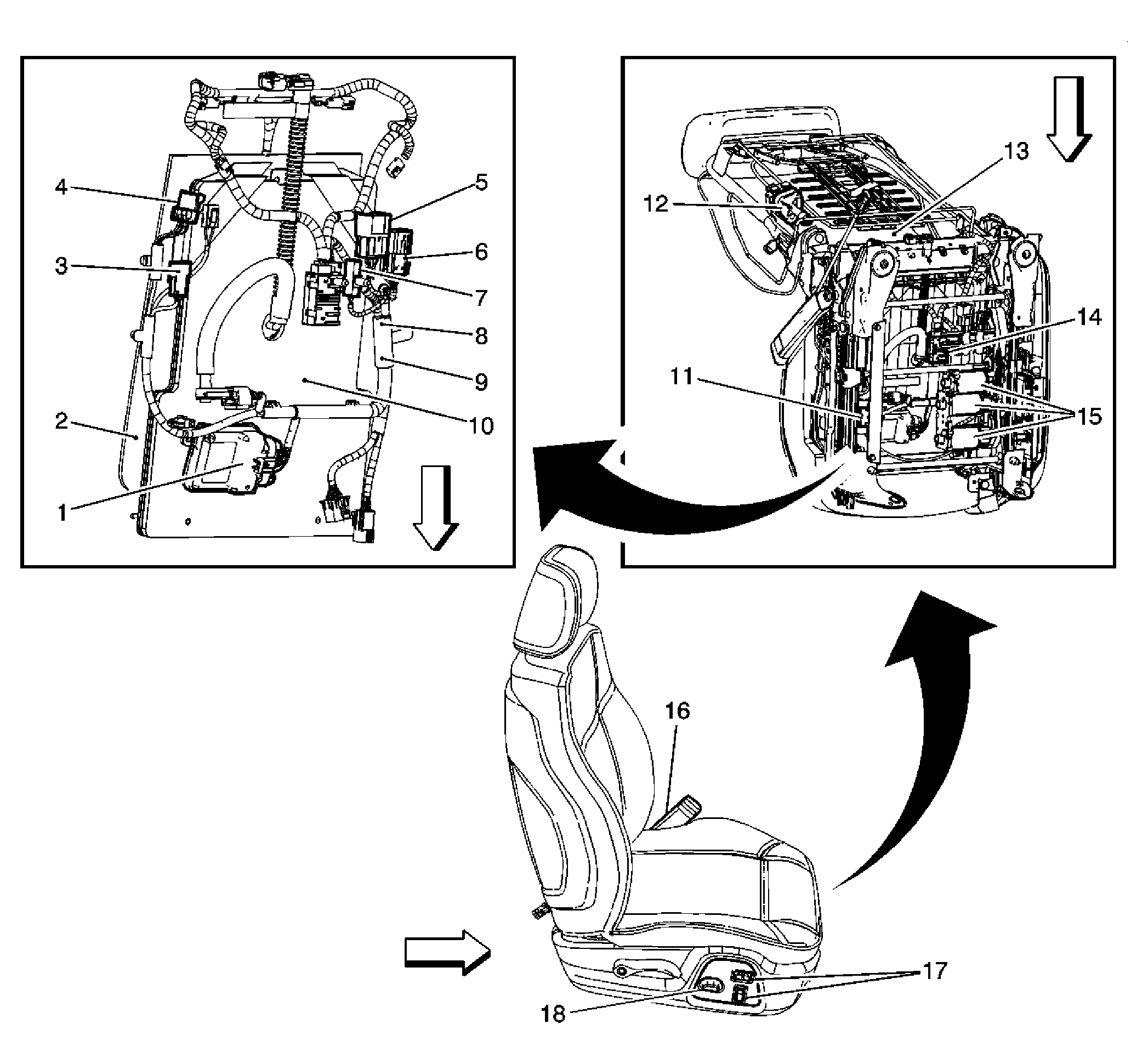

Fig 6: Identifying Passenger Seat Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Front Passenger Presence System (PPS) Module
2	Heated Seat Element - Passenger Cushion (KA1)
3	Seat Belt Buckle - Passenger X1
4	Seat Belt Buckle - Passenger X2
5	X320
6	X315
7	X318 (AG2)
8	J341 (AG2)
9	J316 (AG2)
10	Inflatable Restraint Front Passenger Presence System (PPS) Sensor
11	Inflatable Restraint Seat Position Sensor (SPS) - Passenger
12	Seat Lumbar Motor - Passenger (AG2)
13	Heated Seat Element - Passenger Back (KA1)
14	Heated Seat Control Module - Passenger (KA1)
15	Seat Adjuster Motor Assembly - Passenger (AG2)
16	Seat Belt Buckle - Passenger
17	Seat Lumbar Adjuster Switch - Passenger (AG2)
18	Seat Adjuster Switch - Passenger (AG2)
