Ignition Lock Key Transmitter Antenna Replacement - Headliner

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

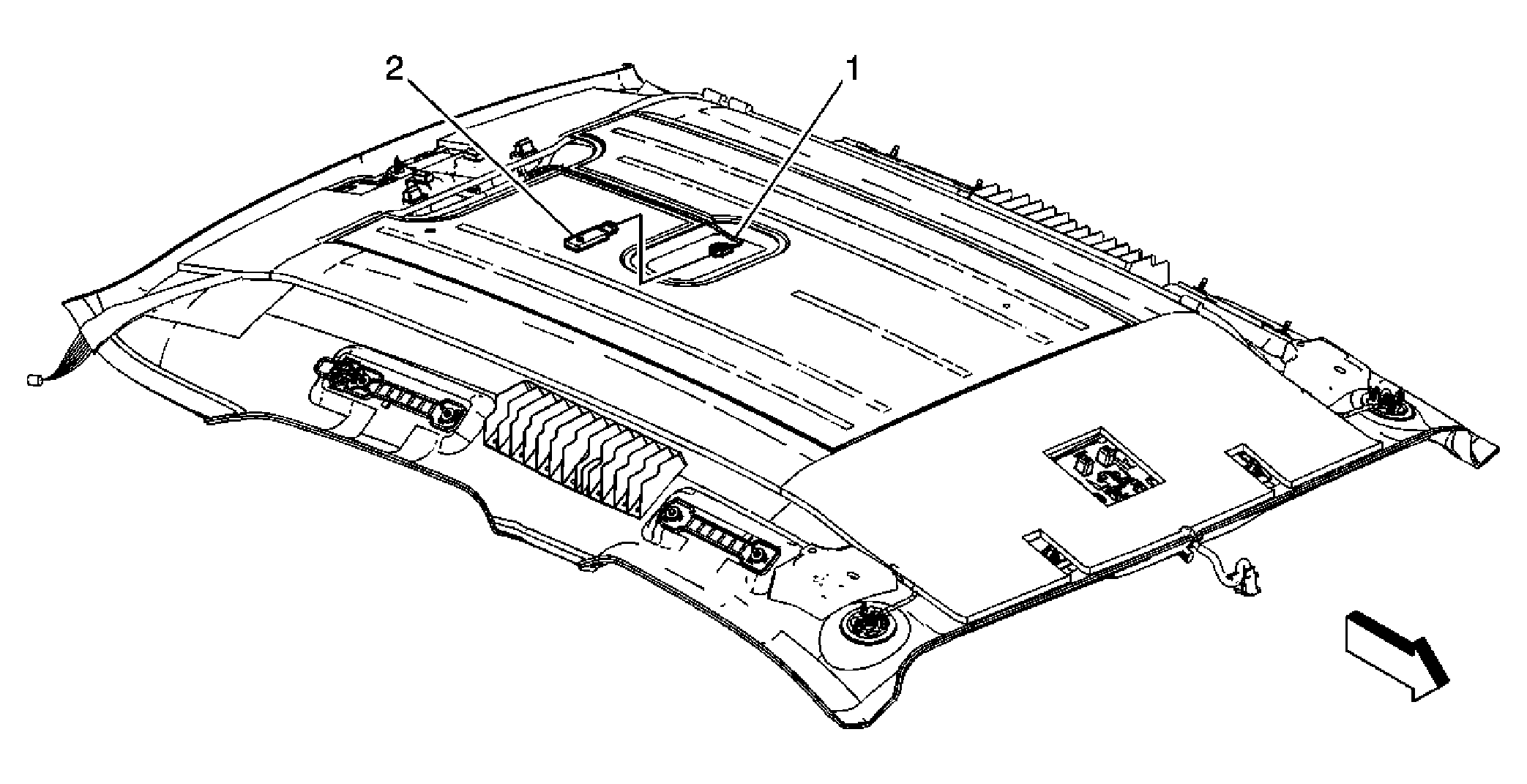

Fig 1: View Of Headliner Wiring Harness Assembly & Ignition Lock Key Transmitter Antenna Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Lower the headlining trim panel. Refer to Headlining Trim Panel Replacement .
1	Headliner Wiring Harness Assembly
2	Ignition Lock Key Transmitter Antenna Assembly
