Inflatable Restraint Side Impact Sensing Module (SISM)

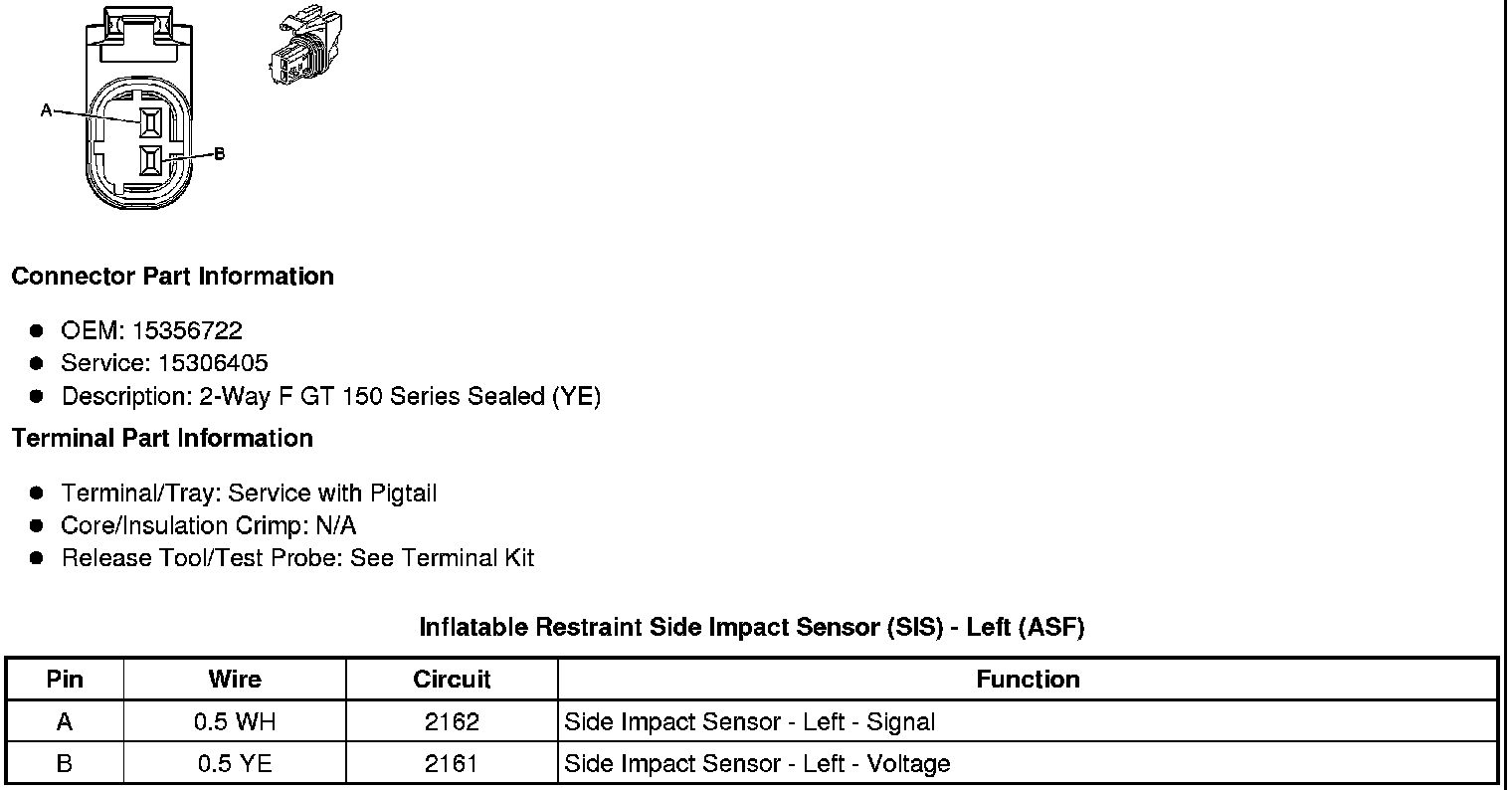

Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF)

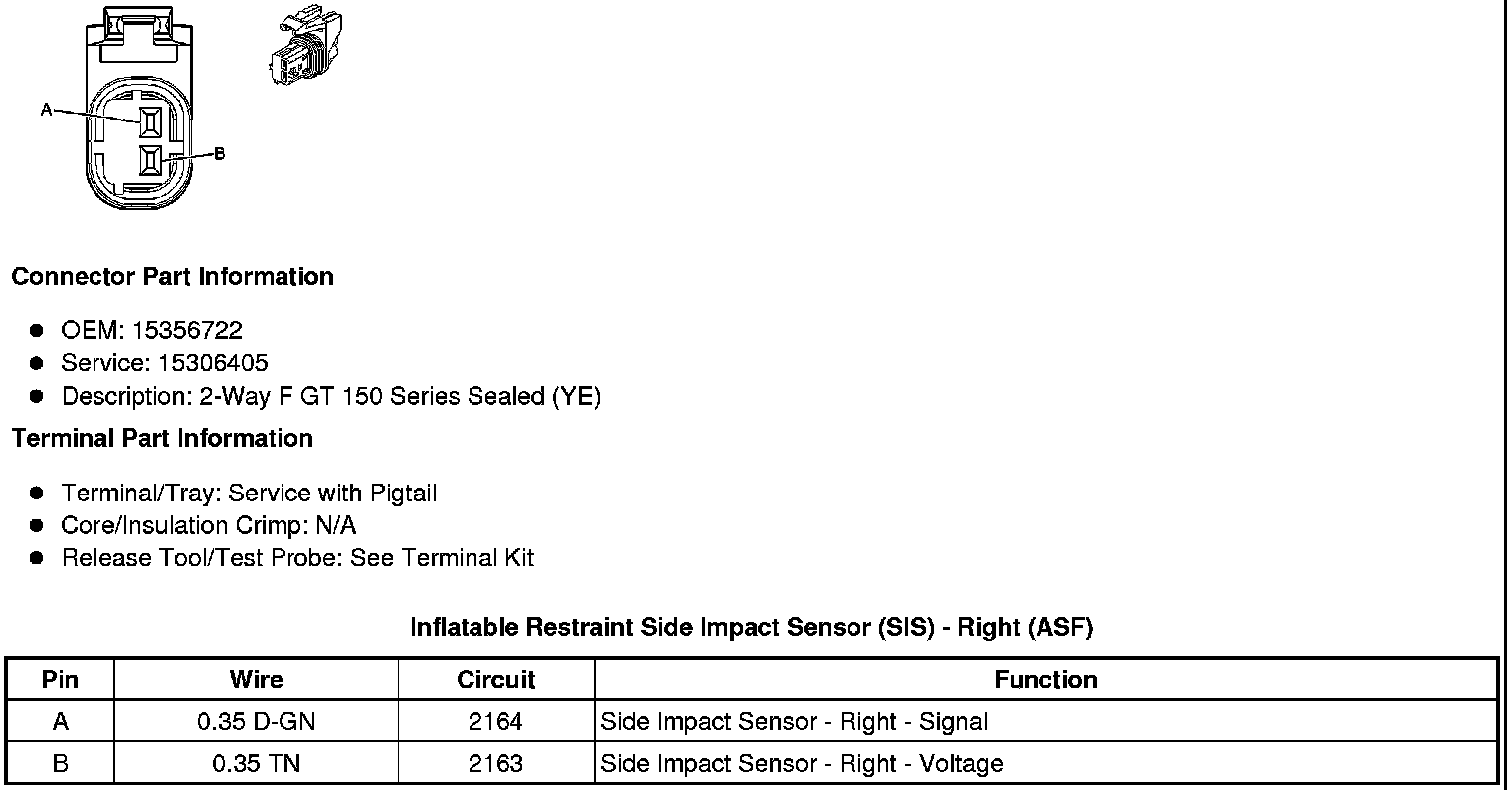

Inflatable Restraint Side Impact Sensor (SIS) - Right (ASF)
