Antitheft and Alarm Systems

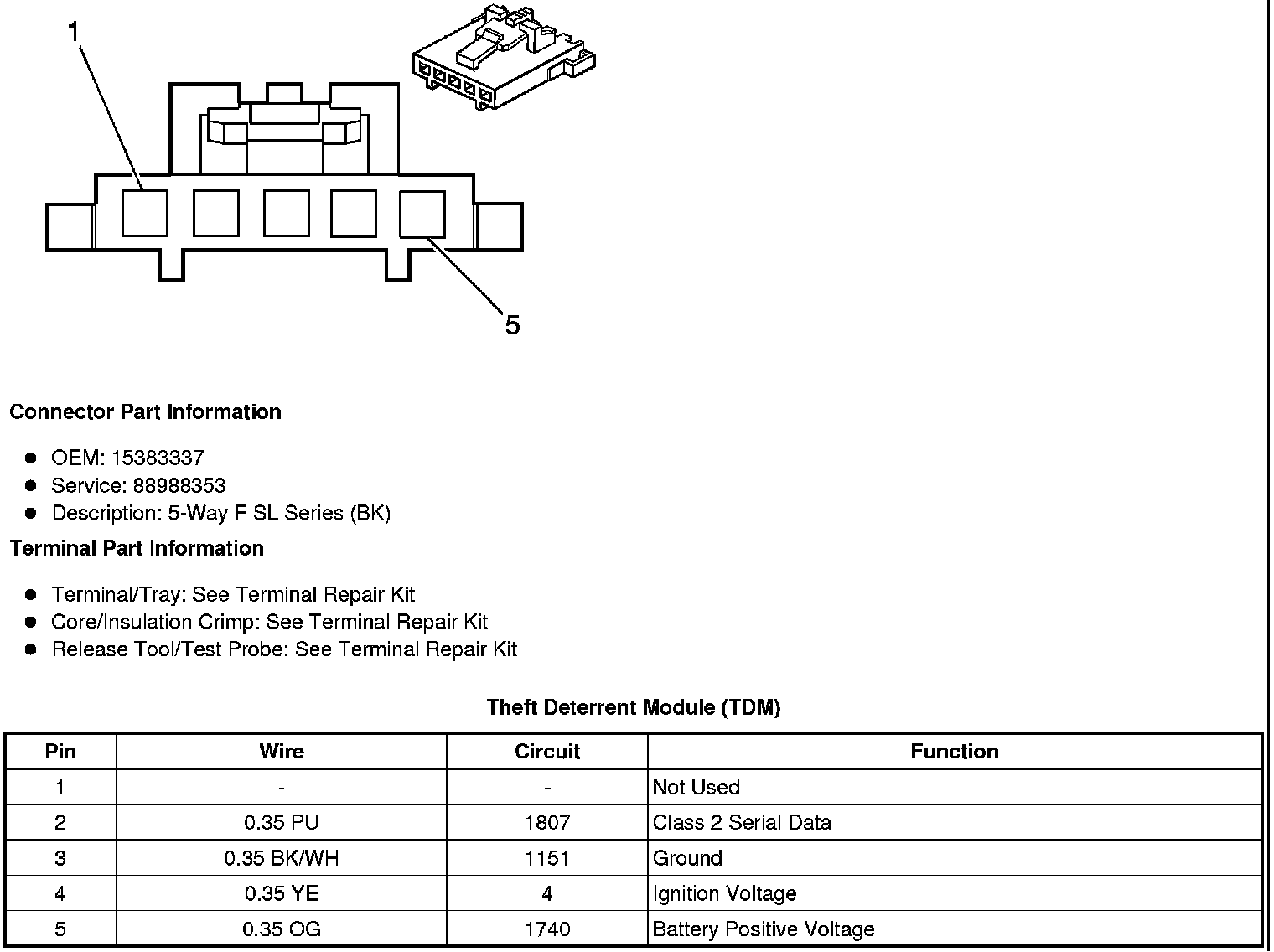

Theft Deterrent Module (TDM)





Door Jamb Switch - Driver

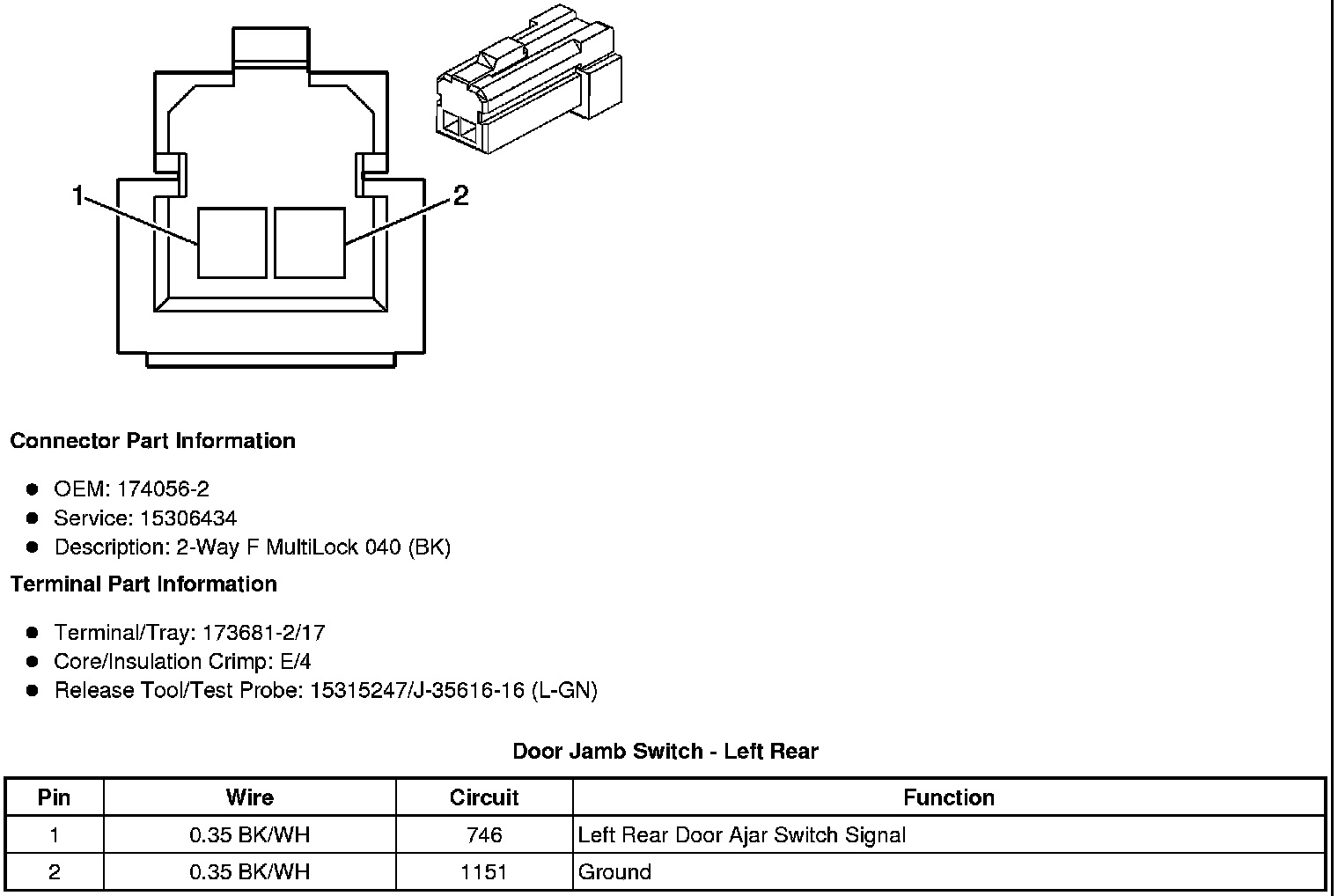

Door Jamb Switch - Left Rear






Door Jamb Switch - Passenger

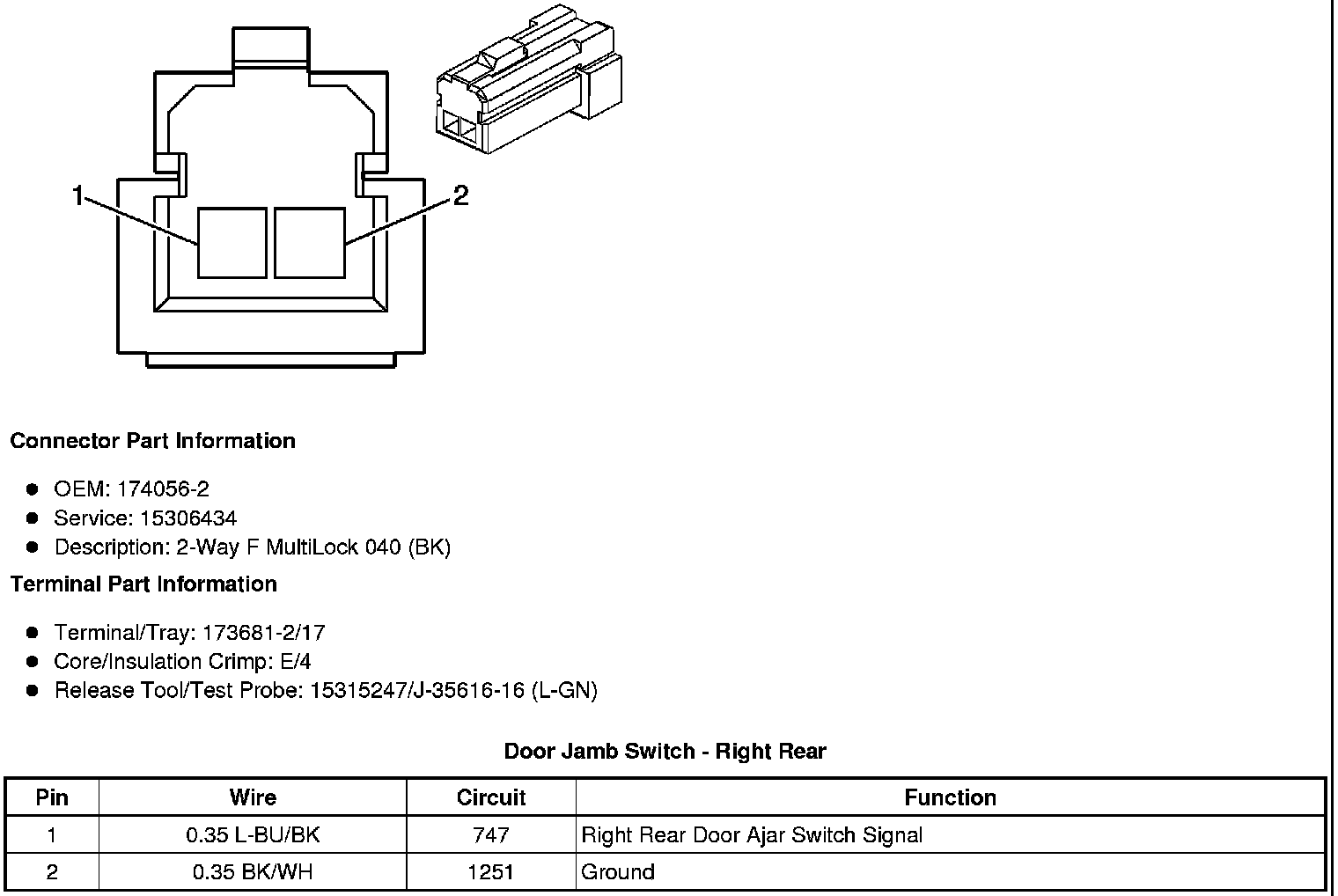

Door Jamb Switch - Right Rear
