Fluid Pressure Sensor/Switch, A/T

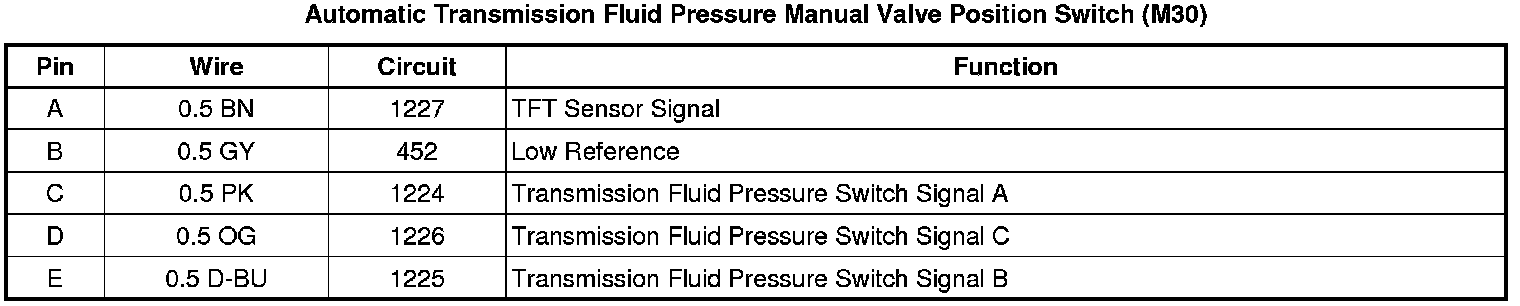

Automatic Transmission Fluid Pressure Manual Valve Position Switch (M30)
