Fuse Block



Electrical Center Identification Views

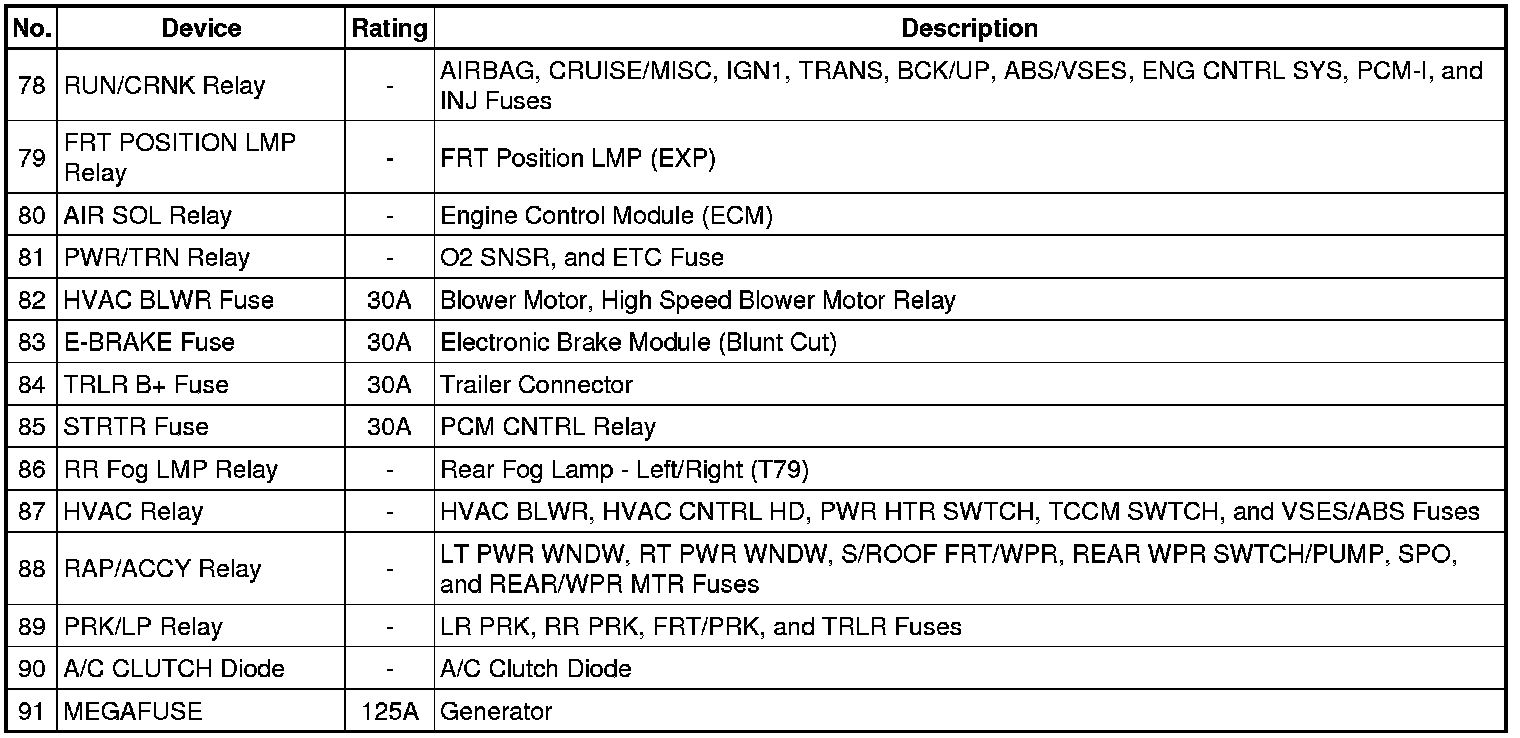

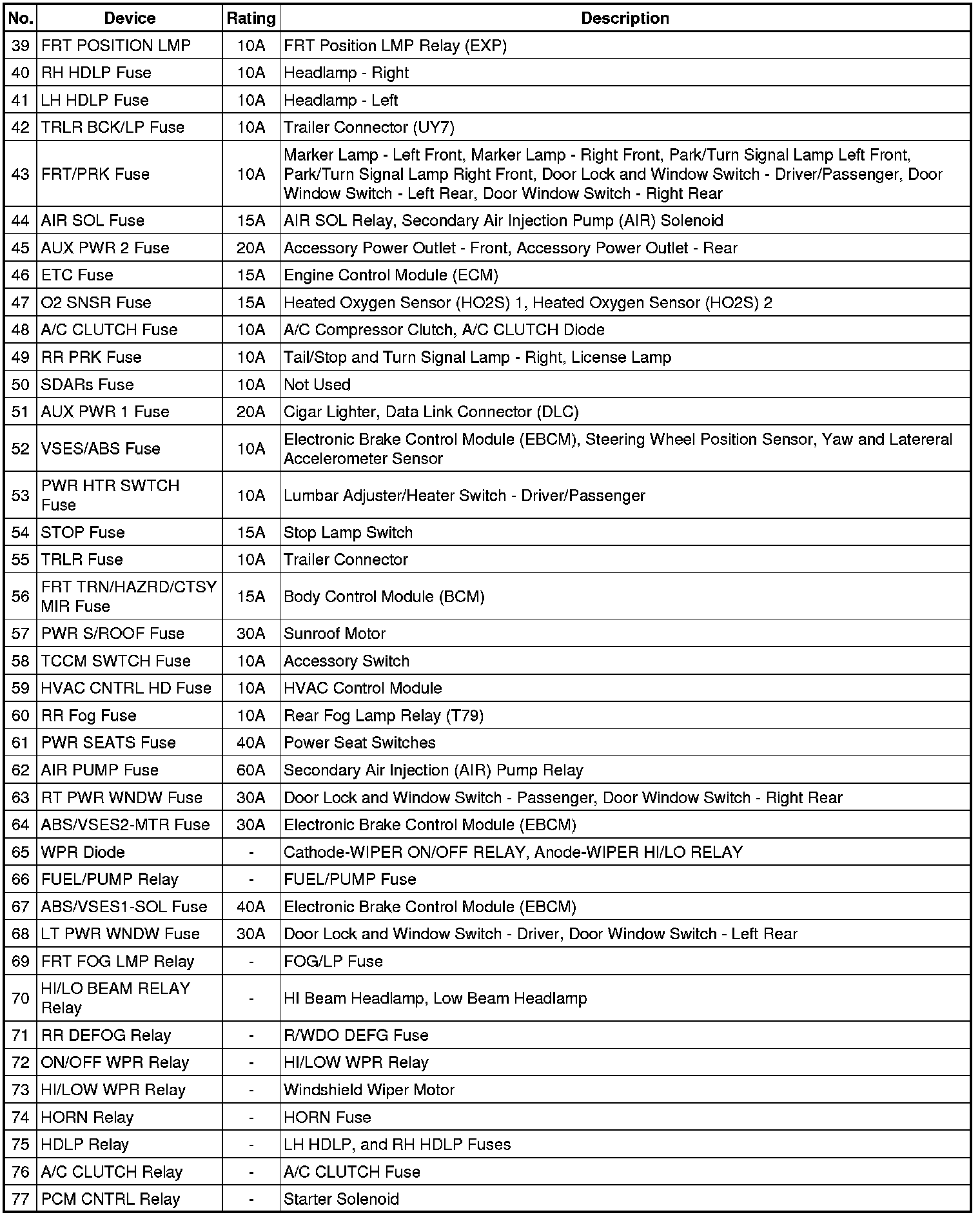

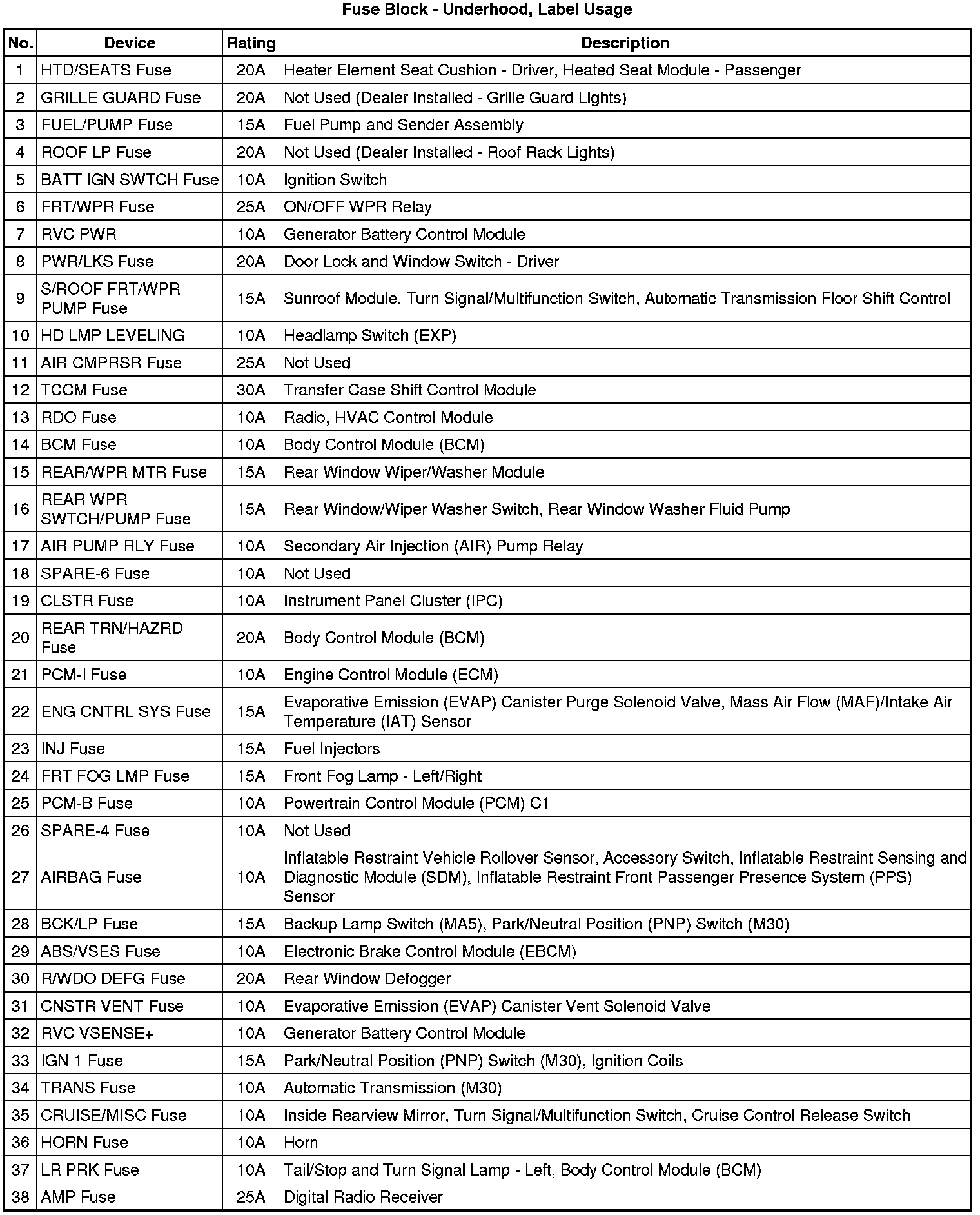

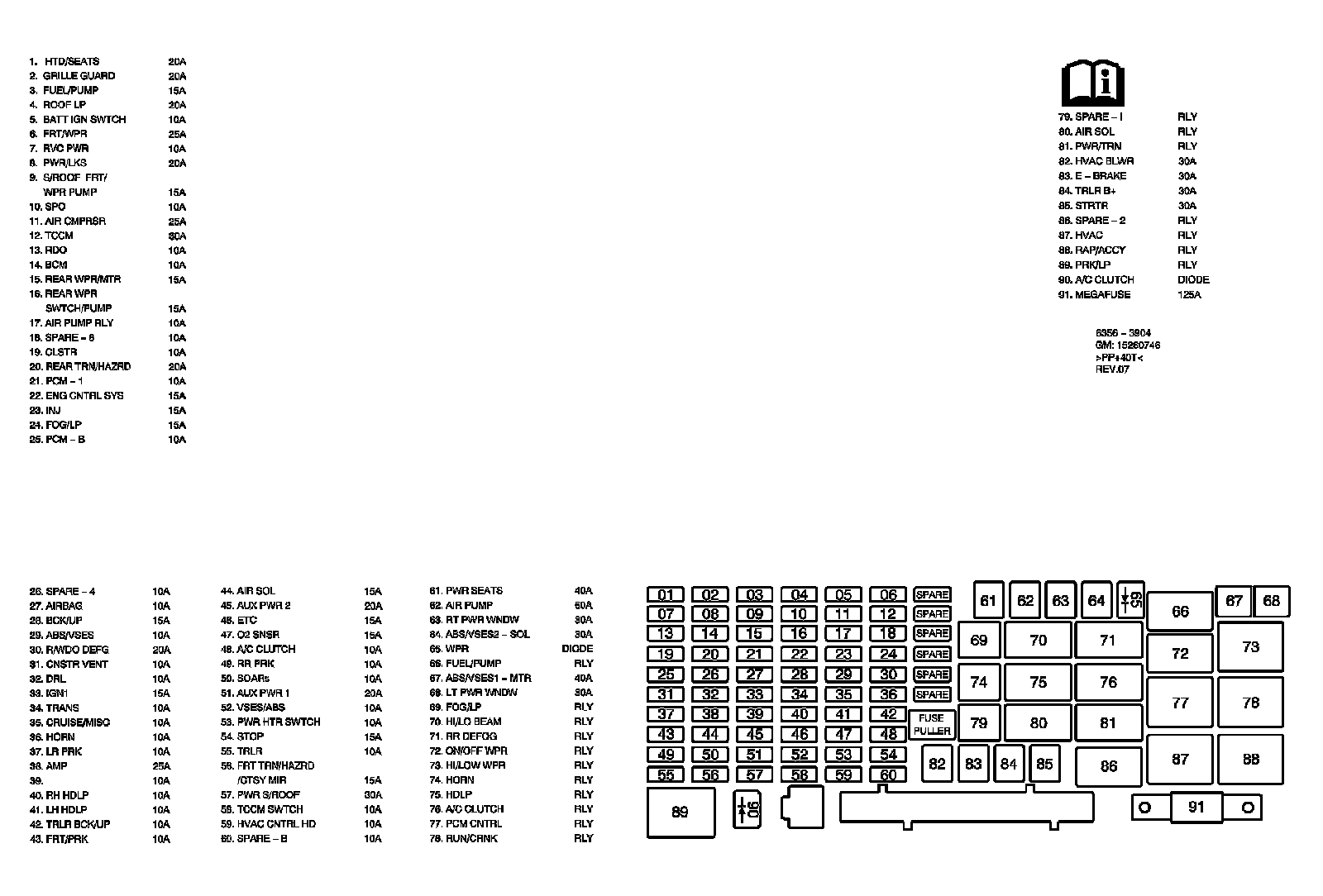

Fuse Block - Underhood, Label

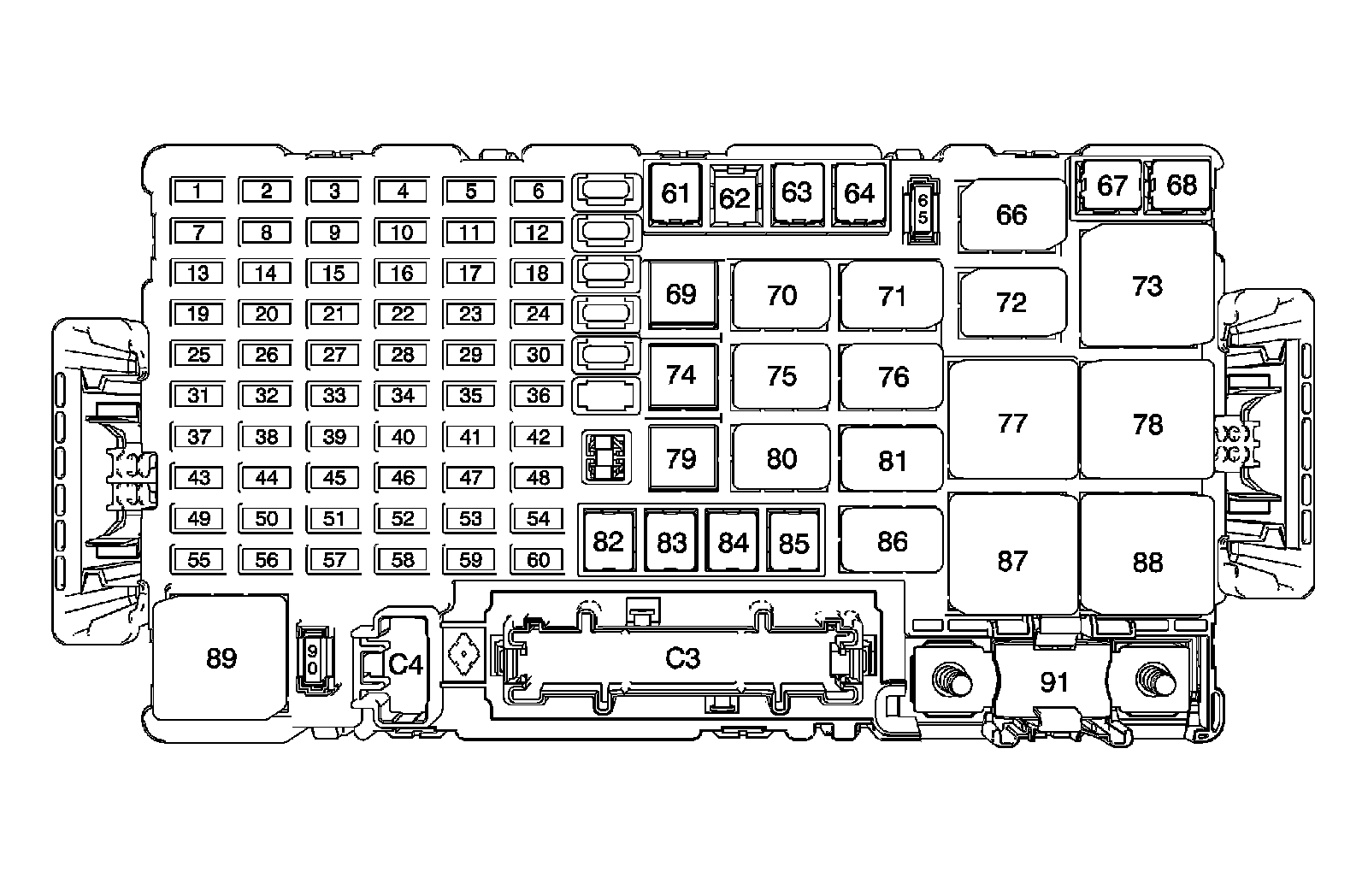

Fuse Block - Underhood, Top View

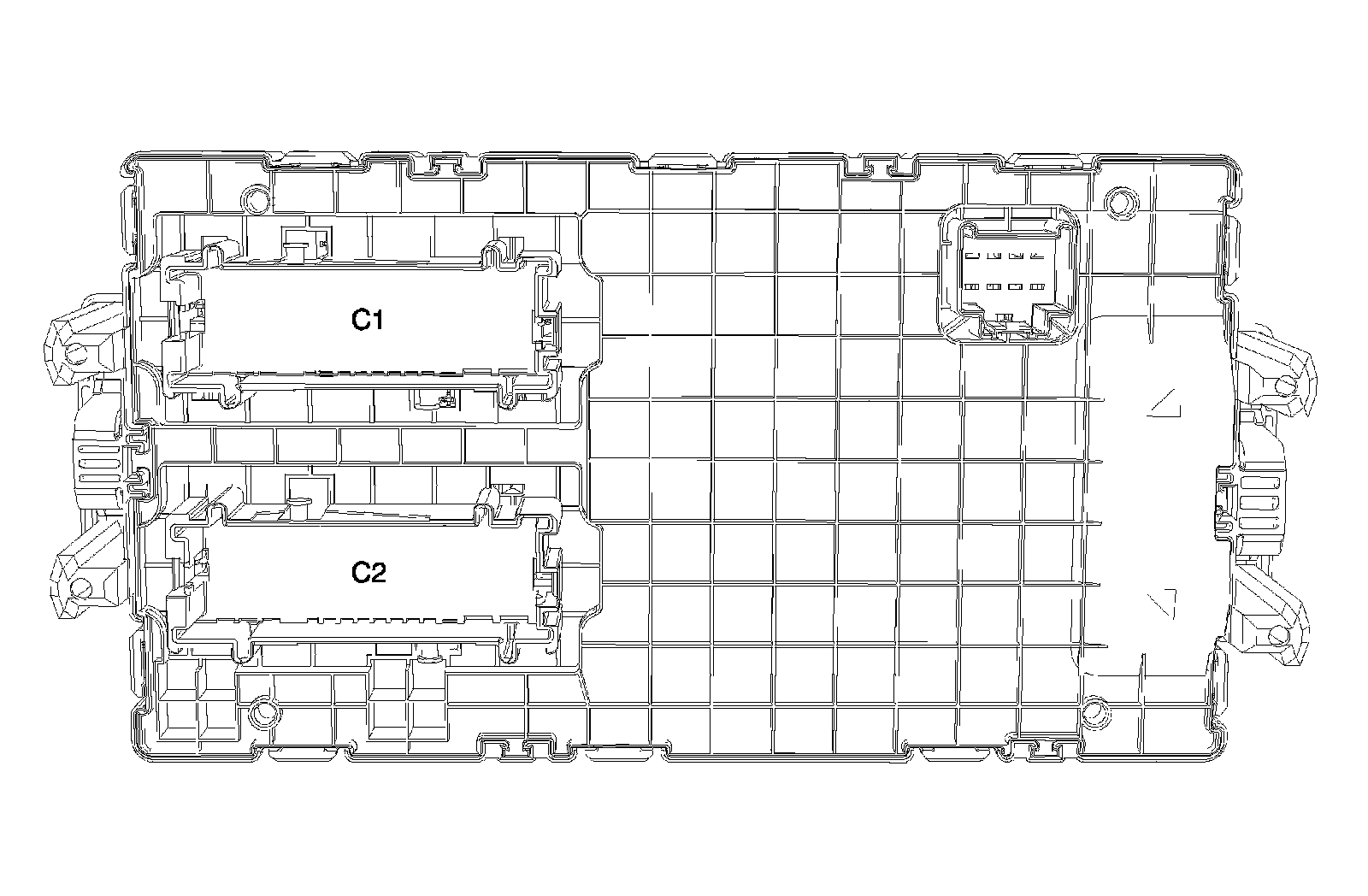

Fuse Block - Underhood, Bottom View

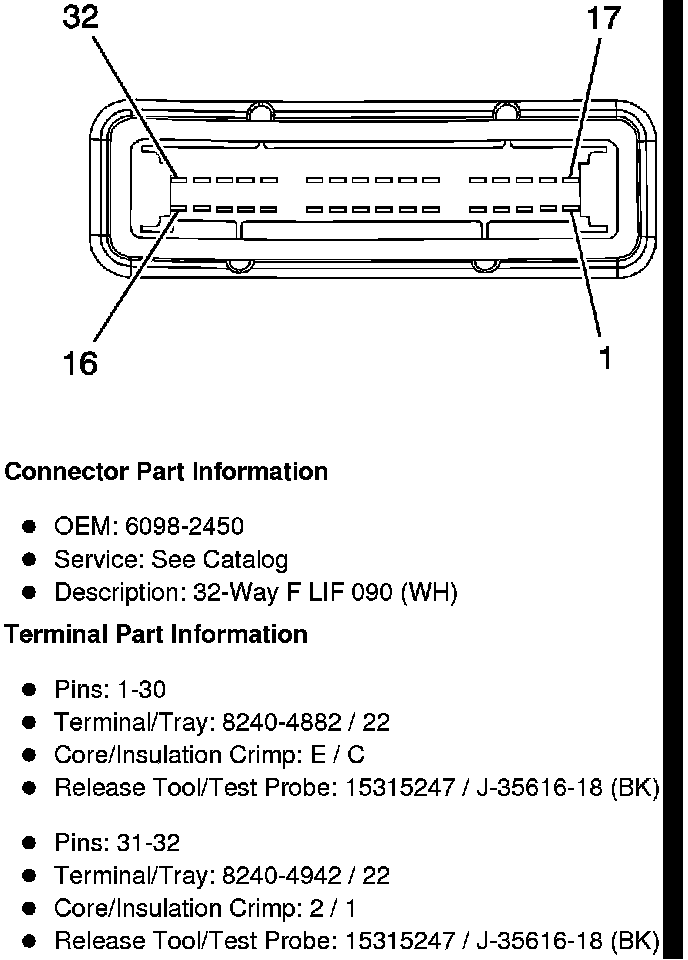

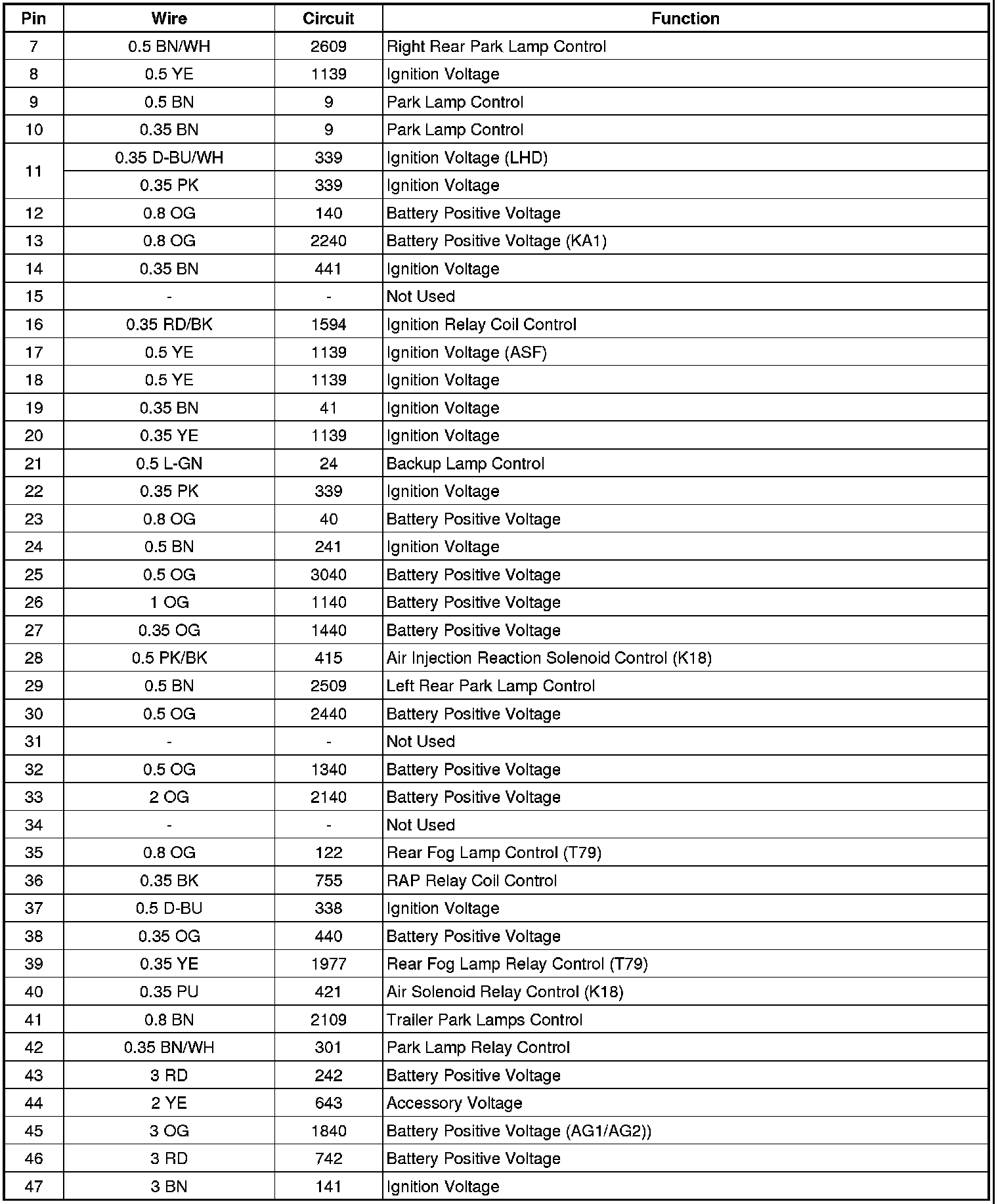

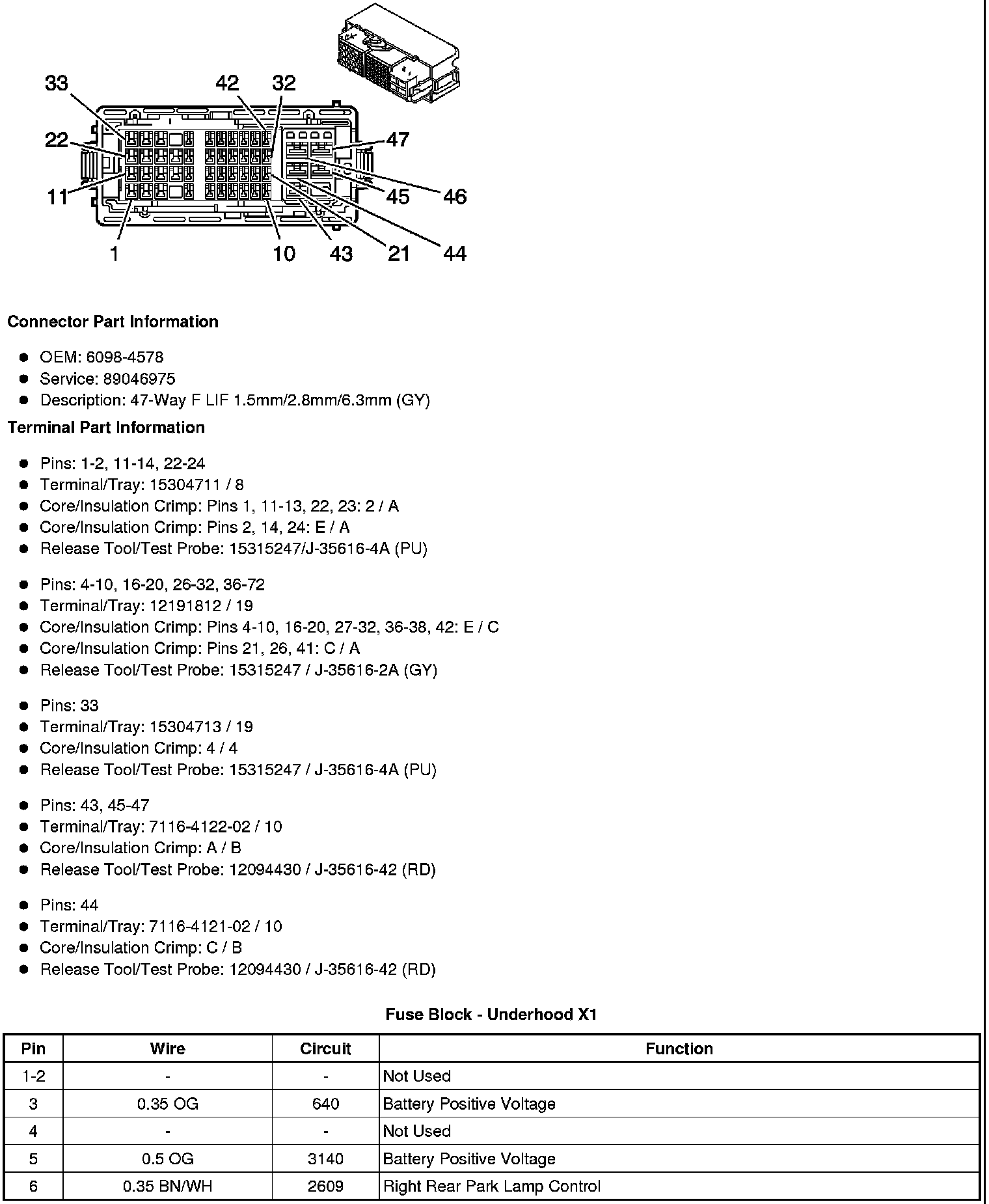

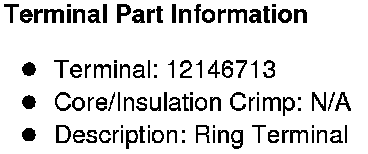

Fuse Block - Underhood X1

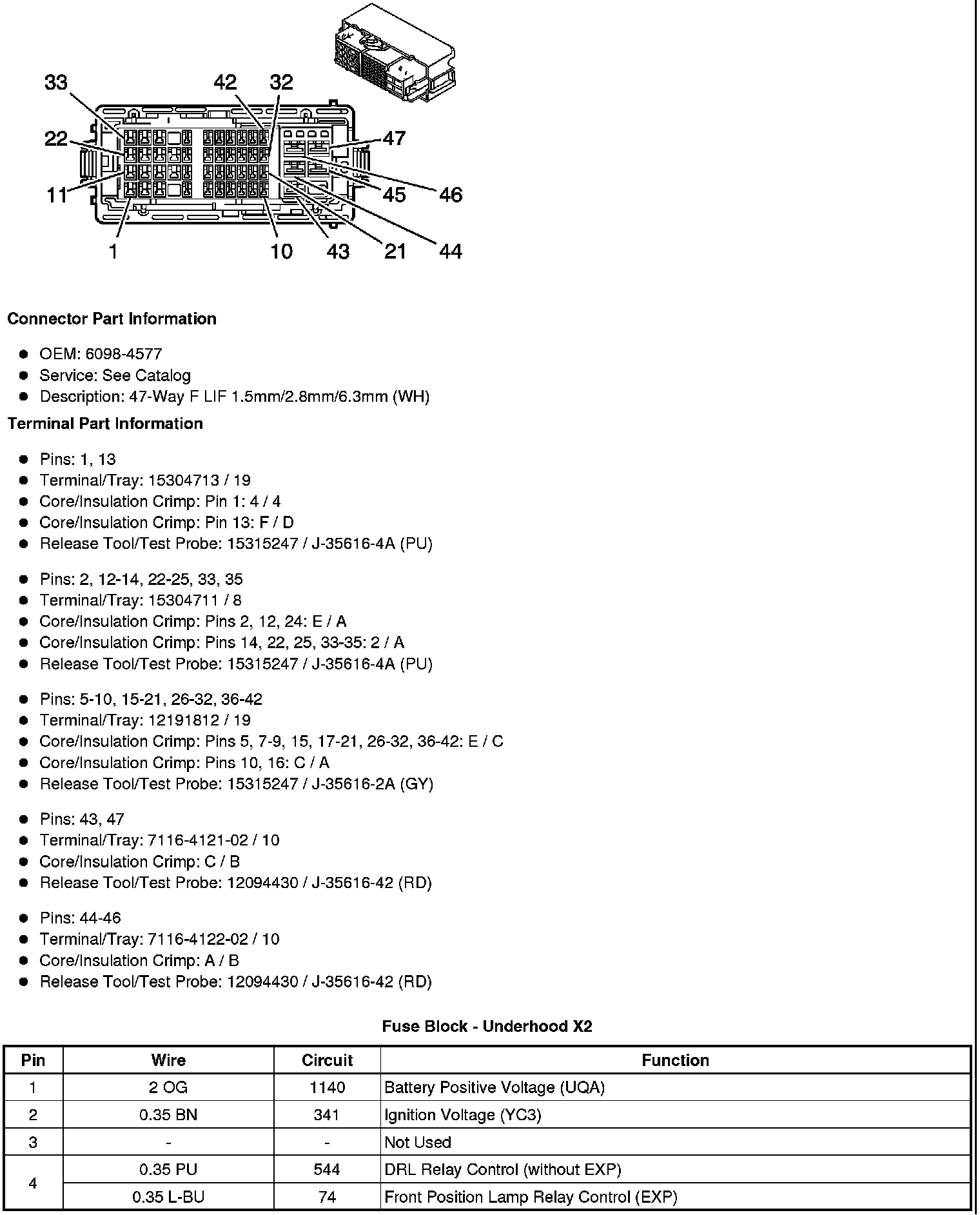

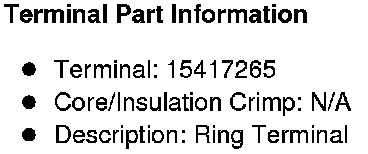

Fuse Block - Underhood X2

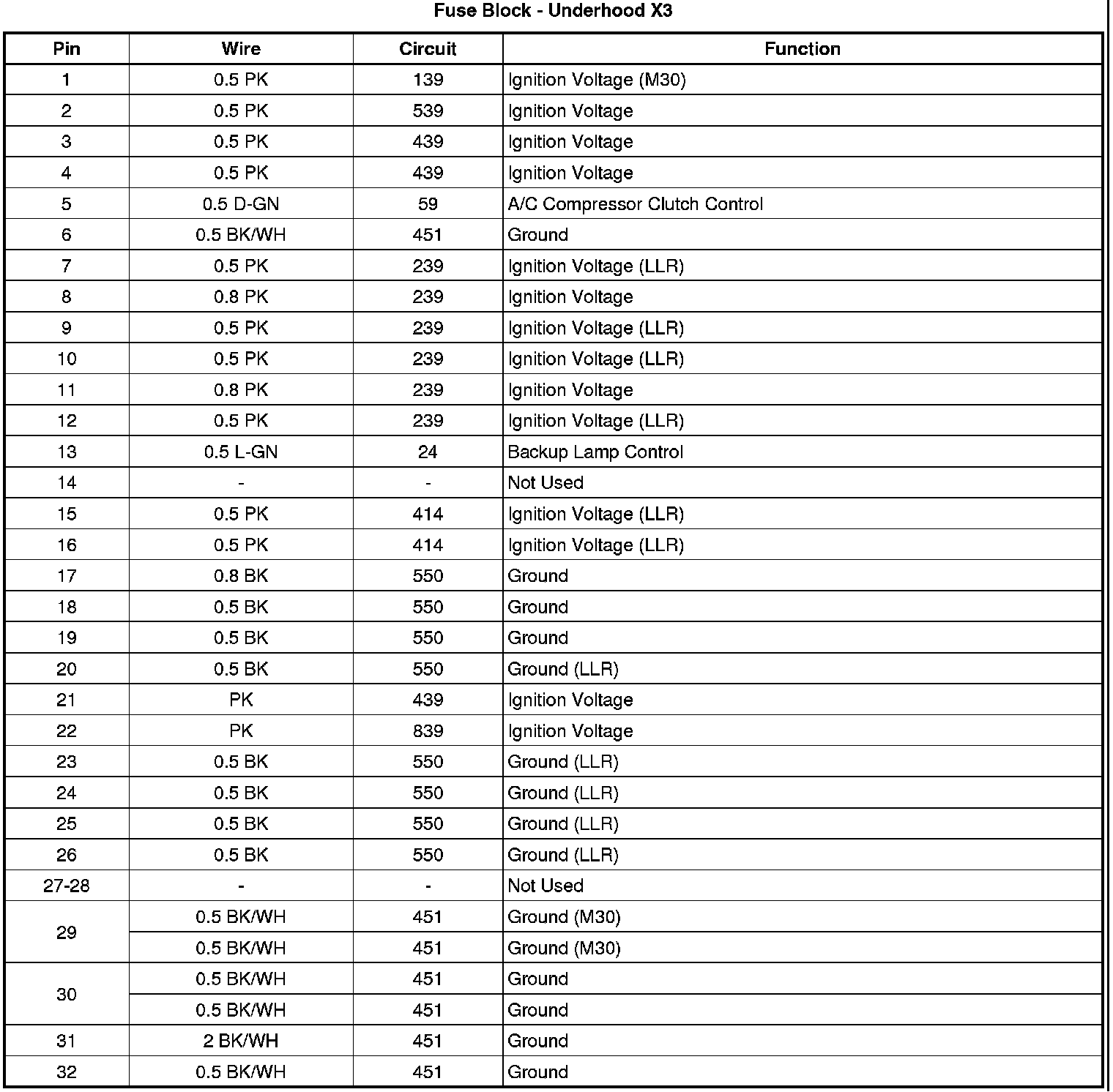

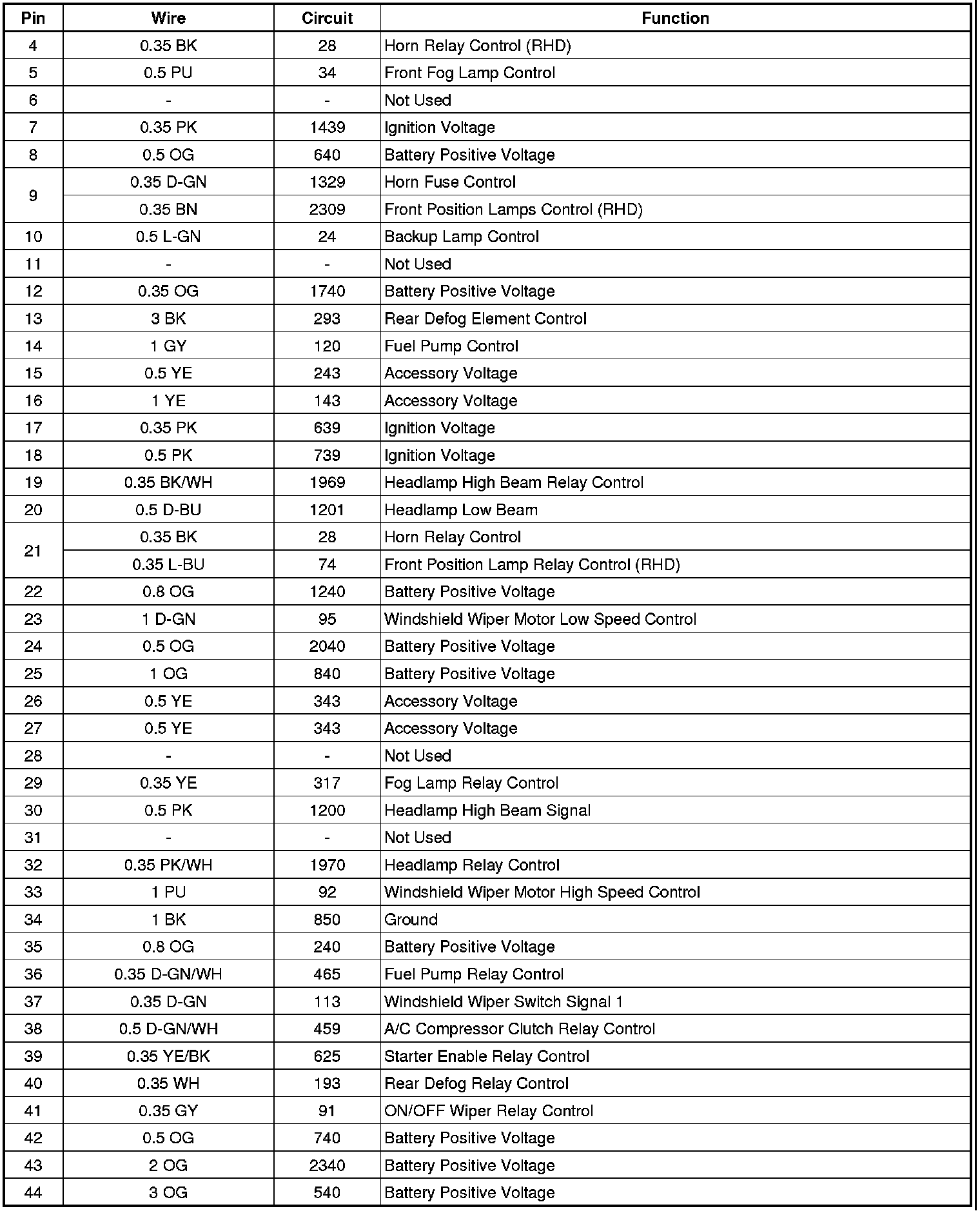

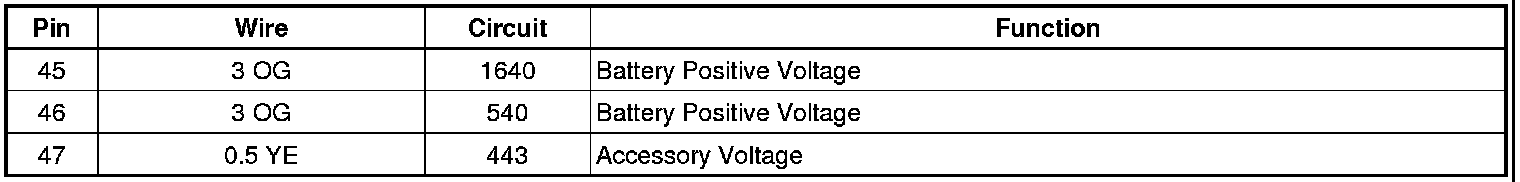

Fuse Block - Underhood X3

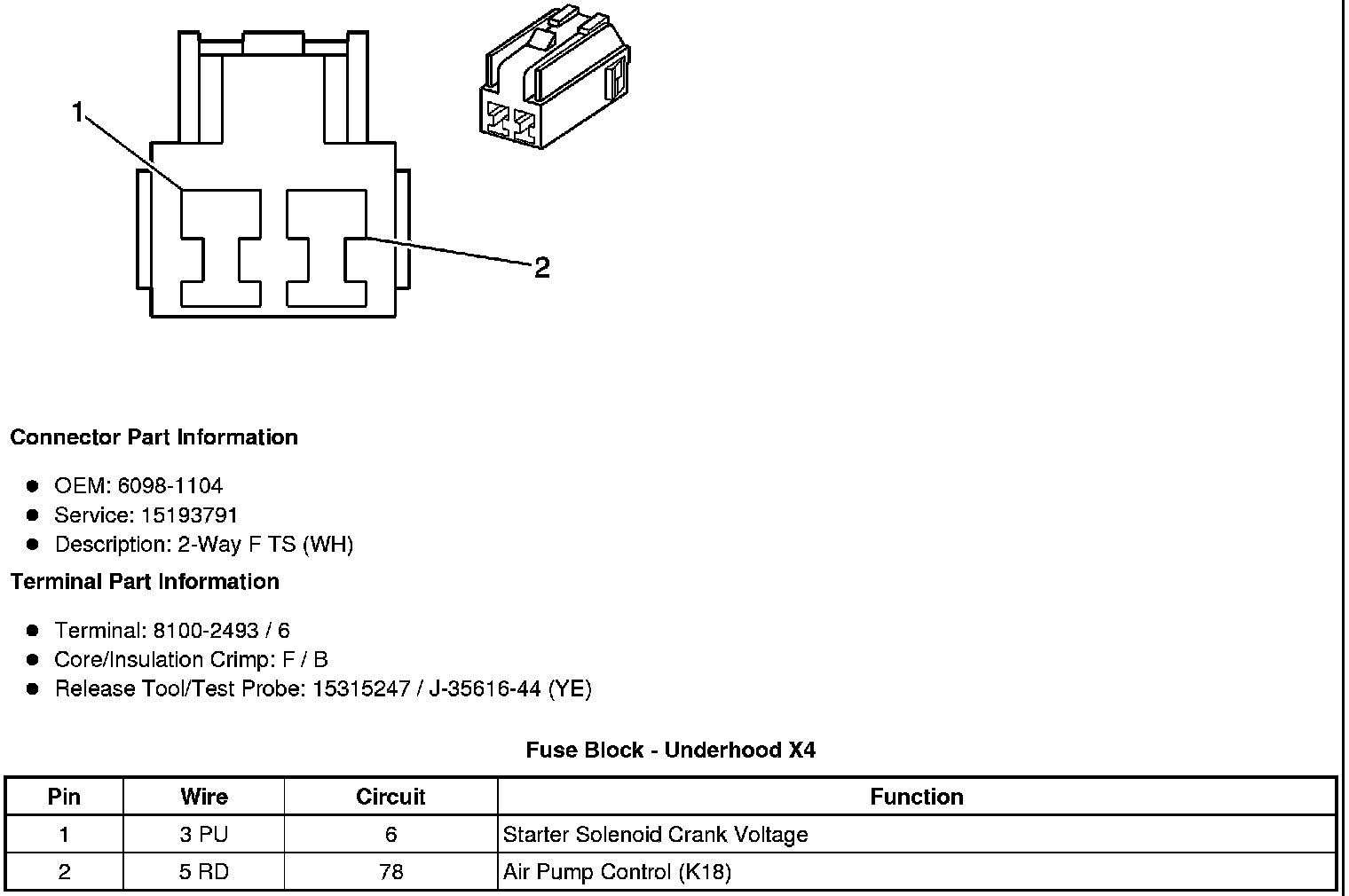

Fuse Block - Underhood X4

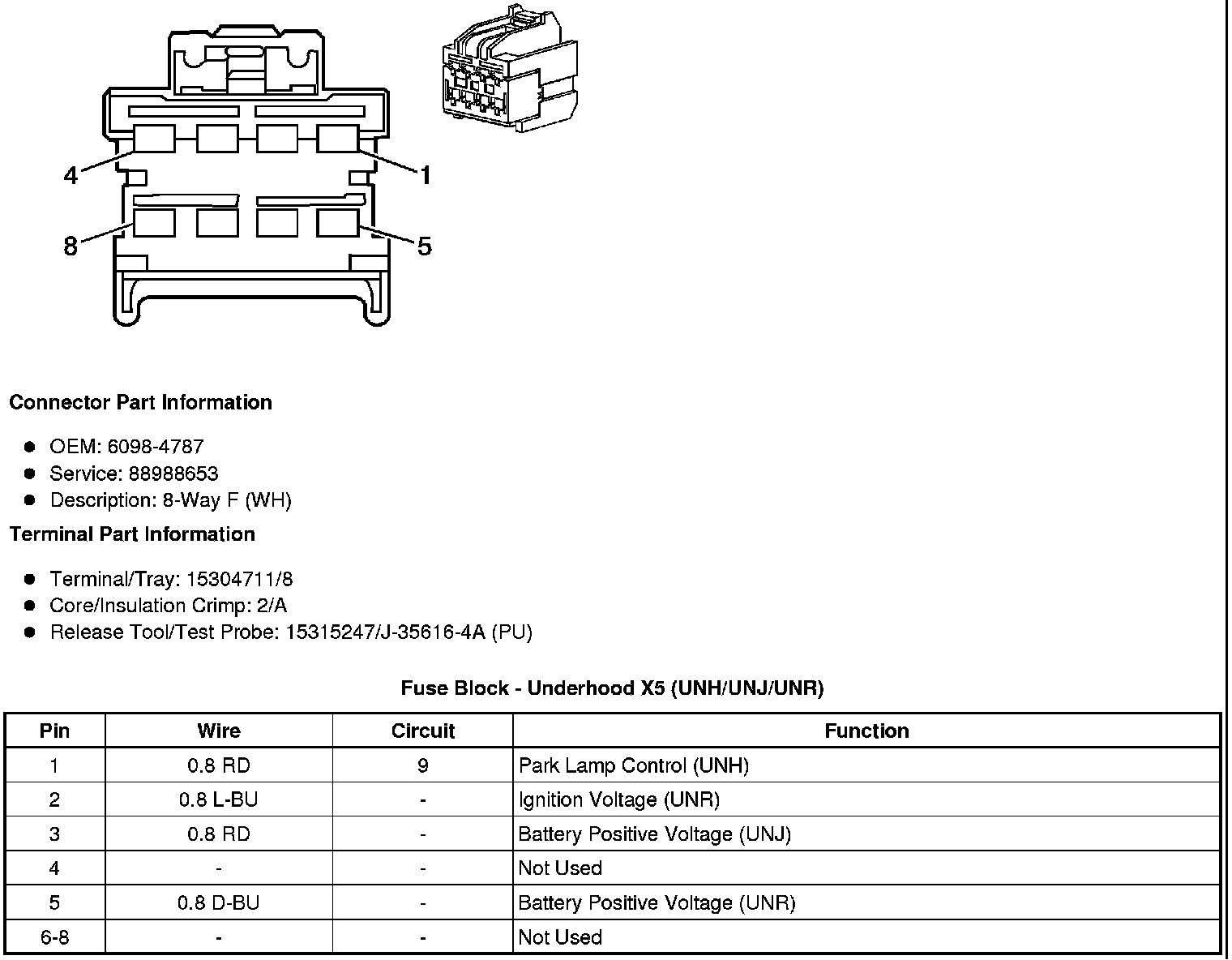

Fuse Block - Underhood X5 (UNH/UNJ/UNR)

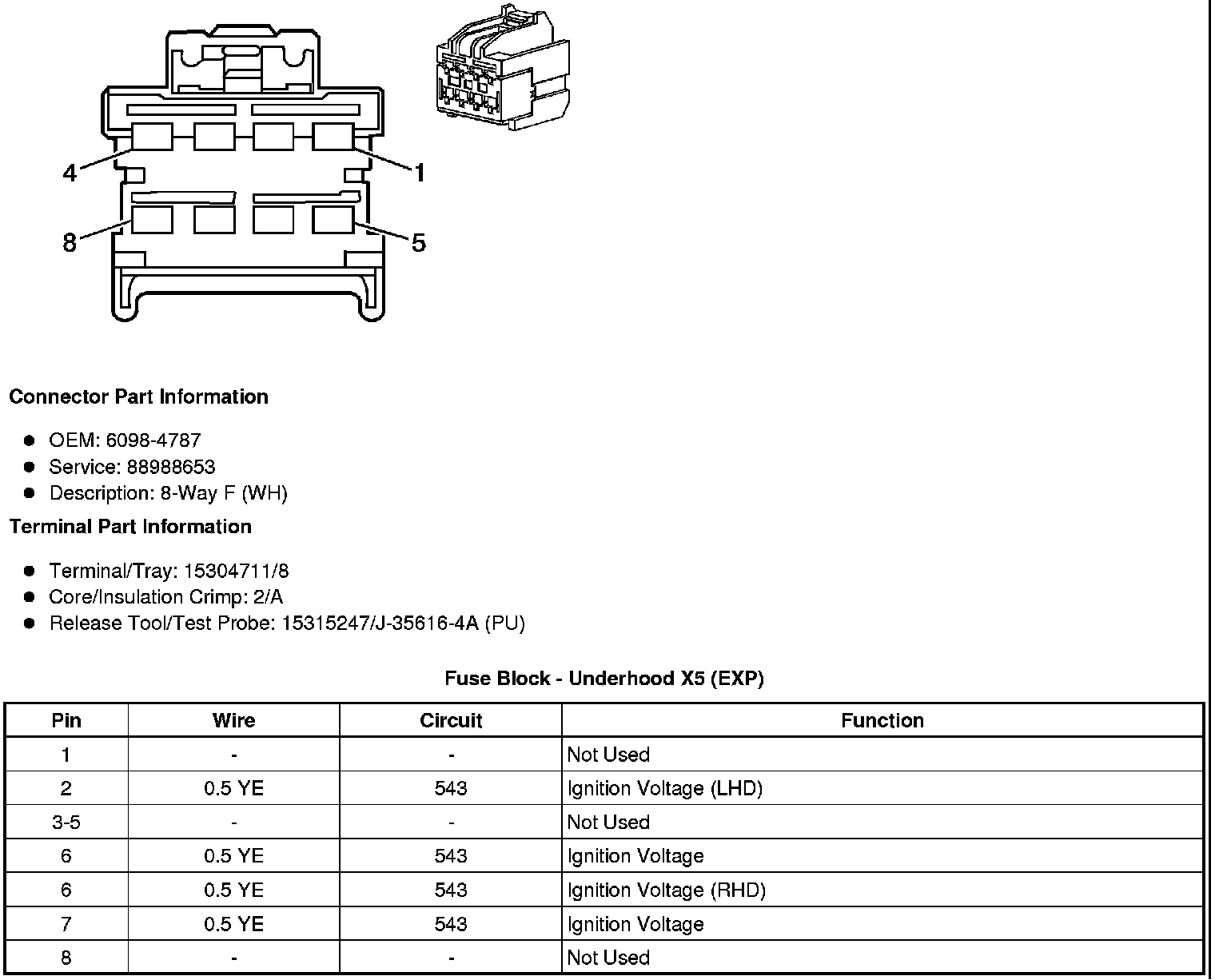

Fuse Block - Underhood X5 (EXP)






Fuse Block - Underhood X6

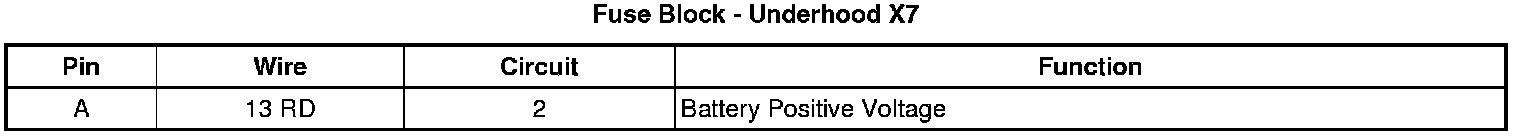

Fuse Block - Underhood X7
