Power Seat Switch

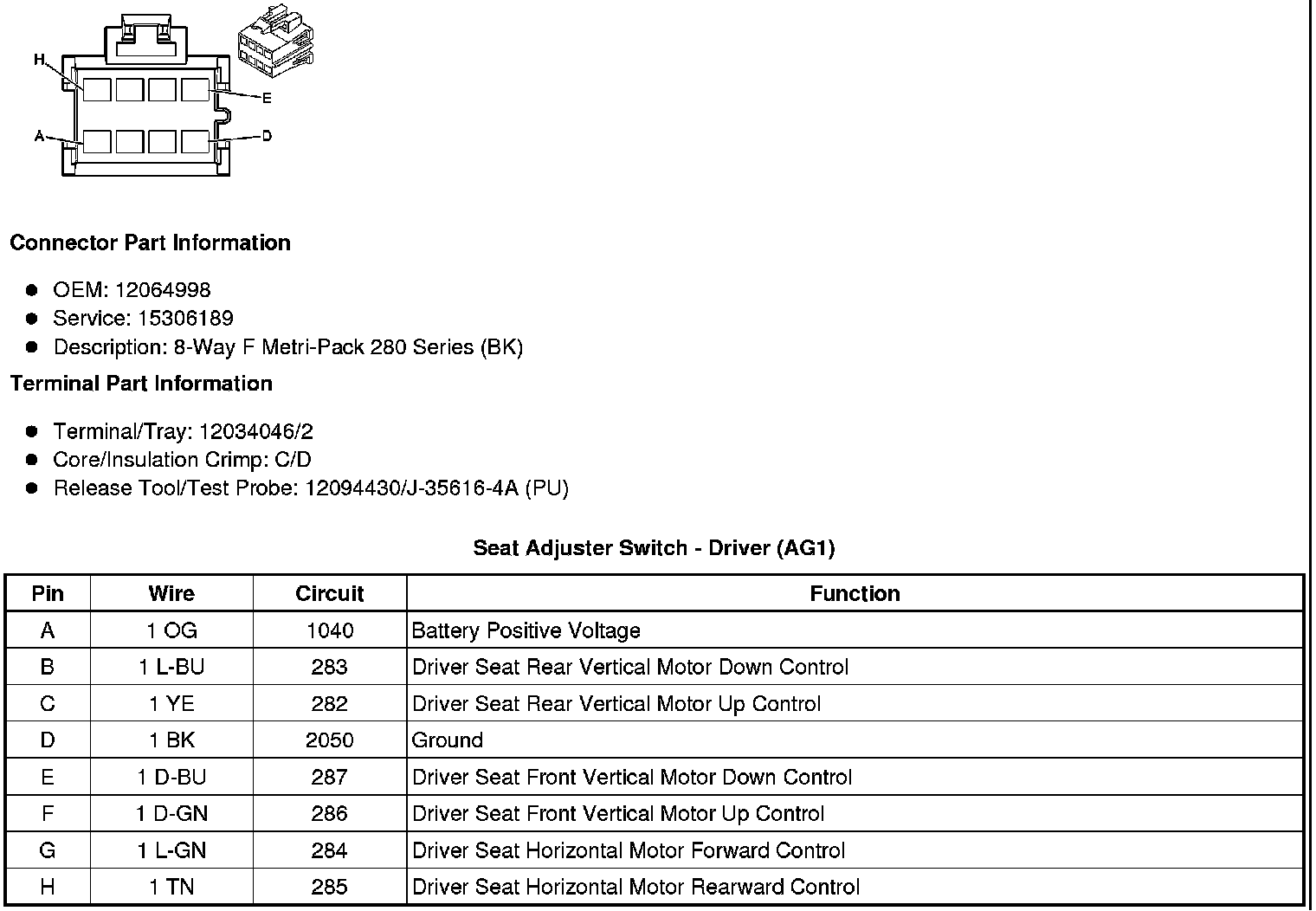

Seat Adjuster Switch - Driver (AG1)

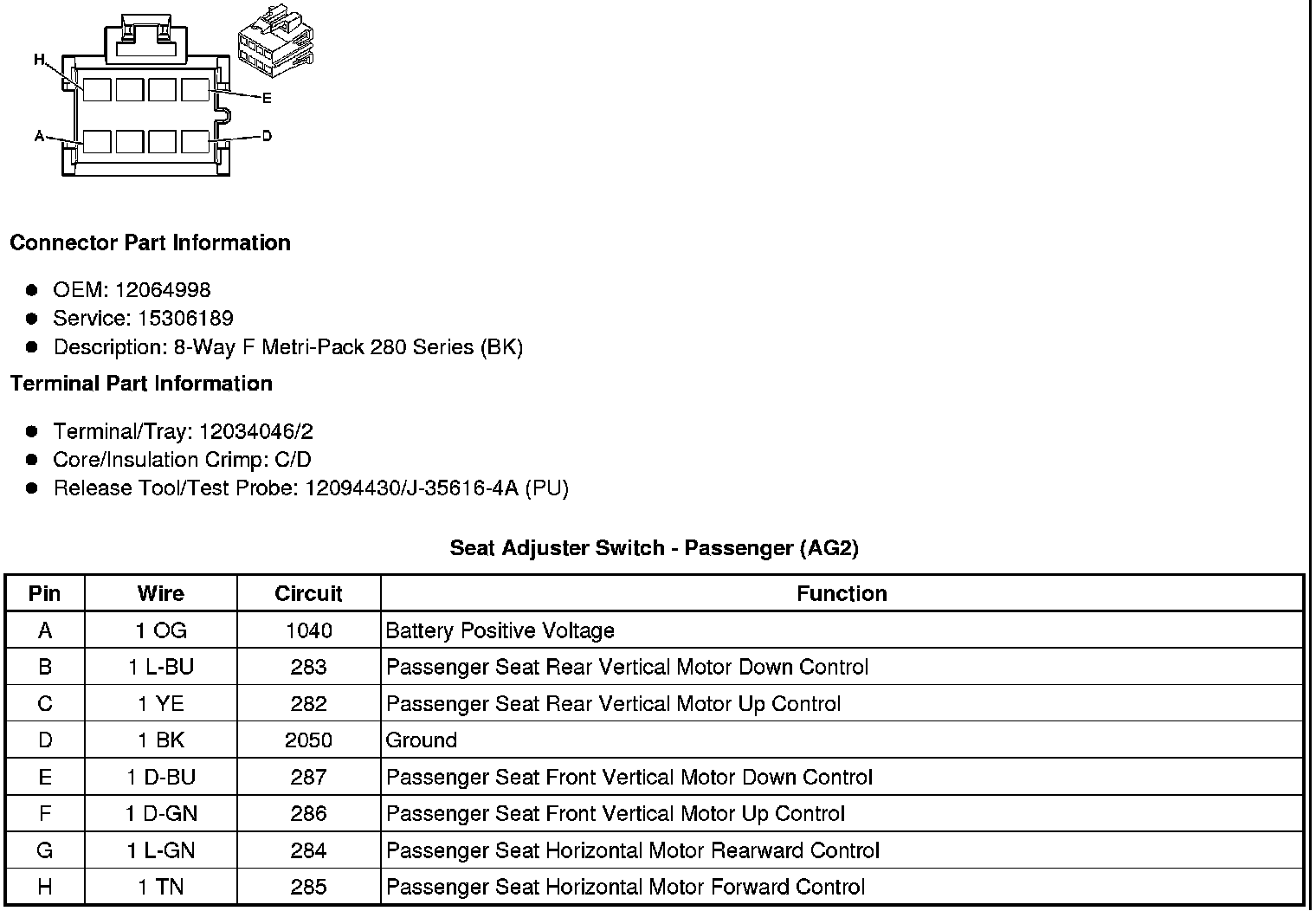

Seat Adjuster Switch - Passenger (AG2)

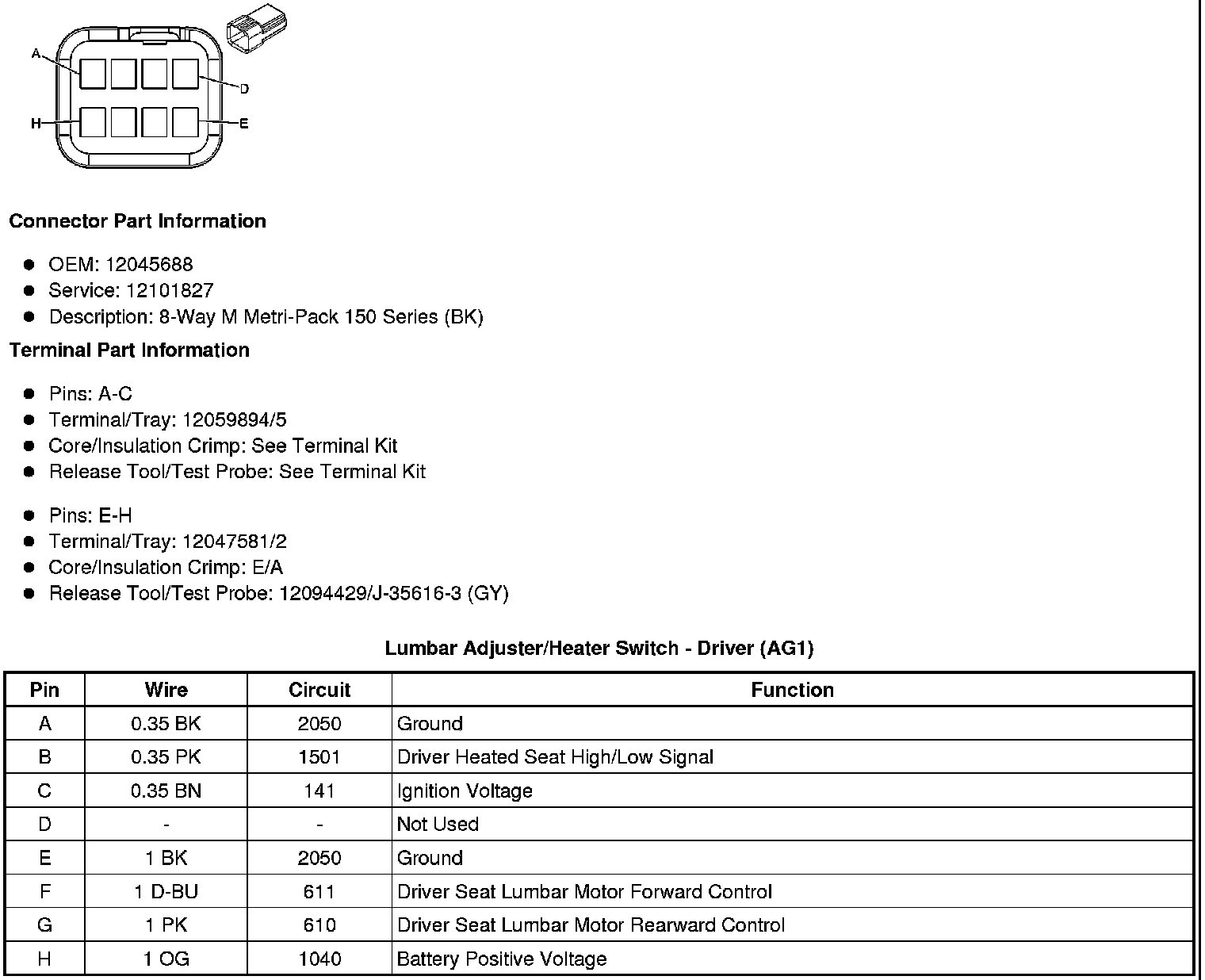

Lumbar Adjuster/Heater Switch - Driver (AG1)

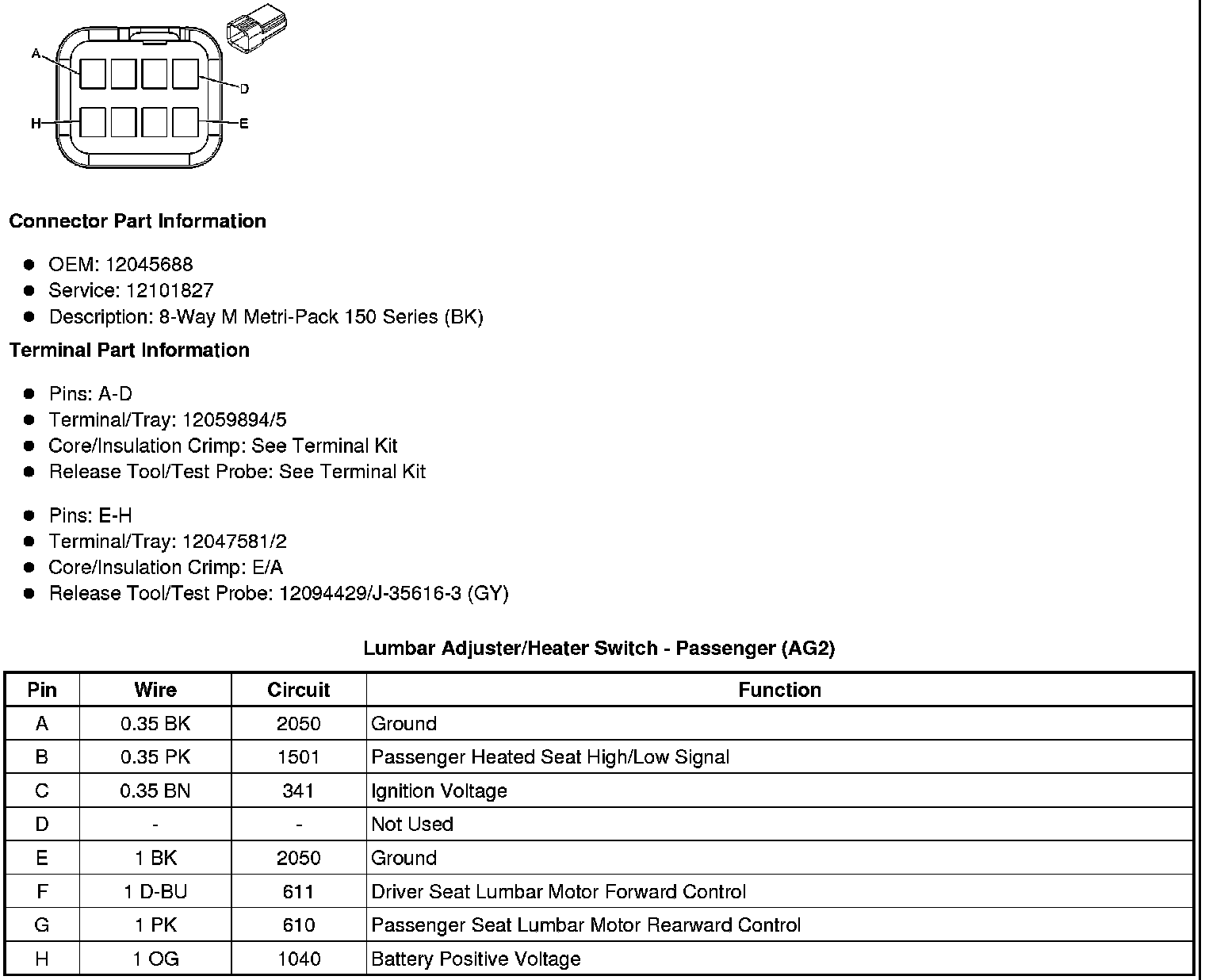

Lumbar Adjuster/Heater Switch - Passenger (AG2)
