Speaker

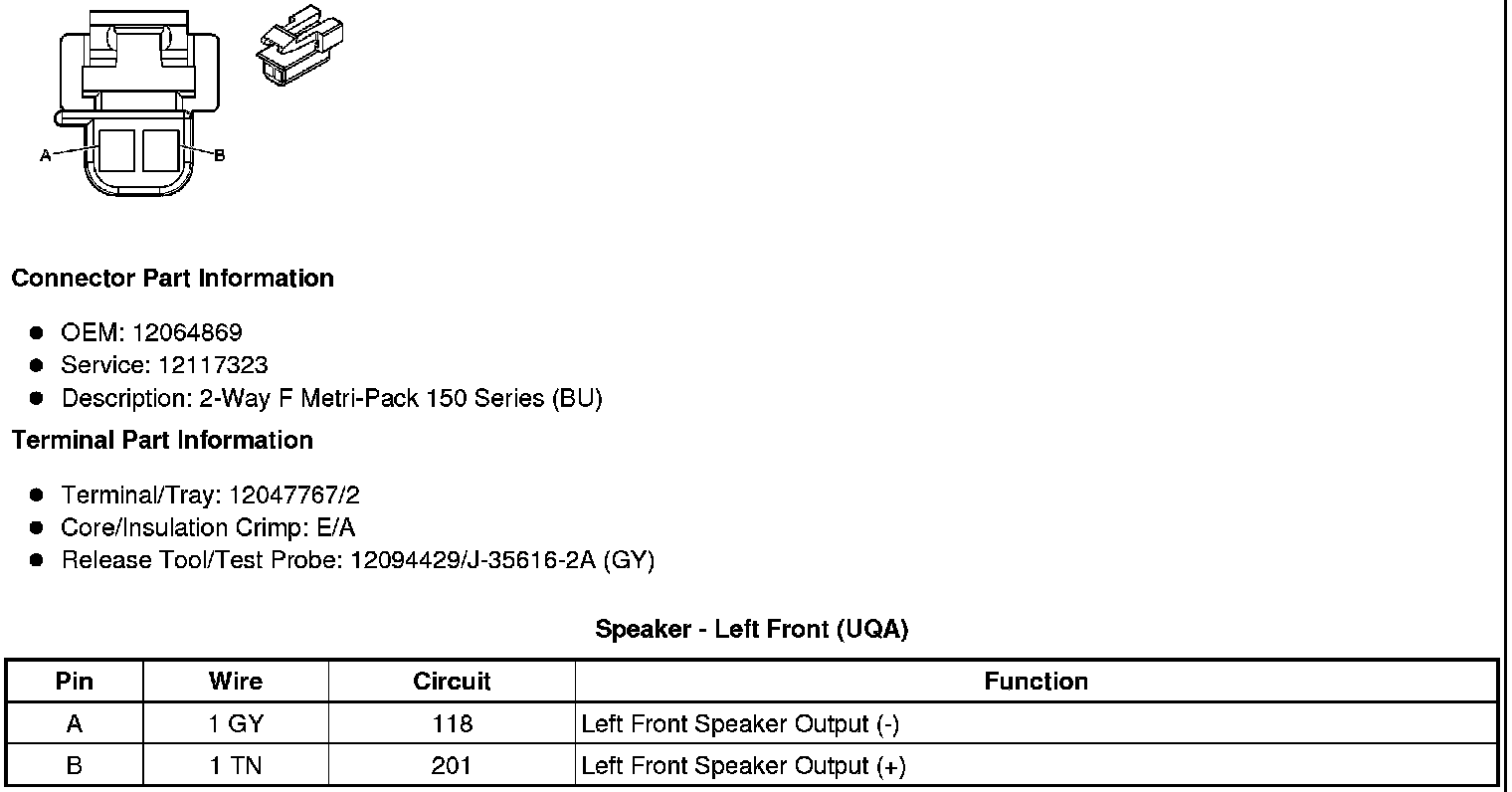

Speaker - Left Front (UQA)






Speaker - Left Front (UQ3)

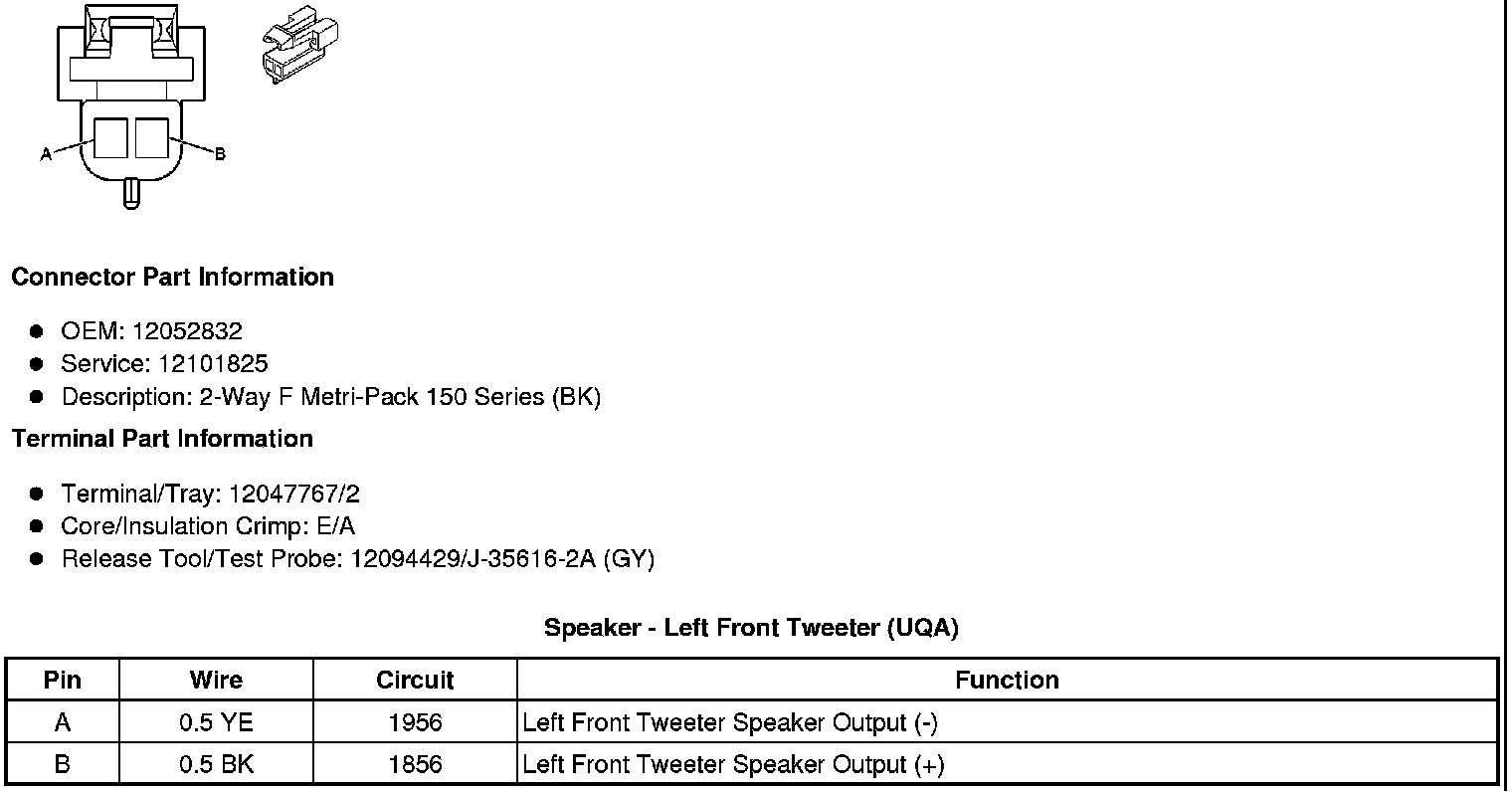

Speaker - Left Front Tweeter (UQA)

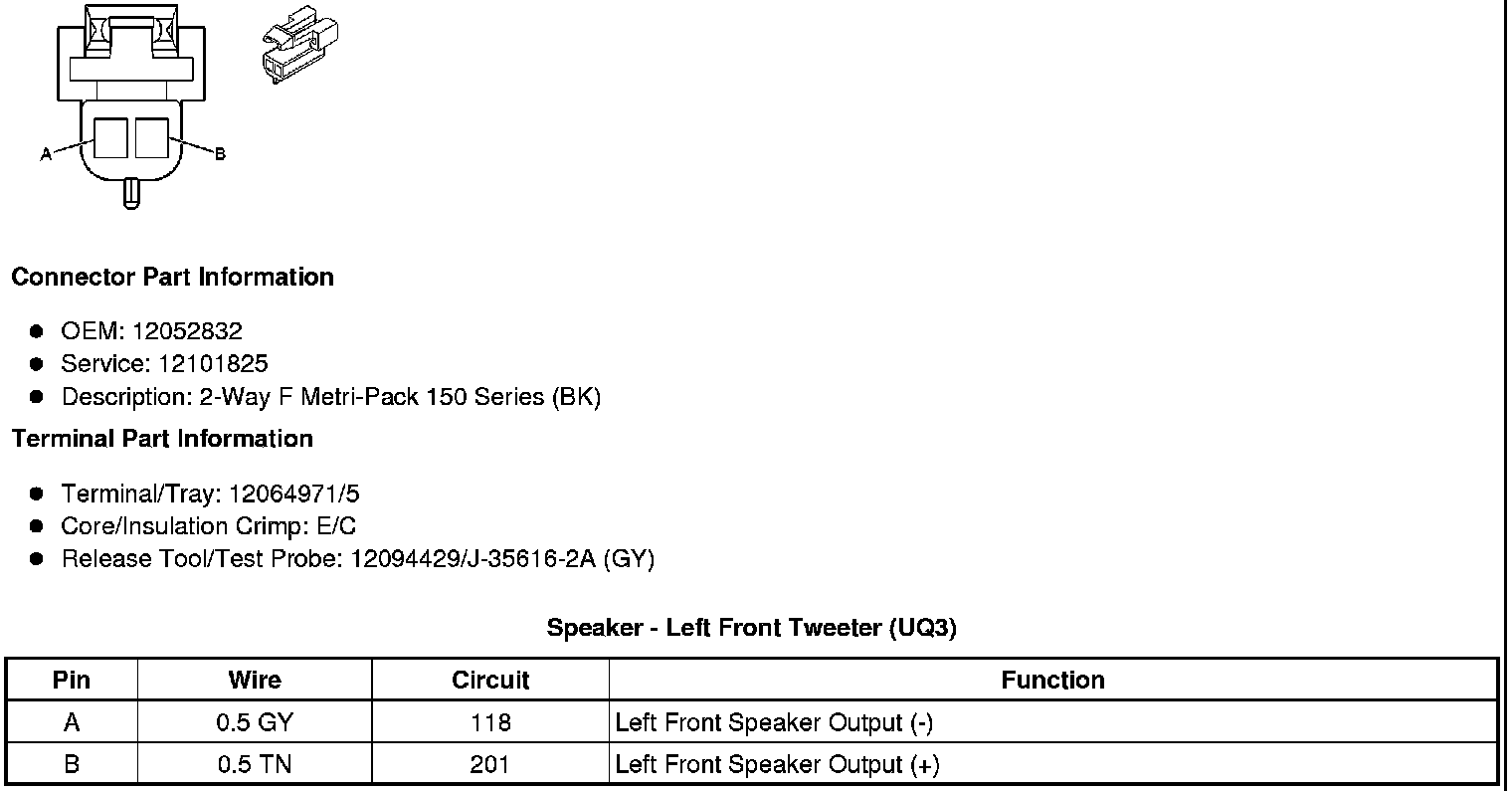

Speaker - Left Front Tweeter (UQ3)

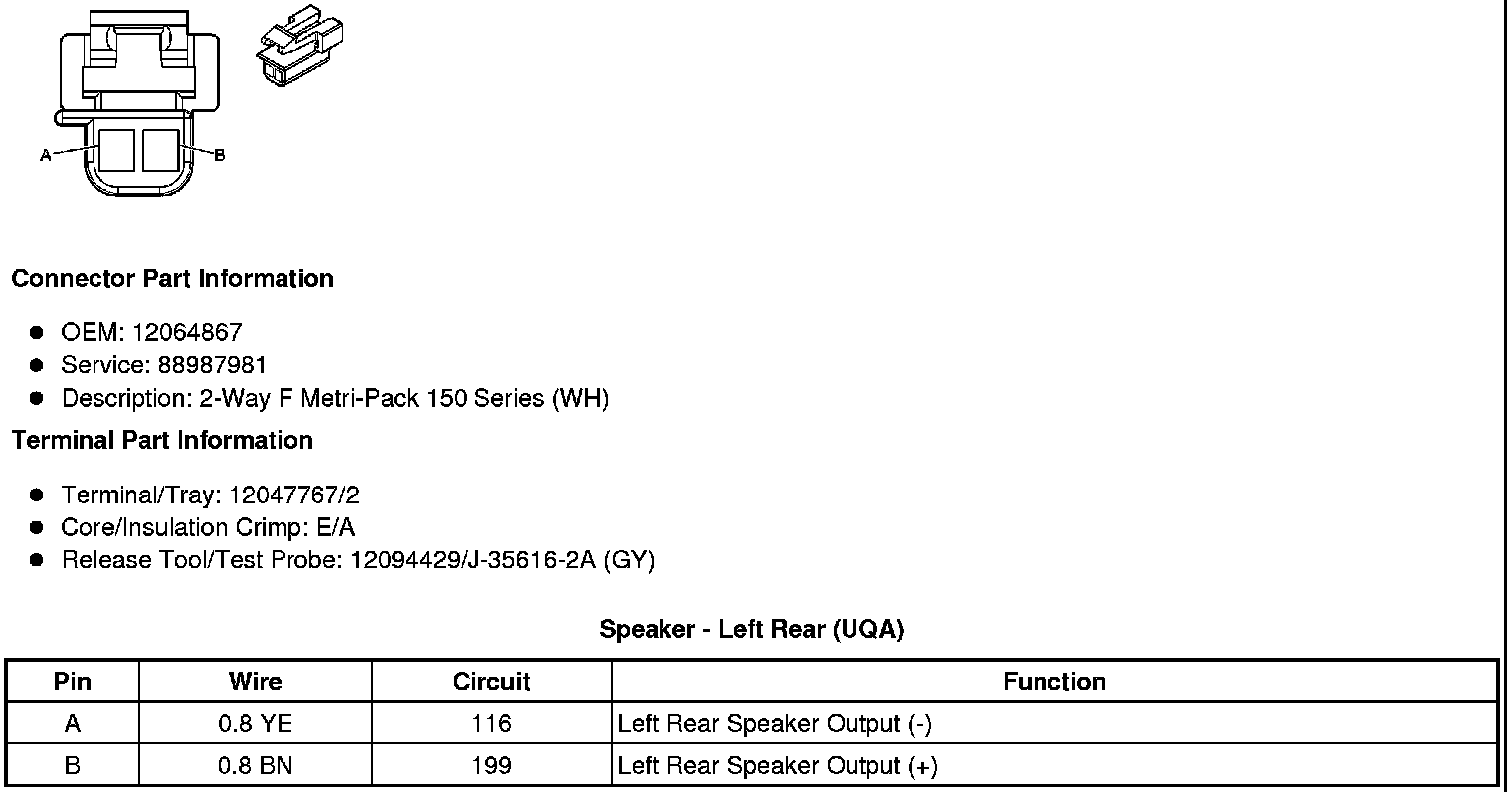

Speaker - Left Rear (UQA)

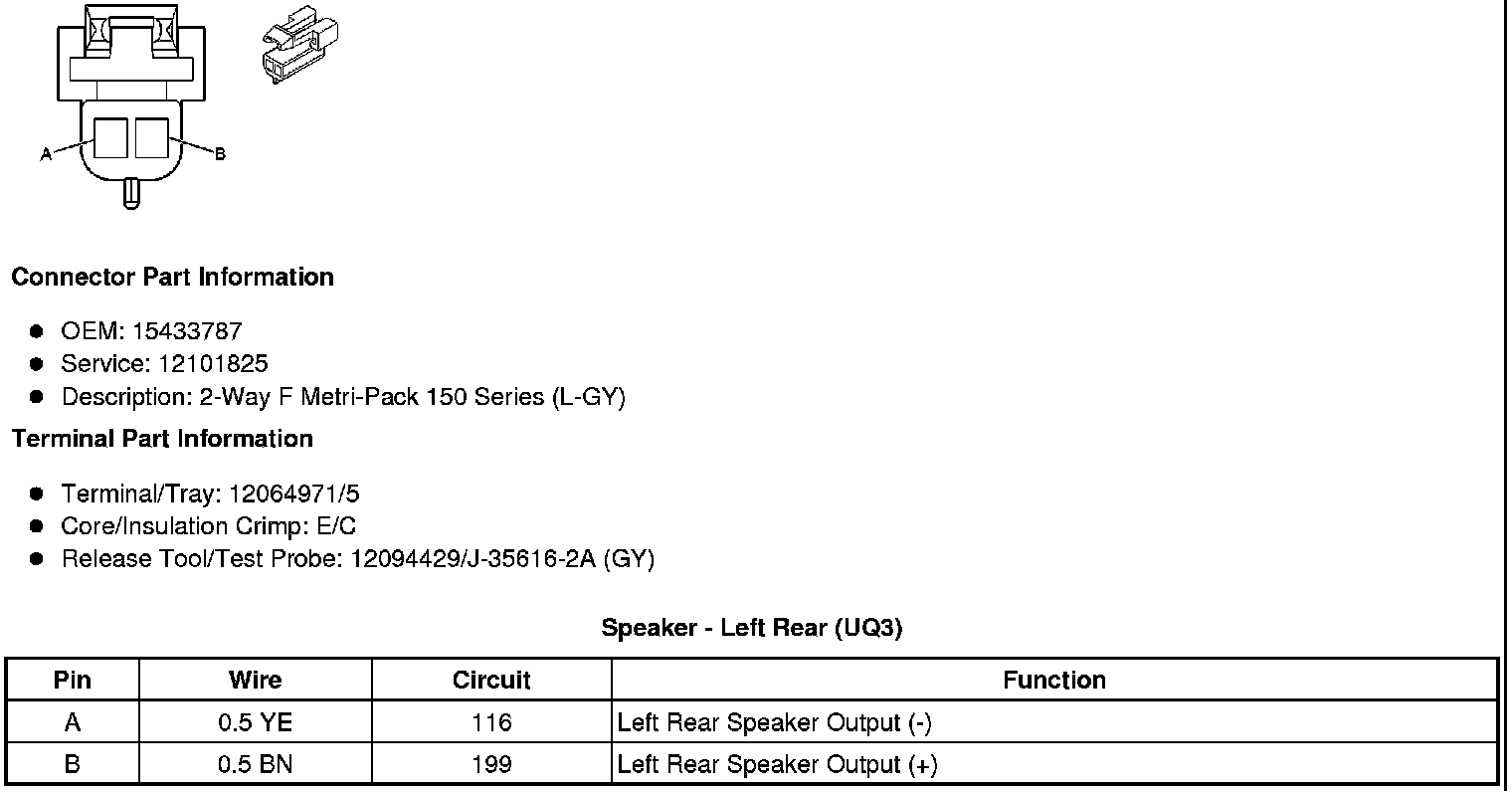

Speaker - Left Rear (UQ3)

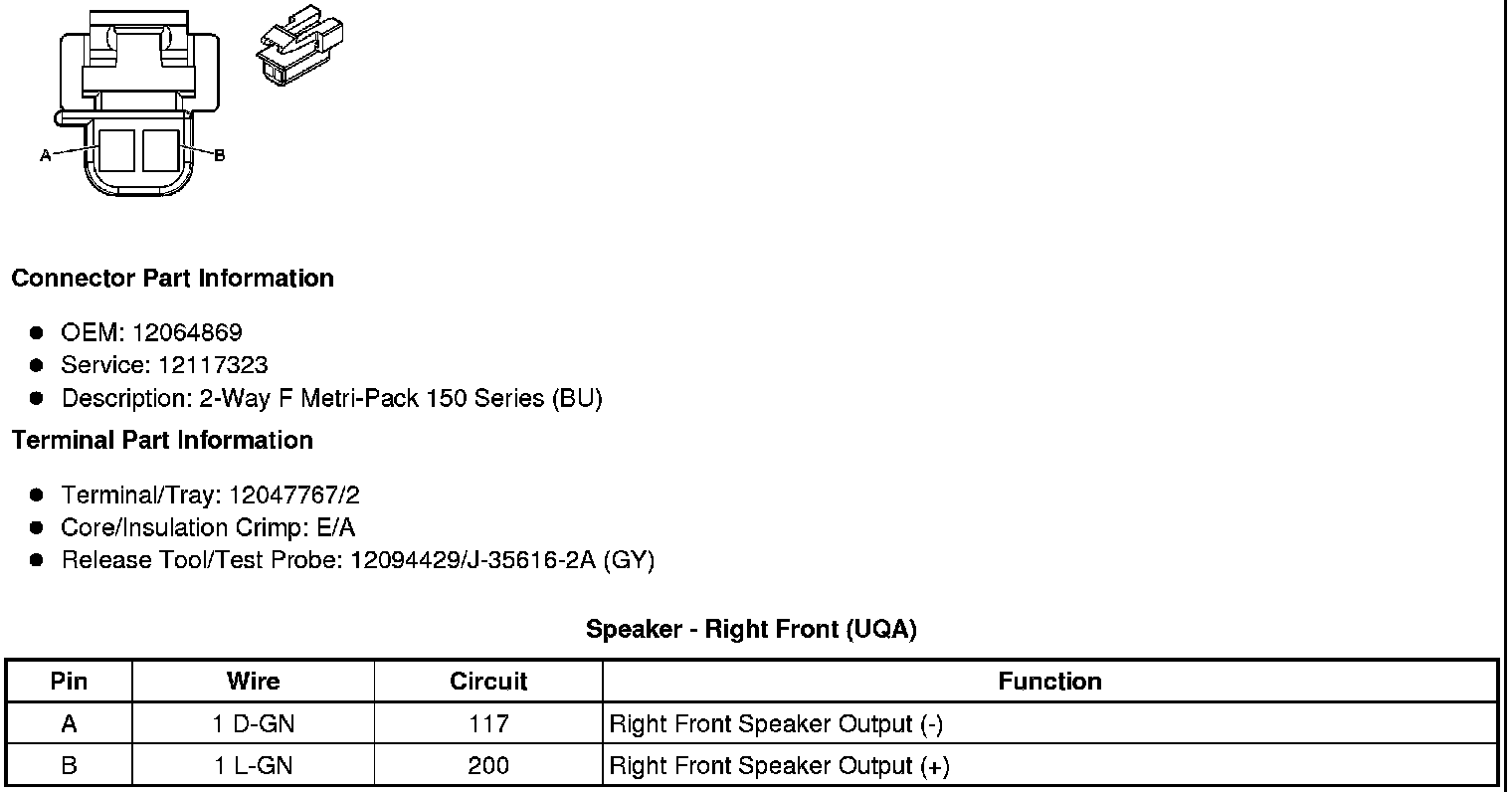

Speaker - Right Front (UQA)






Speaker - Right Front (UQ3)

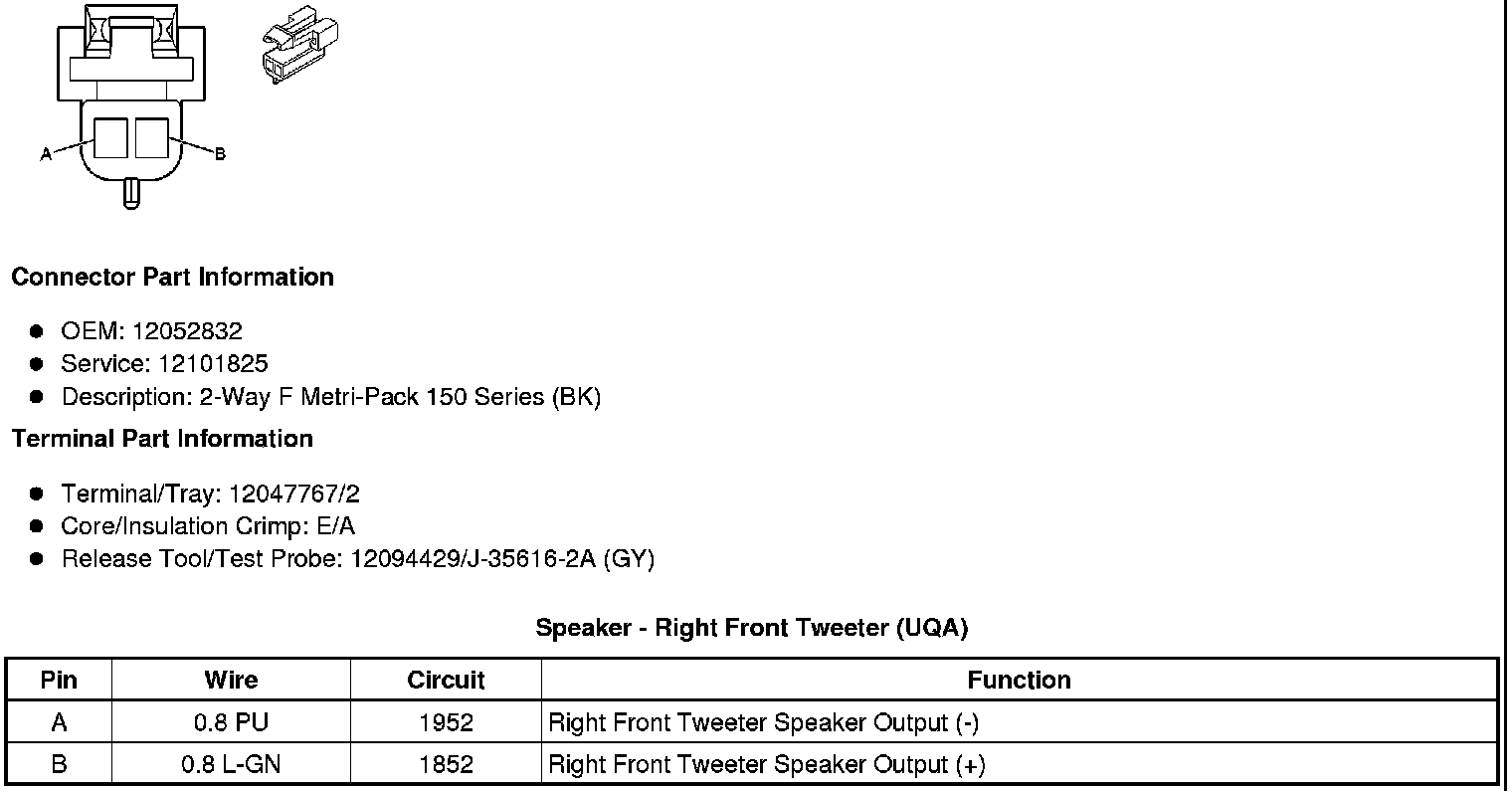

Speaker - Right Front Tweeter (UQA)

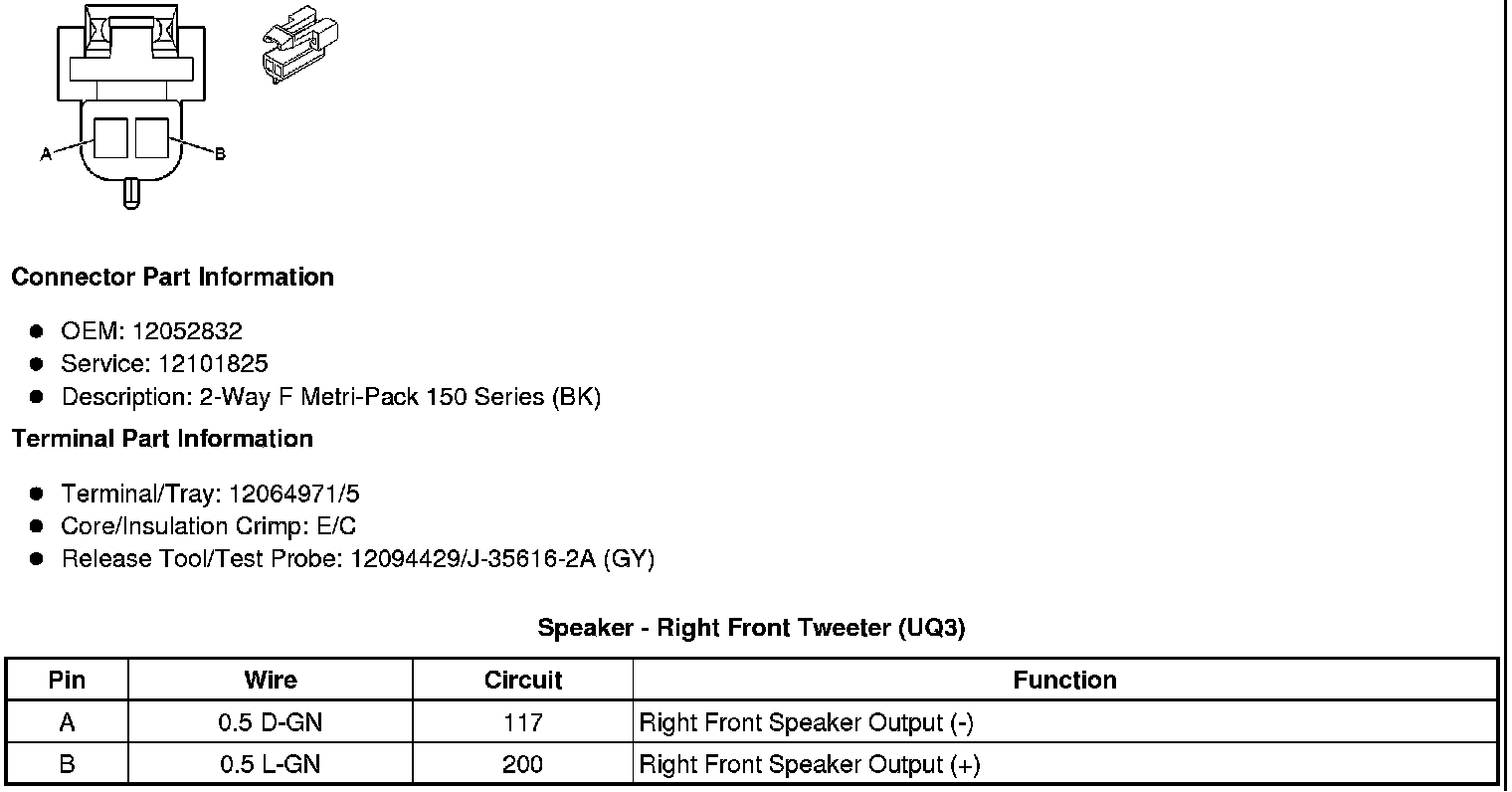

Speaker - Right Front Tweeter (UQ3)

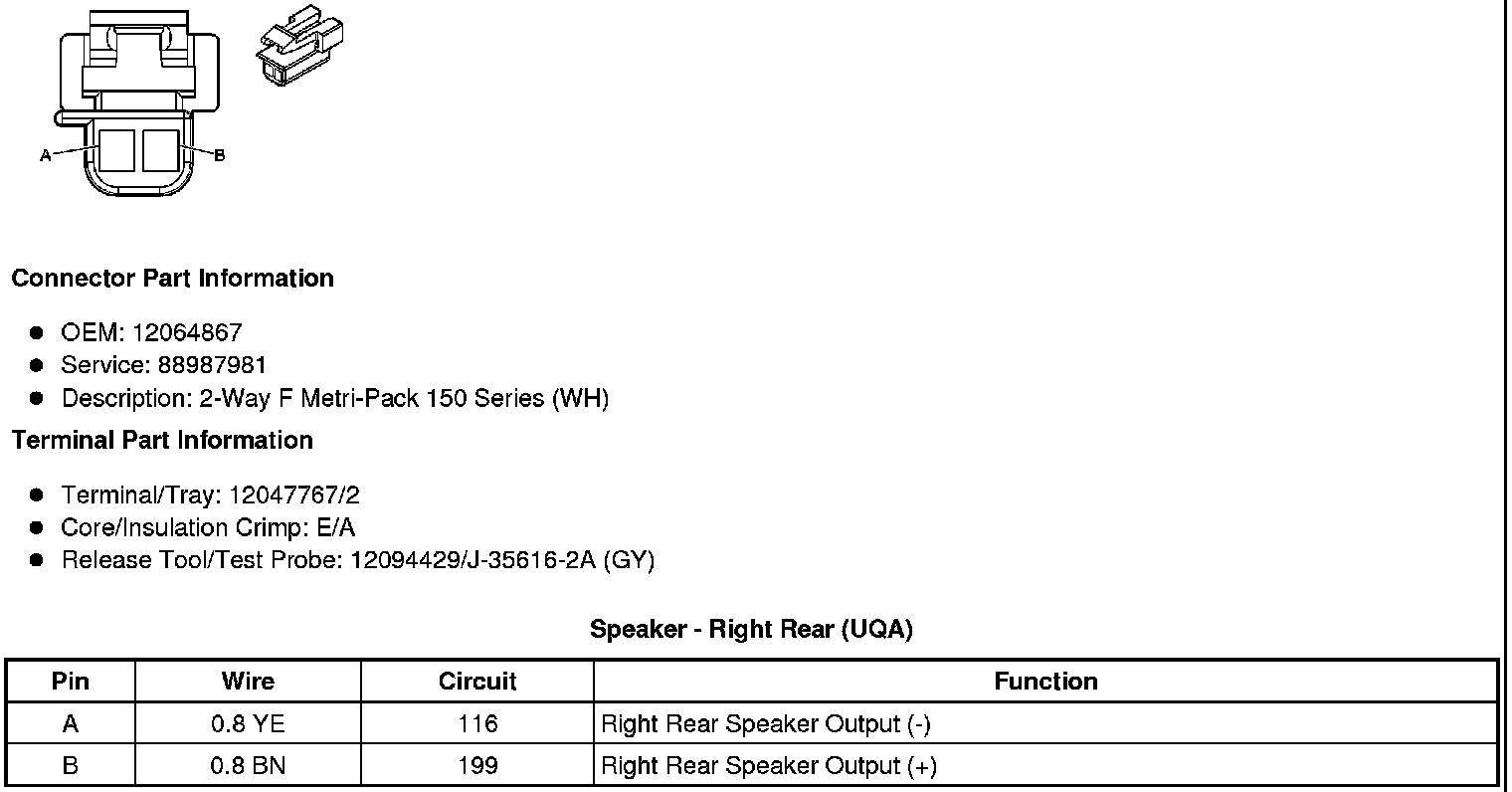

Speaker - Right Rear (UQA)

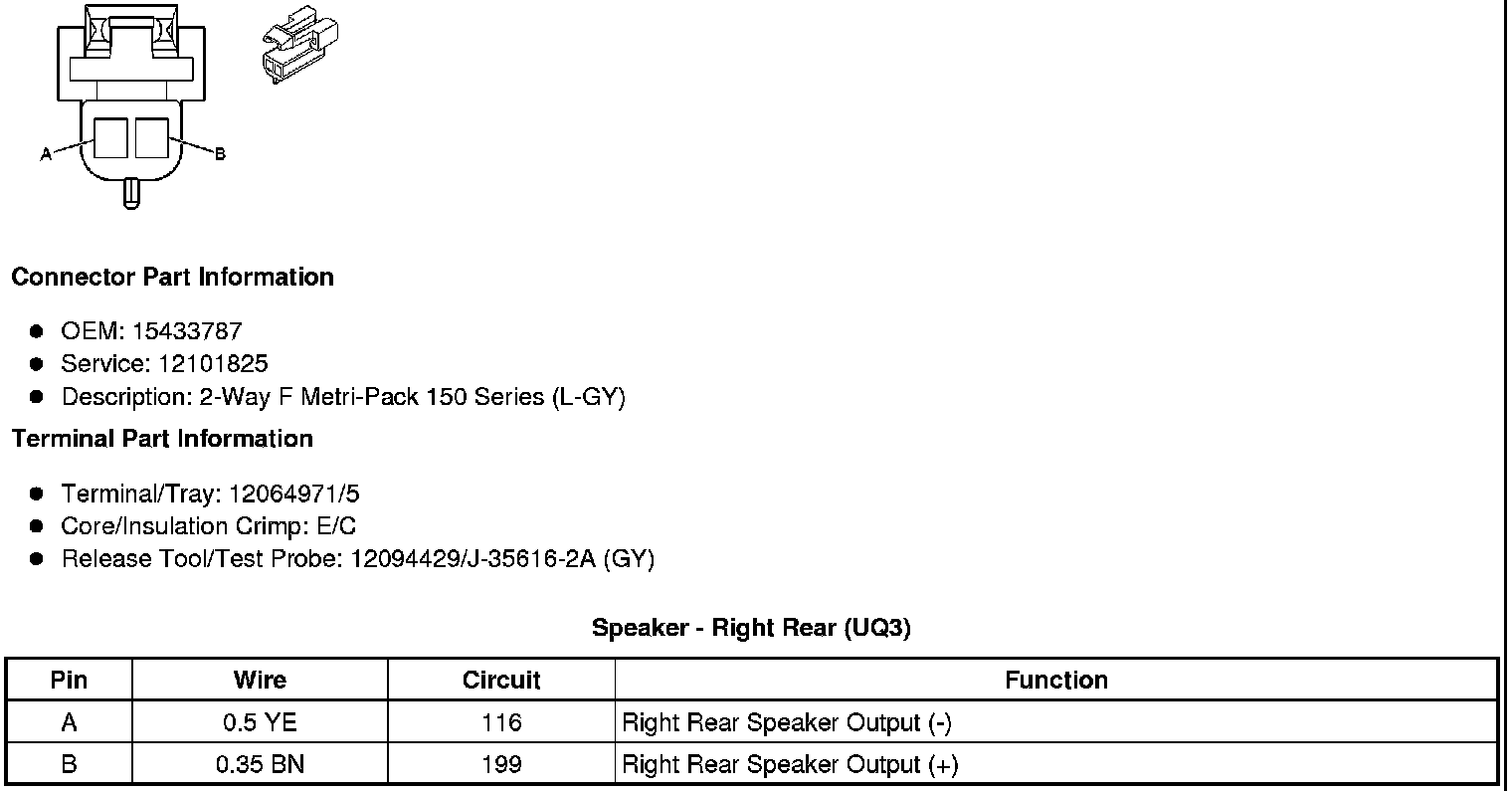

Speaker - Right Rear (UQ3)

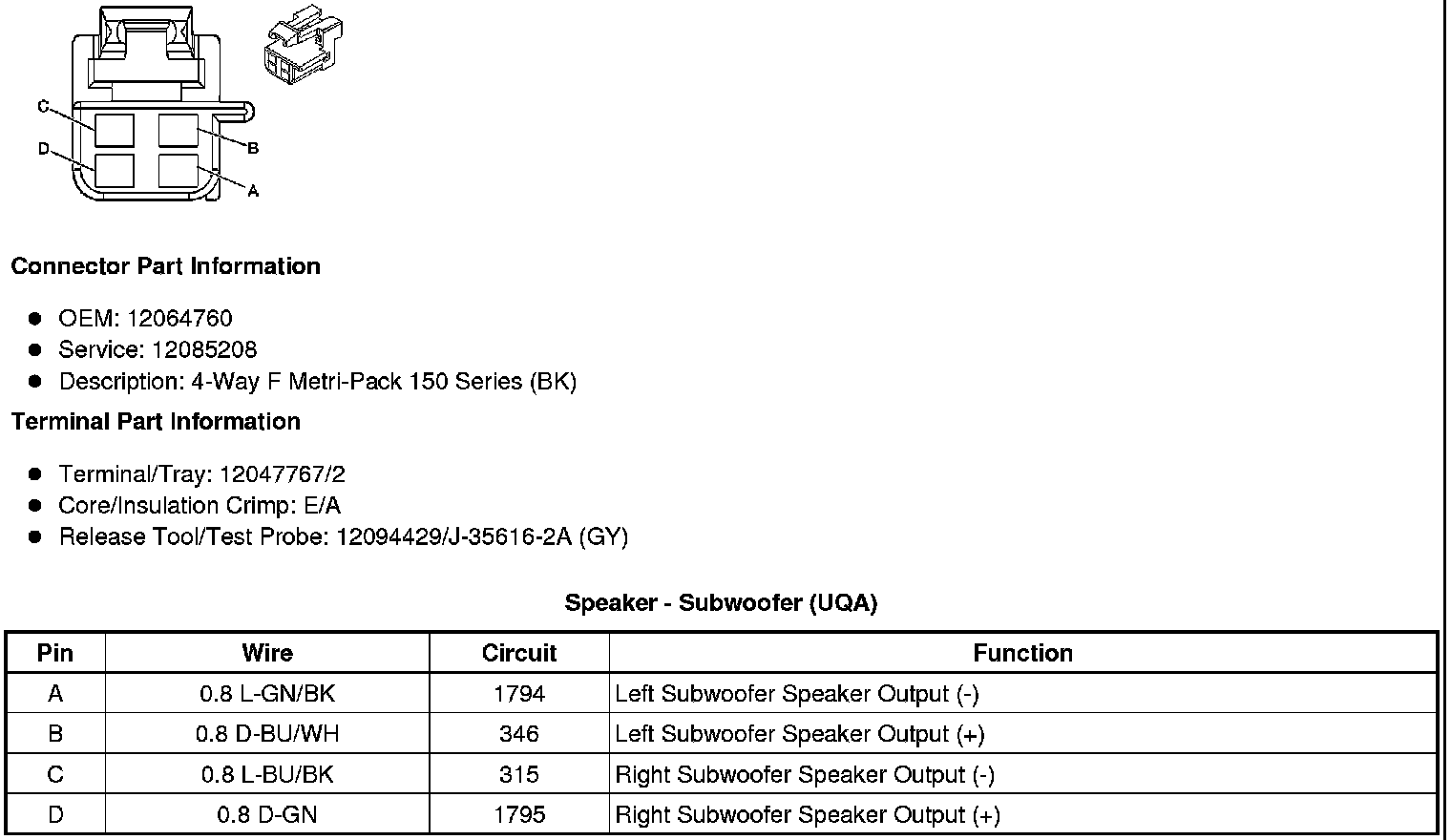

Speaker - Subwoofer (UQA)
