Body Control Systems
Body Control System Schematics

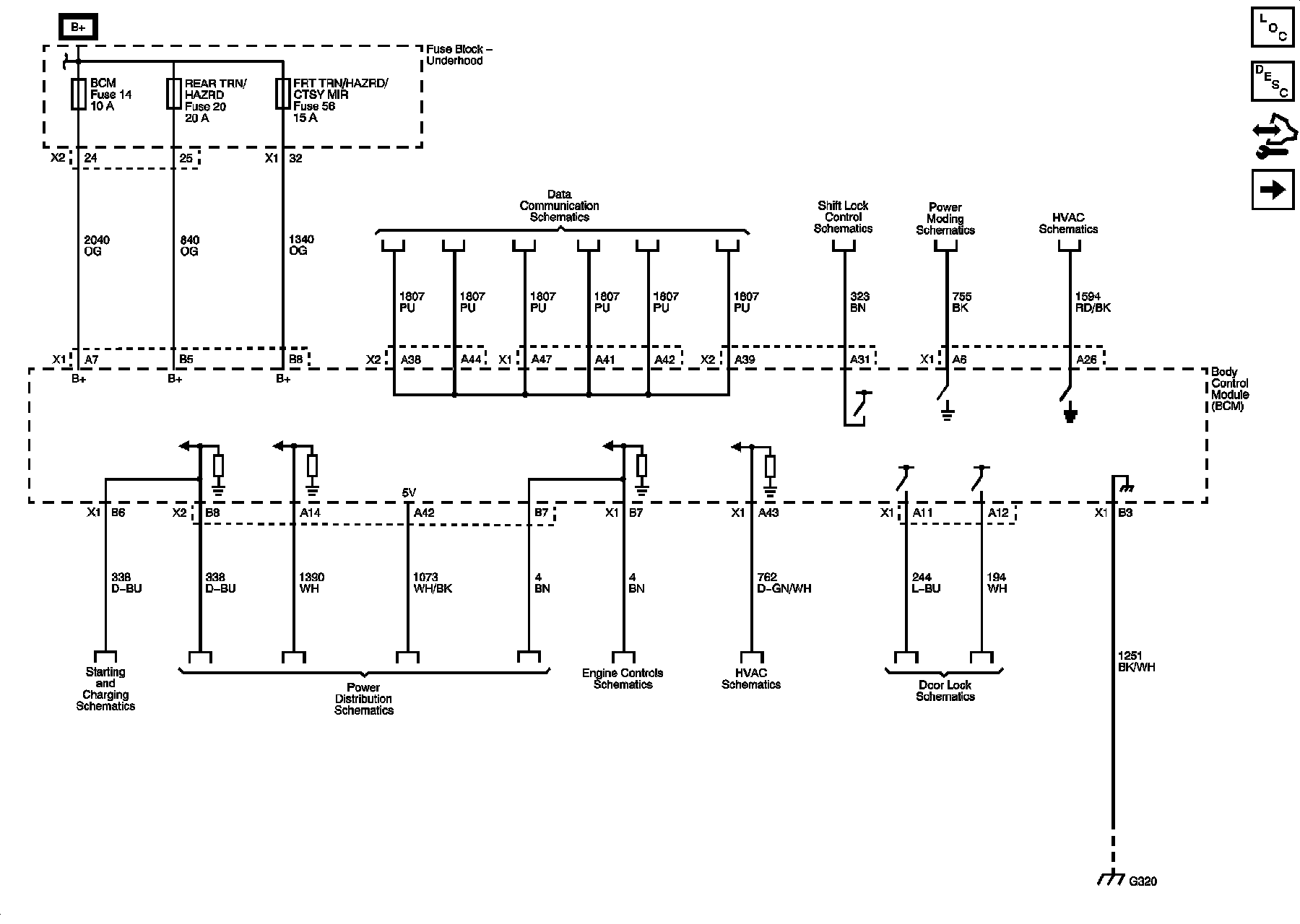

Power, Ground, Serial Data, and Power Moding References

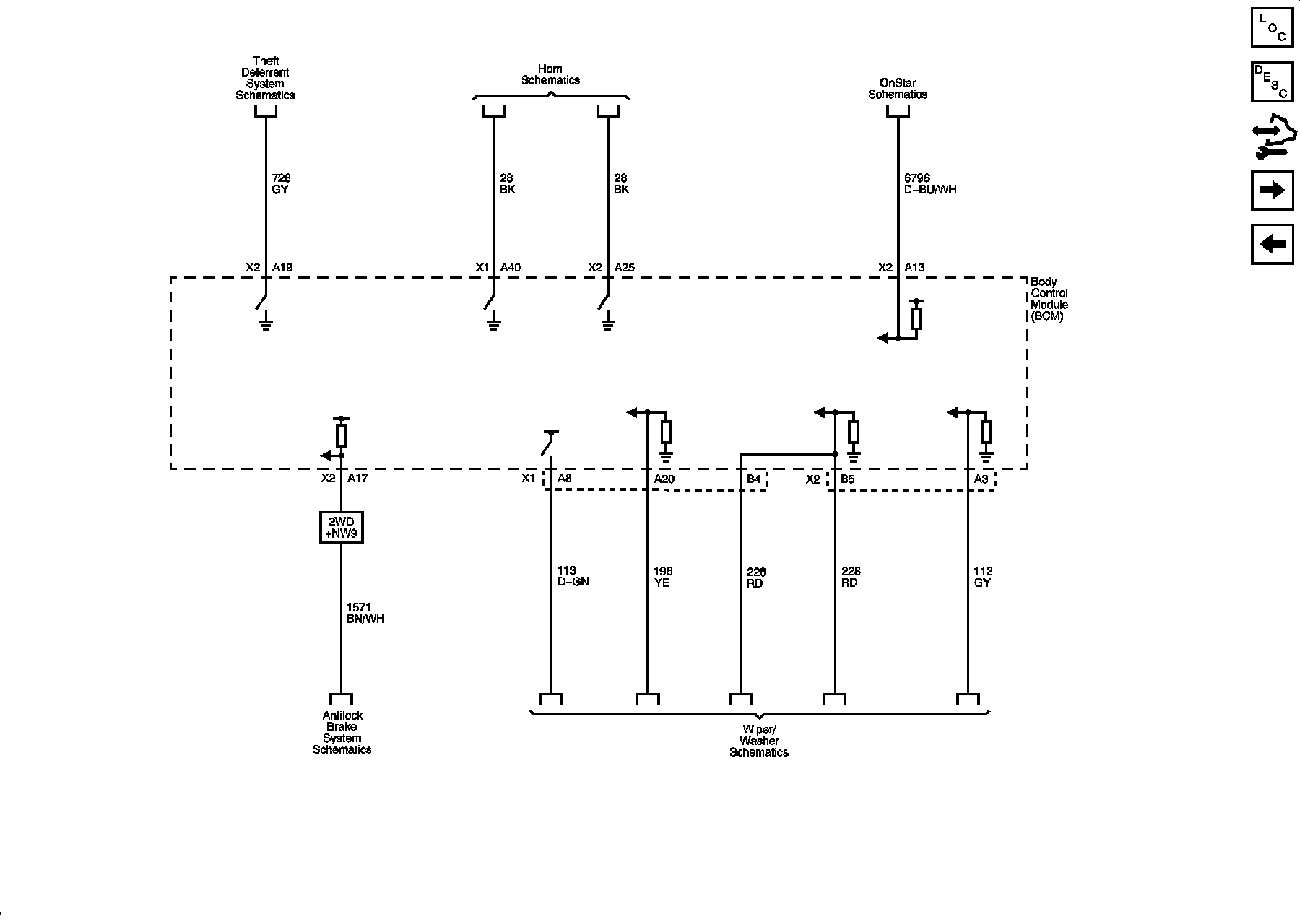

Antilock Brake, Horn, Theft, and Wiper/Washer References

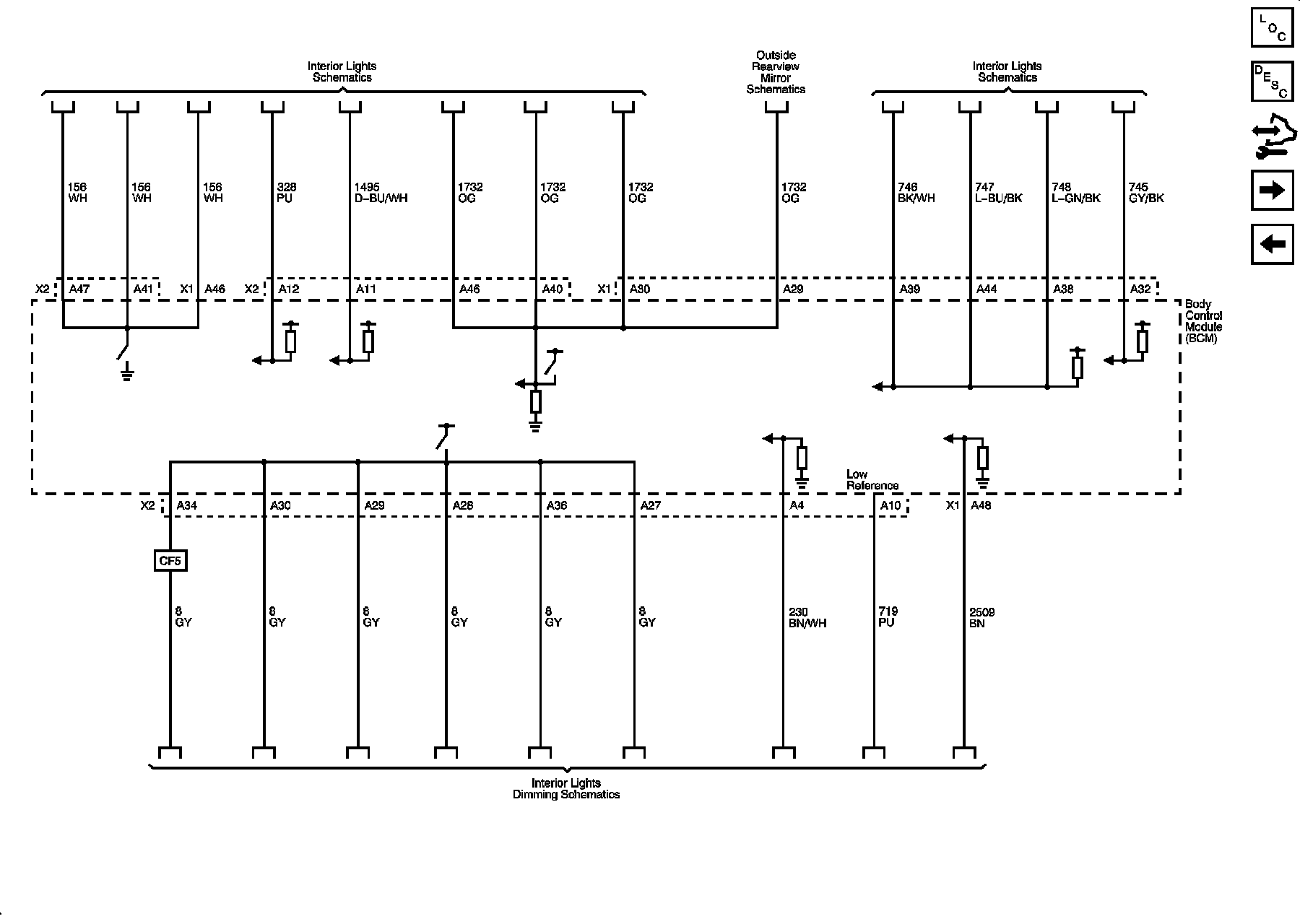

Vehicle Access, Interior Lights, and Interior Lights Dimming References

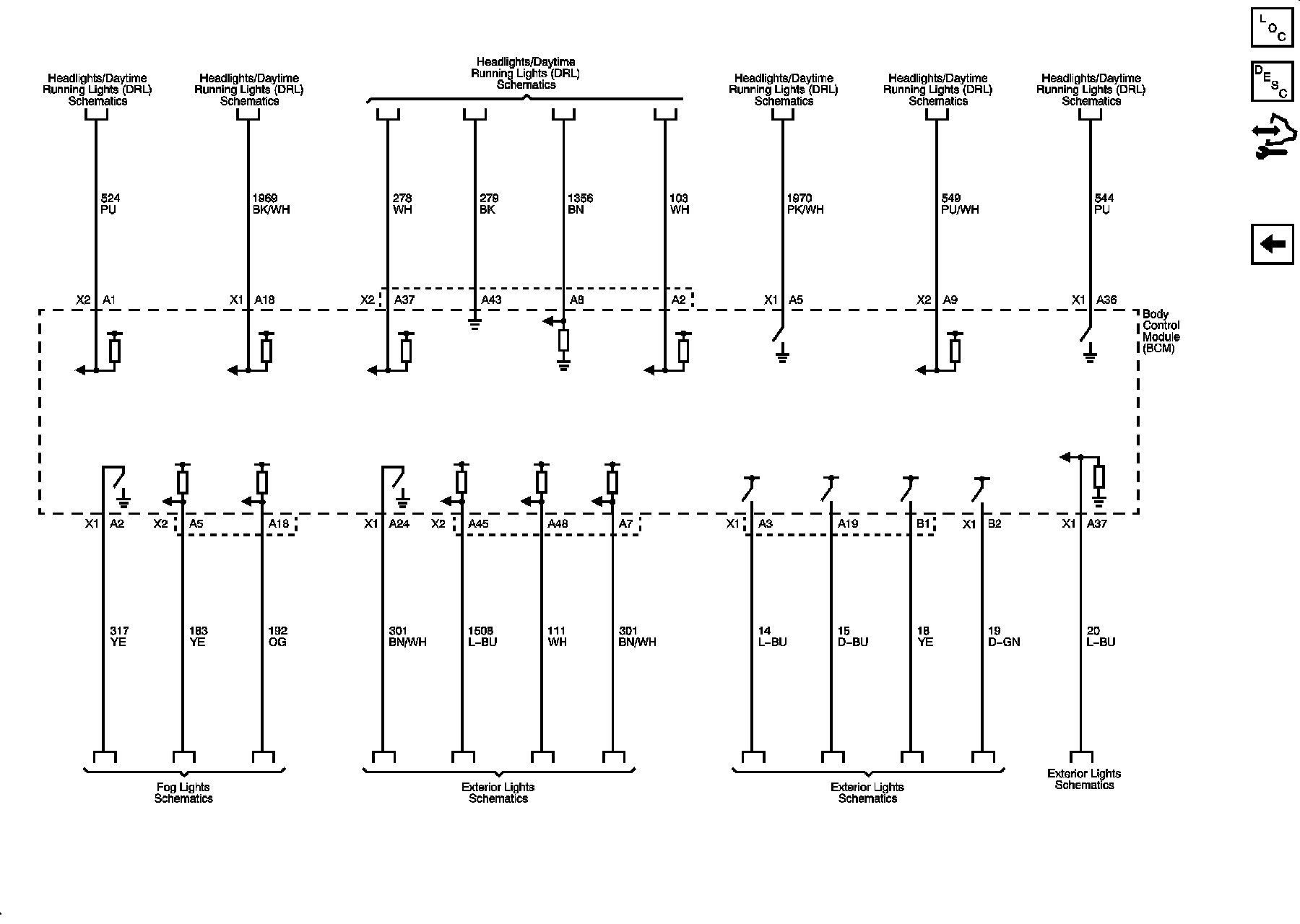

Exterior Lighting References
