Chassis Views



Harness Routing Views

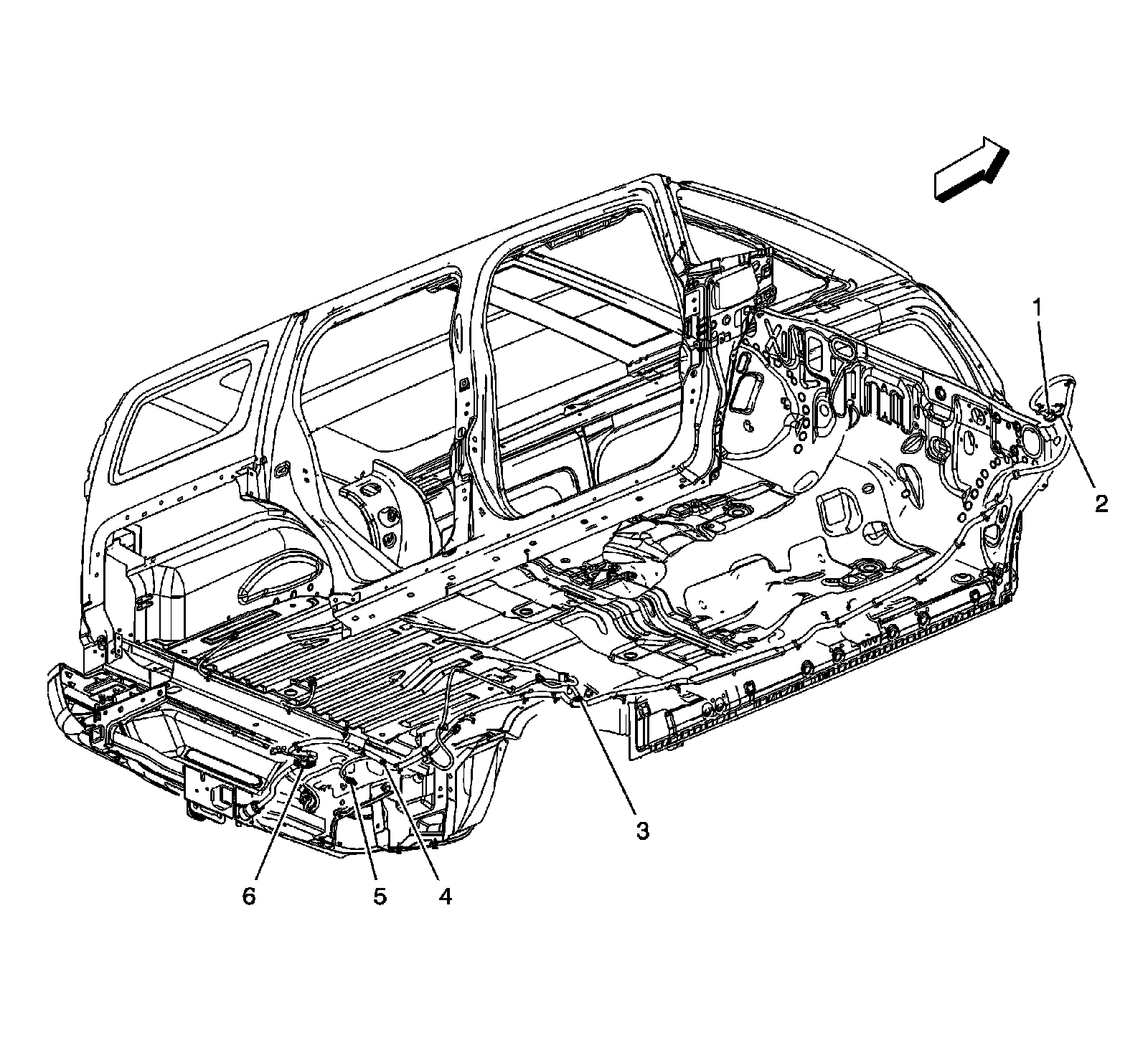

Chassis Harness




1 - X155
2 - X150
3 - S359
4 - S402
5 - S420
6 - X440 (-UY7) and X420 (UY7)
