Connector Views

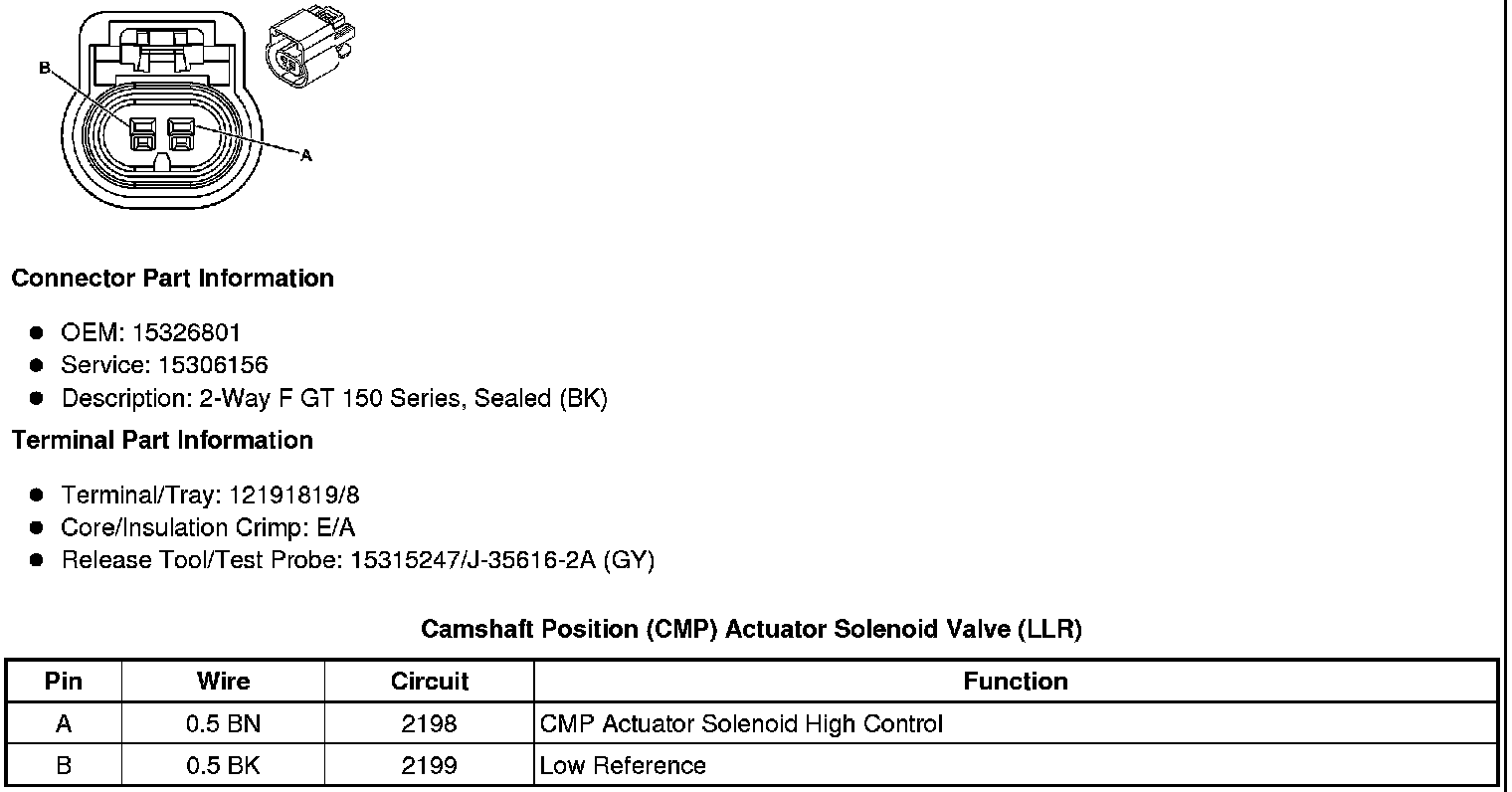

Camshaft Position (CMP) Actuator Solenoid Valve (LLR)

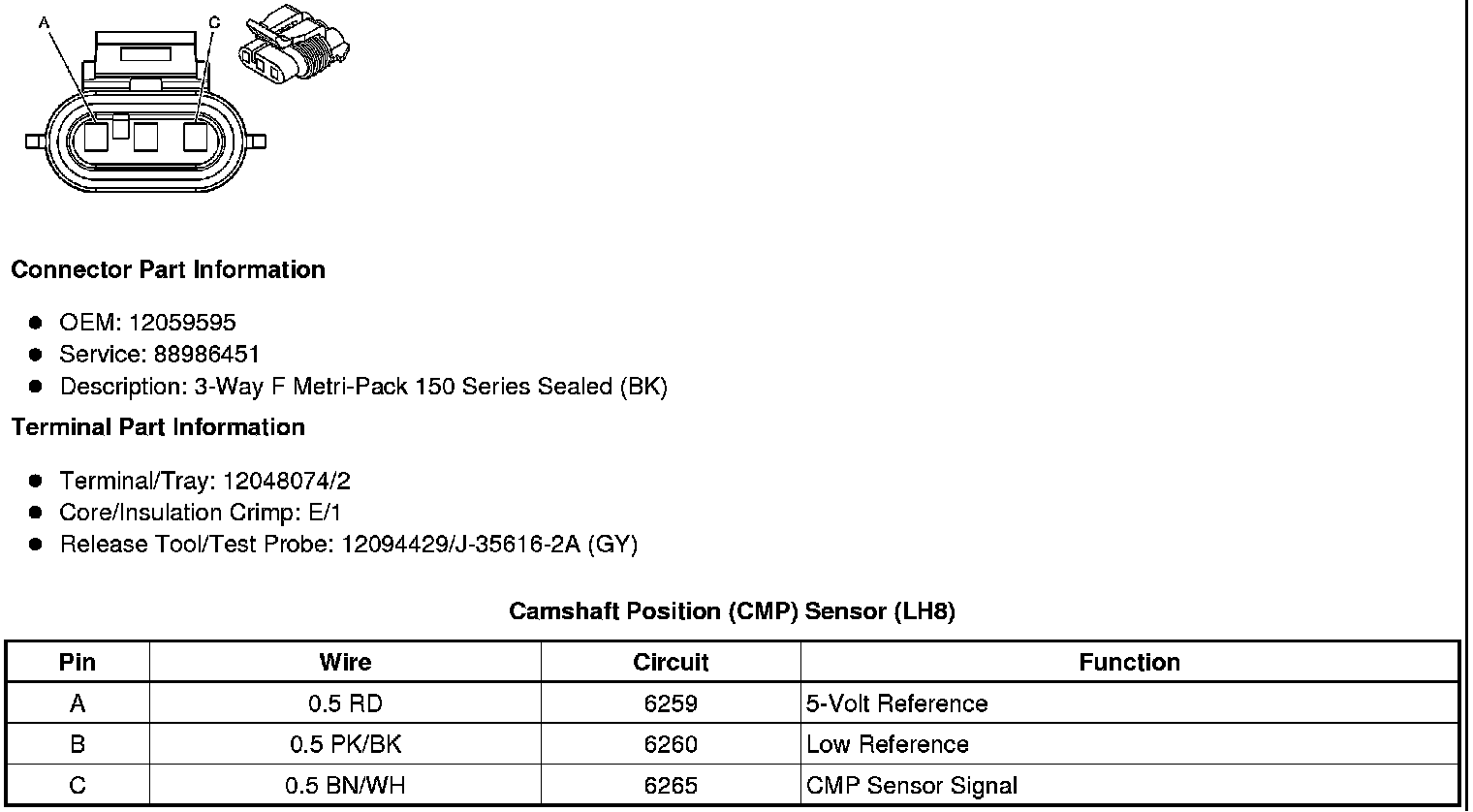

Camshaft Position (CMP) Sensor (LH8)

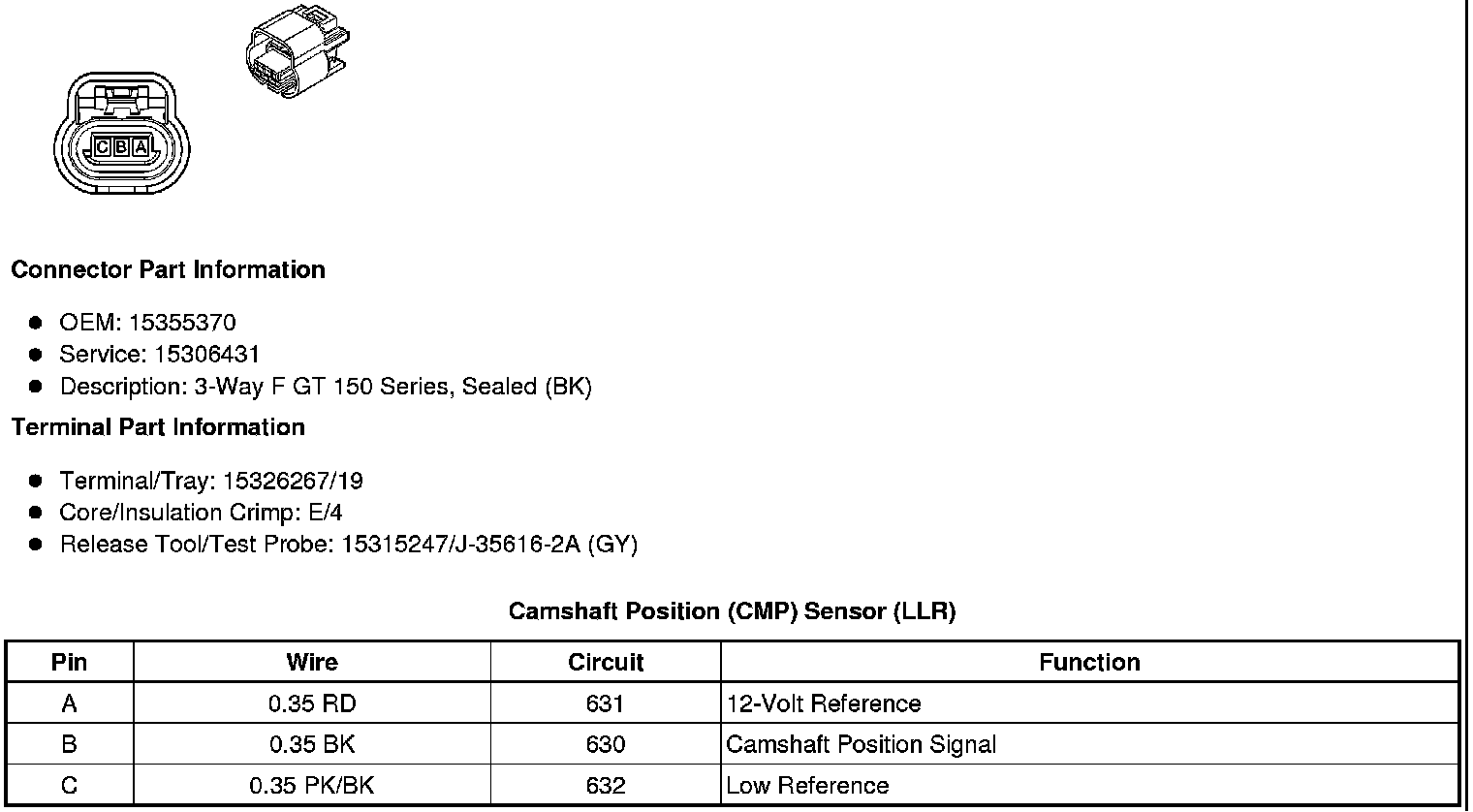

Camshaft Position (CMP) Sensor (LLR)
