Electrical Symbols

Electrical Symbols

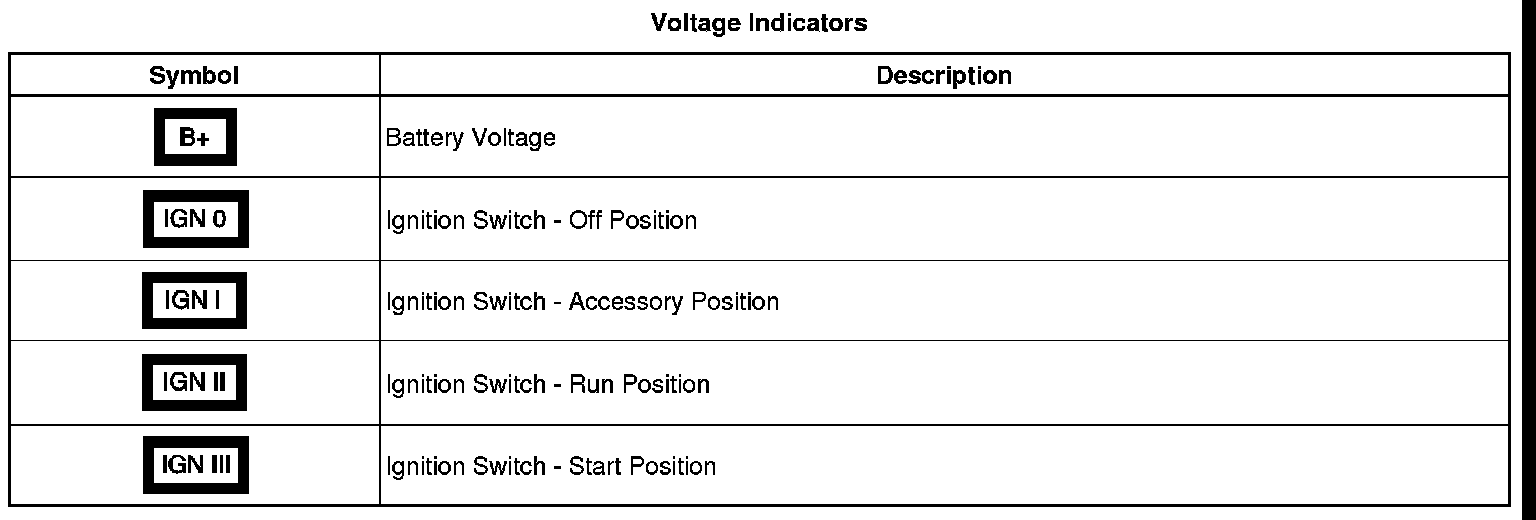

Voltage Indicators

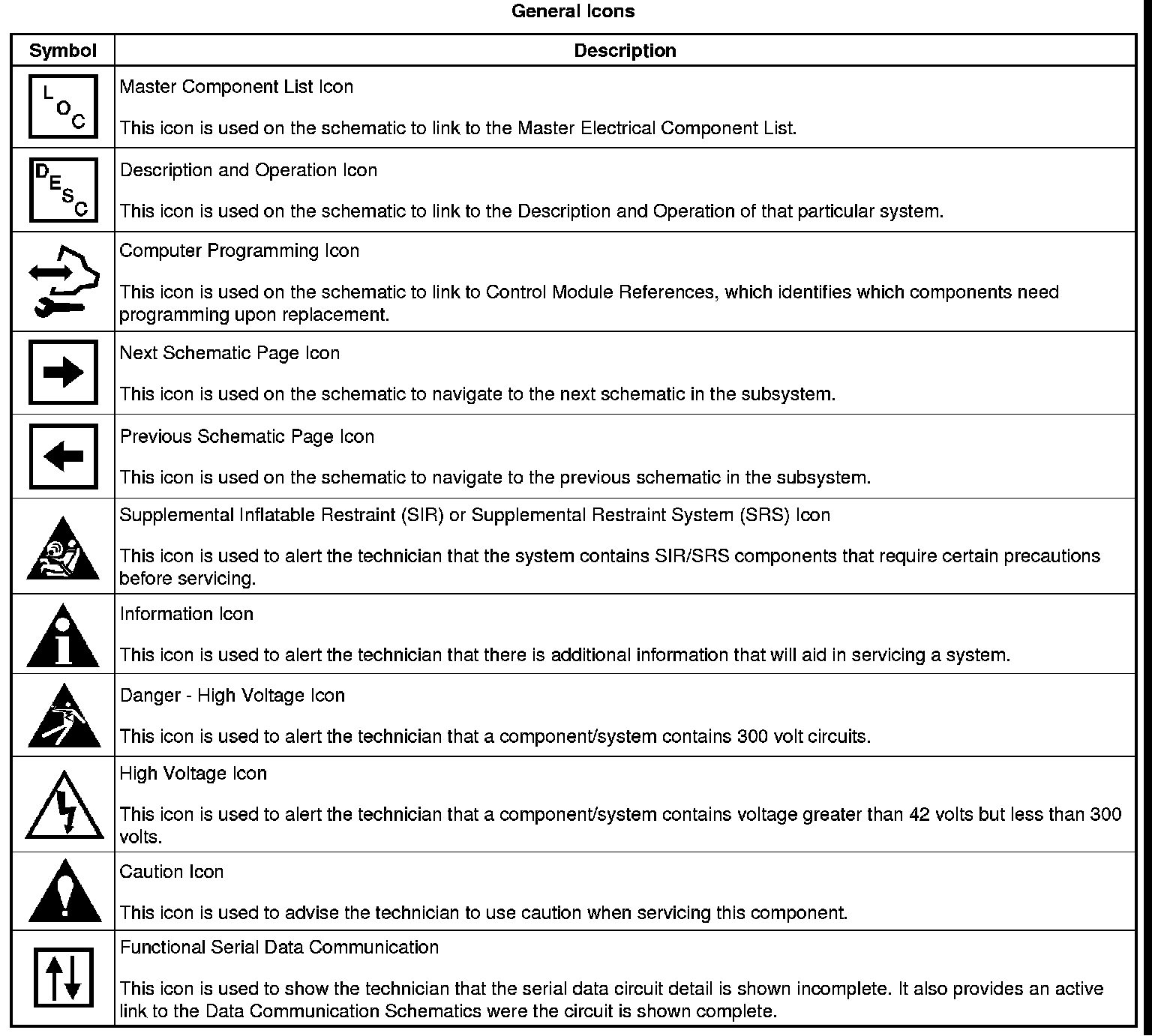

General Icons

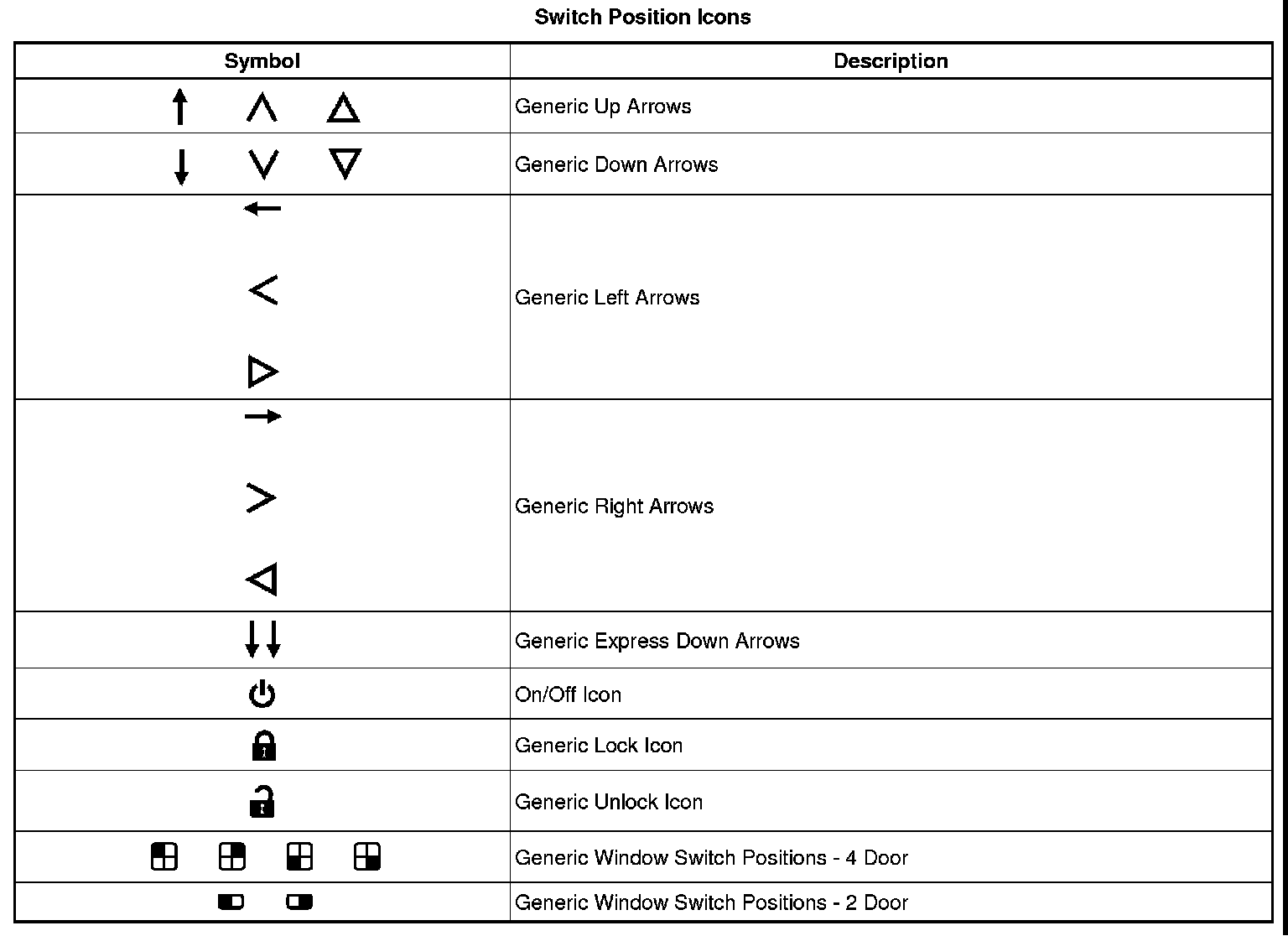

Switch Position Icons

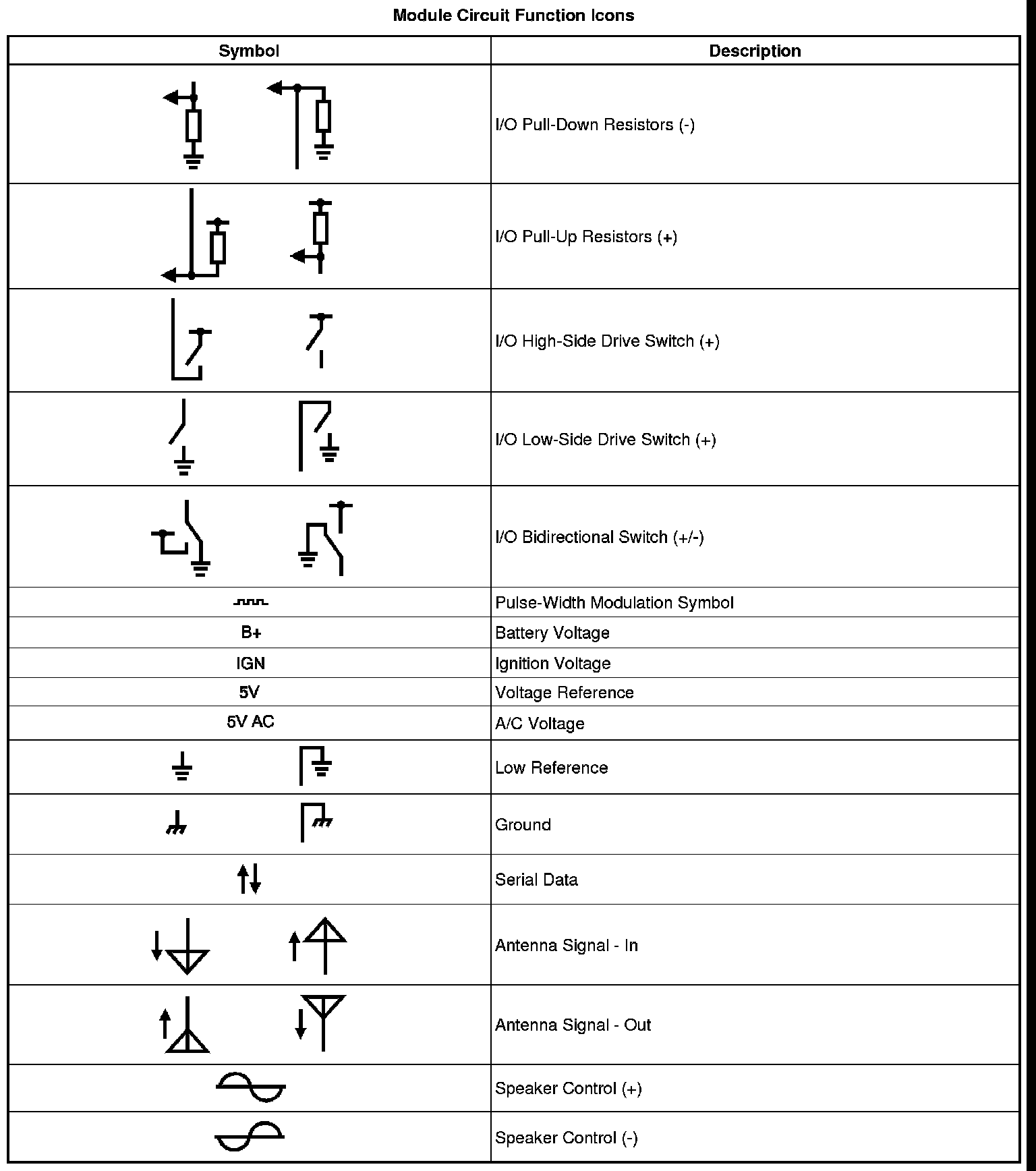

Module Circuit Function Icons

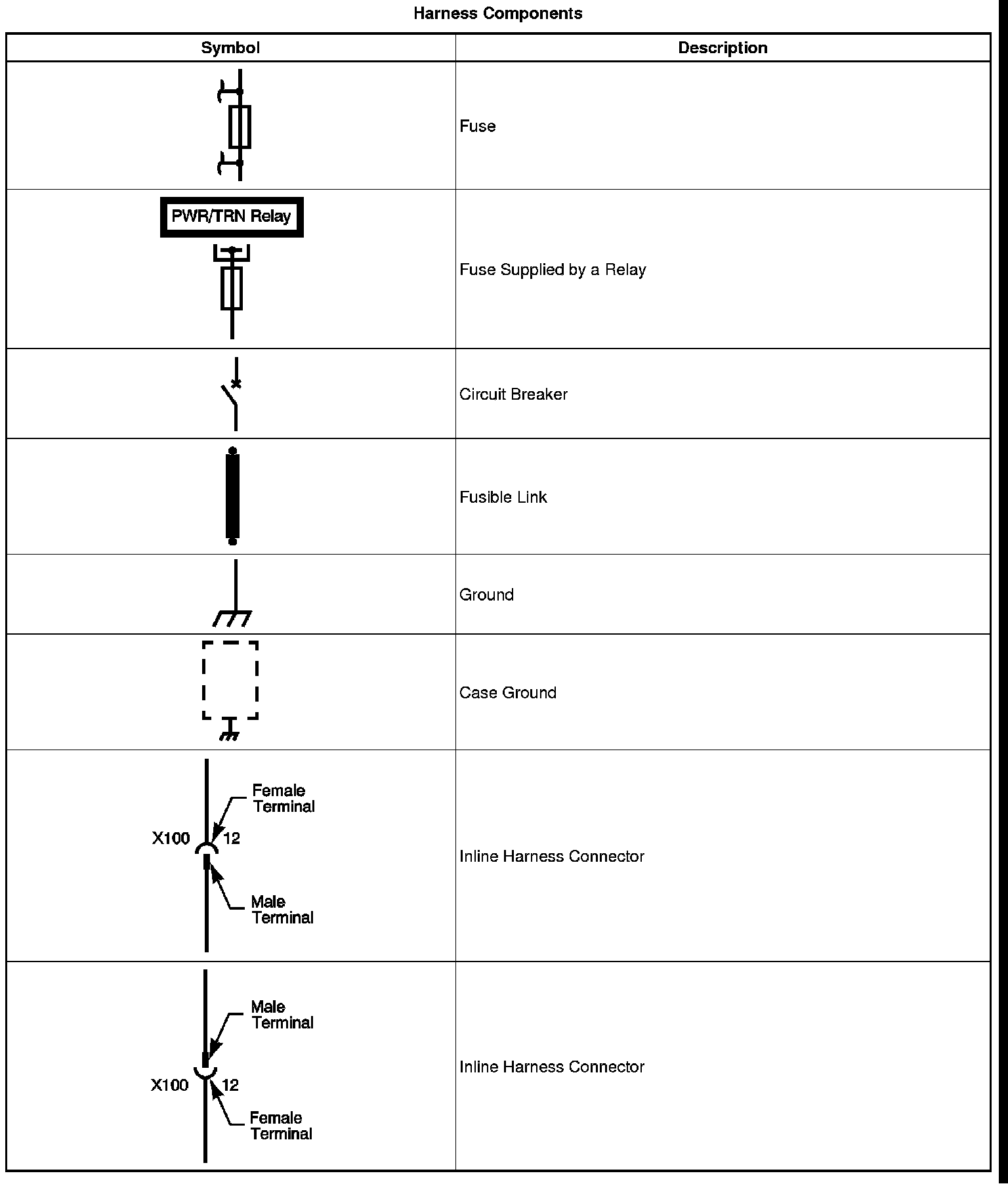

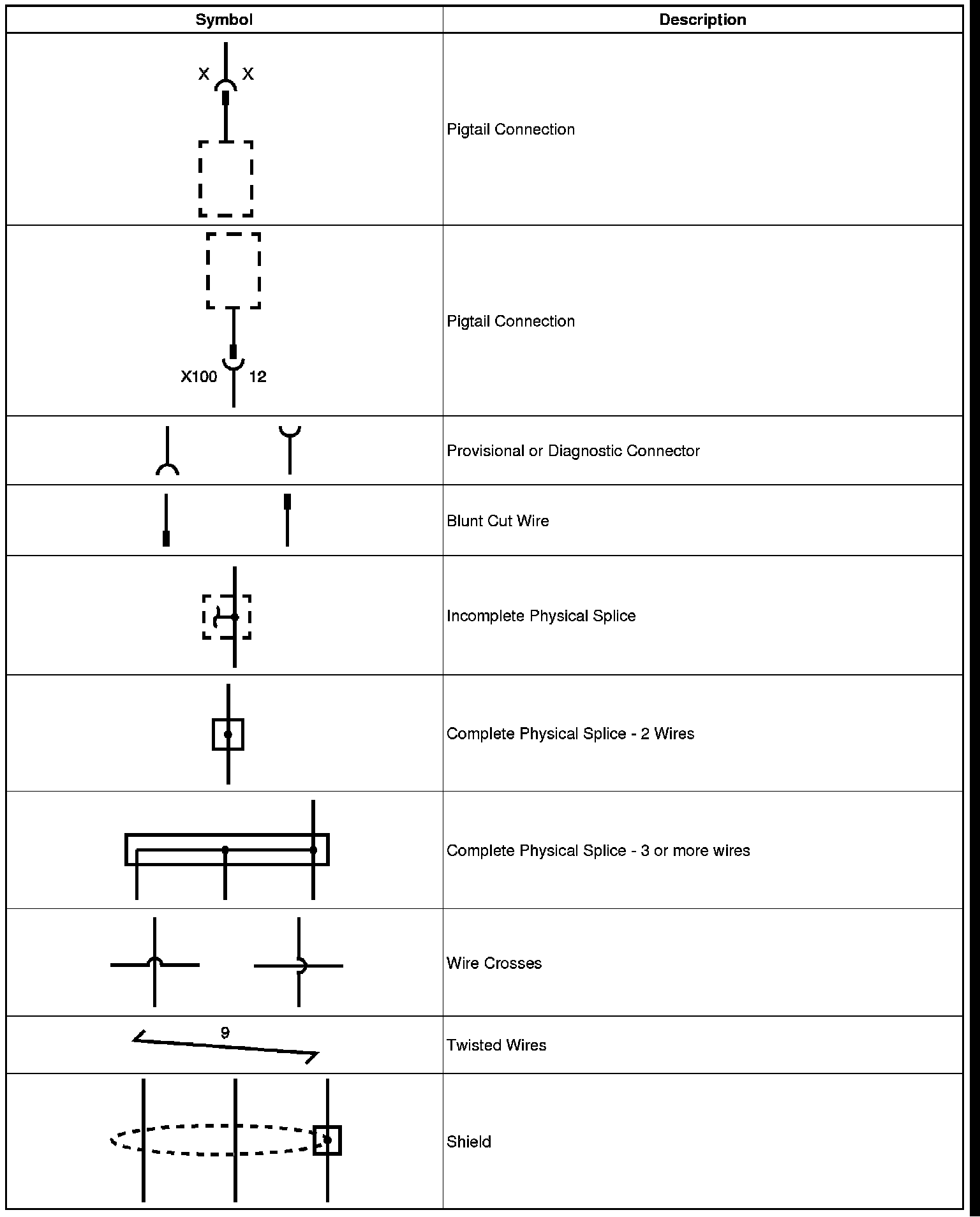

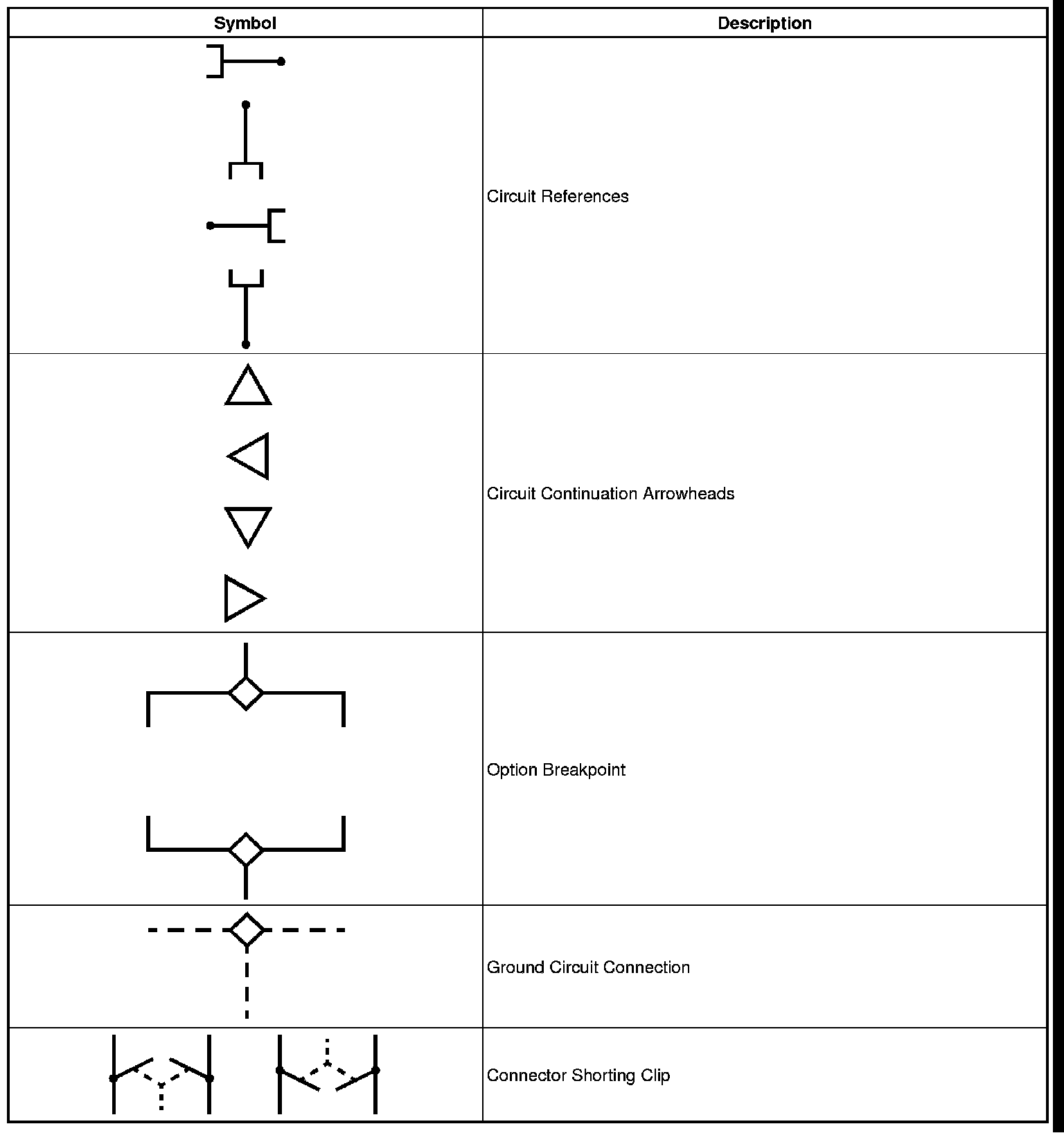

Harness Components

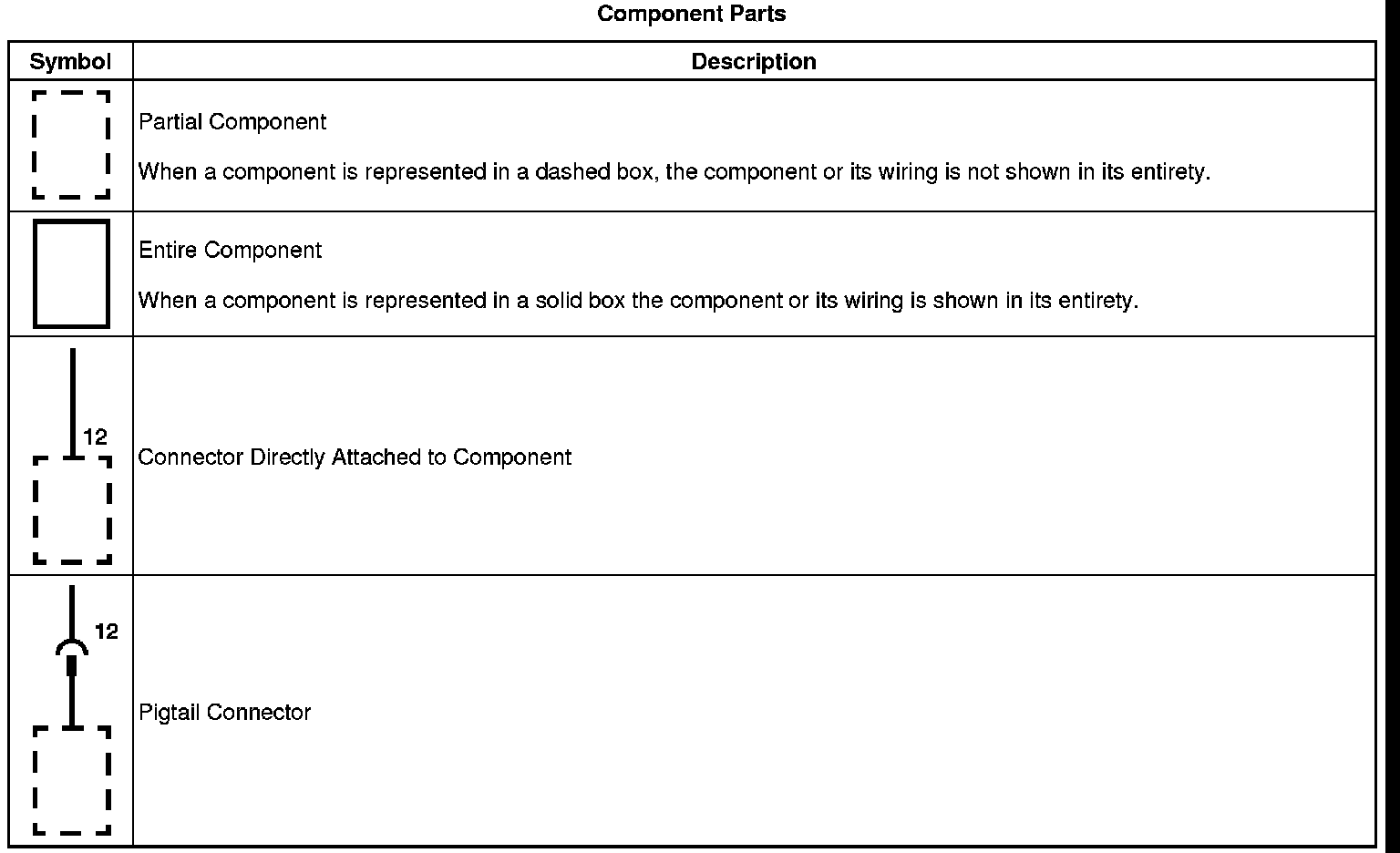

Component Parts

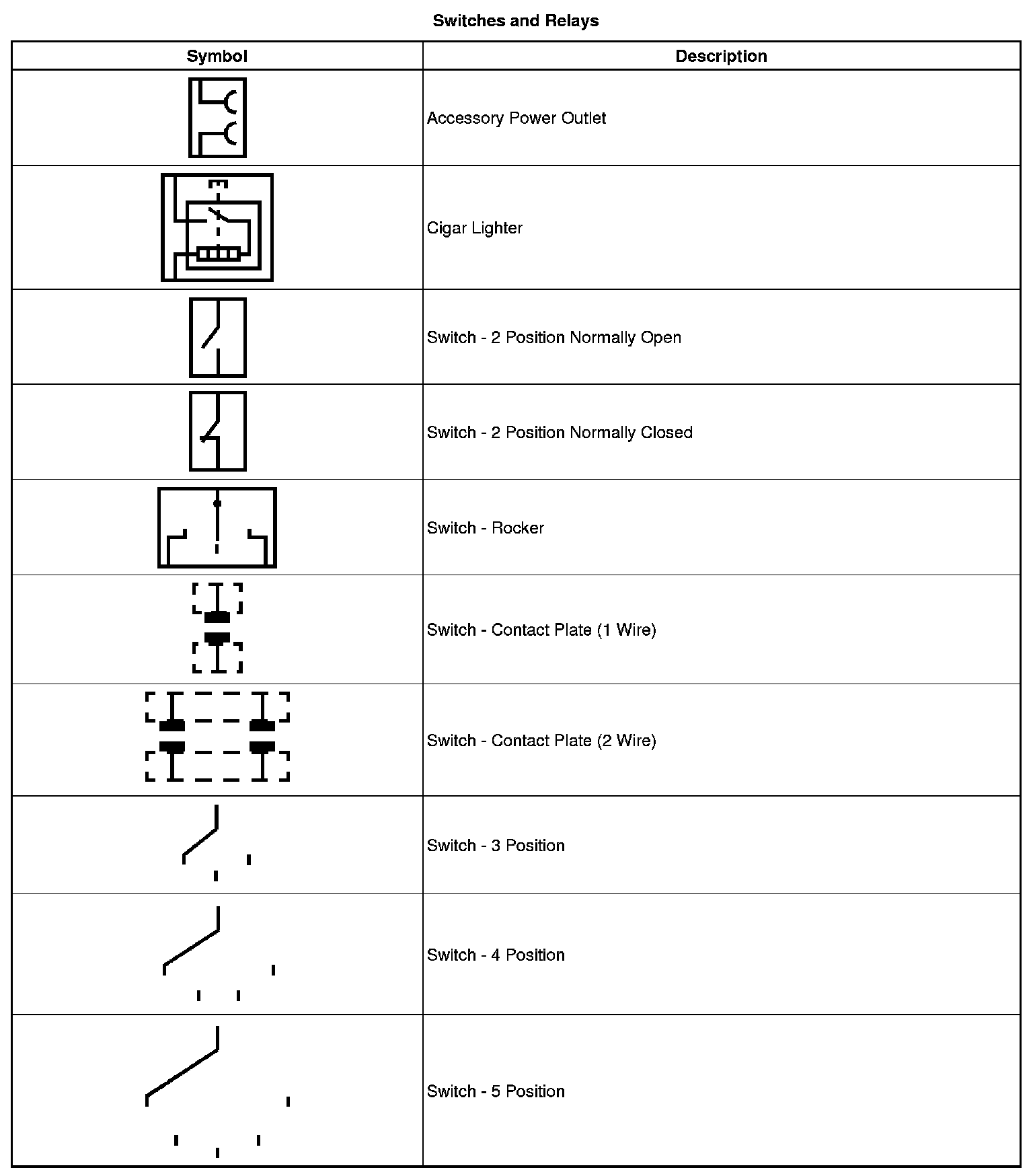

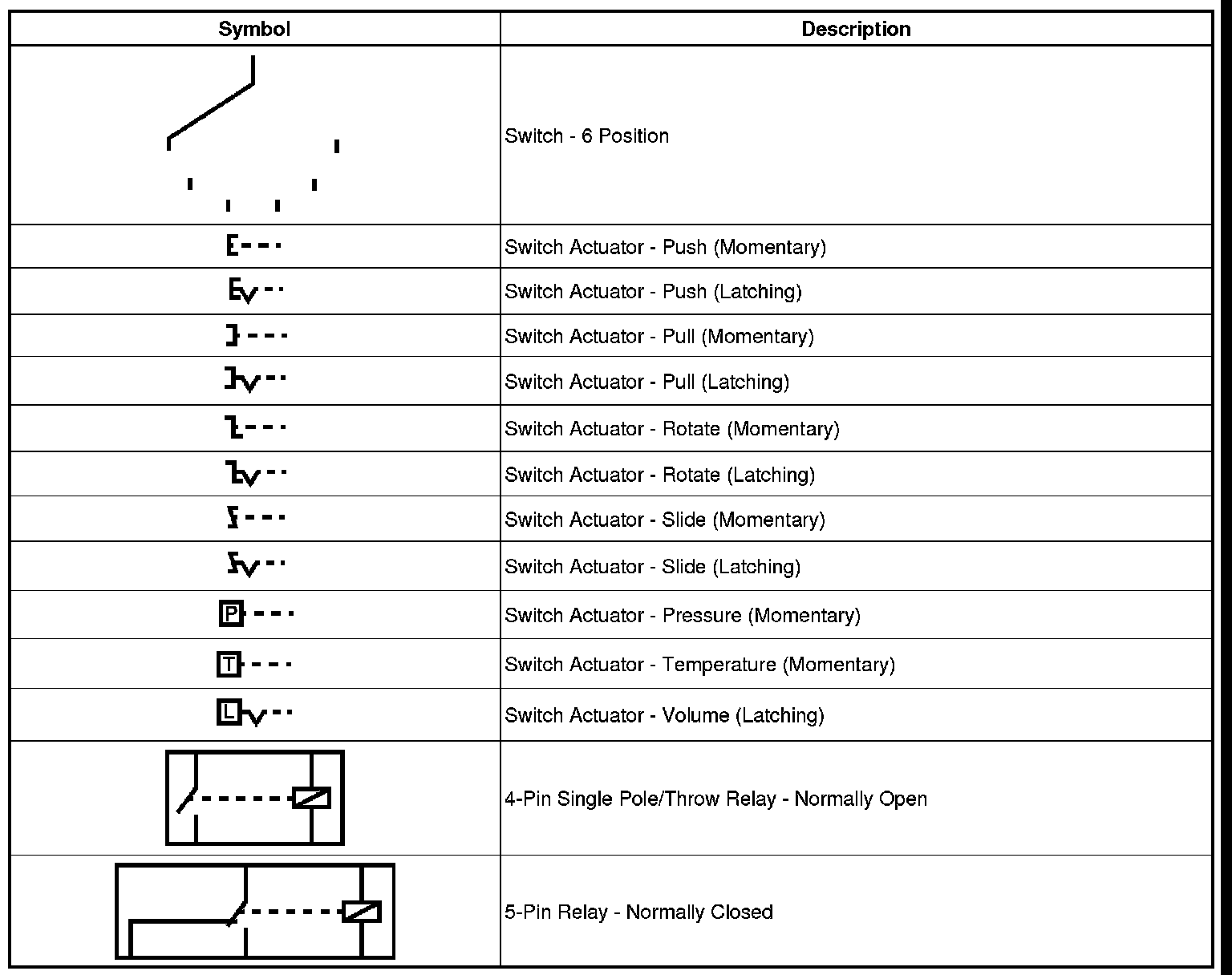

Switches and Relays

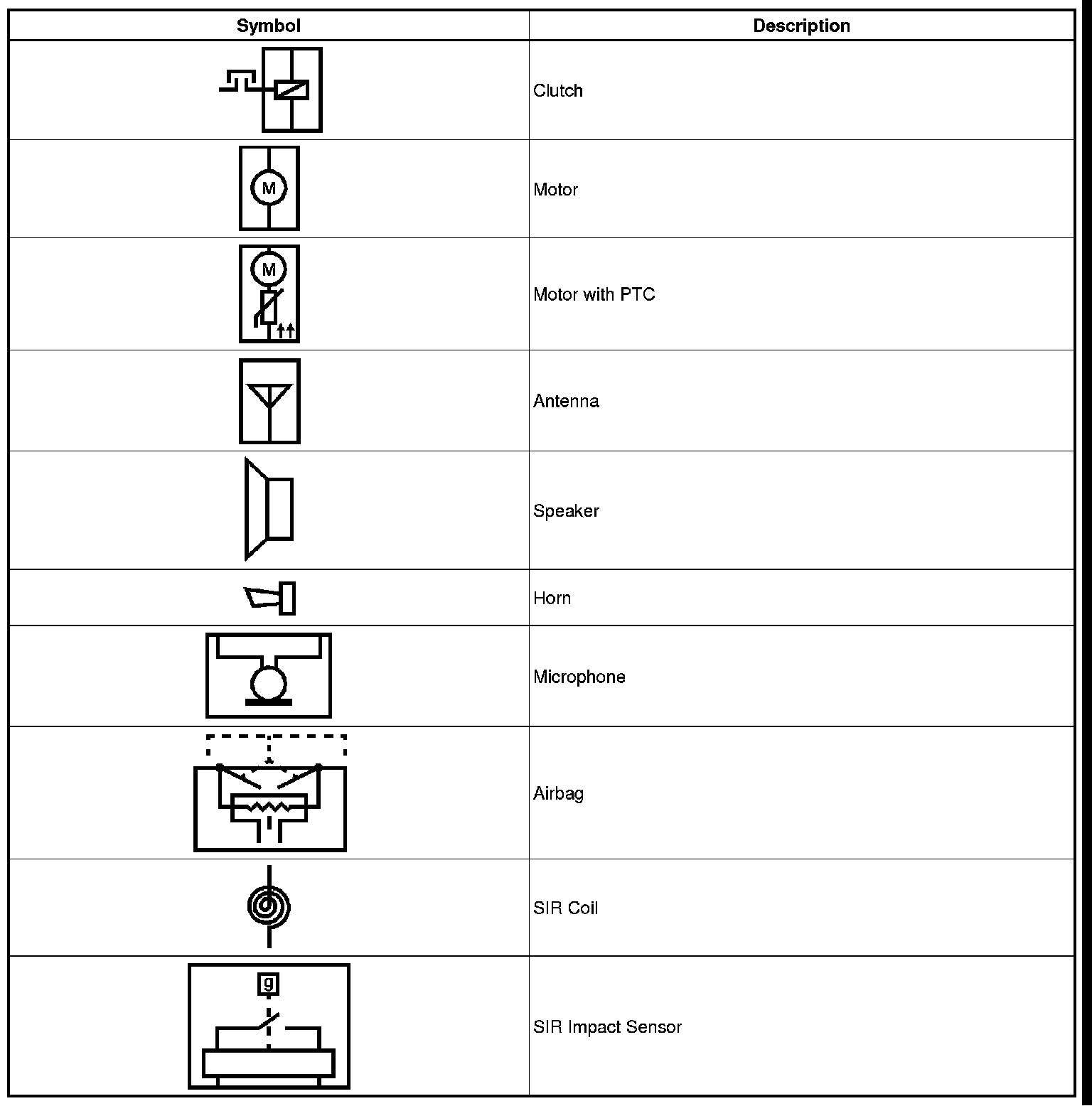

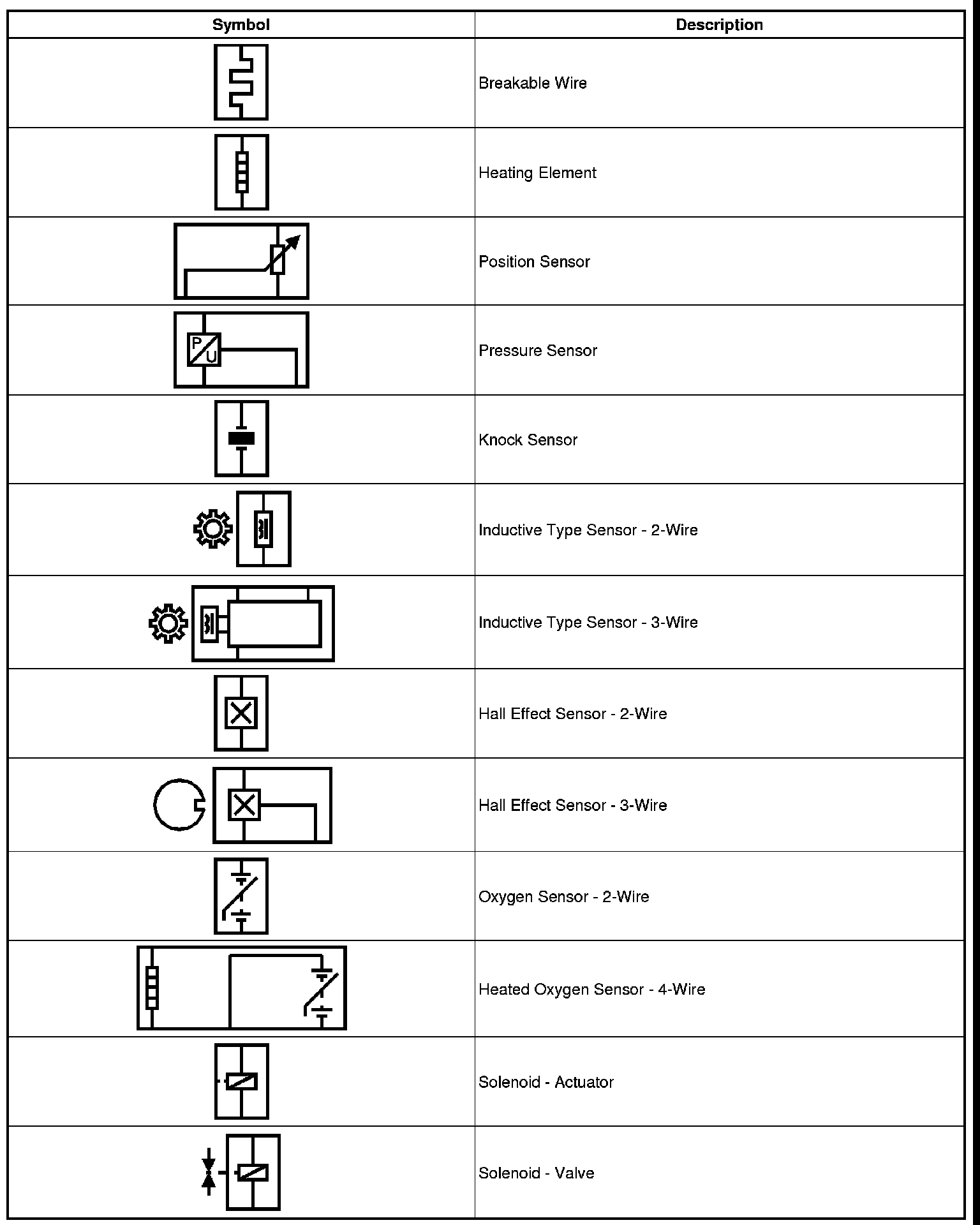

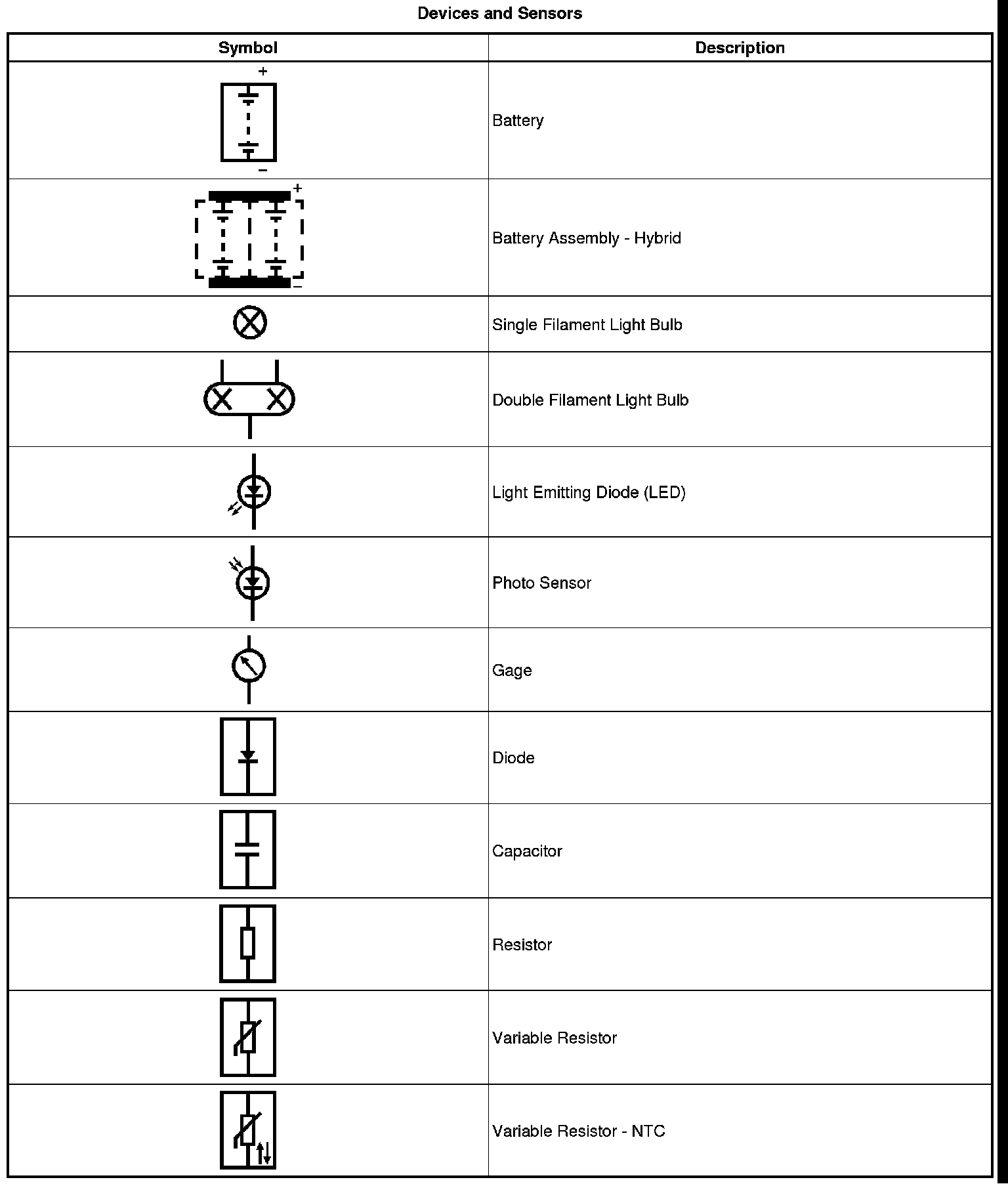

Devices and Sensors
