Connector Views

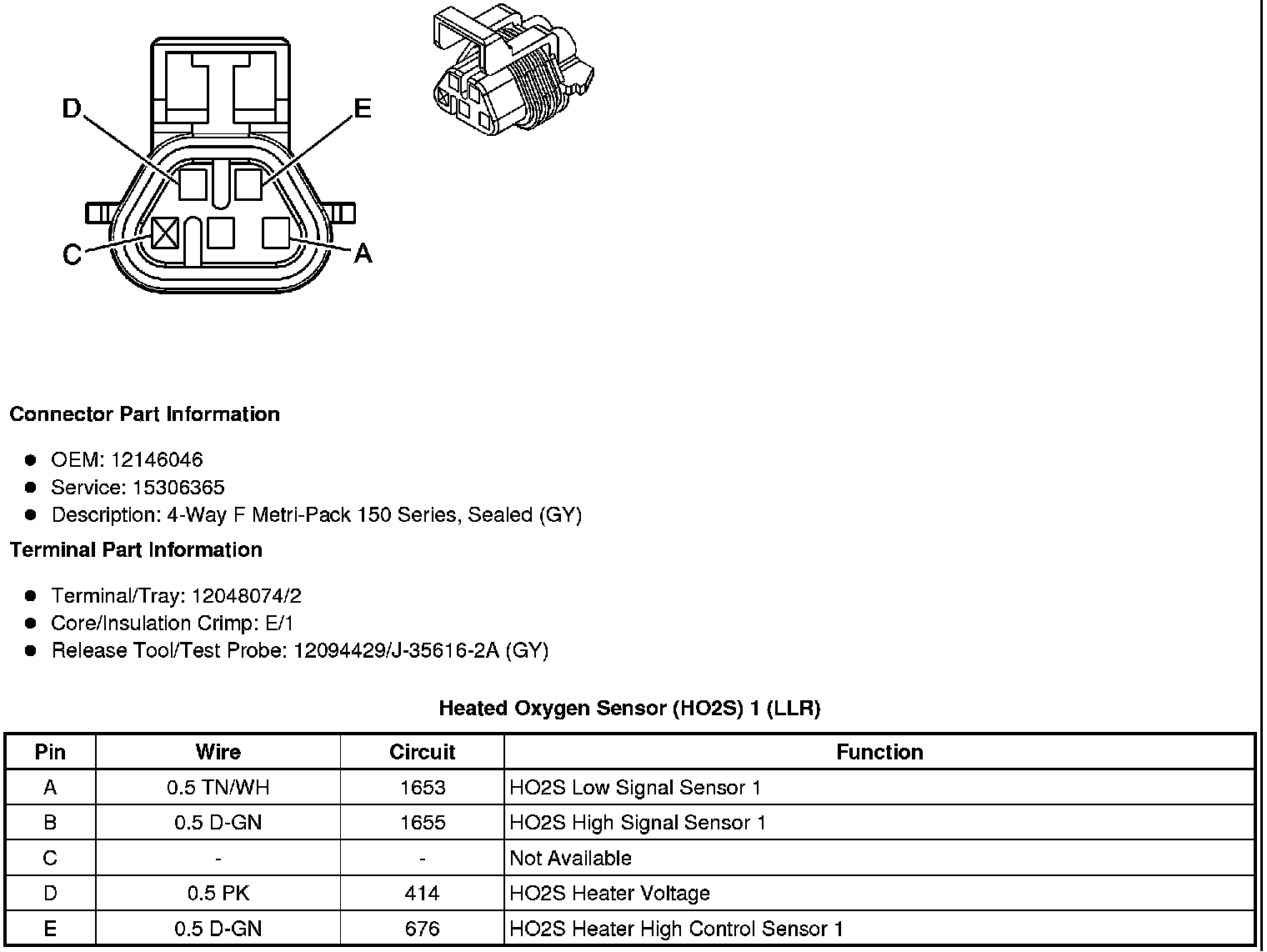

Heated Oxygen Sensor (HO2S) 1 (LLR)

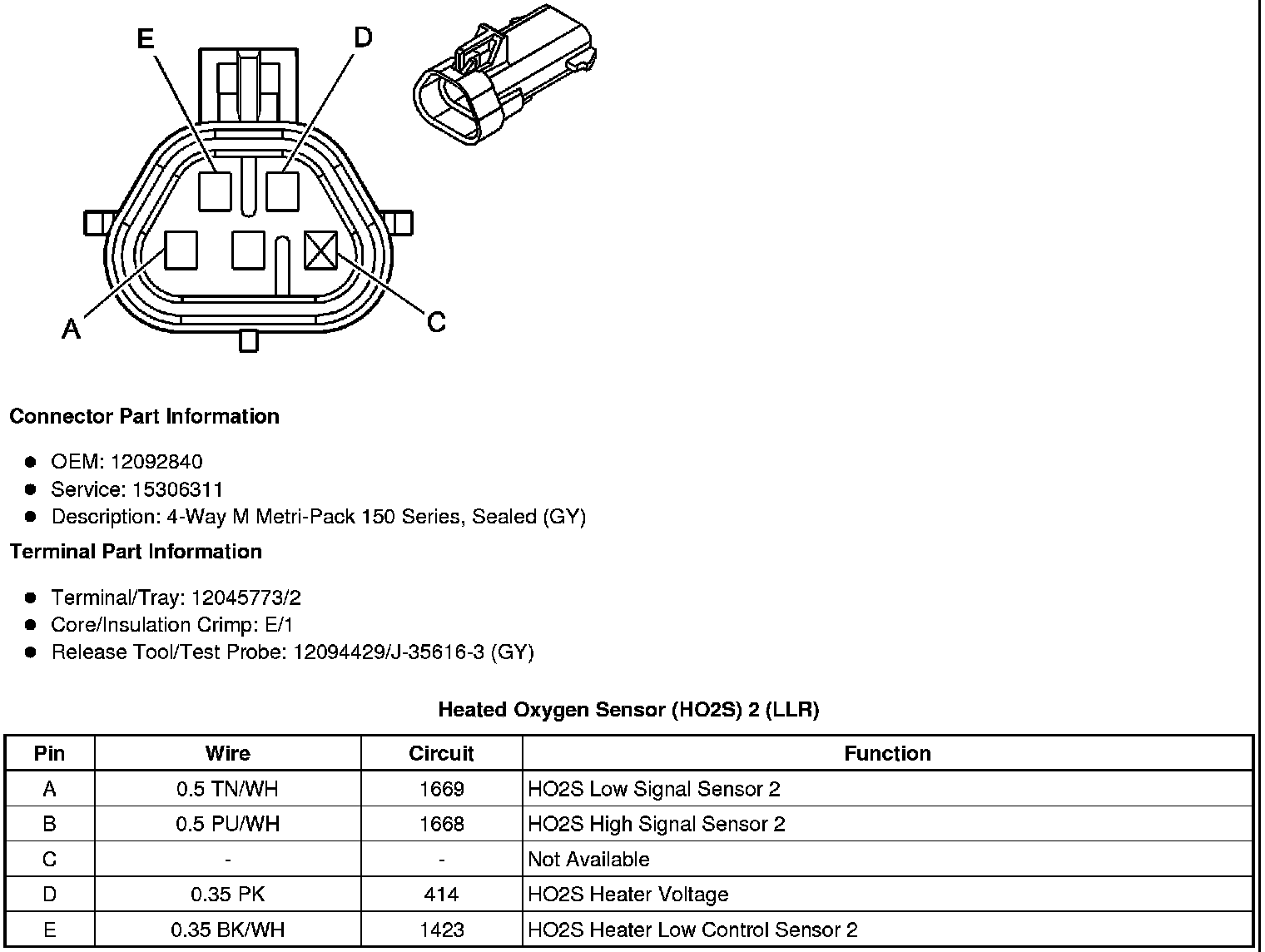

Heated Oxygen Sensor (HO2S) 2 (LLR)

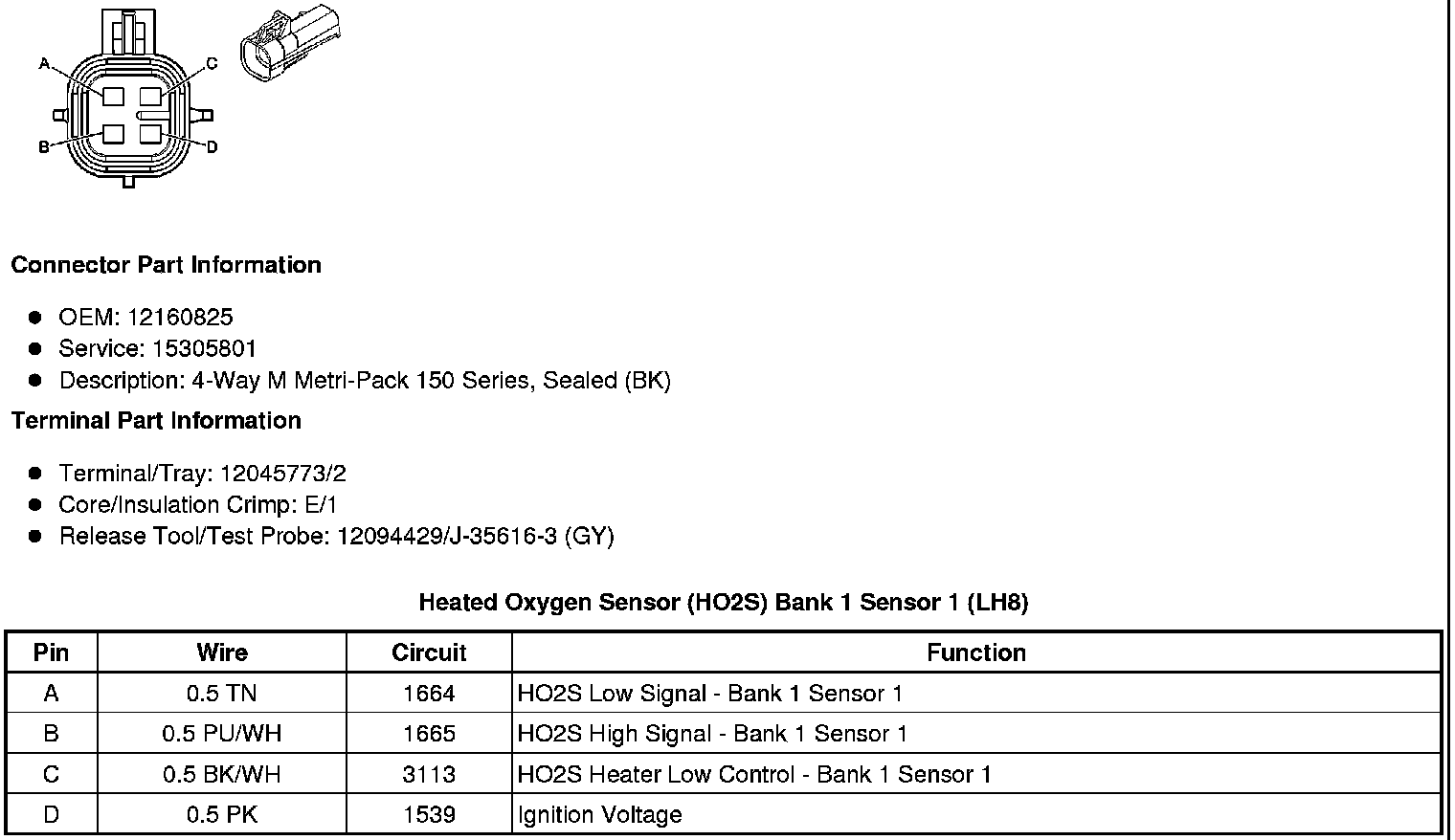

Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1 (LH8)

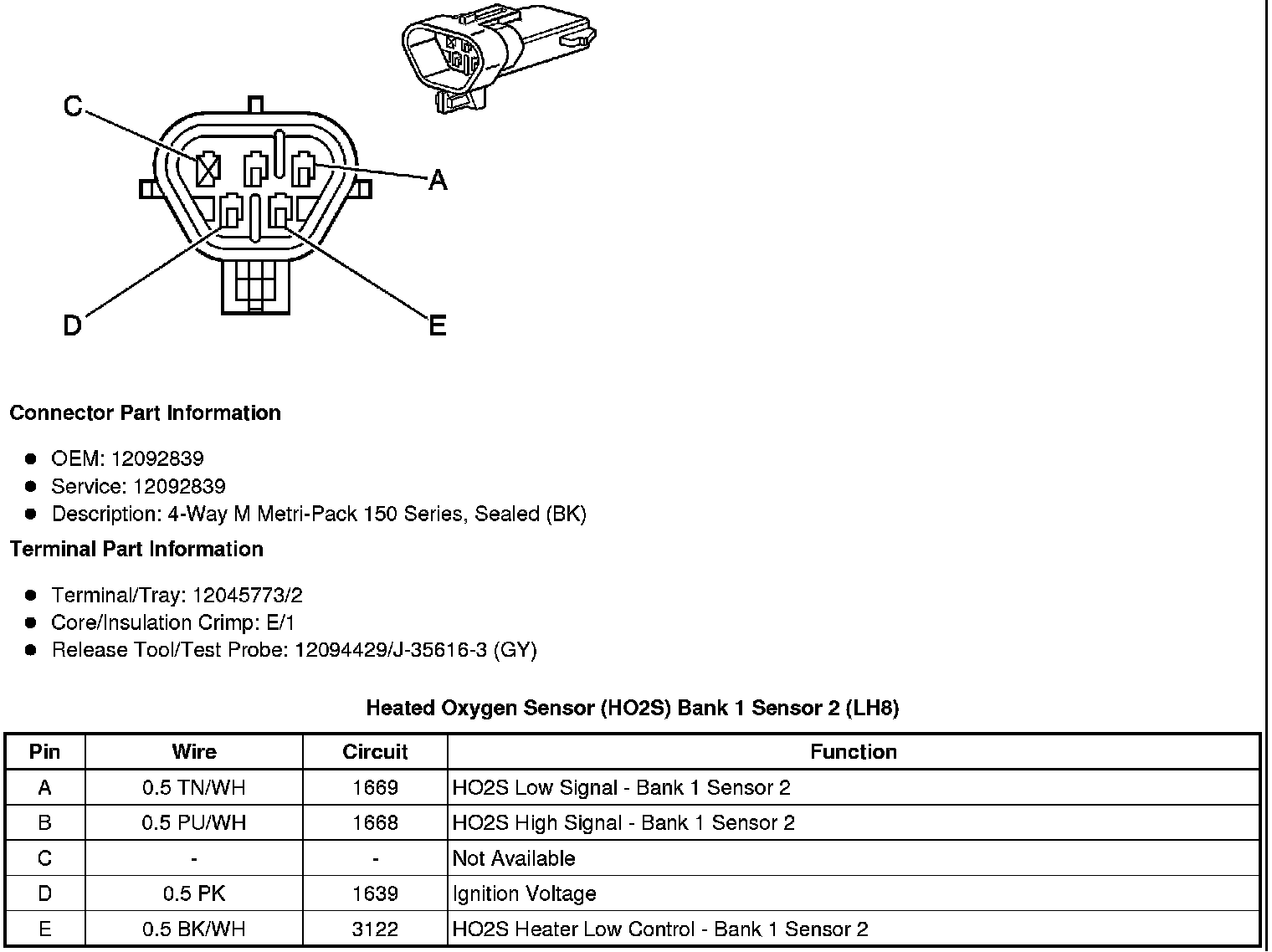

Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2 (LH8)

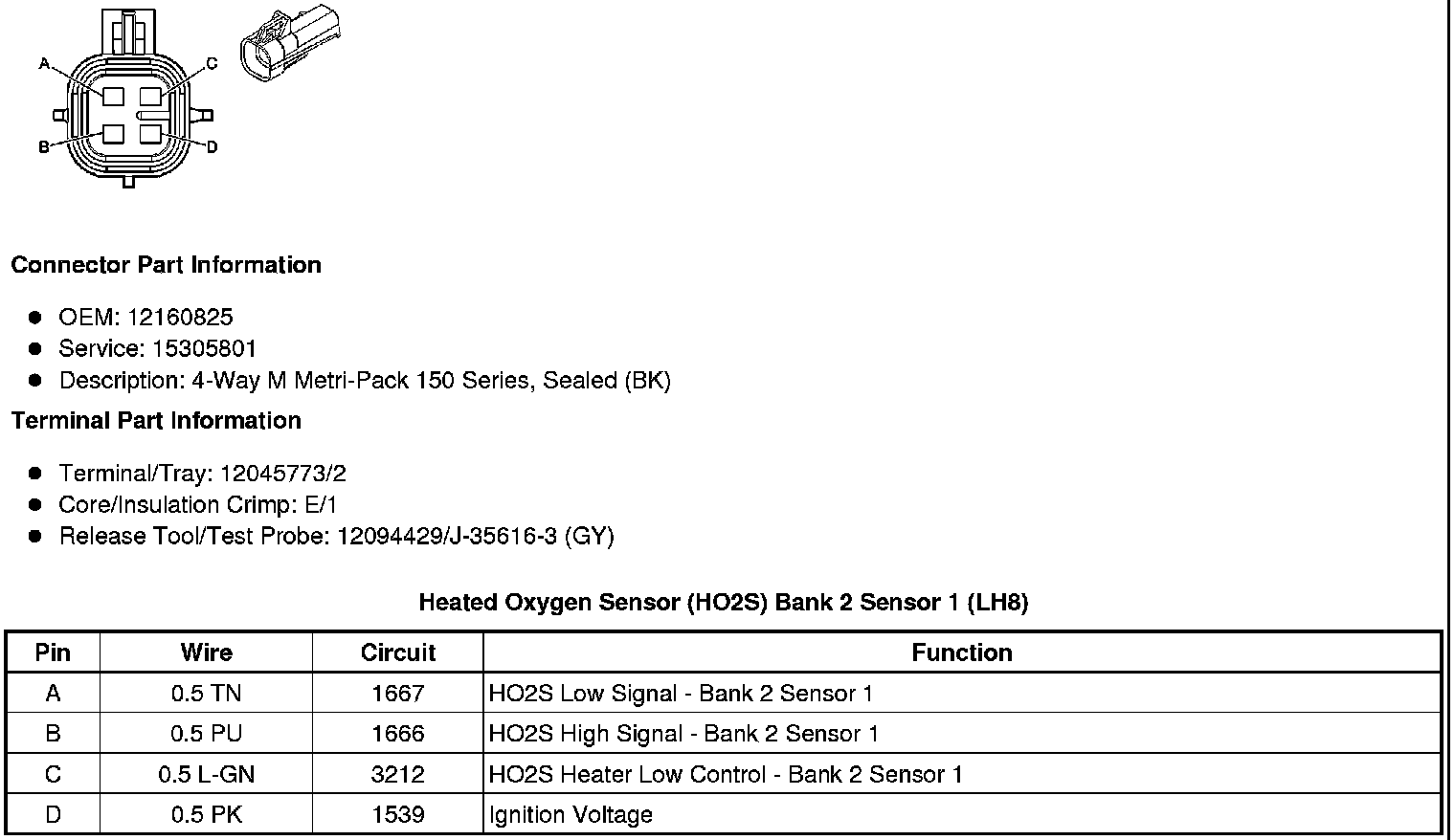

Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 (LH8)

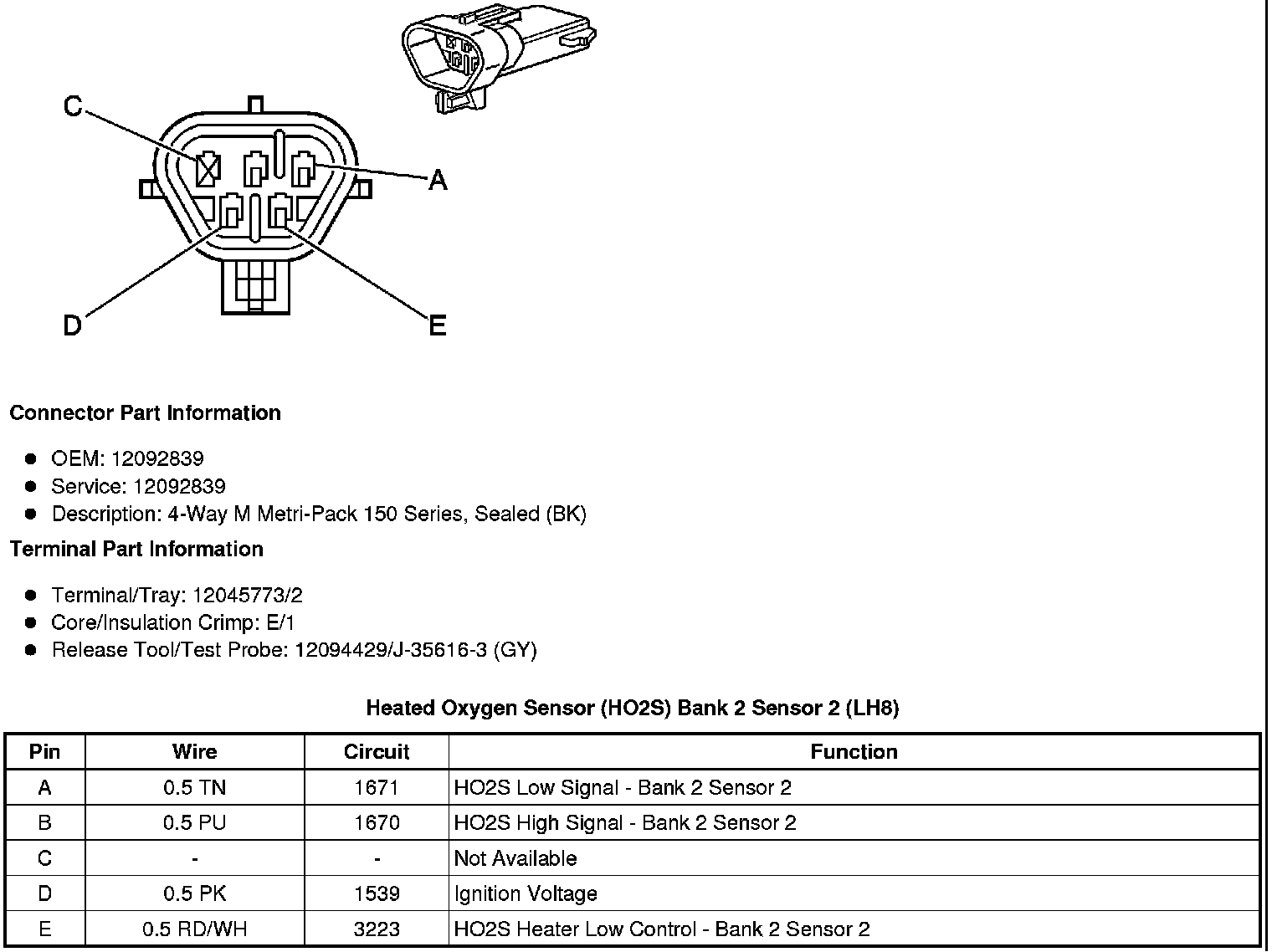

Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2 (LH8)
