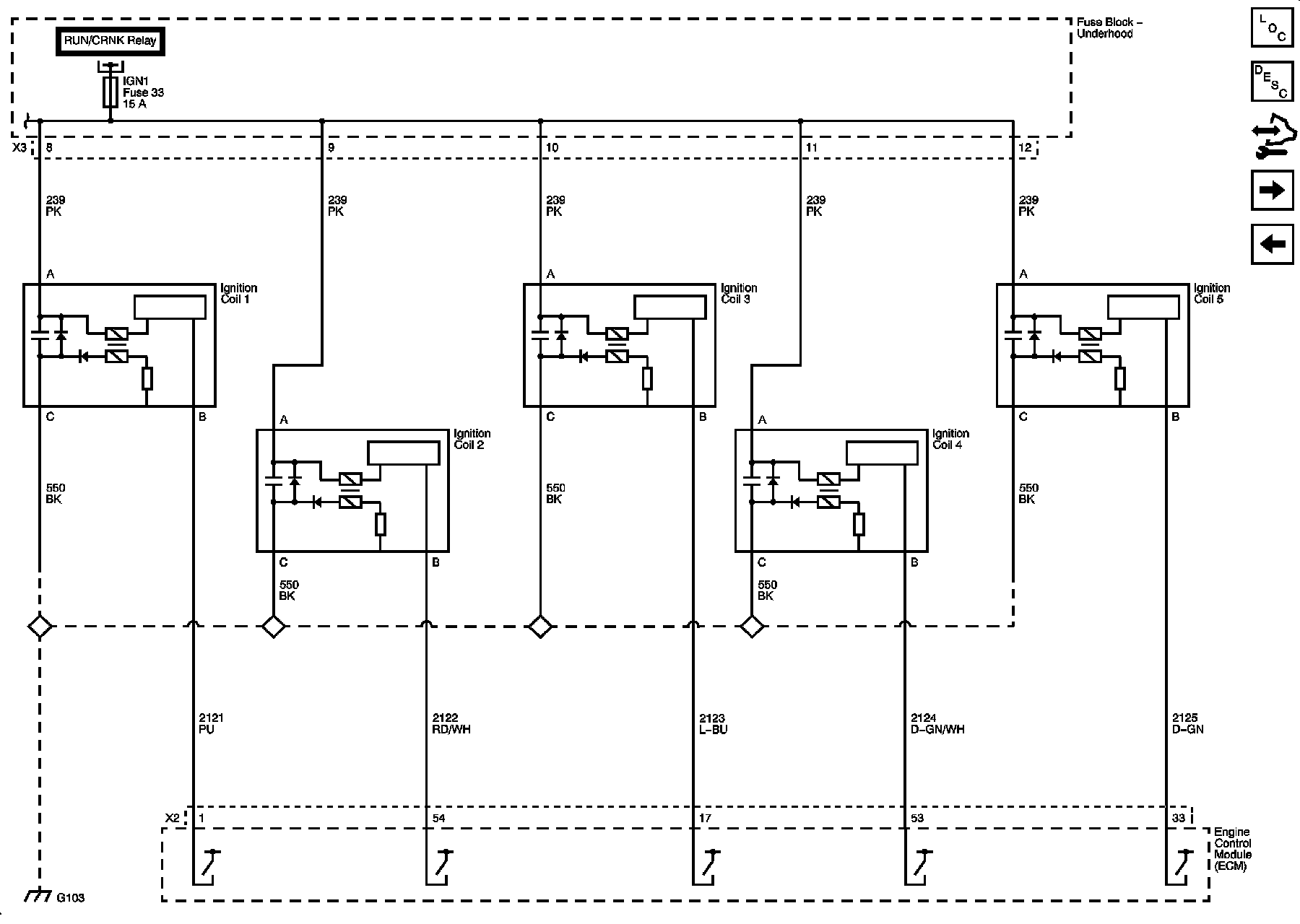

Engine Controls Schematic 7



Engine Controls Schematics

Ignition Controls - Ignition System Coils
