Ignition Coil: Diagrams


Ignition Coil 1 (LH8)






Ignition Coil 1 (LLR)






Ignition Coil 2 (LH8)






Ignition Coil 2 (LLR)

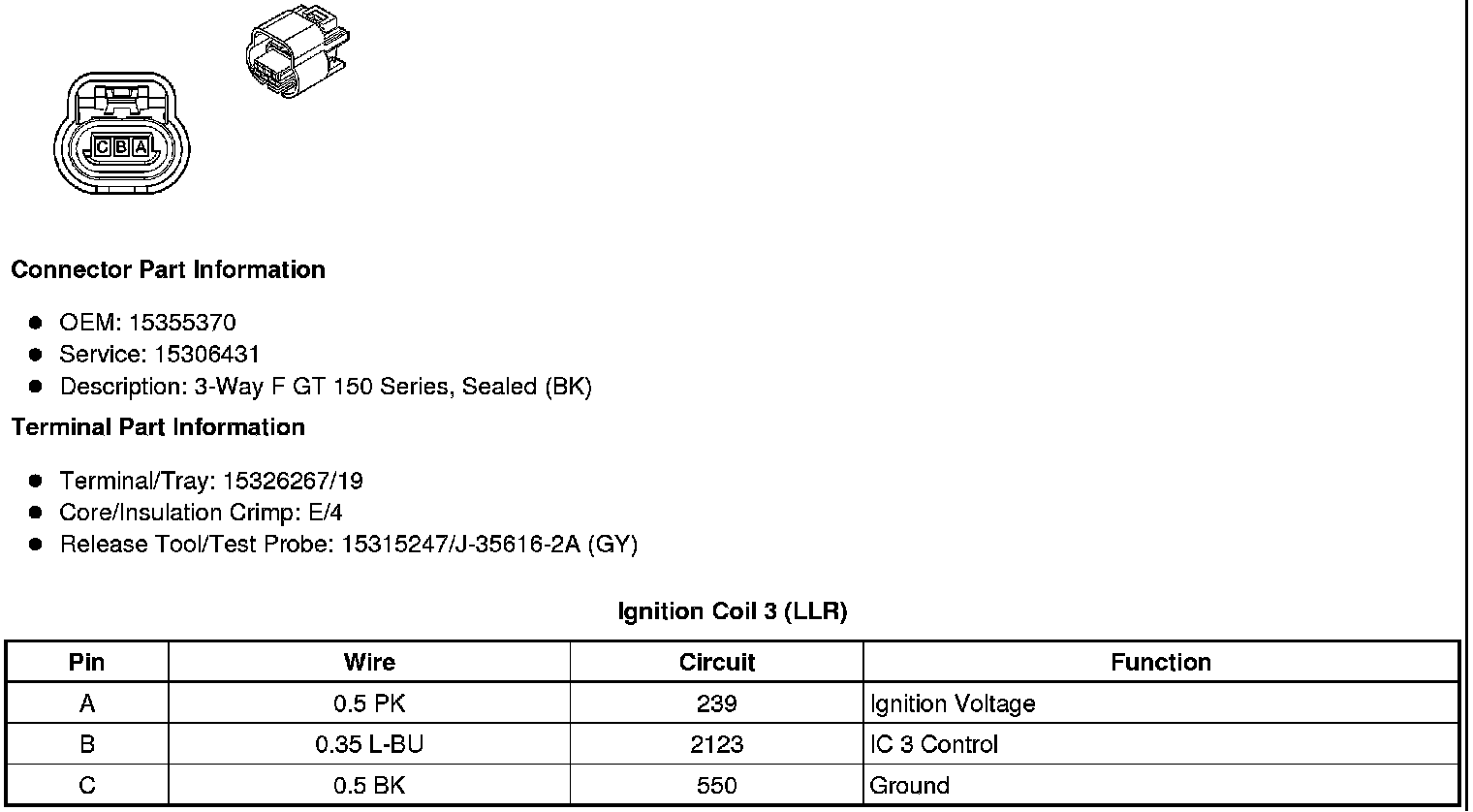

Ignition Coil 3 (LH8)






Ignition Coil 3 (LLR)

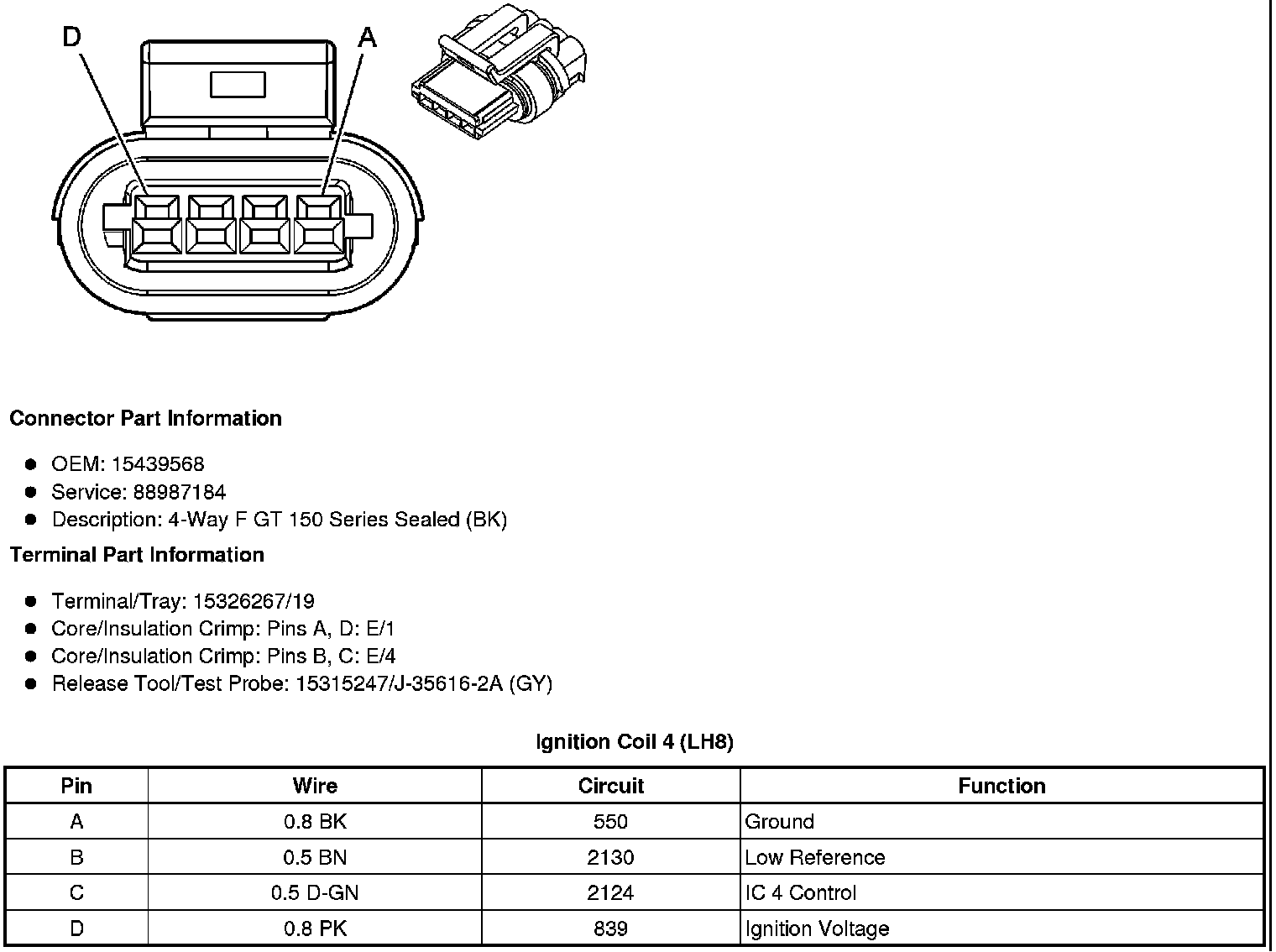

Ignition Coil 4 (LH8)

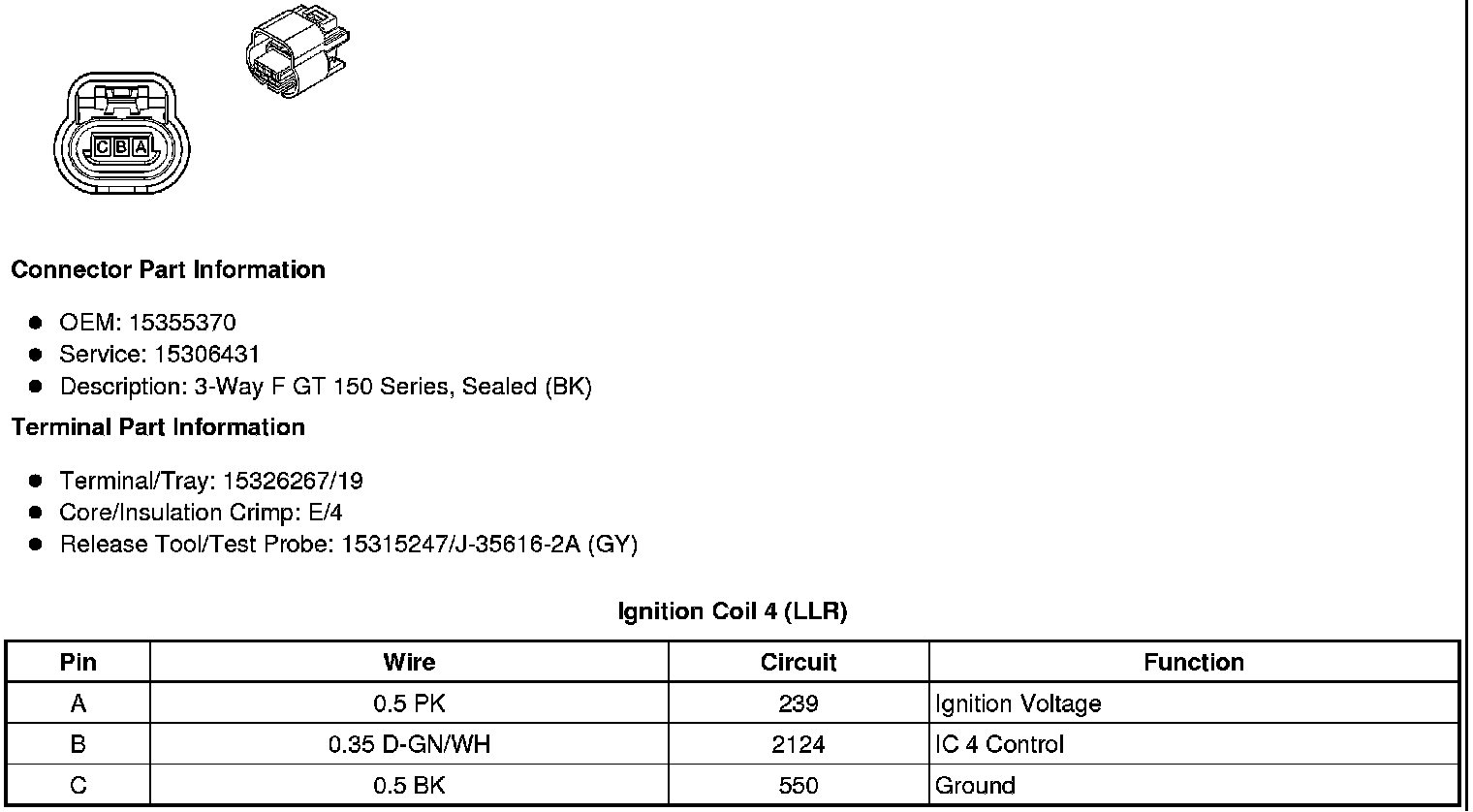

Ignition Coil 4 (LLR)






Ignition Coil 5 (LH8)






Ignition Coil 5 (LLR)

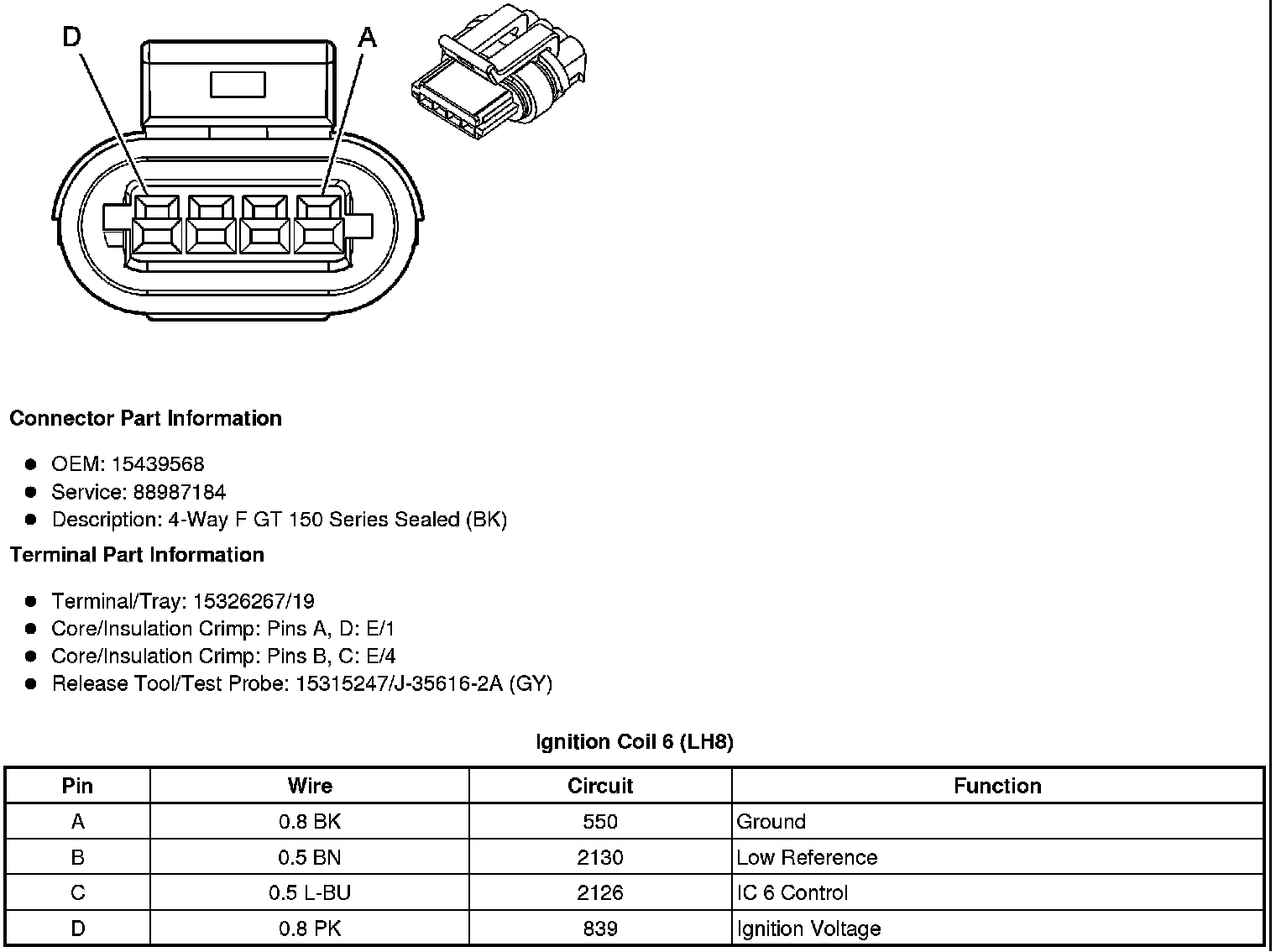

Ignition Coil 6 (LH8)

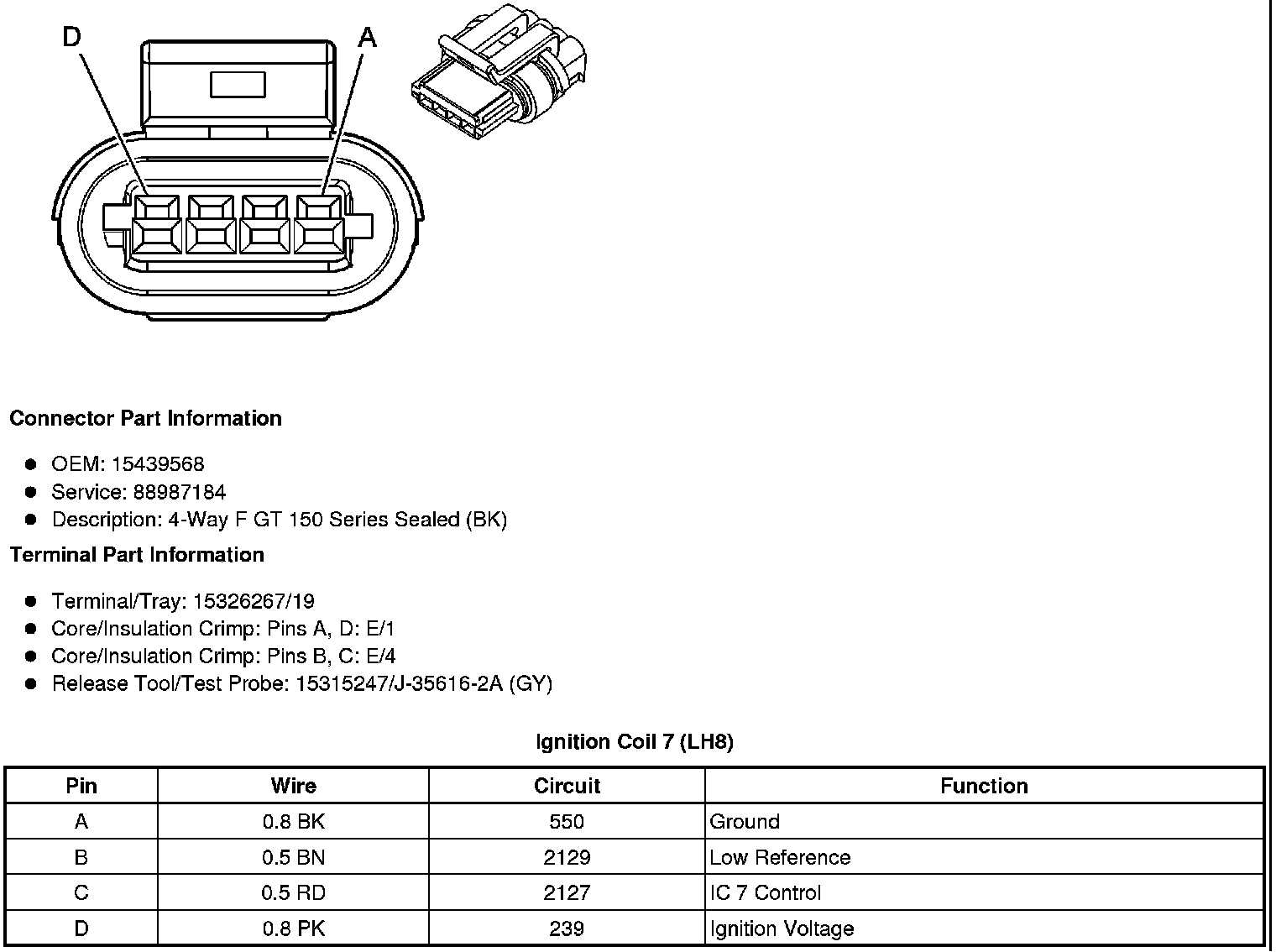

Ignition Coil 7 (LH8)






Ignition Coil 8 (LH8)
