Thread Repair Specifications

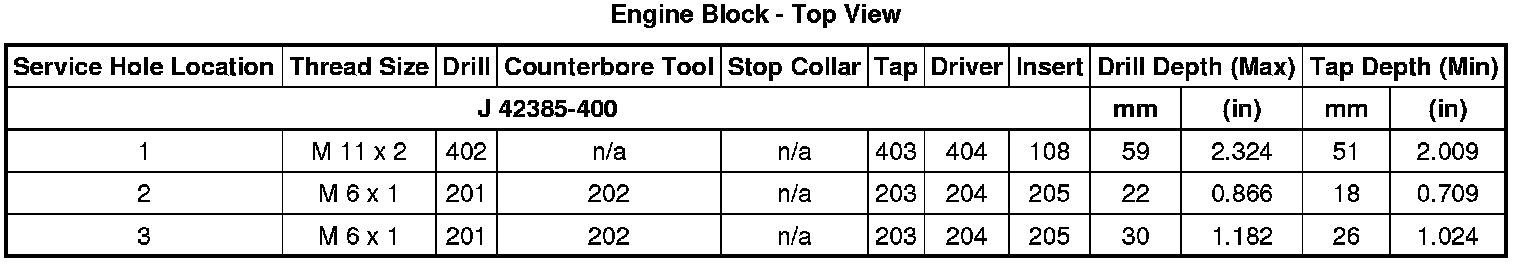

Engine Block - Top View:

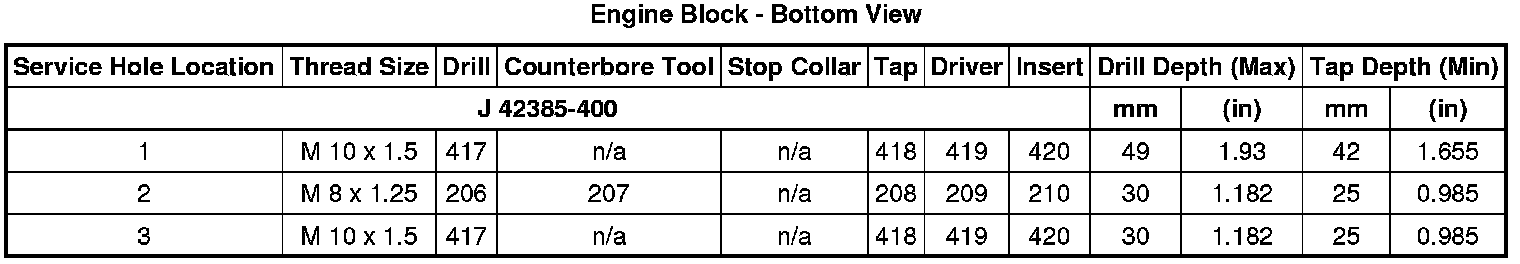

Engine Block - Bottom View:

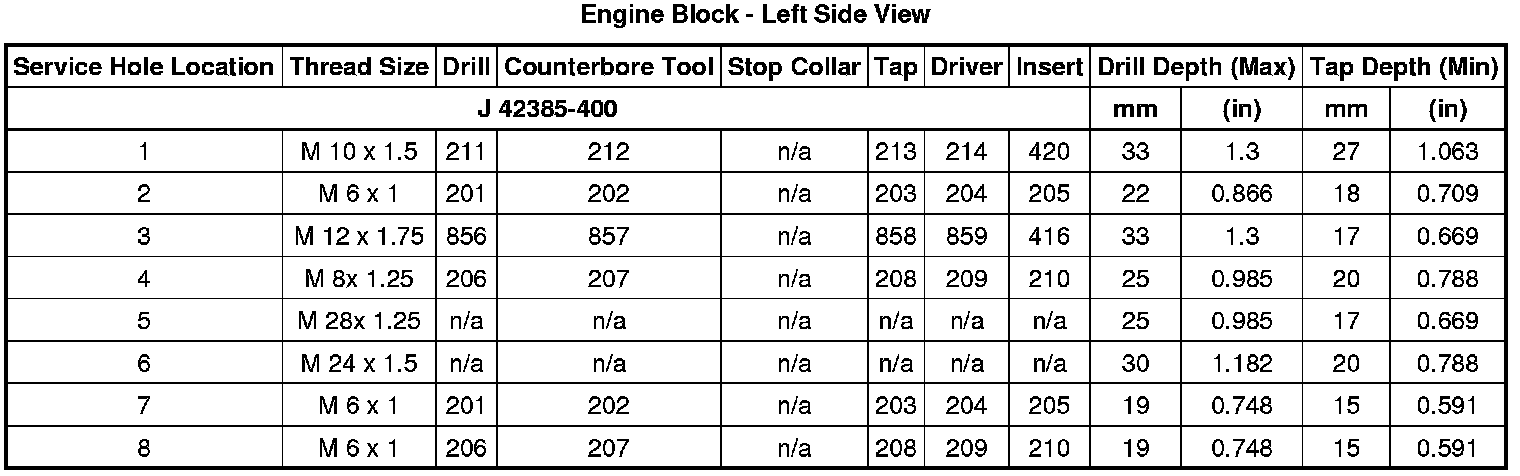

Engine Block - Left Side View:

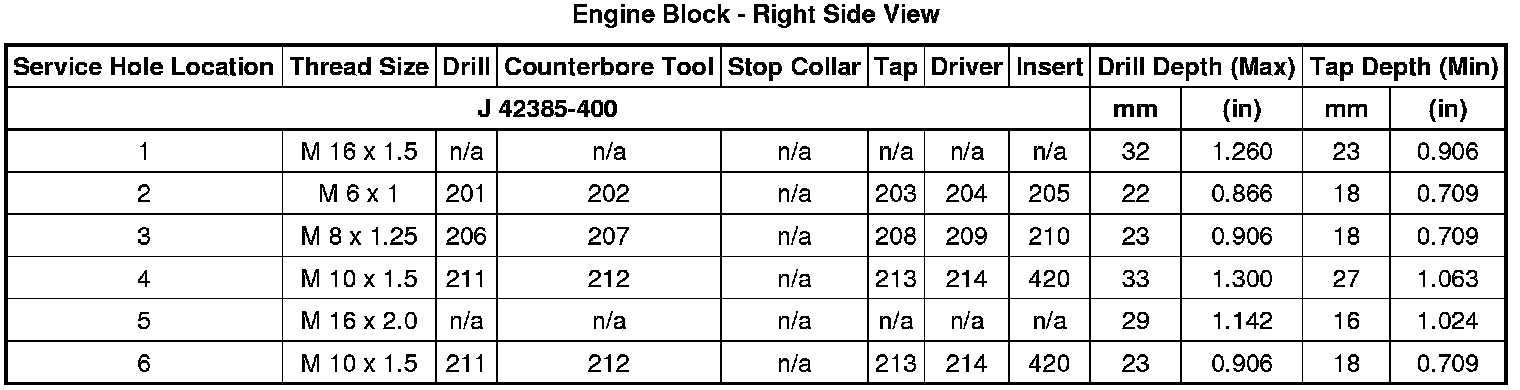

Engine Block - Right Side View:

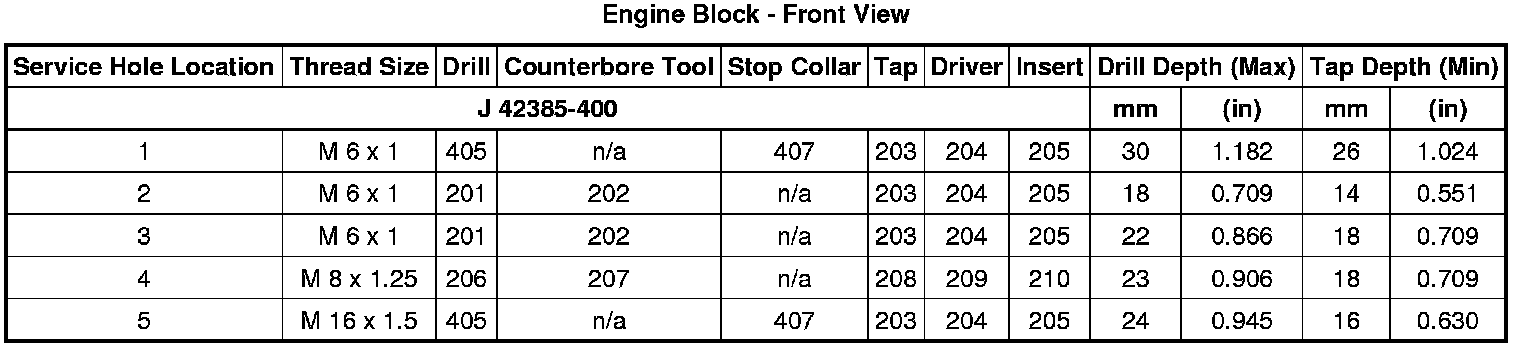

Engine Block - Front View:

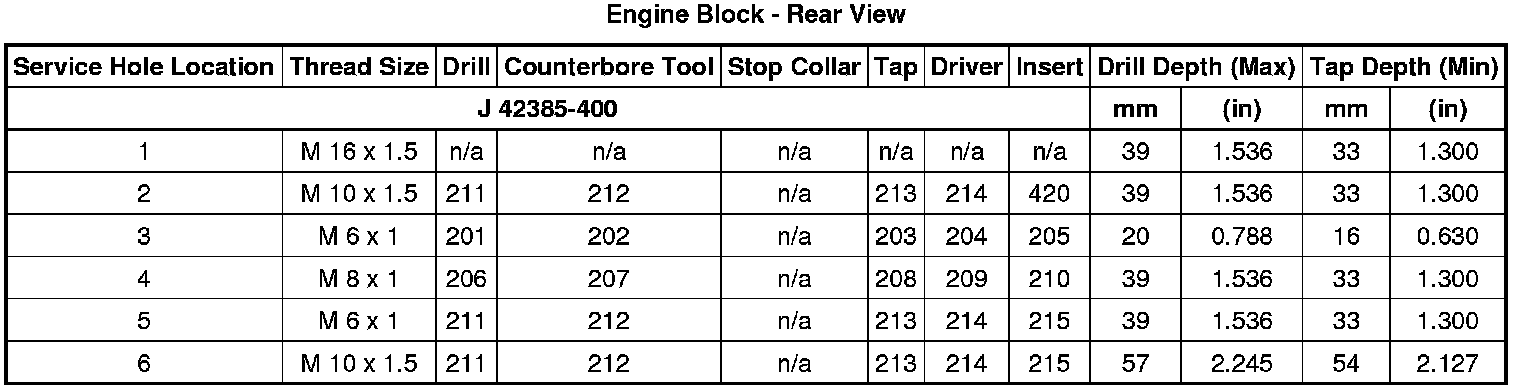

Engine Block - Rear View:

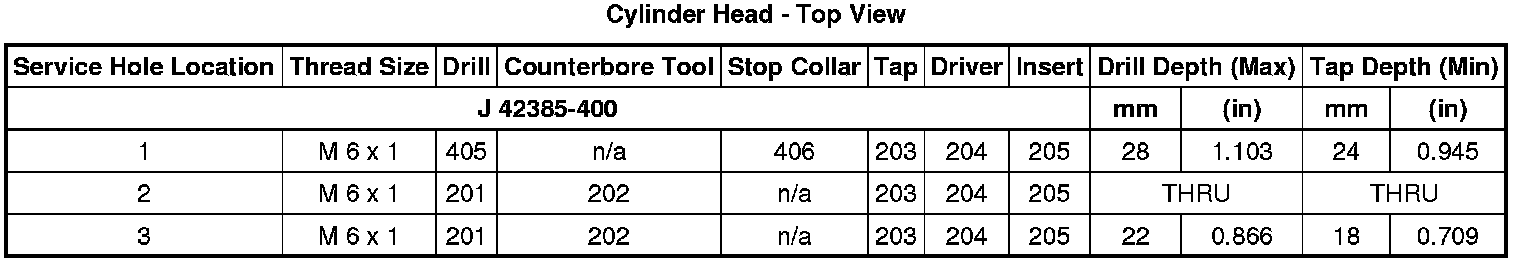

Cylinder Head - Top View:

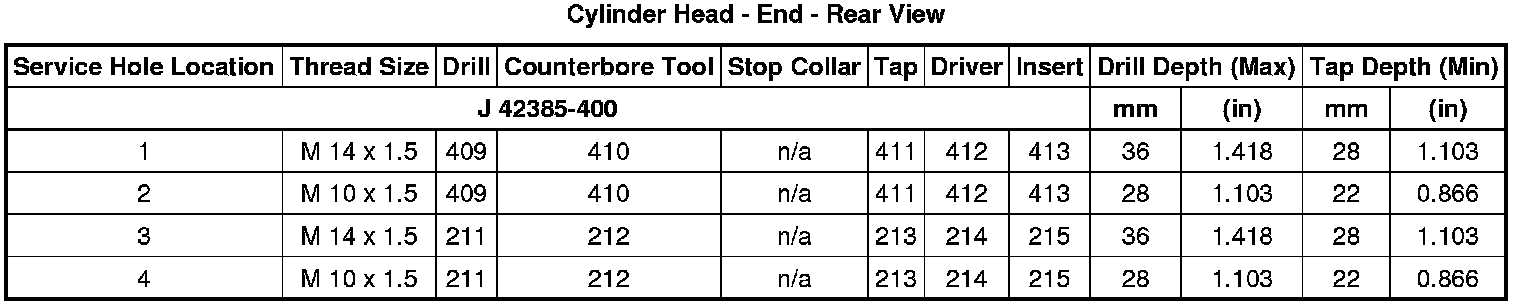

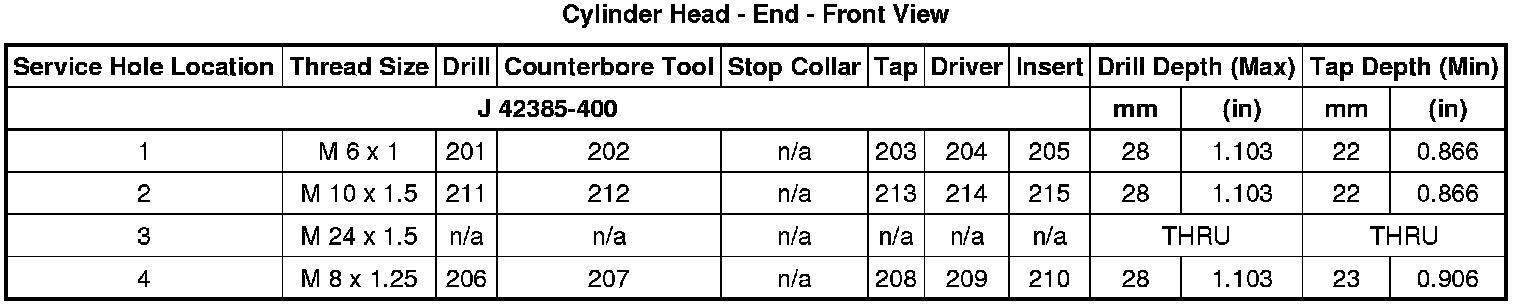

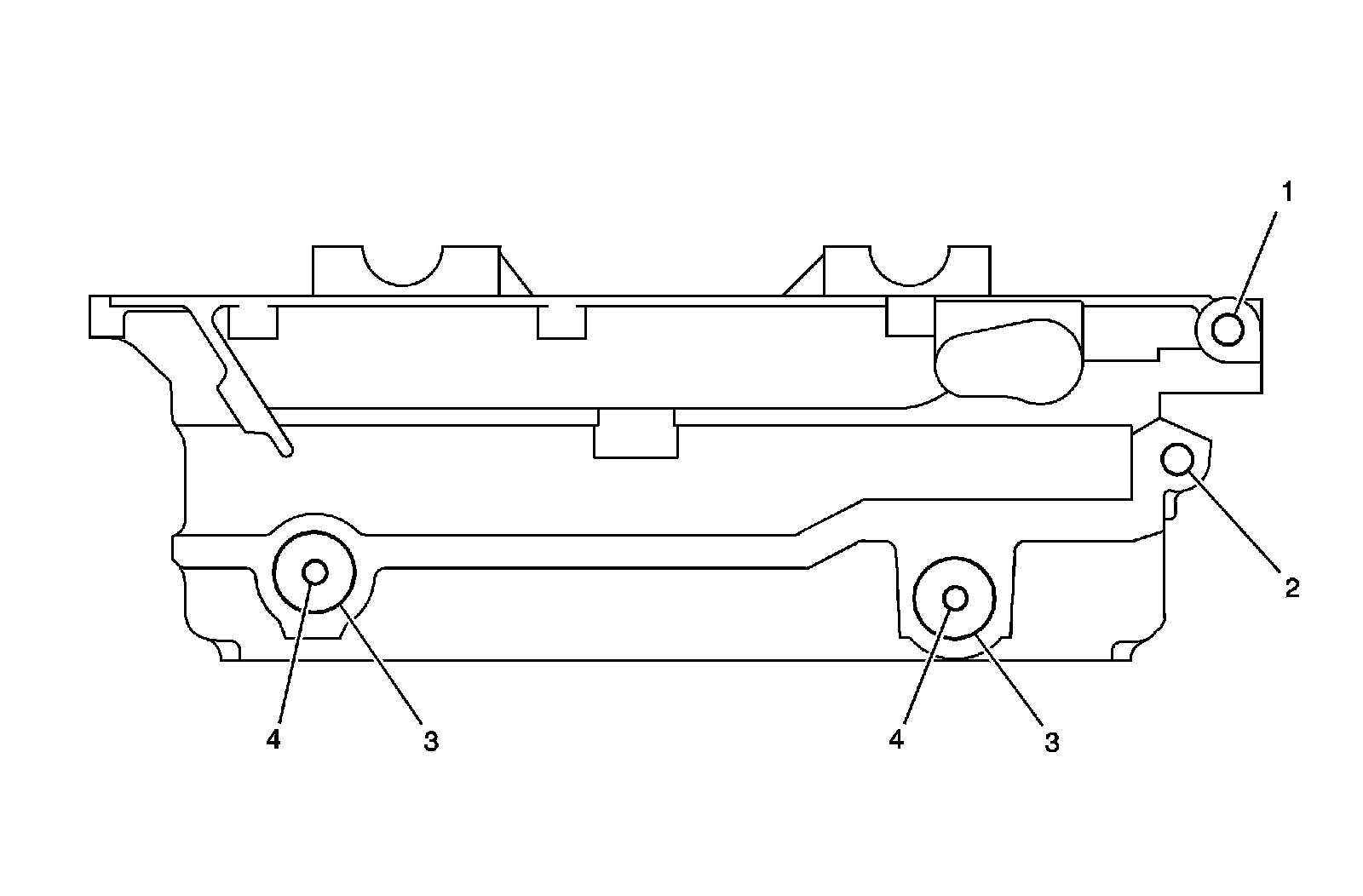

Cylinder Head - End - Rear View:

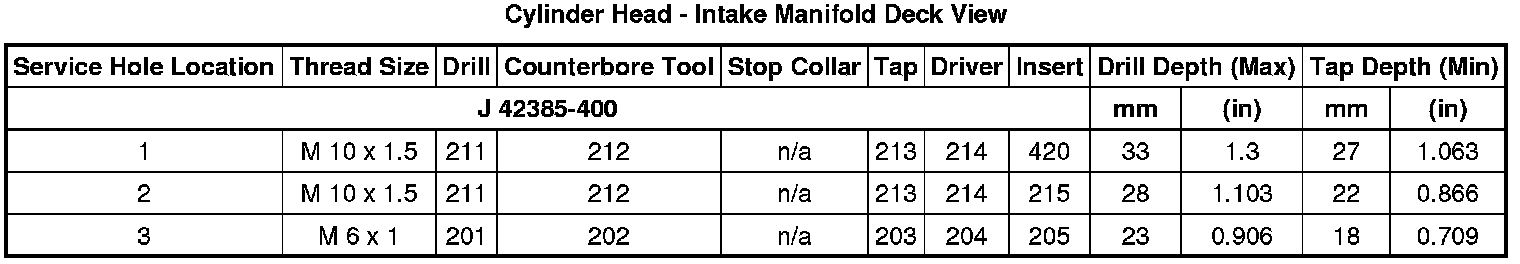

Cylinder Head - Intake Manifold Deck View:

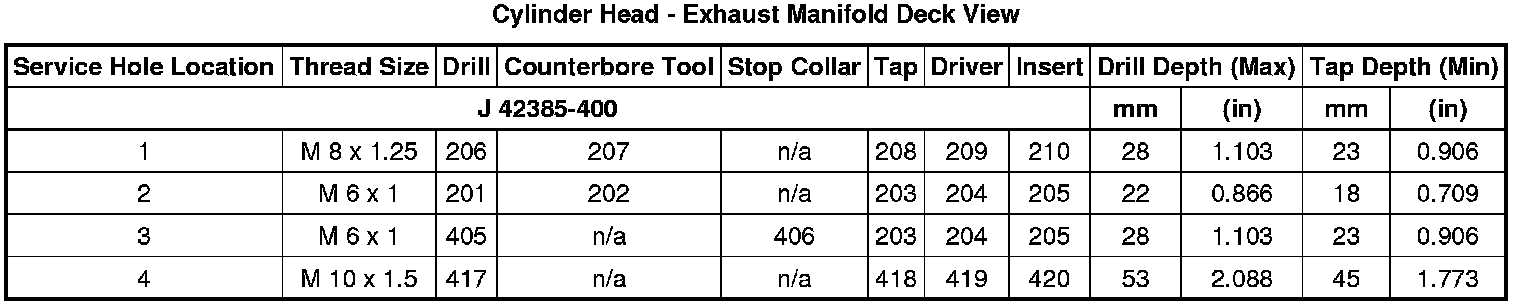

Cylinder Head - Exhaust Manifold Deck View:

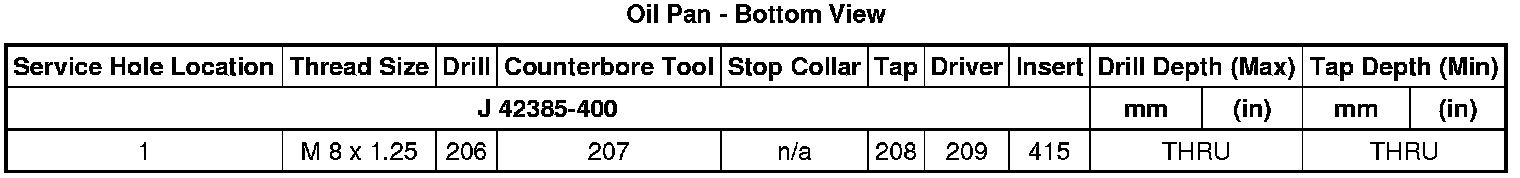

Oil Pan - Bottom View:

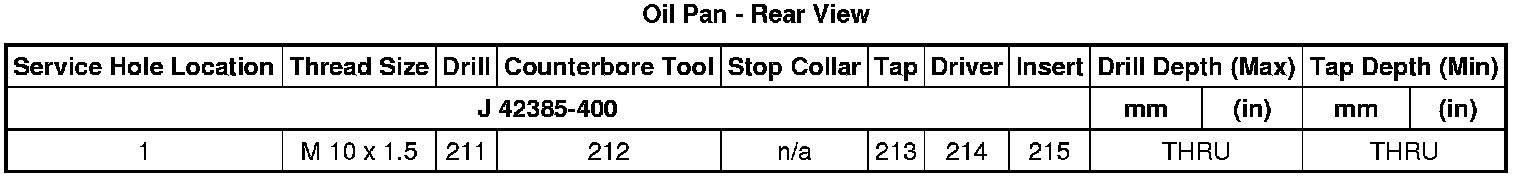

Oil Pan - Rear View:

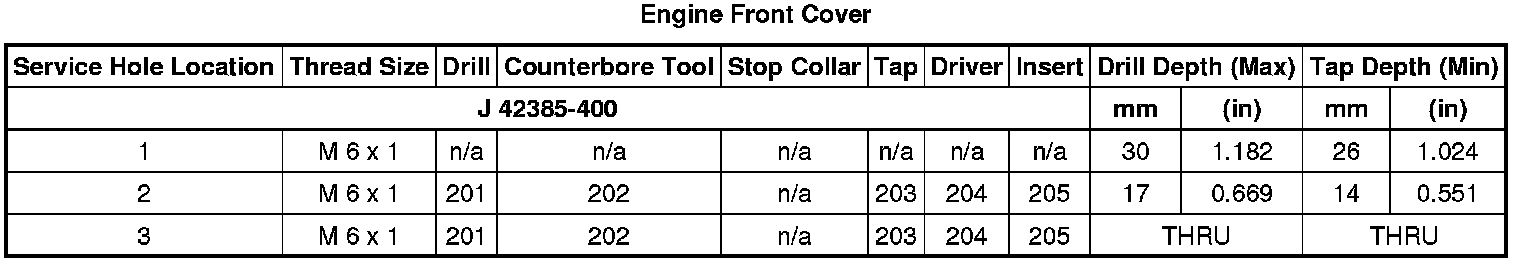

Engine Front Cover:

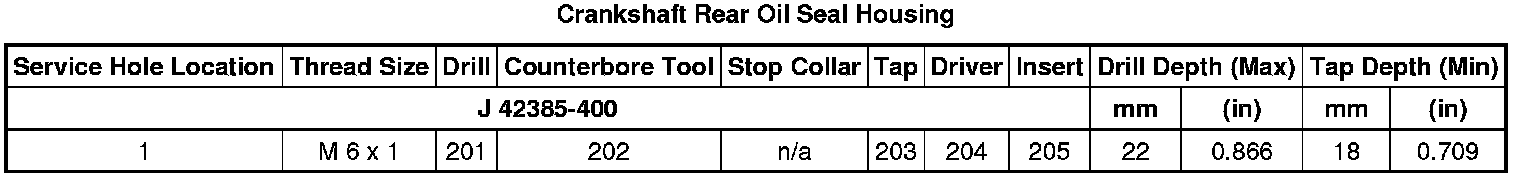

Crankshaft Rear Oil Seal Housing:
