Communications Control Module

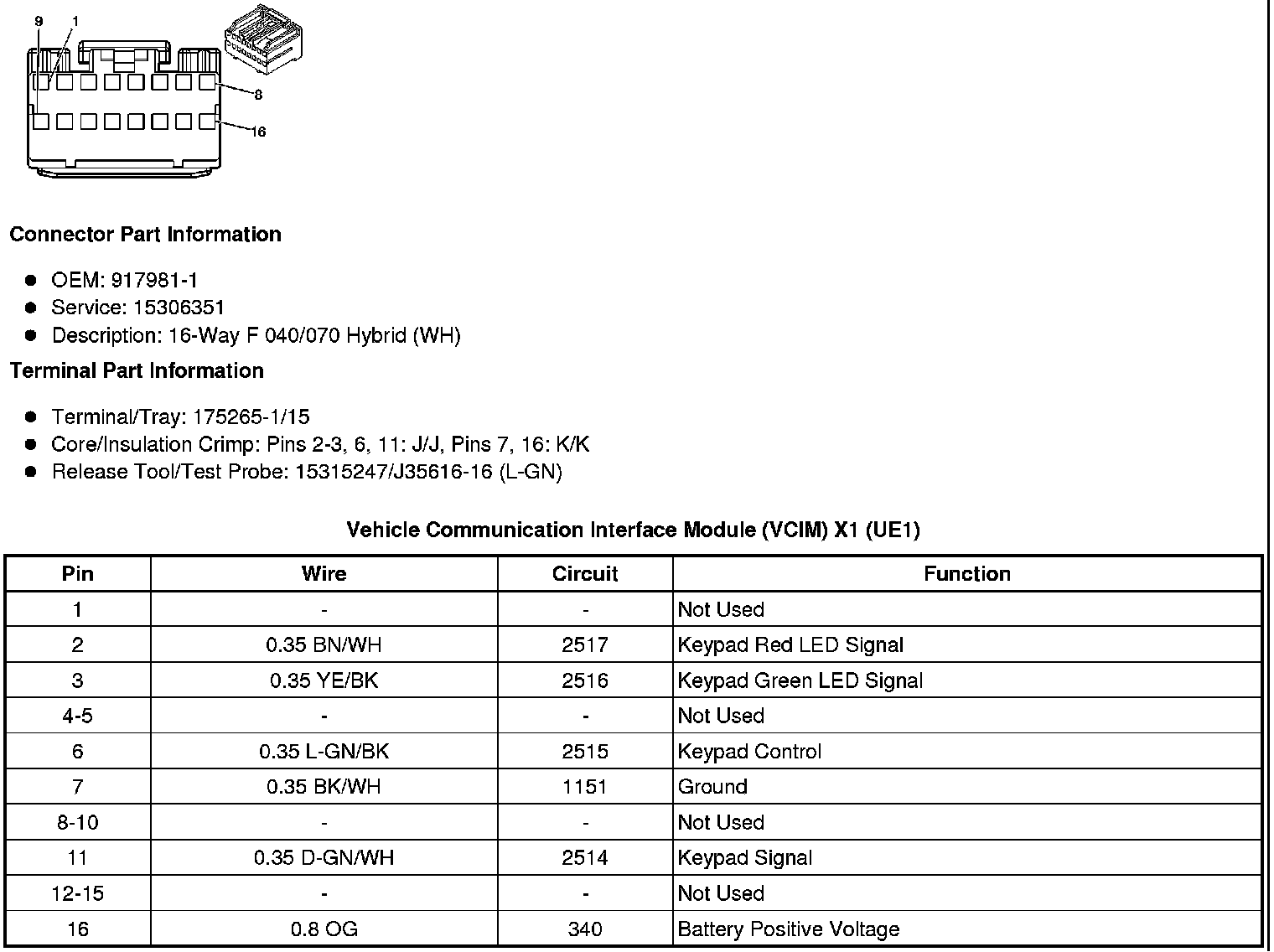

Vehicle Communication Interface Module (VCIM) X1 (UE1)

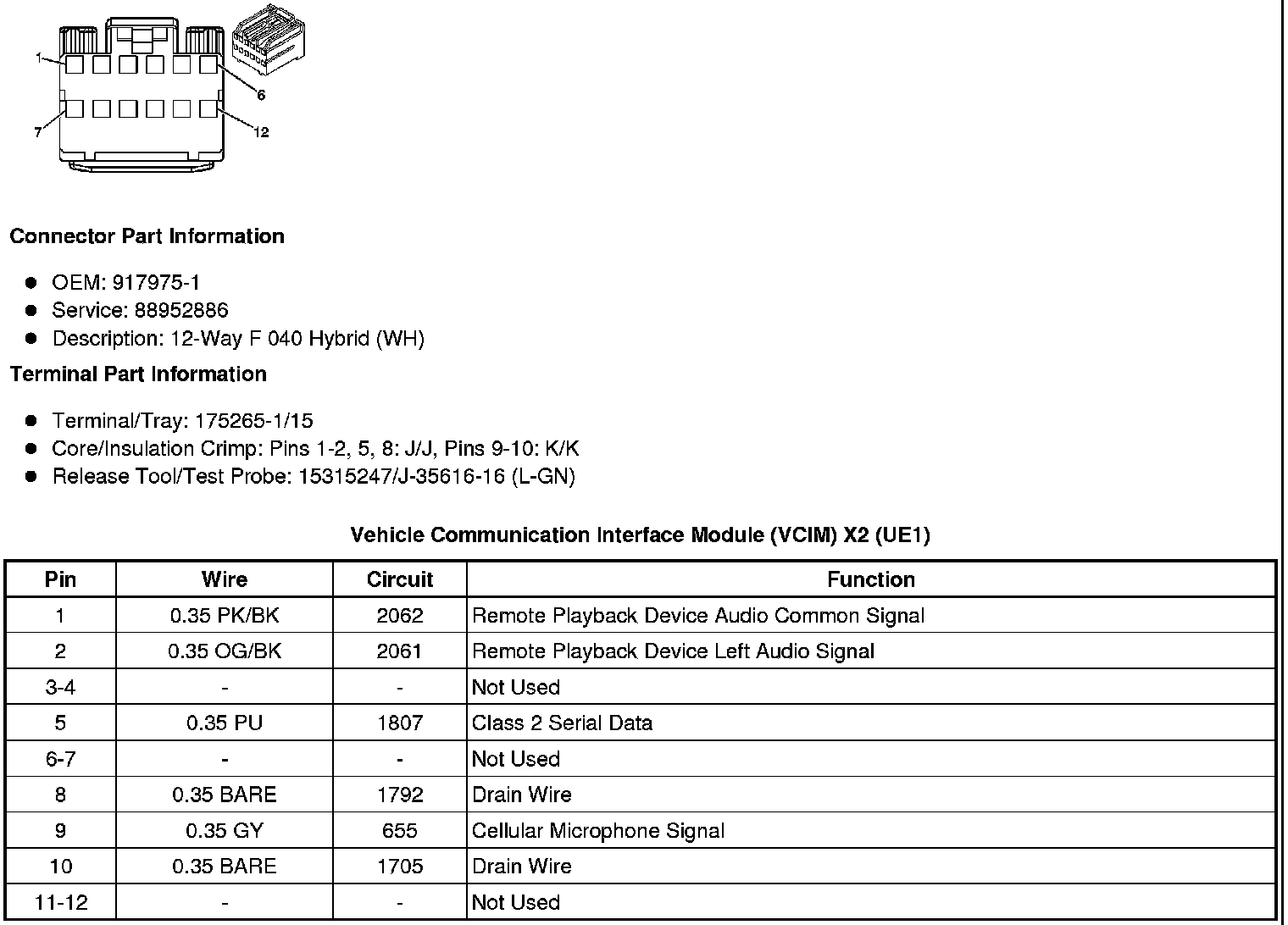

Vehicle Communication Interface Module (VCIM) X2 (UE1)
