Fog/Driving Lamp

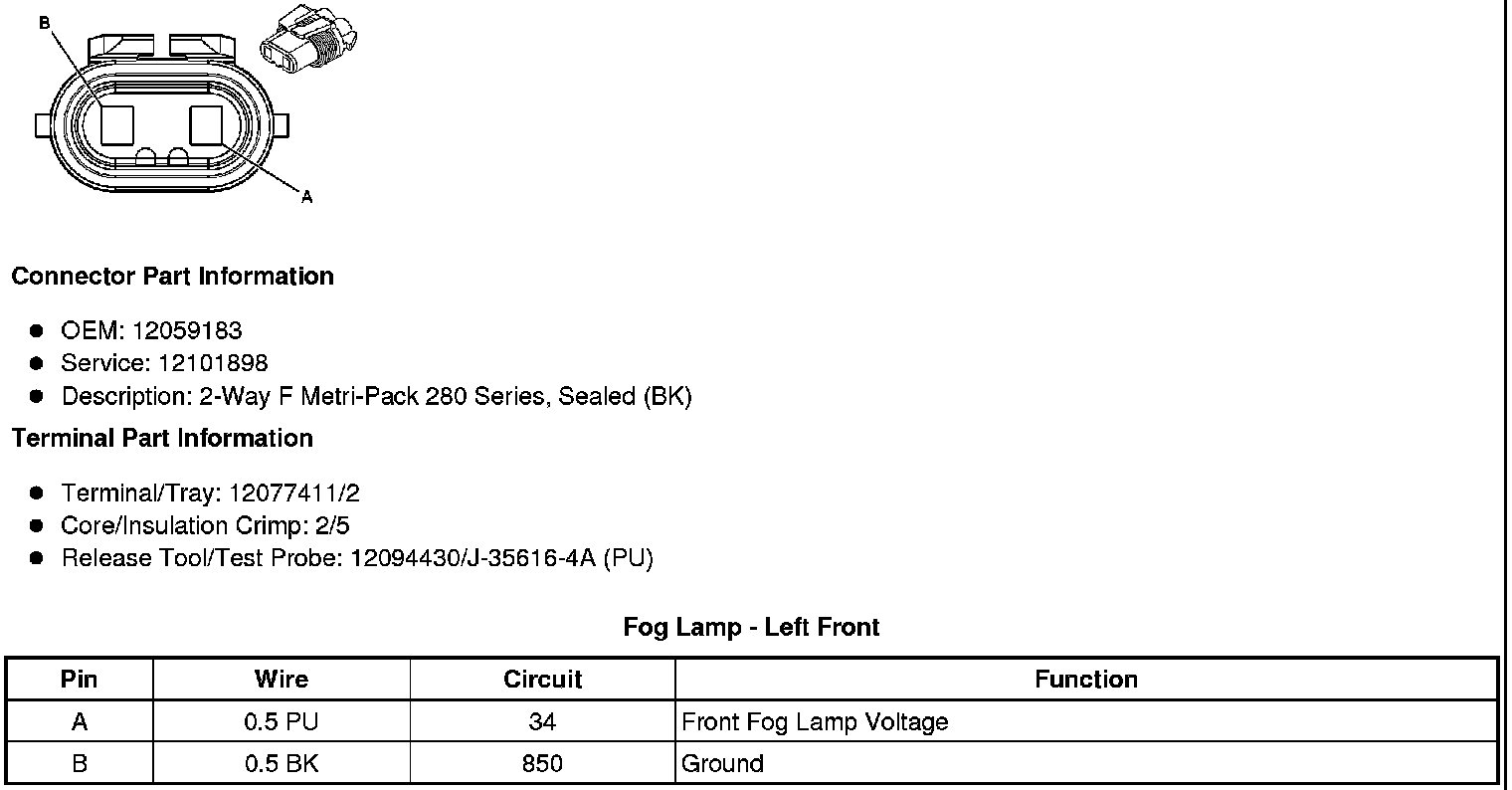

Fog Lamp - Left Front

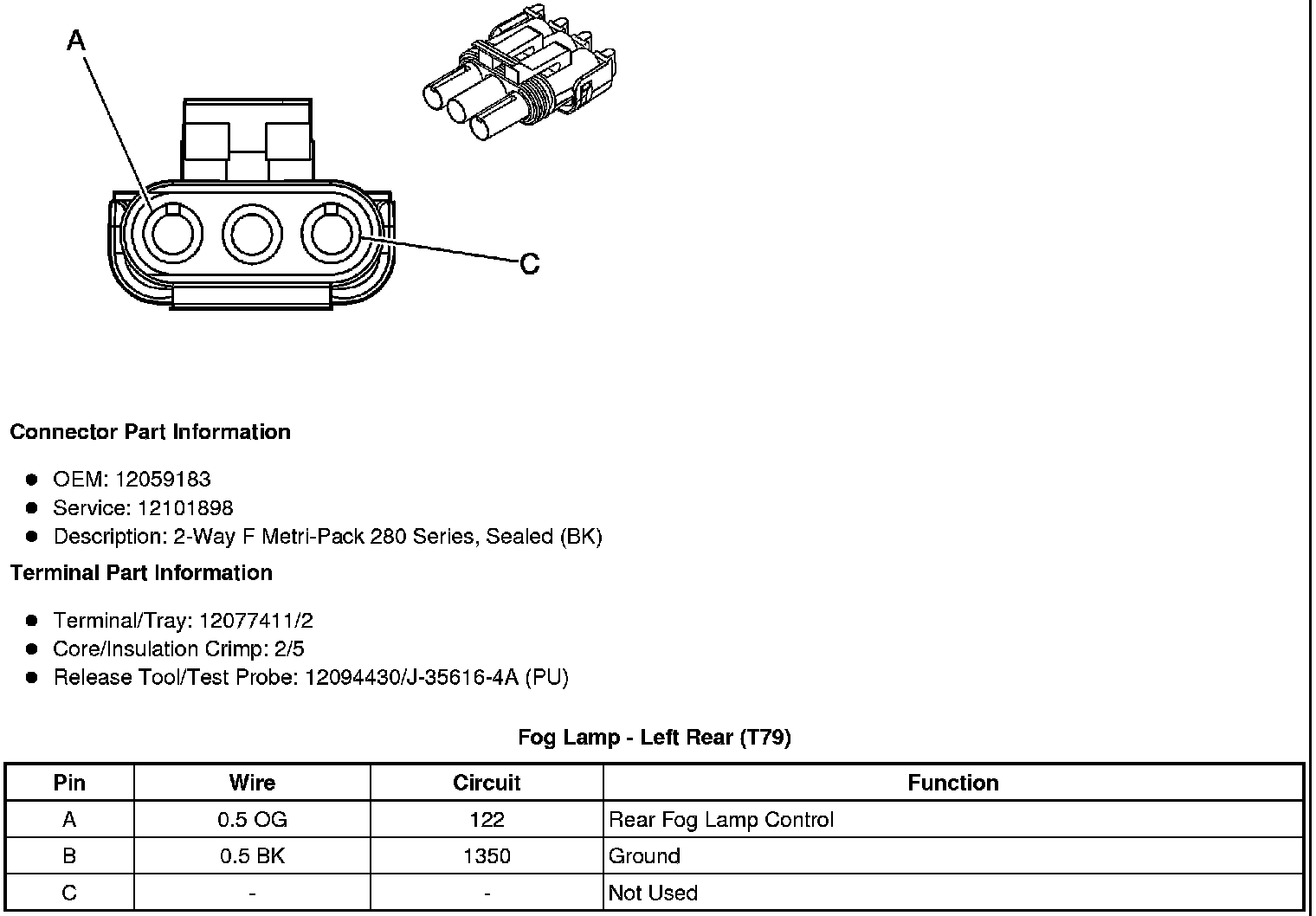

Fog Lamp - Left Rear (T79)

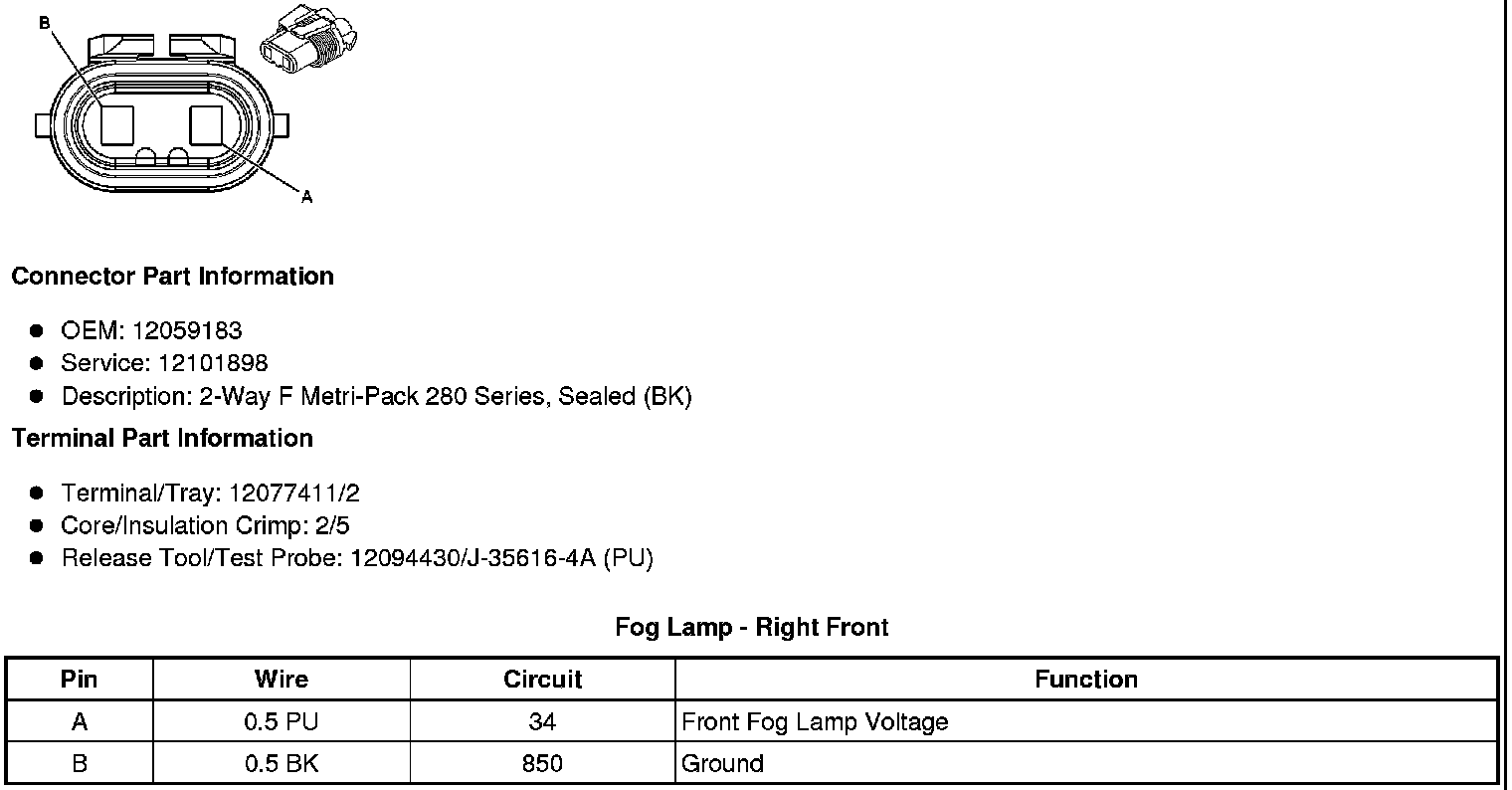

Fog Lamp - Right Front






Fog Lamp - Right Rear (T79)
