Mirrors

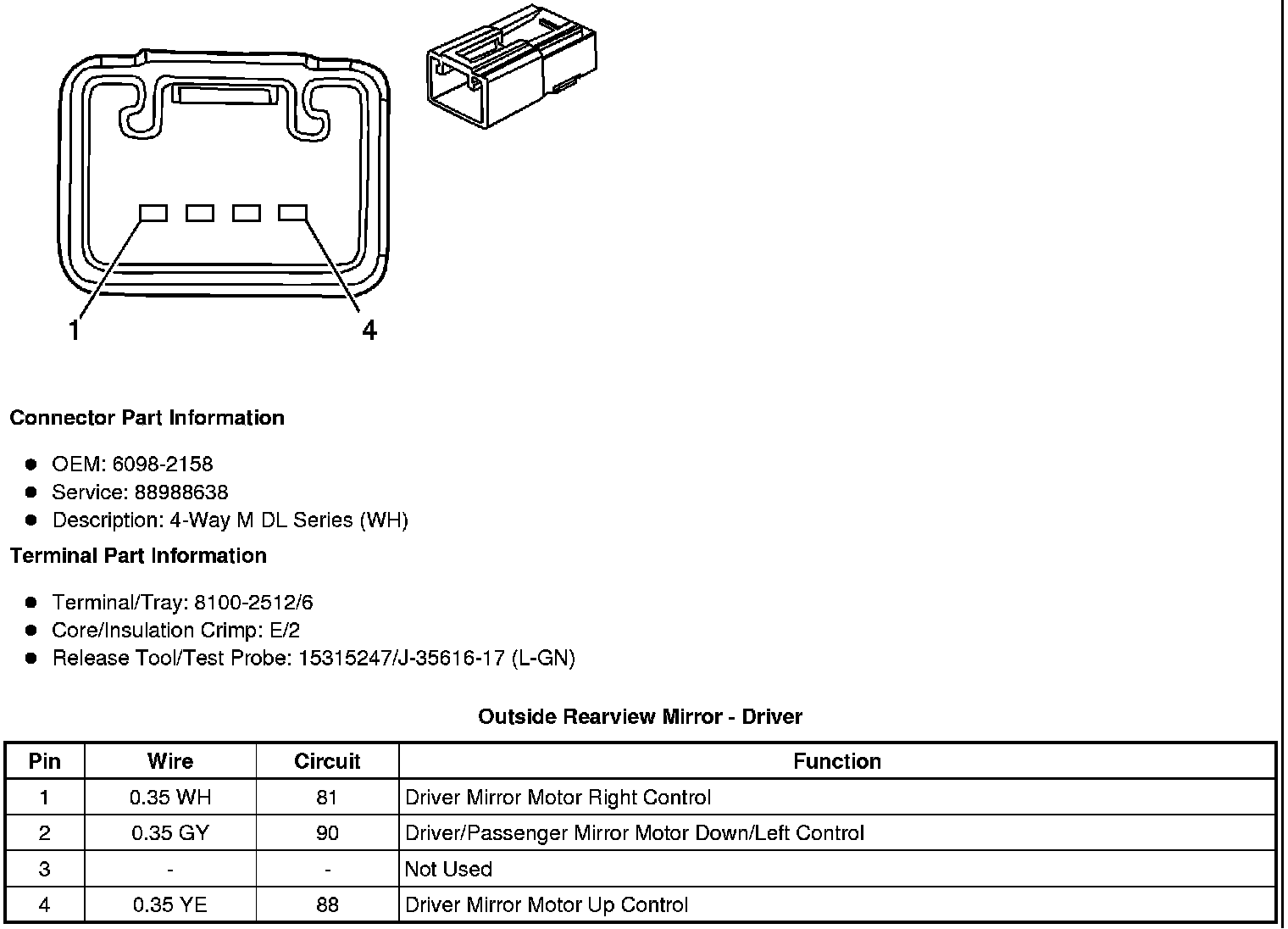

Outside Rearview Mirror - Driver

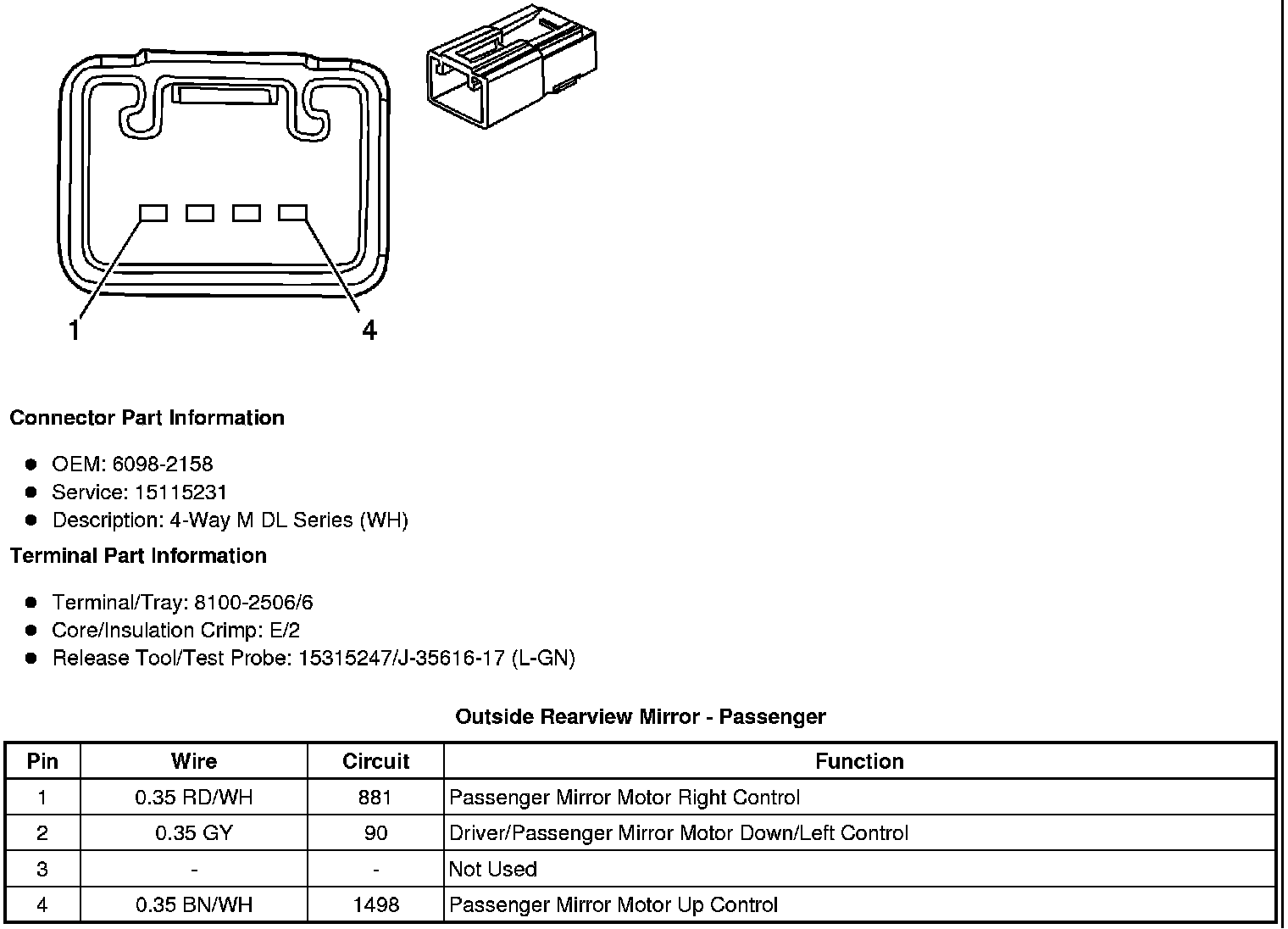

Outside Rearview Mirror - Passenger

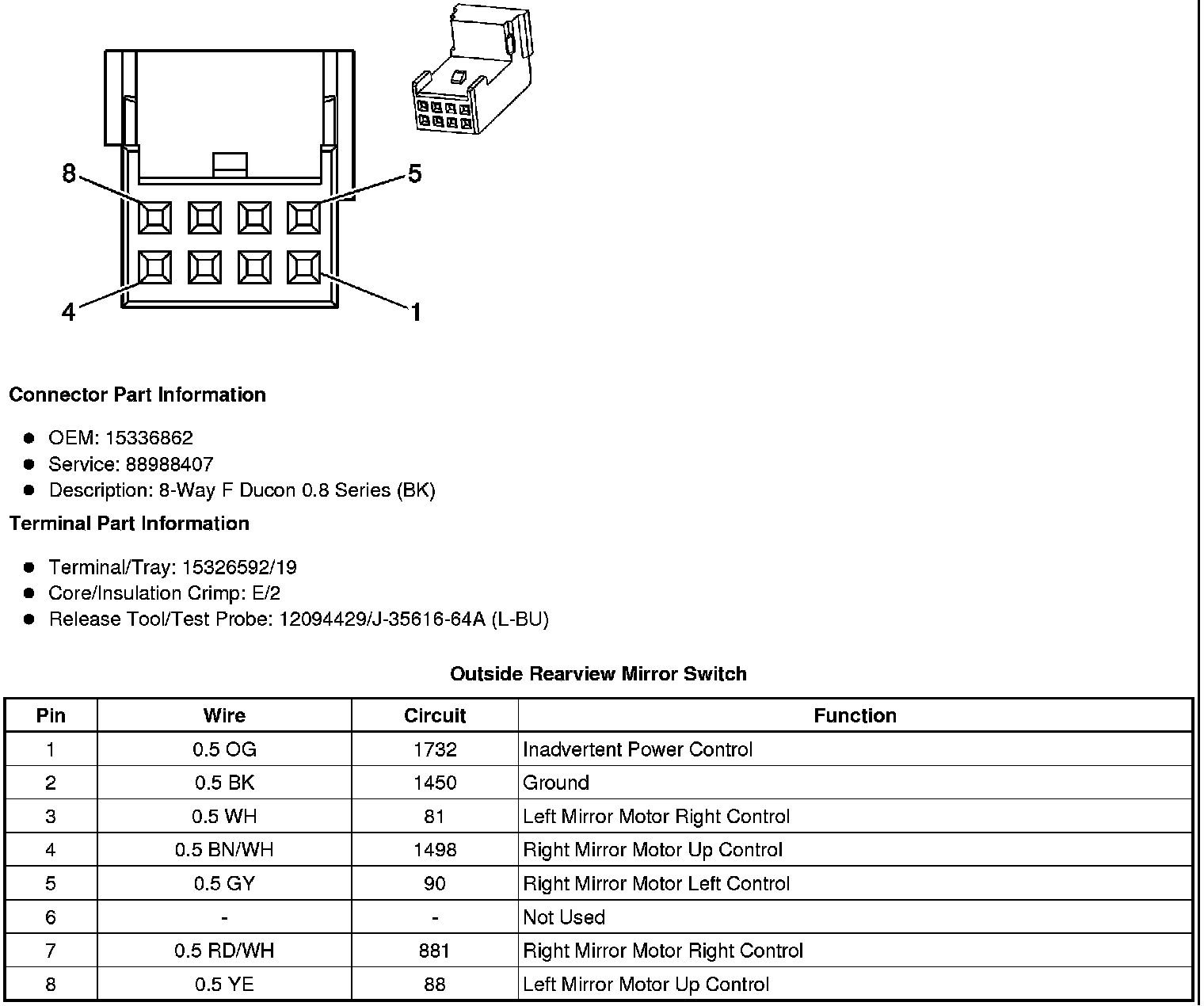

Outside Rearview Mirror Switch

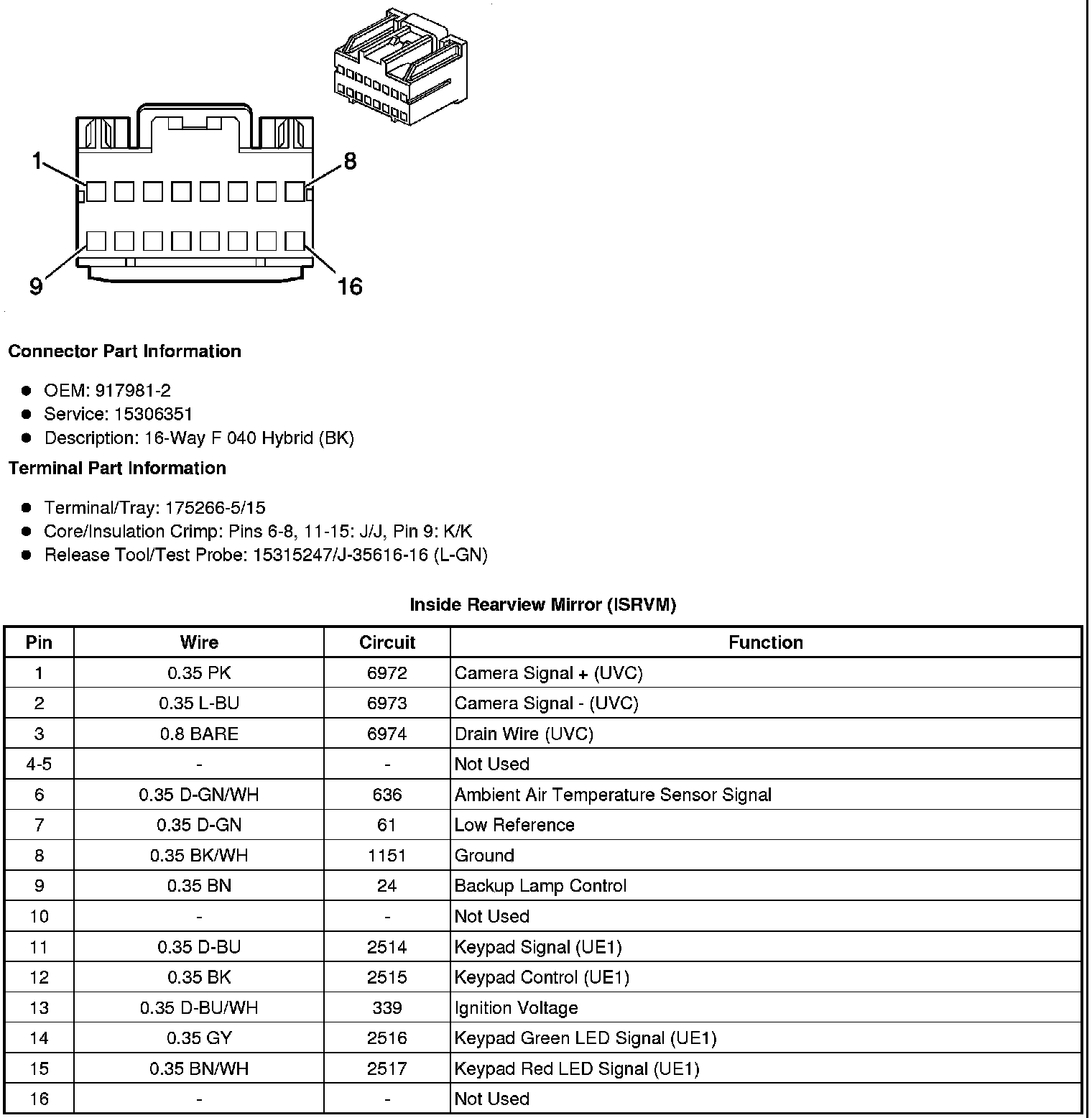

Inside Rearview Mirror (ISRVM)
